TE71RG-EWHDS (1979)
Toyota Corolla
Production
Aug 1979
-
May 1983
Engine
2T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7908- )DV,WG

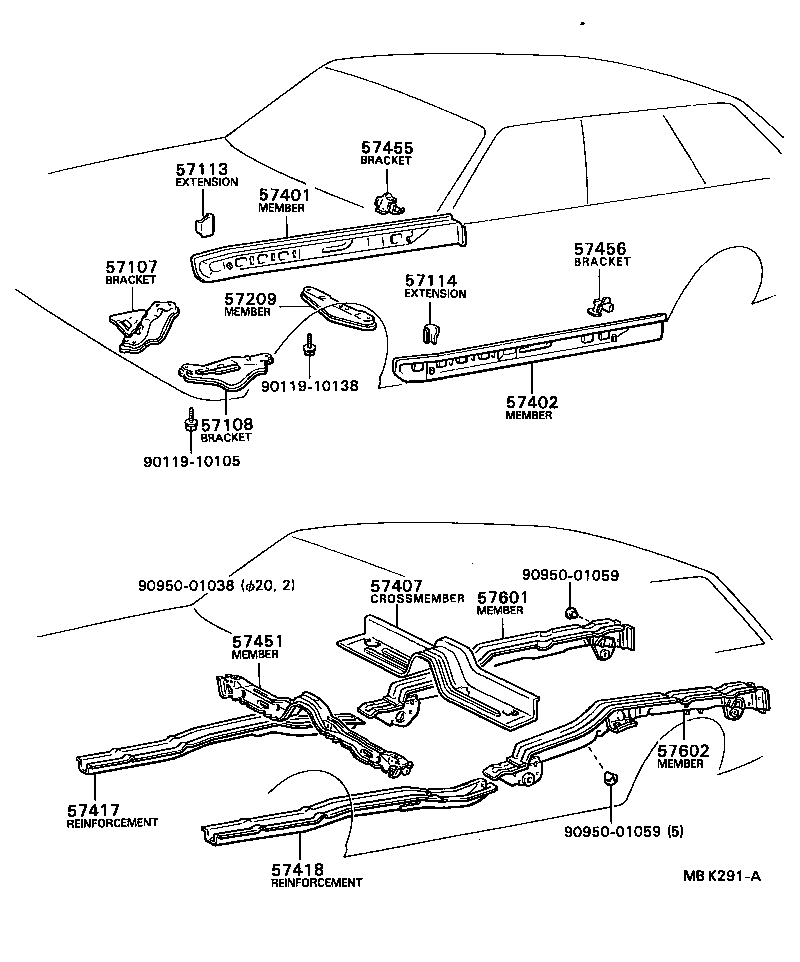

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57107 - BRACKET SUB-ASSY, STRUT BAR, RH | ||||
| 57107-12030 |
KE70,TE7# |
1 | ||
| 57107-12020 |
TE72;TE71..DX,STD |
1 | ||
| 57108 - BRACKET SUB-ASSY, STRUT BAR, LH | ||||
| 57108-12020 |
TE72;TE71..DX,STD |
1 | ||
| 57108-12030 |
KE70,TE7# |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-12010 |
KE70,TE7# |
1 | ||
| 57113-12020 |
KE70,TE7# |
1 | ||
| 57113-12040 |
KE70,TE71..EUR,GEN,SAA |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-12010 |
KE70,TE7# |
1 | ||
| 57114-12020 |
KE70,TE7# |
1 | ||
| 57114-12040 |
KE70,TE71..EUR,GEN,SAA |
1 | ||
| 57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT | ||||
| 57209-12110 |
TE7#..3FC..(GEN,SA) |
1 | ||
| 57209-12150 |
TE7#..3FC..(GEN,SA) |
1 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-12901 |
KE70,TE71..4D..GEN |
1 | ||
| 57401-12090 |
KE70,TE7#..4D..(GEN,SA) |
1 | ||
| 57401-12120 |
KE70,TE71..4D..(EUR,GEN) GALVANIZED IRON SHEET |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-12901 |
KE70,TE71..4D..GEN |
1 | ||
| 57402-12090 |
KE70,TE7#..4D..(GEN,SA) |
1 | ||
| 57402-12120 |
KE70,TE71..4D..(EUR,GEN) GALVANIZED IRON SHEET |
1 | ||
| 57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1 | ||||
| 57407-13050 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57505-12020 |
KE70,TE7# |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57506-12040 |
KE70,TE7# |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57408-12020 |
KE70,TE7#..EUR,GEN,SAA |
1 | ||
| 57451-12050 |
KE70,TE7# |
1 | ||
| 57455 - BRACKET, FRONT SEAT MOUNTING, OUTSIDE RH | ||||
| 57455-12020 |
AE71,CE70,KE70,TE7# |
1 | ||
| 57456 - BRACKET, FRONT SEAT MOUNTING, OUTSIDE LH | ||||
| 57456-12020 |
AE71,CE70,KE70,TE7# |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-13090 |
KE70,TE71..DV,WG |
1 | ||
| 57601-13090 |
KE70,TE71..(DV,WG)..(EUR,GEN,SA) |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-13060 |
KE70,TE71..DV,WG |
1 | ||
| Common parts | ||||
| 90119-10105 | ||||
| 90119-10138 | ||||
| 90950-01038 | ||||
| 90950-01059 | ||||
