TE71RG-EWHDS (1979)

Toyota Corolla

Production Aug 1979 - May 1983
Engine 2T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8401)TE7#..ATM

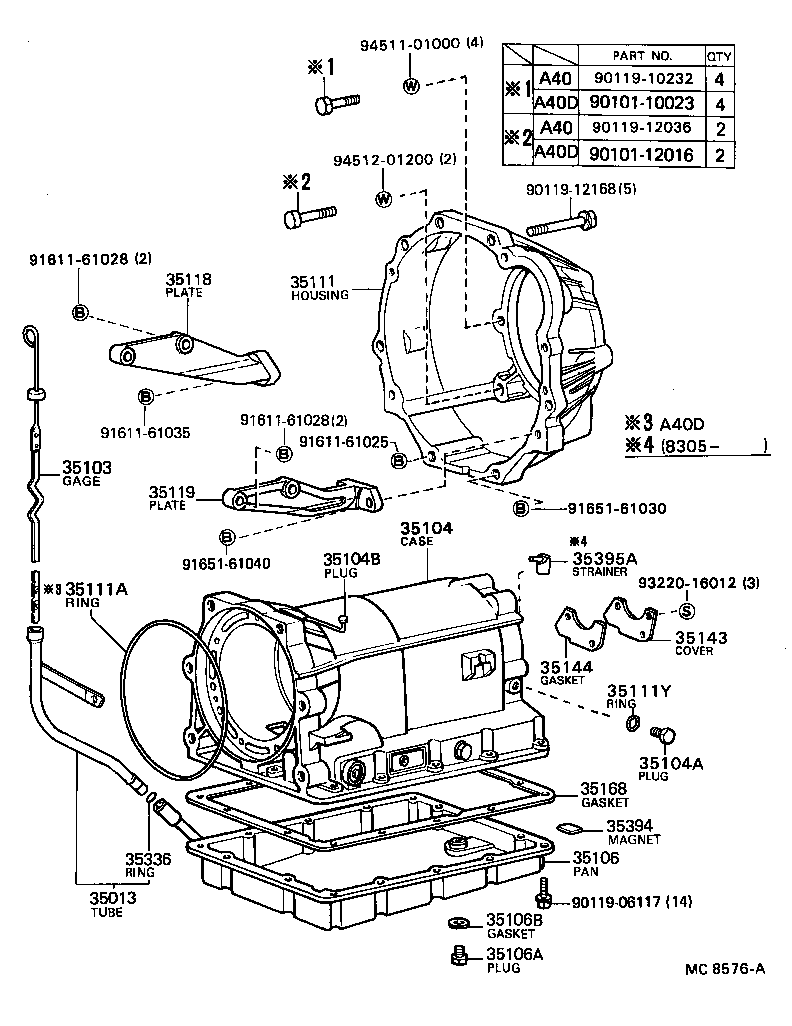

Click highlighted areas on diagram

diagram 35013 35103 35104 35104A 35104B 35106 35106A 35106B 35111 35111A 35111Y 35118 35119 35143 35144 35168 35336 35394 35395A 9010110023 9010112016 9011906117 9011910232 9011912036 9011912168 9161161025 9161161028 9161161028 9161161035 9165161030 9165161040 9322016012 9451101000 9451201200
Part # Description Qty Price
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-12100

TE7#..RHD..3FC

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-20040

TE7#..3FC

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-22023

TE7#..3FC

 1
35104-22024

TE7#..3FC

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08079

TE7#..3FC

 2
90341-08001

TE7#..3FC

 2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03061

TE7#..3FC

 1
90930-03069

KE70,TE71..3FC..(EUR,GEN)

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-22020

TE7#..3FC

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10003

TE7#..3FC

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010

TE7#..3FC

 1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-12020

TE7#..3FC

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

TE7#..3FC

 2
35118 - PLATE, STIFENER, RH (ATM)
33118-12020

TE7#..ATM

 1
35119 - PLATE, STIFENER, LH (ATM)
33119-12011

TE7#..ATM

 1
35143 - COVER, TRANSMISSION CASE, REAR
35143-22010

TE7#..3FC

 1
35144 - GASKET, TRANSMISSION CASE REAR COVER
35144-22010

TE7#..3FC

 1
35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN
35168-22010

TE7#..3FC

 1
35168-22011

TE7#..3FC

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

TE7#..3FC

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

KE70,TE7#..ATM..(EUR,GEN,SA)

 1
Common parts
90101-10023
90101-12016
90119-06117
90119-10232
90119-12036
90119-12168
91611-61025
91611-61028
91611-61035
91651-61030
91651-61040
93220-16012
94511-01000
94512-01200
