TE71RG-EWHDS (1979)

Toyota Corolla

Production Aug 1979 - May 1983
Engine 2T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8108)3FC ; (8108- )3FC

Click highlighted areas on diagram

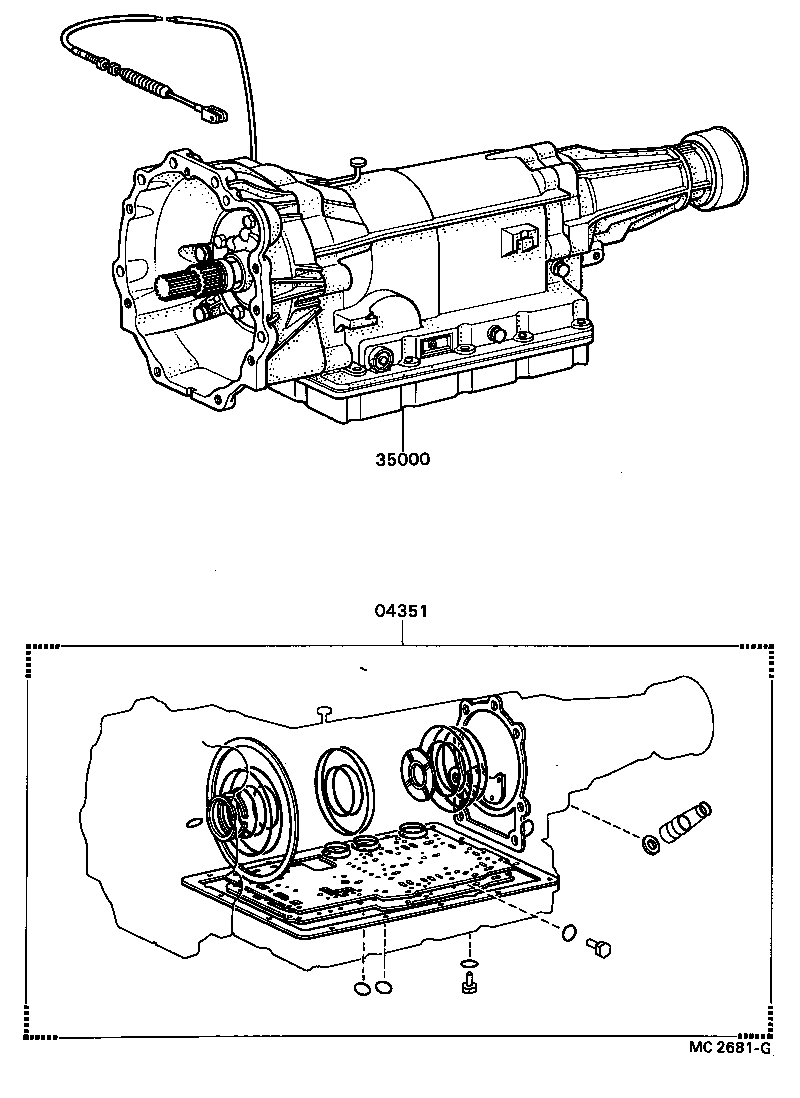

diagram 04351 35000
Part # Description Qty Price
04351 - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
04351-22021

TE7#..3FC

 1
04351-22020

TE71..3FC

 1
04351-22023

KE70,TE71..3FC..(EUR,GEN)

 1
35000 - TRANSMISSION ASSY, AUTOMATIC
35000-12560

TE71..3FC..GEN

SMG R=22:6

 1
35000-12561

TE71..3FC..GEN

SMG R=22:6

 1
35000-12520

TE71..3FC..GEN

SMG R=21:6,165SR13 TIRE

 1
35000-12640

TE71..3FC

DIFF R=4.100

 1
35000-12521

TE71..3FC..GEN

SMG R=21:6,165SR13 TIRE

 1
35000-12522

TE71..3FC..GEN

SMG R=21:6,165SR13 TIRE

 1
35000-12562

TE71..3FC..GEN

SMG R=22:6

 1
35000-12640

TE71..3FC..(EUR,GEN)

DIFF R=4.100

 1
