TE71R-ELMESW (1981)

Toyota Corolla

Production Aug 1981 - May 1983
Engine 2T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8406)TE7#..RHD..ARL,EUR,GEN

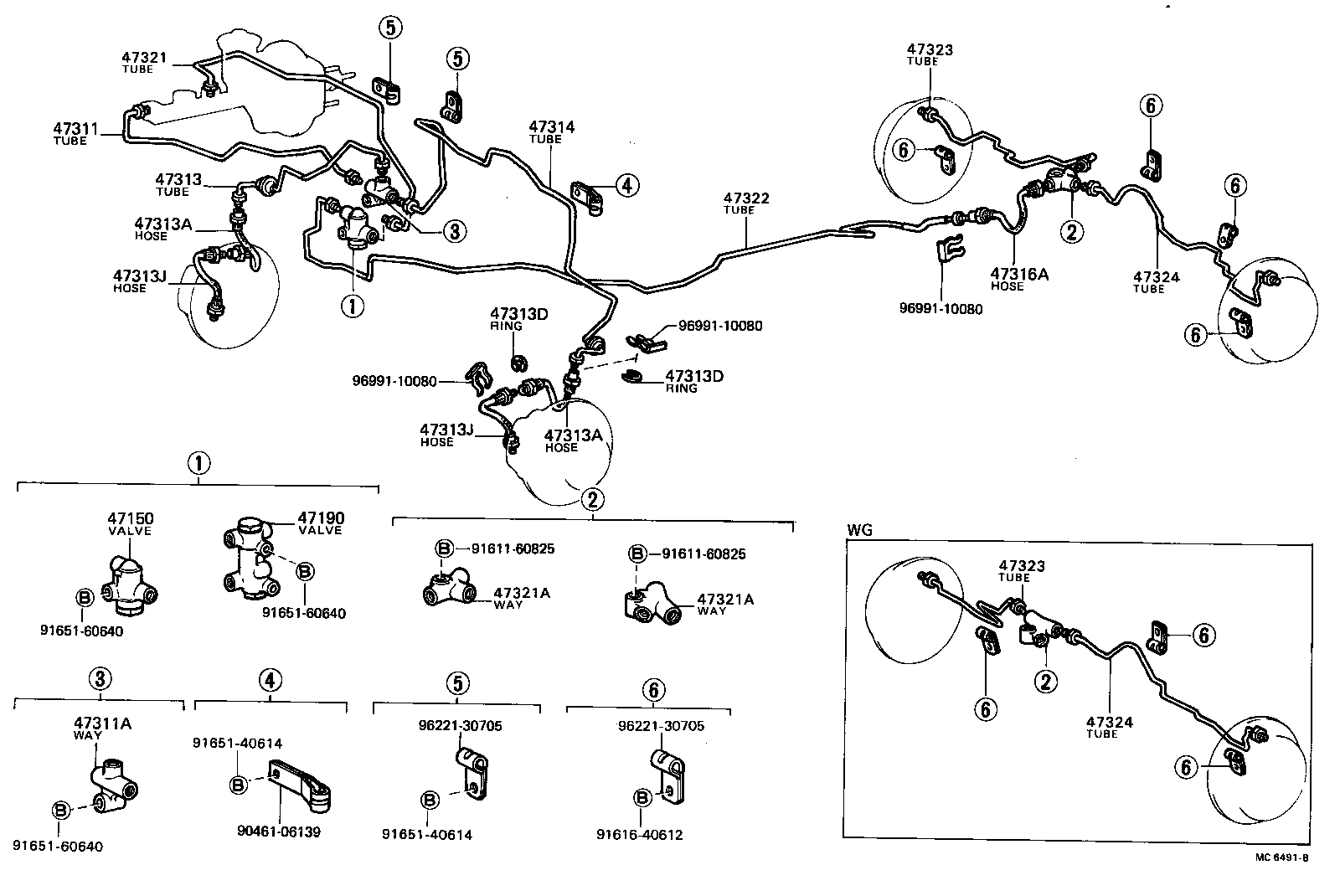

Click highlighted areas on diagram

diagram 47150 47190 47311 47311A 47313 47313A 47313A 47313D 47313D 47313J 47313J 47314 47316A 47321 47321A 47321A 47322 47323 47323 47324 47324 9046106139 9161160825 9161160825 9161640612 9165140614 9165140614 9165160640 9165160640 9165160640 9622130705 9622130705 9699110080 9699110080 9699110080
Part # Description Qty Price
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-12020

CE70,TE71..RHD..EUG

15KG/CM2

 1
47311 - TUBE, FRONT BRAKE, NO.1
47312-12030

TE7#..RHD..(ARL,EUR,GEN)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47314-12130

TE7#..RHD..(ARL,EUR)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02393

AE71,CE70,KE70,TE7#..EUR,GEN,SA,SAA

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02393

AE71,CE70,KE70,TE7#..EUR,GEN,SA,SAA

 2
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

AE71,CE70,KE70,TE7#

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

AE71,CE70,KE70,TE7#

 4
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32304

CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32304

CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)

 2
47314 - TUBE, FRONT BRAKE, NO.4
47315-12260

TE7#..RHD..(ARL,EUR,GEN)

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-32805

CE70,KE70,TE7#..(CP,LB,SED)..(EUR,GEN,SA,SAA)

 1
47321 - TUBE, REAR BRAKE, NO.1
47322-12010

TE7#..RHD..(ARL,EUR,GEN)

 1
47321A - WAY(FOR REAR BRAKE TUBE)
90413-10098

AE71,CE70,KE70,TE7#..CP,LB,SED

 1
47321A - WAY(FOR REAR BRAKE TUBE)
90413-10098

AE71,CE70,KE70,TE7#..CP,LB,SED

 1
47322 - TUBE, REAR BRAKE, NO.2
47323-12020

TE7#..(CP,LB,SED)..RHD..(ARL,EUR,GEN)

 1
47323 - TUBE, REAR BRAKE, NO.3
47324-12040

CE70,TE71..(DX,SR,XE)..EUG

 1
47323 - TUBE, REAR BRAKE, NO.3
47324-12040

CE70,TE71..(DX,SR,XE)..EUG

 1
47324 - TUBE, REAR BRAKE, NO.4
47325-12050

CE70,TE71..(DX,SR,XE)..EUG

 1
47324 - TUBE, REAR BRAKE, NO.4
47325-12050

CE70,TE71..(DX,SR,XE)..EUG

 1
Common parts
90461-06139
91611-60825
91616-40612
91651-40614
91651-60640
96221-30705
96991-10080
