TE71R-EEHDS (1979)
Toyota Corolla
Production
Aug 1979
-
Aug 1981
Engine
2T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7908-8401)TE7#..ATM ; (8108- )AE71,KE70..3FC

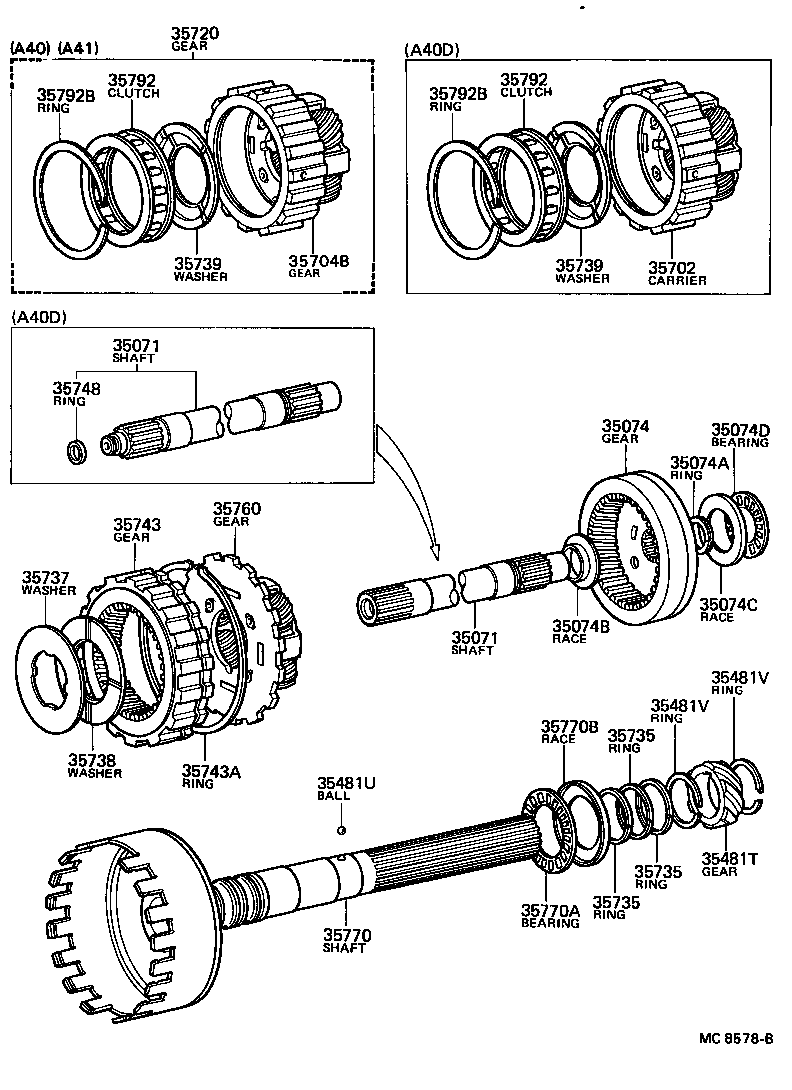

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35071 - SHAFT SUB-ASSY, PLANETARY INTERMEDIATE | ||||
| 35708-22011 |
TE7#..3FC |
1 | ||
| 35708-22010 |
TE7#..3FC |
1 | ||
| 35071 - SHAFT SUB-ASSY, PLANETARY INTERMEDIATE | ||||
| 35708-22011 |
TE7#..3FC |
1 | ||
| 35708-22010 |
TE7#..3FC |
1 | ||
| 35074 - GEAR SUB-ASSY, REAR PLANETARY RING | ||||
| 35074-22010 |
TE7#..3FC |
1 | ||
| 35074A - RING, SET (FOR REAR PLANETARY RING GEAR) | ||||
| 90522-20037 |
TE7#..3FC |
1 | ||
| 35074B - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRON | ||||
| 35789-22050 |
TE7#..3FC |
1 | ||
| 35074C - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR | ||||
| 35789-22020 |
TE7#..3FC |
1 | ||
| 35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR) | ||||
| 90374-28014 |
TE7#..3FC |
1 | ||
| 35481T - GEAR, SPEEDMETER DRIVE (ATM) | ||||
| 33481-25030 |
TE71..3FC N=6,175/70HR13 TIRE |
1 | ||
| 35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM) | ||||
| 90360-06004 |
TE7#..3FC |
1 | ||
| 35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR) | ||||
| 90520-28009 |
TE7#..3FC T=1.50,OD=33.8 |
2 | ||
| 35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR) | ||||
| 90520-28009 |
TE7#..3FC T=1.50,OD=33.8 |
2 | ||
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-22011 |
TE7#..3FC |
1 | ||
| 35735 - RING, PLANETARY OUTPUT SNAP | ||||
| 35735-22010 |
TE7#..3FC |
3 | ||
| 35735 - RING, PLANETARY OUTPUT SNAP | ||||
| 35735-22010 |
TE7#..3FC |
3 | ||
| 35735 - RING, PLANETARY OUTPUT SNAP | ||||
| 35735-22010 |
TE7#..3FC |
3 | ||
| 35737 - WASHER, PLANETARY CARRIER THRUST | ||||
| 35737-22010 |
TE7#..3FC |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-22010 |
TE7#..3FC |
1 | ||
| 35739 - WASHER, PLANETARY CARRIER THRUST, NO.3 | ||||
| 35739-22011 |
TE7#..ATM |
1 | ||
| 35739 - WASHER, PLANETARY CARRIER THRUST, NO.3 | ||||
| 35739-22011 |
TE7#..ATM |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-22010 |
TE7#..ATM |
1 | ||
| 35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR) | ||||
| 90520-99121 |
TE7#..3FC |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-22011 |
TE7#..3FC |
1 | ||
| 35760-22020 |
TE7#..3FC |
1 | ||
| 35770 - SHAFT ASSY, OUTPUT | ||||
| 35770-22011 |
TE7#..3FC |
1 | ||
| 35770A - BEARING, THRUST (FOR OUTPUT SHAFT) | ||||
| 90374-38013 |
TE7#..3FC |
1 | ||
| 35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT) | ||||
| 35789-22040 |
TE7#..3FC |
1 | ||
| 35792 - CLUTCH, 1 WAY, NO.2 | ||||
| 35792-20010 |
TE7#..ATM |
1 | ||
| 35792 - CLUTCH, 1 WAY, NO.2 | ||||
| 35792-20010 |
TE7#..ATM |
1 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-79148 |
TE7#..3FC |
1 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-79148 |
TE7#..3FC |
1 | ||
