TE71R-ECMXBW (1979)
Toyota Corolla
Production
Aug 1979
-
May 1983
Engine
2TB
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

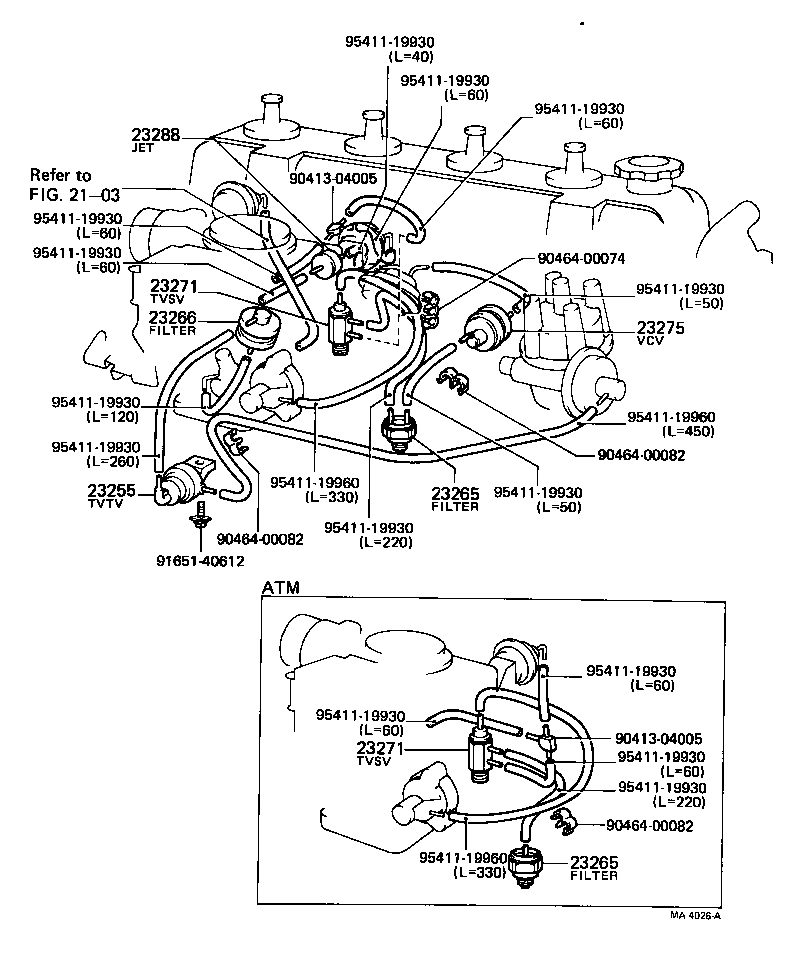

(7908-8108)2T..EUG
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23255 - VALVE, THERMOSTATIC VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01050 |
2T..TE71..EUG |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
2T..TE71..EUR,GEN,SAA |
1 | ||
| 90917-11023 |
2T..TE71..MTM..EUG |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
2T..TE71..EUR,GEN,SAA |
1 | ||
| 90917-11023 |
2T..TE71..MTM..EUG |
1 | ||
| 23266 - FILTER, GAS, NO.2 | ||||
| 90917-11009 |
2T..TE71..EUG |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02048 |
2T,3T..TE7# |
1 | ||
| 90925-02048 |
2T,3T#..TE7# |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02048 |
2T,3T..TE7# |
1 | ||
| 90925-02048 |
2T,3T#..TE7# |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03074 |
2T..TE71..MTM..(EUR,GEN,SAA) |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04004 |
2T..TE71..MTM..EUG |
1 | ||
| Common parts | ||||
| 90413-04005 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 91651-40612 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 2103 | ||||
(7908-8305)2TB
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-12150 |
2TB..TE71..EUG |
1 | ||
| 89570-12180 |
2TB..TE71..EUG |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05044 |
2TB..TE71 |
1 | ||
| 90925-05044 |
2TB..TE71..EUR,GEN |
1 | ||
| 90925-05044 |
2TB..TE71..EUG |
1 | ||
| 25810-15010 |
2T..TE71..EUR,GEN,SAA |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01021 |
2TB..TE71..EUG |
1 | ||
| 90925-01021 |
2TB..TE71 |
1 | ||
| 90925-01021 |
2TB..TE71..EUR,GEN |
1 | ||
| Common parts | ||||
| 90413-04005 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00089 | ||||
| 91651-40612 | ||||
| 94511-19930 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||

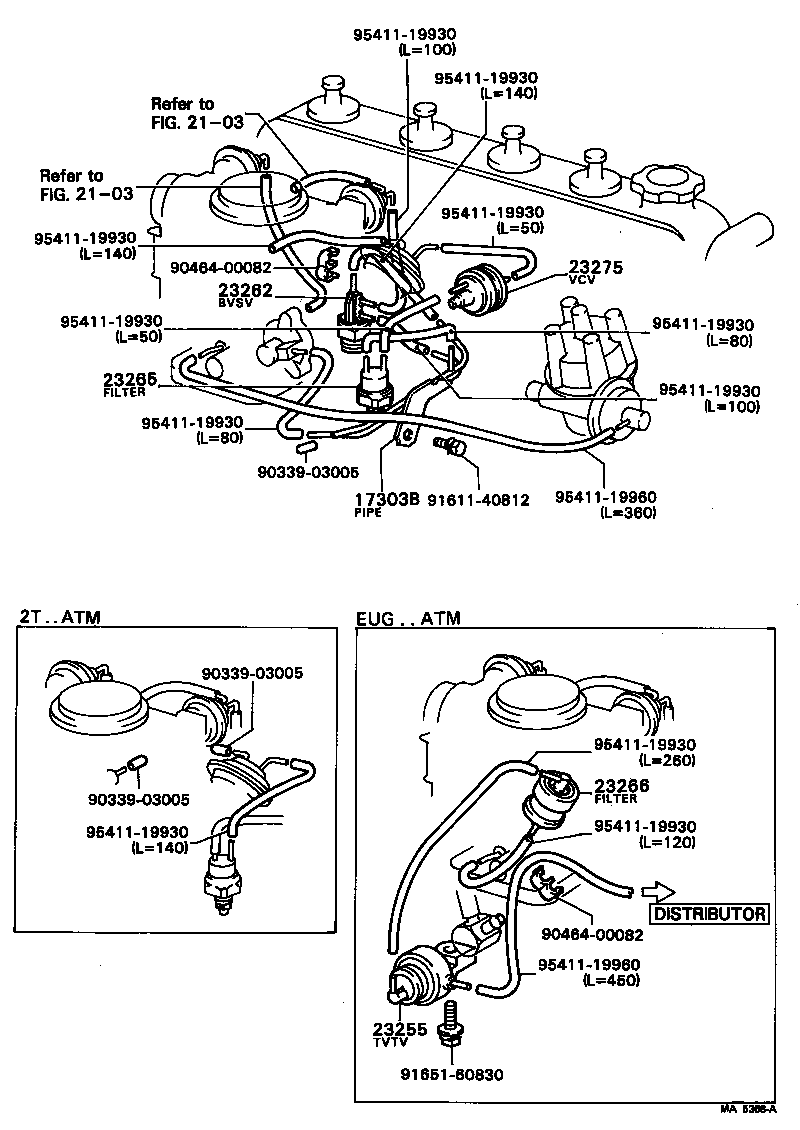

(8108-8305)2T..EUR,GEN,SAA
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-26120 |
2T..TE71..EUR,GEN,SAA |
1 | ||
| 23255 - VALVE, THERMOSTATIC VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01050 |
2T..TE71..EUG |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05044 |
2TB..TE71 |
1 | ||
| 90925-05044 |
2TB..TE71..EUR,GEN |
1 | ||
| 90925-05044 |
2TB..TE71..EUG |
1 | ||
| 25810-15010 |
2T..TE71..EUR,GEN,SAA |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
2T..TE71..EUR,GEN,SAA |
1 | ||
| 90917-11023 |
2T..TE71..MTM..EUG |
1 | ||
| 23266 - FILTER, GAS, NO.2 | ||||
| 90917-11009 |
2T..TE71..EUG |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03074 |
2T..TE71..MTM..(EUR,GEN,SAA) |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90464-00082 | ||||
| 91611-40812 | ||||
| 91651-60830 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| 96411-19930 | ||||
| Linked diagrams | ||||
| 2103 | ||||
(7908- )2T#,3T#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 95411-10030 | ||||
| 95411-10130 | ||||
| 95411-10160 | ||||
| 95411-19995 | ||||
