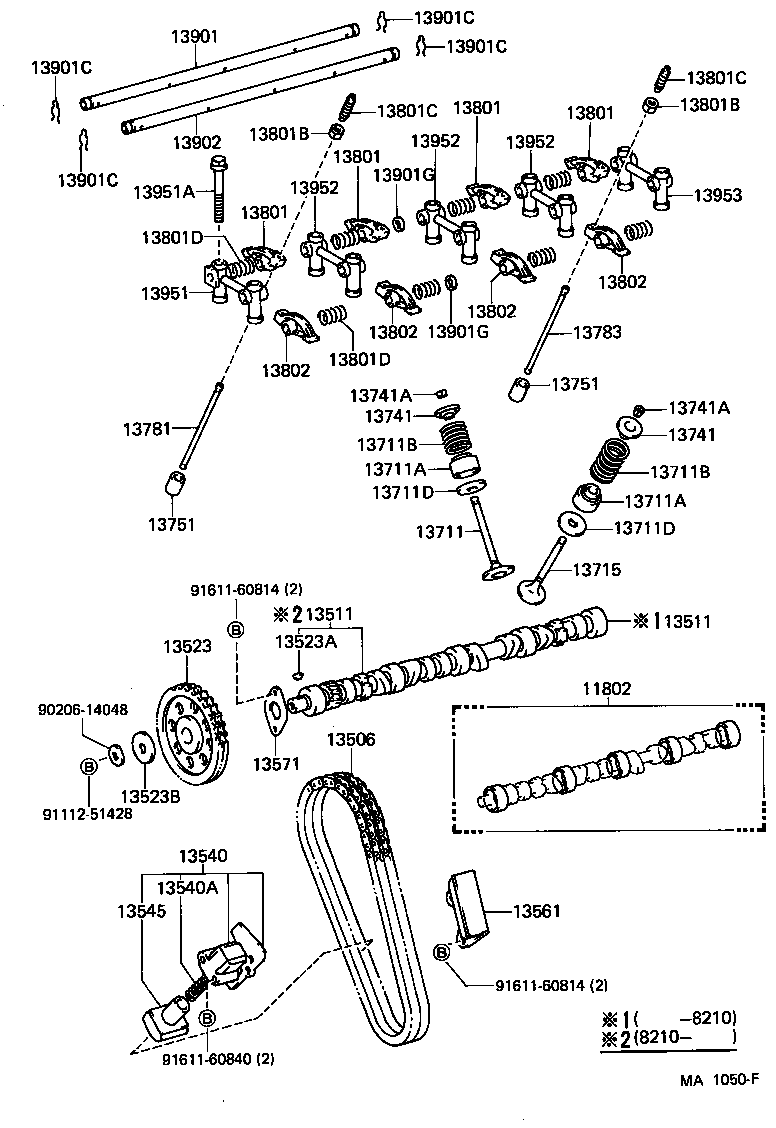

Toyota Corolla TE71 CAMSHAFT & VALVE

Part #	Description	Period	Qty
11802 - BEARING SET, CAMSHAFT
11803-25010	2T,2TB,3T#..TE7# U/S 0.125	08/1979 - 11/1980	1
11804-25010	2T,2TB,3T#..TE7# U/S 0.250	08/1979 - 11/1980	1
11802-25010	2T,2TB,3T#..TE7# STD	08/1979 - 11/1980	1
13506 - CHAIN SUB-ASSY
13506-25010	2T#,3T#..TE7#	08/1979 - 02/1985	1
13511 - CAMSHAFT
13511-25010	2T,2TB,3T#..TE7#	08/1979 - 10/1982	1
13511 - CAMSHAFT
13511-25010	2T,2TB,3T#..TE7#	08/1979 - 10/1982	1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13522-33010	2T,2TB,3T#..TE7#	08/1979 - 02/1985	1
13523A - KEY, WOODRUFF(FOR TIMING GEAR)
90280-05010	2T,2TB,3T#..TE7#	08/1979 - 02/1985	1
13523B - WASHER, PLATE(FOR TIMING GEAR)
90201-14293	2T,2TB,3T#..TE7#	08/1979 - 02/1985	1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-25010	2T,2TB,3T#..TE7#	08/1979 - 02/1985	1
13540A - SPRING, COMPRESSION(FOR CHAIN TENSIONER)
90501-10595	2T,2TB,3T#..TE7#	08/1979 - 08/1981	1
13545 - PLUNGER, CHAIN TENSIONER
13545-25010	2T#,3T#..TE7#	08/1979 - 02/1985	1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-25010	2T#,3T#..TE7#	08/1979 - 02/1985	1
13571 - PLATE, CAMSHAFT THRUST
13571-51010	2T,2TB,3T#..TE7#	08/1979 - 02/1985	1
13711 - VALVE, INTAKE
13711-25011	2T,2TB,3T#..TE7#	08/1979 - 02/1985	4
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02023	2T,2TB,3T#..TE7#	08/1979 - 01/1981	8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02023	2T,2TB,3T#..TE7#	08/1979 - 01/1981	8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-47540	2T,2TB,3T#..TE7#	08/1979 - 02/1985	8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-47540	2T,2TB,3T#..TE7#	08/1979 - 02/1985	8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-15387	2T,2TB,3T#..TE7#	08/1979 - 02/1985	8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-15387	2T,2TB,3T#..TE7#	08/1979 - 02/1985	8
13715 - VALVE, EXHAUST
13715-25011	2T,2TB,3T#..TE7#	08/1979 - 02/1985	4
13741 - RETAINER, VALVE SPRING
13741-25012	2T,2TB,3T#..TE7#	08/1979 - 02/1985	8
13741 - RETAINER, VALVE SPRING
13741-25012	2T,2TB,3T#..TE7#	08/1979 - 02/1985	8
13741A - LOCK, VALVE SPRING RETAINER
90913-03005	2T,2TB,3T#..TE7#	08/1979 - 07/1987	16
13741A - LOCK, VALVE SPRING RETAINER
90913-03005	2T,2TB,3T#..TE7#	08/1979 - 07/1987	16
13751 - LIFTER, VALVE
13751-31020	2T,2TB,3T#..TE7# STD	08/1979 - 02/1985	8
13755-31020	2T,2TB,3T#..TE7# O/S 0.05	08/1979 - 02/1985	8
13751 - LIFTER, VALVE
13751-31020	2T,2TB,3T#..TE7# STD	08/1979 - 02/1985	8
13755-31020	2T,2TB,3T#..TE7# O/S 0.05	08/1979 - 02/1985	8
13781 - ROD, VALVE PUSH
13781-25011	2T,2TB,3T#..TE7#	08/1979 - 05/1984	4
13783 - ROD, VALVE PUSH, NO.2
13783-25011	2T,2TB,3T#..TE7#	08/1979 - 05/1984	4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-25011	2T,2TB,3T#..TE7#	08/1979 - 02/1985	4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-25011	2T,2TB,3T#..TE7#	08/1979 - 02/1985	4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-25011	2T,2TB,3T#..TE7#	08/1979 - 02/1985	4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-25011	2T,2TB,3T#..TE7#	08/1979 - 02/1985	4
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-08094	2T,2TB,3T#..TE7#	08/1979 - 06/1981	8
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-08094	2T,2TB,3T#..TE7#	08/1979 - 06/1981	8
13801C - SCREW, VALVE ADJUSTING
90913-05013	2T,2TB,3T#..TE7#	08/1979 - 02/1982	8
13801C - SCREW, VALVE ADJUSTING
90913-05013	2T,2TB,3T#..TE7#	08/1979 - 02/1982	8
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-14064	2T,2TB,3T#..TE7#	08/1979 - 02/1985	8
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-14064	2T,2TB,3T#..TE7#	08/1979 - 02/1985	8
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-25010	2T,2TB,3T#..TE7#	08/1979 - 02/1985	4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-25010	2T,2TB,3T#..TE7#	08/1979 - 02/1985	4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-25010	2T,2TB,3T#..TE7#	08/1979 - 02/1985	4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-25010	2T,2TB,3T#..TE7#	08/1979 - 02/1985	4
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901-25010	2T,2TB,3T#..TE7#	08/1979 - 02/1985	1
13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT)
90524-13009	2T,2TB,3T#..TE7#	08/1979 - 07/1987	4
13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT)
90524-13009	2T,2TB,3T#..TE7#	08/1979 - 07/1987	4
13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT)
90524-13009	2T,2TB,3T#..TE7#	08/1979 - 07/1987	4
13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT)
90524-13009	2T,2TB,3T#..TE7#	08/1979 - 07/1987	4
13901G - WASHER, ROCKER SHAFT
90201-16172	2T,2TB,3T#..TE7#	08/1979 - 02/1985	2
13901G - WASHER, ROCKER SHAFT
90201-16172	2T,2TB,3T#..TE7#	08/1979 - 02/1985	2
13902 - SHAFT SUB-ASSY, VALVE ROCKER, NO.2
13902-25010	2T,2TB,3T#..TE7#	08/1979 - 02/1985	1
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-25010	2T,2TB,3T#..TE7#	08/1979 - 02/1985	1
13951A - BOLT(FOR ROCKER SUPPORT SET)
90910-02040	2T,2TB,3T#..TE7# *12-1.25PX157-24	08/1979 - 02/1985	10
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-25010	2T,2TB,3T#..TE7#	08/1979 - 02/1985	3
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-25010	2T,2TB,3T#..TE7#	08/1979 - 02/1985	3
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-25010	2T,2TB,3T#..TE7#	08/1979 - 02/1985	3
13953 - SUPPORT, VALVE ROCKER, NO.3
13953-25010	2T,2TB,3T#..TE7#	08/1979 - 02/1985	1
Common parts
90206-14048
91112-51428
91611-60814
91611-60840

TE71R-ECMXB (1979)

(7908-8502)2T,2TB,3T#
