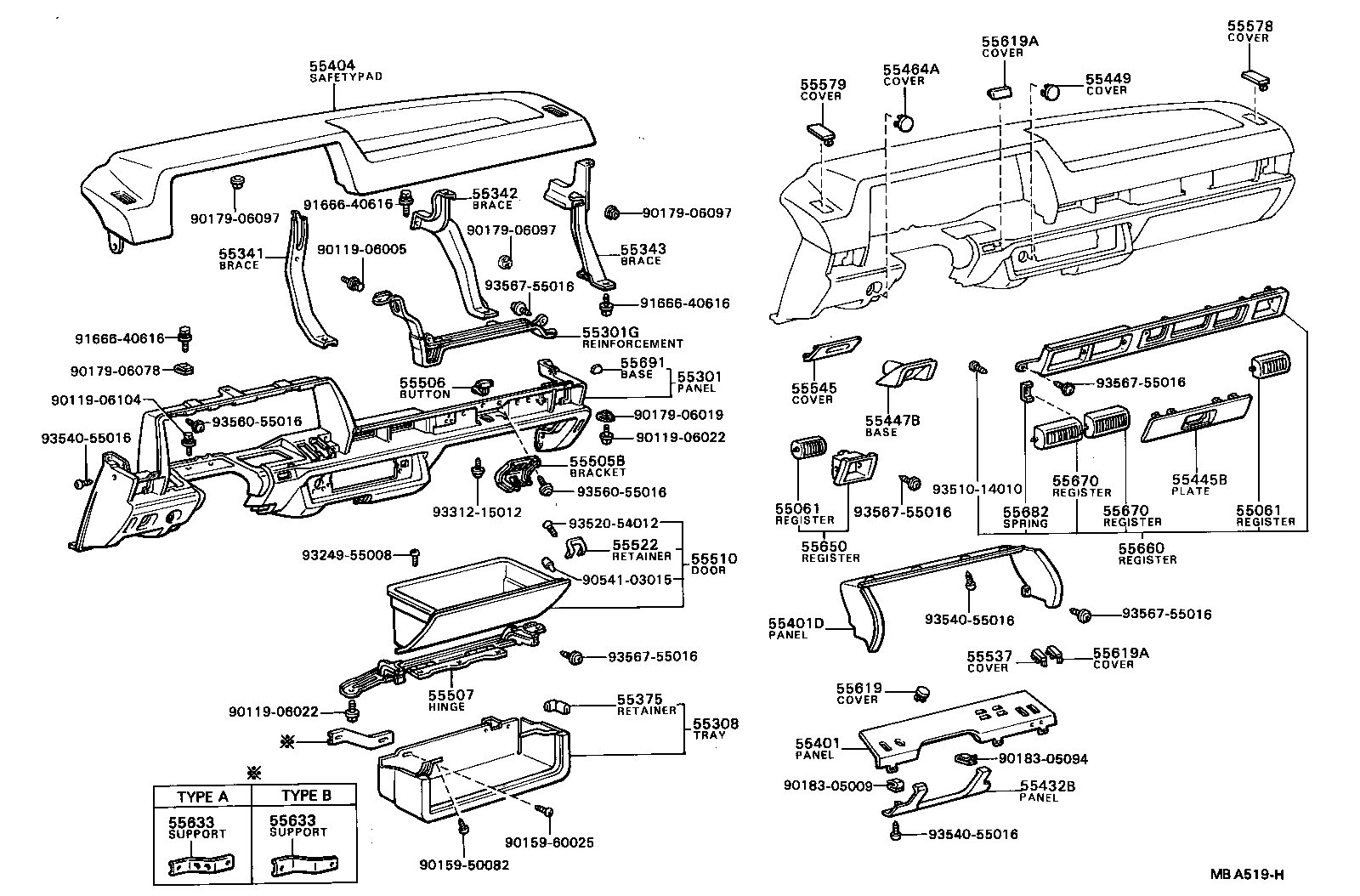

TE71L-ELMDSW (1980)
Toyota Corolla
(7908-8108)CP,LB..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-12050 |
TE71..2D..GEN;TE71..LHD..EUG;KE70,TE72..CP,LB |
2 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-12050 |
TE71..2D..GEN;TE71..LHD..EUG;KE70,TE72..CP,LB |
2 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55311-1219004 |
KE70,TE7#..(CP,LB)..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55311-1219006 |
KE70,TE7#..(CP,LB)..LHD D-BROWN,BROWN,TRIM4# |
1 | ||
| 55311-1219001 |
KE70,TE7#..(CP,LB)..LHD BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55301G - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL | ||||
| 55305-12080 |
KE70,TE7#..(CP,LB)..LHD |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55601-1211006 |
KE70,TE7#..(CP,LB)..LHD D-BROWN,BROWN,TRIM4# |
1 | ||
| 55601-1211001 |
KE70,TE7#..(CP,LB)..LHD BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55601-1211004 |
KE70,TE7#..(CP,LB)..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55341-12120 |
KE70,TE7#..(CP,LB)..LHD |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55307-12060 |
KE70,TE7#..(CP,LB)..LHD |
1 | ||
| 55343 - BRACE, INSTRUMENT PANEL, NO.3 | ||||
| 55308-12130 |
KE70,TE7#..(CP,LB)..LHD |
1 | ||
| 55375 - RETAINER, INSTRUMENT PANEL UNDER TRAY, UPPER | ||||
| 55375-12010 |
AE71,CE70,KE70,TE7#..(DX,GL,GT,SE,SR,XE,XL)..(EUR,GEN,SA,SAA) |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-12730 |
TE7#..LHD..2D..DX |
1 | ||
| 55401D - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-12110 |
KE70,TE7#..CP,LB |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-1212004 |
KE70,TE7#..(CP,LB)..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55401-1212006 |
KE70,TE7#..(CP,LB)..LHD D-BROWN,BROWN,TRIM4# |
1 | ||
| 55401-1212001 |
KE70,TE7#..(CP,LB)..LHD BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-1211004 |
TE7#..LHD..2D BLUE,BLUE,TRIM8# |
1 | ||
| 55432-1211001 |
TE7#..LHD..2D BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55432-1211006 |
TE7#..LHD..2D D-BROWN,BROWN,TRIM4# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-12050 |
KE70,TE7#..CP,LB |
1 | ||
| 55447B - BASE, CHOKE KNOB HOLE | ||||
| 55447-1205001 |
KE70..LB..4F..EUG;TE71..LB..LHD..EUG WEST GERMANY SPEC,BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55447-1205006 |
KE70..LB..4F..EUG;TE71..LB..LHD..EUG WEST GERMANY SPEC,D-BROWN,BROWN,TRIM4# |
1 | ||
| 55447-1205001 |
KE70,TE71..LB..LHD..(3FC,5F)..EUG WEST GERMANY SPEC,BLACK,BLACK,TRIM2# |
1 | ||
| 55447-1205004 |
KE70,TE71..LB..LHD..(3FC,5F)..EUG WEST GERMANY SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 55447-1205006 |
KE70,TE71..LB..LHD..(3FC,5F)..EUG WEST GERMANY SPEC,D-BROWN,BROWN,TRIM4# |
1 | ||
| 55447-1205004 |
KE70..LB..4F..EUG;TE71..LB..LHD..EUG WEST GERMANY SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 55449 - COVER, COOLER SWITCH HOLE | ||||
| 55538-16010 |
KE70,TE71..(CP,LB)..LHD |
1 | ||
| 55464A - COVER, CHOKE KNOB HOLE | ||||
| 55617-1001016 |
TE72..2D;TE71..2D..DX;TE71..SE..SA D-BROWN,BROWN,TRIM4# |
1 | ||
| 55617-1001004 |
TE72..MTM;TE71..2D..DX BLUE,BLUE,TRIM8# |
1 | ||
| 55617-1001001 |
TE72..MTM;TE71..2D..DX BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55505B - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55378-12070 |
KE70,TE7#..CP,LB |
1 | ||
| 55506 - BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55560-12040 |
KE70,TE7#..CP,LB |
1 | ||
| 55507 - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55505-12060 |
KE70,TE7#..(CP,LB)..LHD |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-1220006 |
KE70,TE7#..(CP,LB)..LHD D-BROWN,BROWN,TRIM4# |
1 | ||
| 55550-1220001 |
KE70,TE7#..(CP,LB)..LHD BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55550-1220004 |
KE70,TE7#..(CP,LB)..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55522 - RETAINER, GLOVE COMPARTMENT MALE | ||||
| 55561-12030 |
KE70,TE7#..CP,LB |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55540-1203004 |
KE70,TE7#..CP,LB BLUE,BLUE,TRIM8# |
1 | ||
| 55540-1203001 |
KE70,TE7#..CP,LB BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55540-1203006 |
KE70,TE7#..CP,LB D-BROWN,BROWN,TRIM4# |
1 | ||
| 55578 - COVER, SIDE DEFROSTER OPENING, RH | ||||
| 55578-1202001 |
KE70,TE71..(CP,LB)..LHD..EUG BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55578-1202006 |
KE70,TE71..(CP,LB)..LHD..EUG D-BROWN,BROWN,TRIM4# |
1 | ||
| 55578-1202004 |
KE70,TE71..(CP,LB)..LHD..EUG BLUE,BLUE,TRIM8# |
1 | ||
| 55579 - COVER, SIDE DEFROSTER OPENING, LH | ||||
| 55578-1202001 |
KE70,TE71..(CP,LB)..LHD..EUG BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55578-1202004 |
KE70,TE71..(CP,LB)..LHD..EUG BLUE,BLUE,TRIM8# |
1 | ||
| 55578-1202006 |
KE70,TE71..(CP,LB)..LHD..EUG D-BROWN,BROWN,TRIM4# |
1 | ||
| 55619 - COVER, SWITCH HOLE | ||||
| 55539-12030 |
TE7#..LHD..2D W/O RHEOSTAT SWITCH |
1 | ||
| 55539-12030 |
KE70,TE7#..(CP,LB)..(EUR,GEN,SA,SAA) W/O RHEOSTAT SWITCH |
1 | ||
| 55619A - COVER, SWITCH HOLE, NO.2 | ||||
| 55534-1208004 |
KE70,TE7#..(CP,LB)..DX W/O DOOR WARNING LAMP,BLUE,BLUE,TRIM8# |
1 | ||
| 55534-1208006 |
KE70,TE7#..(CP,LB)..DX W/O DOOR WARNING LAMP,D-BROWN,BROWN,TRIM4# |
1 | ||
| 55539-12020 |
KE70,TE7#..(CP,LB)..(EUR,GEN,SA,SAA) W/O REAR WIPER SWITCH |
1 | ||
| 55534-1208001 |
KE70,TE7#..(CP,LB)..DX W/O DOOR WARNING LAMP,BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55619A - COVER, SWITCH HOLE, NO.2 | ||||
| 55534-1208004 |
KE70,TE7#..(CP,LB)..DX W/O DOOR WARNING LAMP,BLUE,BLUE,TRIM8# |
1 | ||
| 55534-1208006 |
KE70,TE7#..(CP,LB)..DX W/O DOOR WARNING LAMP,D-BROWN,BROWN,TRIM4# |
1 | ||
| 55539-12020 |
KE70,TE7#..(CP,LB)..(EUR,GEN,SA,SAA) W/O REAR WIPER SWITCH |
1 | ||
| 55534-1208001 |
KE70,TE7#..(CP,LB)..DX W/O DOOR WARNING LAMP,BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55633 - SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2 | ||||
| 55632-12050 |
AE71,CE70,KE70,TE7# TYPE A |
1 | ||
| 55632-12040 |
AE71,CE70,KE70,TE7#..LHD TYPE B |
1 | ||
| 55633 - SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2 | ||||
| 55632-12050 |
AE71,CE70,KE70,TE7# TYPE A |
1 | ||
| 55632-12040 |
AE71,CE70,KE70,TE7#..LHD TYPE B |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-12070 |
KE70,TE7#..(CP,LB)..LHD |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-12110 |
KE70,TE7#..(CP,LB)..LHD |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-14020 |
TE71..2D..GEN;TE71..LHD..EUG;KE70,TE72..CP,LB |
2 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-14020 |
TE71..2D..GEN;TE71..LHD..EUG;KE70,TE72..CP,LB |
2 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 58914-20010 |
KE70,TE7#..CP,LB |
1 | ||
| 55691 - BASE, INSTRUMENT PANEL NAME | ||||
| 55691-12040 |
KE70,TE7#..CP,LB |
2 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06022 | ||||
| 90119-06104 | ||||
| 90159-50082 | ||||
| 90159-60025 | ||||
| 90179-06019 | ||||
| 90179-06078 | ||||
| 90179-06097 | ||||
| 90183-05009 | ||||
| 90183-05094 | ||||
| 90541-03015 | ||||
| 91666-40616 | ||||
| 93249-55008 | ||||
| 93312-15012 | ||||
| 93510-14010 | ||||
| 93520-54012 | ||||
| 93540-55016 | ||||
| 93560-55016 | ||||
| 93567-55016 | ||||
