TE71L-ELKDSV (1981)
Toyota Corolla

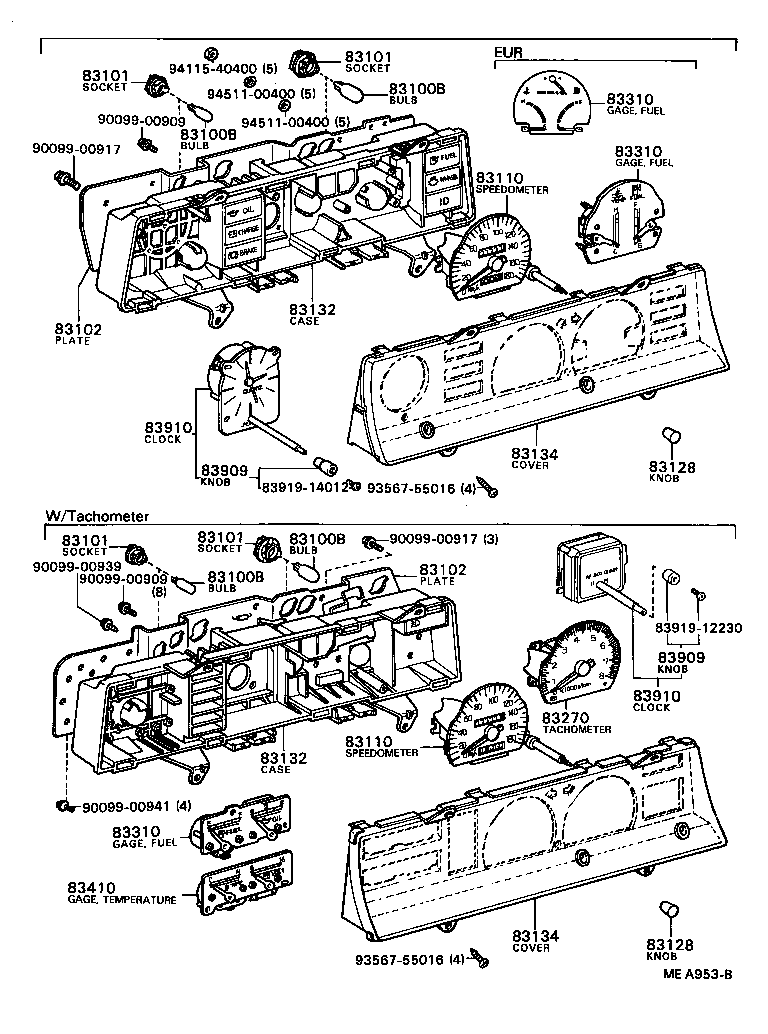

(8108-8209)LB..LHD..GEN,SAA ; (8108-8406)CP,LB..ARL,EUR,GEN ; (8204-8401)SE..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
KE70,TE7# 12V 3.4W |
13 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
KE70,TE7# 12V 3.4W |
13 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
KE70,TE7# 12V 3.4W |
13 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
KE70,TE7# 12V 3.4W |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
KE70,TE7# 12V 3.4W |
13 | ||
| 83101-20040 |
TE71..SAA 12V 3.4W |
14 | ||
| 83101-20040 |
KE70,TE71..(CP,LB)..LHD..DX 12V 3.4W |
14 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
KE70,TE7# 12V 3.4W |
13 | ||
| 83101-20040 |
TE71..SAA 12V 3.4W |
14 | ||
| 83101-20040 |
KE70,TE71..(CP,LB)..LHD..DX 12V 3.4W |
14 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
KE70,TE7# 12V 3.4W |
13 | ||
| 83101-20040 |
TE71..SAA 12V 3.4W |
14 | ||
| 83101-20040 |
KE70,TE71..(CP,LB)..LHD..DX 12V 3.4W |
14 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
KE70,TE7# 12V 3.4W |
13 | ||
| 83101-20040 |
TE71..SAA 12V 3.4W |
14 | ||
| 83101-20040 |
KE70,TE71..(CP,LB)..LHD..DX 12V 3.4W |
14 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1A360 |
KE70,TE71..(CP,LB)..LHD..DX..(GEN,SAA) |
1 | ||
| 83247-12640 |
KE70,TE7#..(CP,LB)..LHD..DX |
1 | ||
| 83247-12630 |
KE70,TE7#..(CP,LB)..LHD..DX W/CLOCK,MILE & KM |
1 | ||
| 83247-1A420 |
KE70,TE71..(CP,LB)..LHD..DX..(GEN,SAA) MIDDLE EAST COUNTRY SPEC |
1 | ||
| 83247-1A360 |
TE71..SAA |
1 | ||
| 83247-1A420 |
TE71..SAA MIDDLE EAST COUNTRY SPEC |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1A360 |
KE70,TE71..(CP,LB)..LHD..DX..(GEN,SAA) |
1 | ||
| 83247-12640 |
KE70,TE7#..(CP,LB)..LHD..DX |
1 | ||
| 83247-12630 |
KE70,TE7#..(CP,LB)..LHD..DX W/CLOCK,MILE & KM |
1 | ||
| 83247-1A420 |
KE70,TE71..(CP,LB)..LHD..DX..(GEN,SAA) MIDDLE EAST COUNTRY SPEC |
1 | ||
| 83247-1A360 |
TE71..SAA |
1 | ||
| 83247-1A420 |
TE71..SAA MIDDLE EAST COUNTRY SPEC |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-12871 |
KE70,TE7#..(CP,LB)..LHD..DX KM |
1 | ||
| 83110-12730 |
KE70,TE71..DX..SA KM |
1 | ||
| 83110-12881 |
KE70,TE7#..(CP,LB)..LHD..DX MILE & KM |
1 | ||
| 83110-1A090 |
KE70,TE71..(CP,LB)..LHD..DX KM |
1 | ||
| 83110-1A090 |
TE71..SAA KM |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-12871 |
KE70,TE7#..(CP,LB)..LHD..DX KM |
1 | ||
| 83110-12730 |
KE70,TE71..DX..SA KM |
1 | ||
| 83110-12881 |
KE70,TE7#..(CP,LB)..LHD..DX MILE & KM |
1 | ||
| 83110-1A090 |
KE70,TE71..(CP,LB)..LHD..DX KM |
1 | ||
| 83110-1A090 |
TE71..SAA KM |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-10260 |
KE70,TE7#..CP,LB |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-10260 |
KE70,TE7#..CP,LB |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-12070 |
KE70,TE7#..(CP,LB)..LHD..DX |
1 | ||
| 83132-1A040 |
TE71..SAA W/CLOCK |
1 | ||
| 83132-1A040 |
KE70,TE71..(CP,LB)..LHD..DX W/CLOCK |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-12070 |
KE70,TE7#..(CP,LB)..LHD..DX |
1 | ||
| 83132-1A040 |
TE71..SAA W/CLOCK |
1 | ||
| 83132-1A040 |
KE70,TE71..(CP,LB)..LHD..DX W/CLOCK |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83133-12150 |
KE70,TE7#..(CP,LB)..LHD..DX |
1 | ||
| 83133-12140 |
KE70,TE7#..(CP,LB)..LHD..DX W/CLOCK |
1 | ||
| 83134-1A160 |
KE70,TE71..(CP,LB)..LHD..DX..(GEN,SAA) W/CLOCK |
1 | ||
| 83134-1A160 |
TE71..SAA W/CLOCK |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83133-12150 |
KE70,TE7#..(CP,LB)..LHD..DX |
1 | ||
| 83133-12140 |
KE70,TE7#..(CP,LB)..LHD..DX W/CLOCK |
1 | ||
| 83134-1A160 |
KE70,TE71..(CP,LB)..LHD..DX..(GEN,SAA) W/CLOCK |
1 | ||
| 83134-1A160 |
TE71..SAA W/CLOCK |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-12160 |
KE70,TE7#..(CP,LB)..LHD..DX |
1 | ||
| 83243-1A080 |
TE71..SAA |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-12160 |
KE70,TE7#..(CP,LB)..LHD..DX |
1 | ||
| 83243-1A080 |
TE71..SAA |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-12160 |
KE70,TE7#..(CP,LB)..LHD..DX |
1 | ||
| 83243-1A080 |
TE71..SAA |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-12231 |
KE70,TE7#..(CP,LB)..LHD..DX |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
KE70,TE71..(CP,LB)..LHD..DX |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
KE70,TE71..(CP,LB)..LHD..DX |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12250 |
KE70,TE7#..(CP,LB)..LHD..DX |
1 | ||
| 83910-12280 |
KE70,TE71..(CP,LB)..LHD..DX |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12250 |
KE70,TE7#..(CP,LB)..LHD..DX |
1 | ||
| 83910-12280 |
KE70,TE71..(CP,LB)..LHD..DX |
1 | ||
| Common parts | ||||
| 83919-12230 | ||||
| 83919-14012 | ||||
| 90099-00909 | ||||
| 90099-00917 | ||||
| 90099-00939 | ||||
| 90099-00941 | ||||
| 93567-55016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||

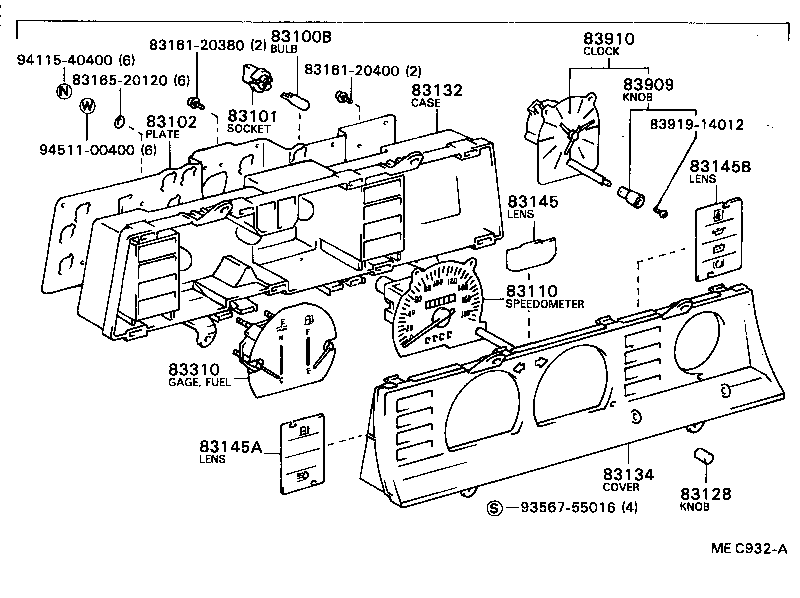

(8209-8305)CP,LB..LHD..GEN,SAA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
KE70,TE7# 12V 3.4W |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
KE70,TE7# 12V 3.4W |
13 | ||
| 83101-20040 |
TE71..SAA 12V 3.4W |
14 | ||
| 83101-20040 |
KE70,TE71..(CP,LB)..LHD..DX 12V 3.4W |
14 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1A360 |
KE70,TE71..(CP,LB)..LHD..DX..(GEN,SAA) |
1 | ||
| 83247-12640 |
KE70,TE7#..(CP,LB)..LHD..DX |
1 | ||
| 83247-12630 |
KE70,TE7#..(CP,LB)..LHD..DX W/CLOCK,MILE & KM |
1 | ||
| 83247-1A420 |
KE70,TE71..(CP,LB)..LHD..DX..(GEN,SAA) MIDDLE EAST COUNTRY SPEC |
1 | ||
| 83247-1A360 |
TE71..SAA |
1 | ||
| 83247-1A420 |
TE71..SAA MIDDLE EAST COUNTRY SPEC |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-12871 |
KE70,TE7#..(CP,LB)..LHD..DX KM |
1 | ||
| 83110-12730 |
KE70,TE71..DX..SA KM |
1 | ||
| 83110-12881 |
KE70,TE7#..(CP,LB)..LHD..DX MILE & KM |
1 | ||
| 83110-1A090 |
KE70,TE71..(CP,LB)..LHD..DX KM |
1 | ||
| 83110-1A090 |
TE71..SAA KM |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-10260 |
KE70,TE7#..CP,LB |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-12070 |
KE70,TE7#..(CP,LB)..LHD..DX |
1 | ||
| 83132-1A040 |
TE71..SAA W/CLOCK |
1 | ||
| 83132-1A040 |
KE70,TE71..(CP,LB)..LHD..DX W/CLOCK |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83133-12150 |
KE70,TE7#..(CP,LB)..LHD..DX |
1 | ||
| 83133-12140 |
KE70,TE7#..(CP,LB)..LHD..DX W/CLOCK |
1 | ||
| 83134-1A160 |
KE70,TE71..(CP,LB)..LHD..DX..(GEN,SAA) W/CLOCK |
1 | ||
| 83134-1A160 |
TE71..SAA W/CLOCK |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1A020 |
KE70,TE71..(CP,LB)..LHD..DX..(GEN,SAA) MIDDLE EAST COUNTRY SPEC |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-1A080 |
KE70,TE71..(CP,LB)..LHD..DX..(GEN,SAA) MIDDLE EAST COUNTRY SPEC |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-1A120 |
KE70,TE71..(CP,LB)..LHD..DX..(GEN,SAA) MIDDLE EAST COUNTRY SPEC |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-12160 |
KE70,TE7#..(CP,LB)..LHD..DX |
1 | ||
| 83243-1A080 |
TE71..SAA |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
KE70,TE71..(CP,LB)..LHD..DX |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12250 |
KE70,TE7#..(CP,LB)..LHD..DX |
1 | ||
| 83910-12280 |
KE70,TE71..(CP,LB)..LHD..DX |
1 | ||
| Common parts | ||||
| 83161-20380 | ||||
| 83161-20400 | ||||
| 83165-20120 | ||||
| 83919-14012 | ||||
| 93567-55016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
