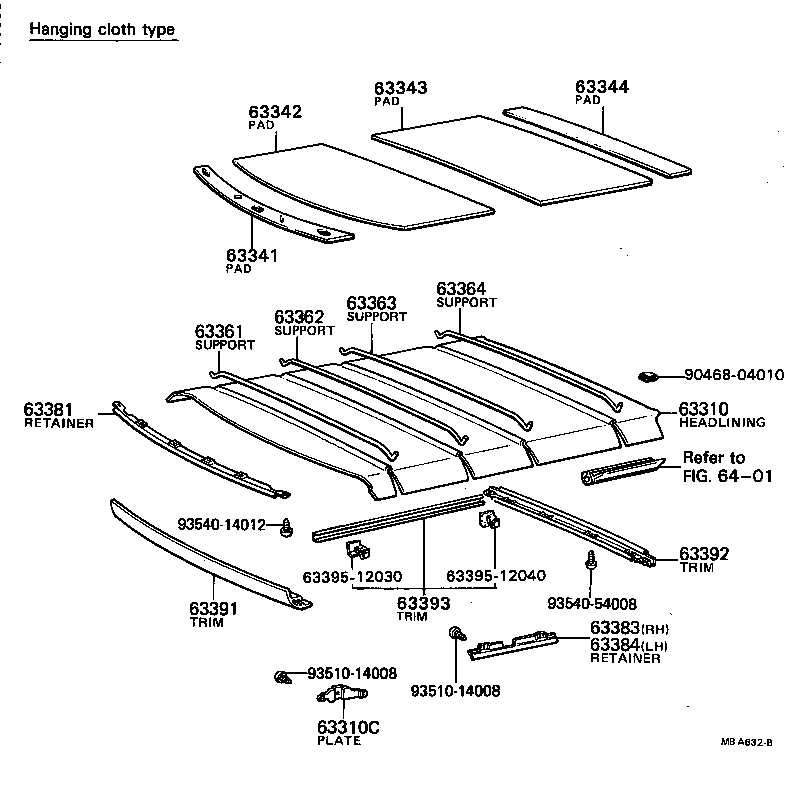

TE71L-ELKDS (1979)
Toyota Corolla
(7908-8406)LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-1256004 |
KE70,TE72..LB..DX;TE71..LB..(EUR,GEN,SAA) REMOVABLE ROOF,IVORY & BLUE,BLUE,TRIM8# |
1 | ||
| 63310-1256001 |
KE70,TE72..LB..DX;TE71..LB..(EUR,GEN,SAA) REMOVABLE ROOF,IVORY & BLACK,BLACK,TRIM0#,2# |
1 | ||
| 63310-1253004 |
TE72..(DX,SE)..(ARL,EUR);KE70,TE71..LB..(EUR,GEN,SAA) IVORY & BLUE,BLUE,TRIM8# |
1 | ||
| 63310-1256006 |
KE70,TE72..LB..DX;TE71..LB..(EUR,GEN,SAA) REMOVABLE ROOF,IVORY & D-BROWN,BROWN,TRIM4# |
1 | ||
| 63310-1253006 |
TE72..(DX,SE)..(ARL,EUR);KE70,TE71..LB..(EUR,GEN,SAA) IVORY & D-BROWN,BROWN,TRIM4# |
1 | ||
| 63310-1253001 |
TE72..(DX,SE)..(ARL,EUR);KE70,TE71..LB..(EUR,GEN,SAA) IVORY & BLACK,BLACK,TRIM0#,2# |
1 | ||
| 63310-12580 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) HANGING CLOTH |
1 | ||
| 63310C - PLATE, ROOF HEADLINING SET | ||||
| 63325-12010 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) RH |
1 | ||
| 63326-12010 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) LH |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63351-12010 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) W/HANGING CLOTH ROOF |
1 | ||
| 63341-12070 |
AE71,CE70,KE70,TE7#..DV,LB,SED,WG |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63343-12030 |
KE70,TE7#..LB |
1 | ||
| 63341-12070 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) W/HANGING CLOTH ROOF |
1 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-12030 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) W/HANGING CLOTH ROOF |
1 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63352-12040 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) W/HANGING CLOTH ROOF |
1 | ||
| 63361 - SUPPORT, ROOF HEADLINING, NO.1 | ||||
| 63361-12120 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) L=1026 |
1 | ||
| 63361-12130 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) L=1029 |
1 | ||
| 63361-12140 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) L=1032 |
1 | ||
| 63361-12070 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) L=1023 |
1 | ||
| 63362 - SUPPORT, ROOF HEADLINING, NO.2 | ||||
| 63361-12130 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) L=1029 |
1 | ||
| 63361-12070 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) L=1023 |
1 | ||
| 63361-12140 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) L=1032 |
1 | ||
| 63361-12120 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) L=1026 |
1 | ||
| 63363 - SUPPORT, ROOF HEADLINING, NO.3 | ||||
| 63361-12140 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) L=1032 |
1 | ||
| 63361-12070 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) L=1023 |
1 | ||
| 63361-12130 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) L=1029 |
1 | ||
| 63361-12120 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) L=1026 |
1 | ||
| 63364 - SUPPORT, ROOF HEADLINING, NO.4 | ||||
| 63362-12100 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) L=1014 |
1 | ||
| 63362-12060 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) L=1011 |
1 | ||
| 63362-12090 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) L=1008 |
1 | ||
| 63381 - RETAINER, HEADLINING, FRONT | ||||
| 63381-12040 |
KE70,TE7#..CP,LB |
1 | ||
| 63383 - RETAINER, ROOF HEADLINING, REAR RH | ||||
| 63381-12050 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) |
1 | ||
| 63384 - RETAINER, ROOF HEADLINING, REAR LH | ||||
| 63382-12030 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) |
1 | ||
| 63391 - TRIM, ROOF HEADLINING, FRONT | ||||
| 63391-1202001 |
KE70,TE7#..(CP,LB)..(ARL,EUR,GEN,SAA) BLACK,BLACK,TRIM0#,2# |
1 | ||
| 63391-1202004 |
TE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 63391-1202006 |
KE70,TE7#..CP,LB D-BROWN,BROWN,TRIM4# |
1 | ||
| 63392 - TRIM, ROOF HEADLINING, REAR | ||||
| 63392-1210001 |
KE70,TE7#..LB..(ARL,EUR,GEN,SAA) BLACK,BLACK,TRIM0#,2# |
1 | ||
| 63392-1210004 |
TE72..(DX,SE)..(ARL,EUR);KE70,TE71..LB..(EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 63392-1210006 |
KE70,TE7#..LB D-BROWN,BROWN,TRIM4# |
1 | ||
| 63393 - TRIM, ROOF HEADLINING, CENTER | ||||
| 63308-1201006 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) LH,D-BROWN,BROWN,TRIM4# |
1 | ||
| 63308-1201004 |
KE70,TE71..LB..GEN LH,BLUE,BLUE,TRIM8# |
1 | ||
| 63304-1201006 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) RH,D-BROWN,BROWN,TRIM4# |
1 | ||
| 63304-1201001 |
KE70,TE71..LB..GEN RH,BLACK,BLACK,TRIM0#,2# |
1 | ||
| 63304-1201004 |
KE70,TE71..LB..GEN RH,BLUE,BLUE,TRIM8# |
1 | ||
| 63308-1201001 |
KE70,TE71..LB..GEN LH,BLACK,BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 63395-12030 | ||||
| 63395-12040 | ||||
| 90468-04010 | ||||
| 93510-14008 | ||||
| 93540-14012 | ||||
| 93540-54008 | ||||
| Linked diagrams | ||||
| 6401 | ||||

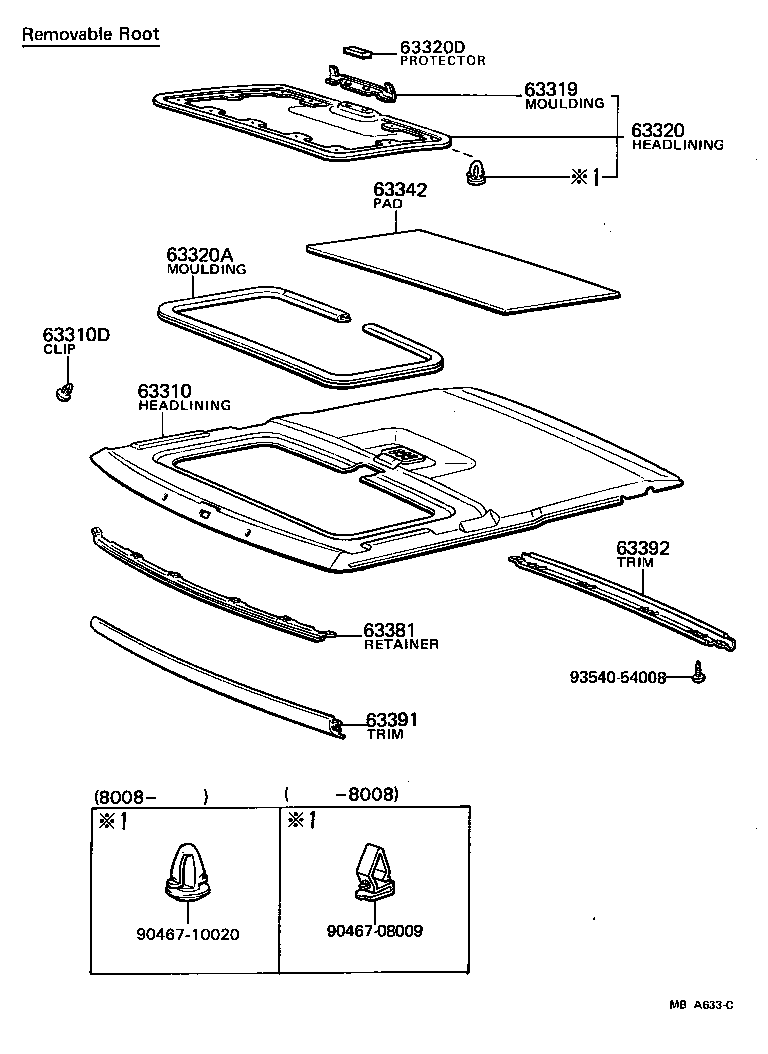

(7908-8308)LB..ARL,EUR,GEN,SAA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-1256004 |
KE70,TE72..LB..DX;TE71..LB..(EUR,GEN,SAA) REMOVABLE ROOF,IVORY & BLUE,BLUE,TRIM8# |
1 | ||
| 63310-1256001 |
KE70,TE72..LB..DX;TE71..LB..(EUR,GEN,SAA) REMOVABLE ROOF,IVORY & BLACK,BLACK,TRIM0#,2# |
1 | ||
| 63310-1253004 |
TE72..(DX,SE)..(ARL,EUR);KE70,TE71..LB..(EUR,GEN,SAA) IVORY & BLUE,BLUE,TRIM8# |
1 | ||
| 63310-1256006 |
KE70,TE72..LB..DX;TE71..LB..(EUR,GEN,SAA) REMOVABLE ROOF,IVORY & D-BROWN,BROWN,TRIM4# |
1 | ||
| 63310-1253006 |
TE72..(DX,SE)..(ARL,EUR);KE70,TE71..LB..(EUR,GEN,SAA) IVORY & D-BROWN,BROWN,TRIM4# |
1 | ||
| 63310-1253001 |
TE72..(DX,SE)..(ARL,EUR);KE70,TE71..LB..(EUR,GEN,SAA) IVORY & BLACK,BLACK,TRIM0#,2# |
1 | ||
| 63310-12580 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) HANGING CLOTH |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 63376-20010 |
KE70,TE7#..LB REMOVABLE ROOF |
6 | ||
| 63395-12020 |
TE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN,SAA) |
6 | ||
| 63319 - MOULDING, ROOF INNER BOARD SET, REAR | ||||
| 63372-12050 |
TE72..(DX,SE)..(ARL,EUR);KE70,TE71..LB..(EUR,GEN,SAA) |
1 | ||
| 63320 - HEADLINING ASSY, SUN ROOF OR REMOVABLE ROOF | ||||
| 63320-12010 |
KE70,TE7#..LB..(ARL,EUR,GEN) |
1 | ||
| 63320A - MOULDING, SUN ROOF OR REMOVABLE ROOF OPENING TRIM | ||||
| 63318-12010 |
KE70,TE7#..LB..(ARL,EUR,GEN) |
1 | ||
| 63320D - PROTECTOR, SUNSHADE TRIM | ||||
| 63333-12010 |
KE70,TE7#..LB..(ARL,EUR,GEN) |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63343-12030 |
KE70,TE7#..LB |
1 | ||
| 63341-12070 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) W/HANGING CLOTH ROOF |
1 | ||
| 63381 - RETAINER, HEADLINING, FRONT | ||||
| 63381-12040 |
KE70,TE7#..CP,LB |
1 | ||
| 63391 - TRIM, ROOF HEADLINING, FRONT | ||||
| 63391-1202001 |
KE70,TE7#..(CP,LB)..(ARL,EUR,GEN,SAA) BLACK,BLACK,TRIM0#,2# |
1 | ||
| 63391-1202004 |
TE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 63391-1202006 |
KE70,TE7#..CP,LB D-BROWN,BROWN,TRIM4# |
1 | ||
| 63392 - TRIM, ROOF HEADLINING, REAR | ||||
| 63392-1210001 |
KE70,TE7#..LB..(ARL,EUR,GEN,SAA) BLACK,BLACK,TRIM0#,2# |
1 | ||
| 63392-1210004 |
TE72..(DX,SE)..(ARL,EUR);KE70,TE71..LB..(EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 63392-1210006 |
KE70,TE7#..LB D-BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90467-08009 | ||||
| 90467-10020 | ||||
| 93540-54008 | ||||
(7908-8502)CP,LB,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-1256004 |
KE70,TE72..LB..DX;TE71..LB..(EUR,GEN,SAA) REMOVABLE ROOF,IVORY & BLUE,BLUE,TRIM8# |
1 | ||
| 63310-1256001 |
KE70,TE72..LB..DX;TE71..LB..(EUR,GEN,SAA) REMOVABLE ROOF,IVORY & BLACK,BLACK,TRIM0#,2# |
1 | ||
| 63310-1253004 |
TE72..(DX,SE)..(ARL,EUR);KE70,TE71..LB..(EUR,GEN,SAA) IVORY & BLUE,BLUE,TRIM8# |
1 | ||
| 63310-1256006 |
KE70,TE72..LB..DX;TE71..LB..(EUR,GEN,SAA) REMOVABLE ROOF,IVORY & D-BROWN,BROWN,TRIM4# |
1 | ||
| 63310-1253006 |
TE72..(DX,SE)..(ARL,EUR);KE70,TE71..LB..(EUR,GEN,SAA) IVORY & D-BROWN,BROWN,TRIM4# |
1 | ||
| 63310-1253001 |
TE72..(DX,SE)..(ARL,EUR);KE70,TE71..LB..(EUR,GEN,SAA) IVORY & BLACK,BLACK,TRIM0#,2# |
1 | ||
| 63310-12580 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) HANGING CLOTH |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 63376-20010 |
KE70,TE7#..LB REMOVABLE ROOF |
6 | ||
| 63395-12020 |
TE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN,SAA) |
6 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63351-12010 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) W/HANGING CLOTH ROOF |
1 | ||
| 63341-12070 |
AE71,CE70,KE70,TE7#..DV,LB,SED,WG |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63343-12030 |
KE70,TE7#..LB |
1 | ||
| 63341-12070 |
KE70,TE71..LB..(GEN,SA);TE72..(SE,XE)..(EUR,SA) W/HANGING CLOTH ROOF |
1 | ||
| 63381 - RETAINER, HEADLINING, FRONT | ||||
| 63381-12040 |
KE70,TE7#..CP,LB |
1 | ||
| 63391 - TRIM, ROOF HEADLINING, FRONT | ||||
| 63391-1202001 |
KE70,TE7#..(CP,LB)..(ARL,EUR,GEN,SAA) BLACK,BLACK,TRIM0#,2# |
1 | ||
| 63391-1202004 |
TE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 63391-1202006 |
KE70,TE7#..CP,LB D-BROWN,BROWN,TRIM4# |
1 | ||
| 63392 - TRIM, ROOF HEADLINING, REAR | ||||
| 63392-1210001 |
KE70,TE7#..LB..(ARL,EUR,GEN,SAA) BLACK,BLACK,TRIM0#,2# |
1 | ||
| 63392-1210004 |
TE72..(DX,SE)..(ARL,EUR);KE70,TE71..LB..(EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 63392-1210006 |
KE70,TE7#..LB D-BROWN,BROWN,TRIM4# |
1 | ||
| 63392 - TRIM, ROOF HEADLINING, REAR | ||||
| 63392-1210001 |
KE70,TE7#..LB..(ARL,EUR,GEN,SAA) BLACK,BLACK,TRIM0#,2# |
1 | ||
| 63392-1210004 |
TE72..(DX,SE)..(ARL,EUR);KE70,TE71..LB..(EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 63392-1210006 |
KE70,TE7#..LB D-BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 93540-14012 | ||||
| 93540-54008 | ||||
