TE71L-ELKDS (1979)

Toyota Corolla

Production Aug 1979 - Aug 1982
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )AE71,CE70,TE7#..MTM

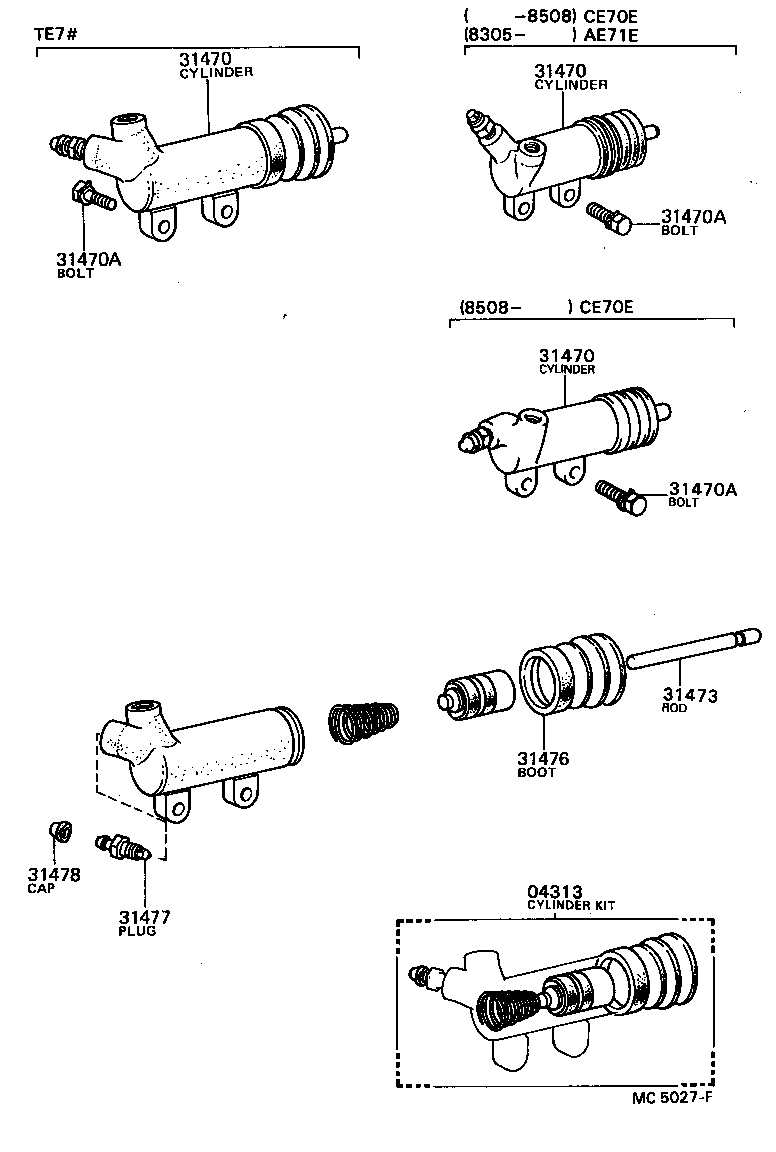

Click highlighted areas on diagram

diagram 04313 31470 31470 31470 31470A 31470A 31470A 31473 31476 31477 31478
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-30100

TE7#..MTM

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-14020

TE7#..MTM

 1
31470-20150

TE7#..MTM

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-14020

TE7#..MTM

 1
31470-20150

TE7#..MTM

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-14020

TE7#..MTM

 1
31470-20150

TE7#..MTM

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-60825

AE71,CE70,TE7#..MTM

*8-1.25PX25-25

 2
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-60825

AE71,CE70,TE7#..MTM

*8-1.25PX25-25

 2
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-60825

AE71,CE70,TE7#..MTM

*8-1.25PX25-25

 2
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-14010

TE7#..MTM

 1
31473-20030

TE7#..MTM

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-30040

TE7#..MTM

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

AE71,CE70,TE7#..MTM

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

AE71,CE70,TE7#..MTM

 1
