TE71L-EEKDS (1979)

Toyota Corolla

Production Aug 1979 - May 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8108)3TC..ARL ; (8108-8406)3TC..SE,XE ; (8108-8406)2T#..EUR,GEN,SAA ; (8204-8

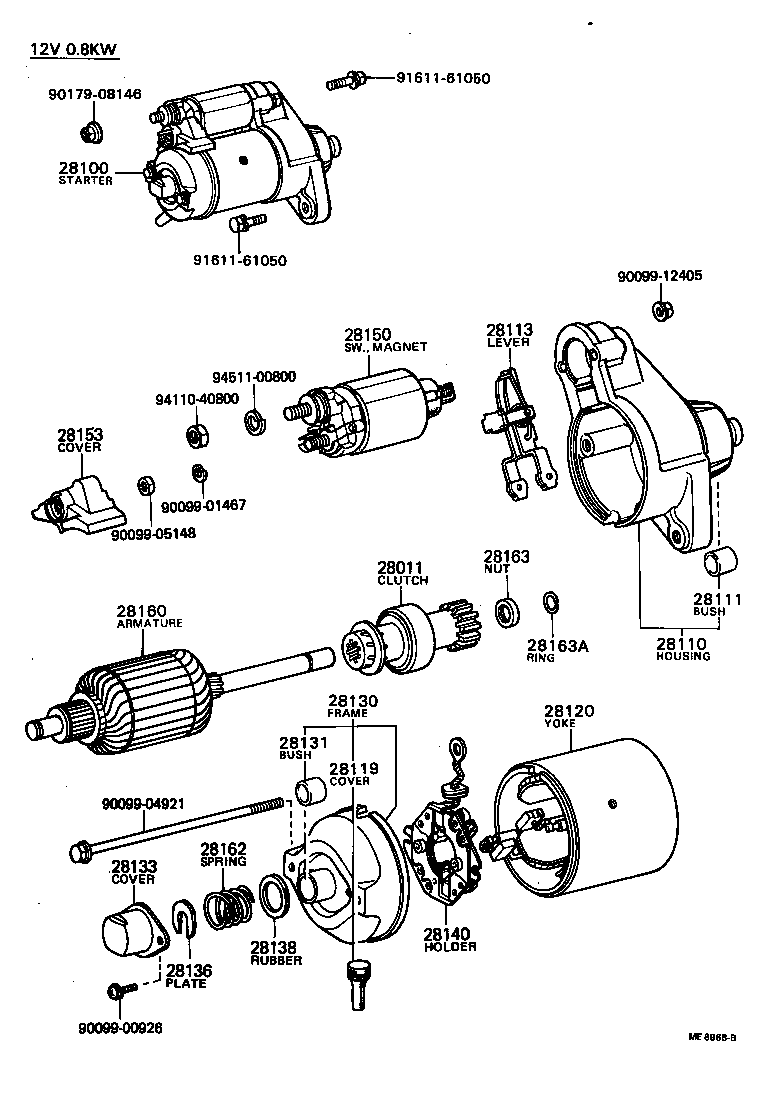

Click highlighted areas on diagram

diagram 28011 28100 28110 28111 28113 28119 28120 28130 28131 28133 28136 28138 2813826140 2813826142 28140 28150 28153 28160 28162 28163 28163A 28199 9009900926 9009901467 9009904272 9009904921 9009905118 9009905148 9009905178 9009912405 9017908146 9161141035 9161141040 9161161050 9161161050 9411040800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-22020

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 1
28100 - STARTER ASSY
28100-26160

2T#,3T..TE7#

12V 0.8KW

 1
28100-26080

2T#,3T..TE7#

12V 0.8KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-25011

2T#,3T..TE7#

12V 0.8KW

 1
28111 - BUSH(FOR STARTER HOUSING)
28111-51011

4A#,2T#,3T..AE71,TE7#

12V 0.8KW,1.0KW

 1
28113 - LEVER, STARTER PINION DRIVE
28113-25010

2T#,3T..TE7#

12V 0.8KW

 1
28119 - COVER, STARTER END FRAME
28199-77090

2T#,3T..TE7#

12V 0.8KW

 1
28120 - YOKE ASSY, STARTER
28120-15010

2T#,3T..TE7#

12V 0.8KW

 1
28120-25011

2T#,3T..TE7#

12V 0.8KW

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-21011

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 1
28131 - BUSH, COMMUTATOR END FRAME
28131-20010

4K,2T#,3T..KE70,TE7#

STD

 1
90099-10040

4K,2T#,3T..KE70,TE7#

U/S 0.5

 1
90099-10039

4K,2T#,3T..KE70,TE7#

U/S 0.3

 1
28133 - COVER, BEARING(FOR END FRAME)
28132-41011

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 1
28136 - PLATE, STARTER LOCK
28136-41011

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 1
28138 - RUBBER(FOR STARTER BEARING COVER)
28138-41011

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-25011

2T#,3T..TE7#

12V 0.8KW

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-26160

2T#,3T..TE7#

12V 0.8KW

 1
28150-25010

2T#,3T..TE7#

12V 0.8KW

 1
28150-15012

3TC..TE72..SE,XE;2T#..TE71..EUR,GEN,SAA

12V 0.8KW

 1
28160 - ARMATURE ASSY, STARTER
28160-22021

2T#,3T..TE7#

12V 0.8KW

 1
28162 - SPRING, STARTER BRAKE
28162-41011

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011

4A#,2T#,3T..AE71,TE7#

12V 0.8KW

 1
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
90099-07047

4A#,2T#,3T..AE71,TE7#

12V 0.8KW

 1
28199 - COVER, STARTER
28199-26131

3TC..TE72..SE,XE;2T#..TE71..EUR,GEN,SAA

12V 0.8KW

 1
Common parts
28138-26140
28138-26142
90099-00926
90099-01467
90099-04272
90099-04921
90099-05118
90099-05148
90099-05178
90099-12405
90179-08146
91611-41035
91611-41040
91611-61050
94110-40800
94511-00800

(7908-8008)2T#

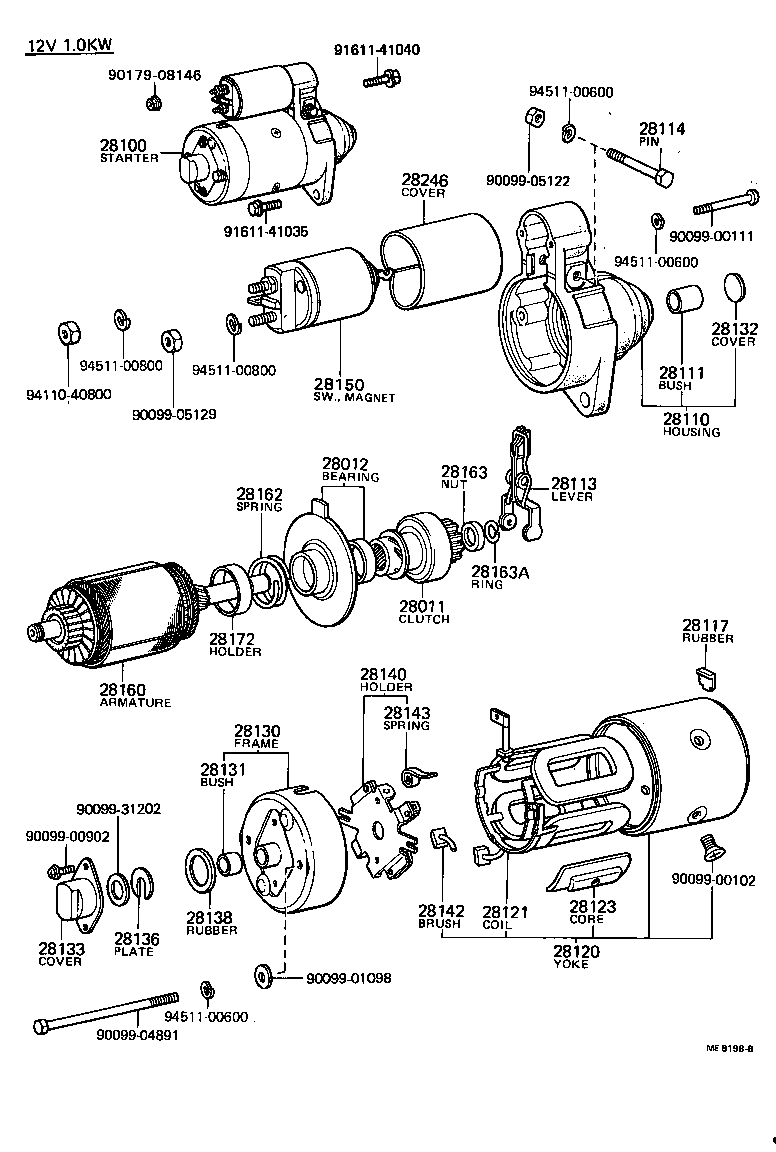

Click highlighted areas on diagram

diagram 28011 28012 28100 28110 28111 28113 28114 28117 28120 28121 28123 28130 28131 28132 28133 28136 28138 28140 28142 28143 28150 28160 28162 28163 28163A 28172 28246 9009900102 9009900111 9009900902 9009901098 9009904891 9009905122 9009905129 9009931202 9017908146 9161141035 9161141040 9411040800 9451100600 9451100600 9451100600 9451100800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-22020

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 1
28100 - STARTER ASSY
28100-26160

2T#,3T..TE7#

12V 0.8KW

 1
28100-26080

2T#,3T..TE7#

12V 0.8KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-25011

2T#,3T..TE7#

12V 0.8KW

 1
28111 - BUSH(FOR STARTER HOUSING)
28111-51011

4A#,2T#,3T..AE71,TE7#

12V 0.8KW,1.0KW

 1
28113 - LEVER, STARTER PINION DRIVE
28113-25010

2T#,3T..TE7#

12V 0.8KW

 1
28114 - PIN, STARTER DRIVE LEVER SET
28114-25010

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 1
28117 - RUBBER(FOR STARTER YOKE)
28117-25010

2T#,3T..TE7#

12V 0.8KW

 1
28120 - YOKE ASSY, STARTER
28120-15010

2T#,3T..TE7#

12V 0.8KW

 1
28120-25011

2T#,3T..TE7#

12V 0.8KW

 1
28121 - COIL, STARTER FIELD
28121-25012

2T#,3T..TE7#

12V 0.8KW

 1
28123 - CORE, STARTER POLE
28123-40012

2T#,3T..TE7#

12V 0.8KW

 4
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-21011

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 1
28131 - BUSH, COMMUTATOR END FRAME
28131-20010

4K,2T#,3T..KE70,TE7#

STD

 1
90099-10040

4K,2T#,3T..KE70,TE7#

U/S 0.5

 1
90099-10039

4K,2T#,3T..KE70,TE7#

U/S 0.3

 1
28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING)
28166-41011

2T#,3T..TE7#

12V 0.8KW,1.0KW

 1
28133 - COVER, BEARING(FOR END FRAME)
28132-41011

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 1
28136 - PLATE, STARTER LOCK
28136-41011

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 1
28138 - RUBBER(FOR STARTER BEARING COVER)
28138-41011

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-25011

2T#,3T..TE7#

12V 0.8KW

 1
28142 - BRUSH, STARTER
28142-25010

2T#,3T..TE7#

12V 0.8KW

 2
28143 - SPRING, STARTER BRUSH
28143-40010

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-26160

2T#,3T..TE7#

12V 0.8KW

 1
28150-25010

2T#,3T..TE7#

12V 0.8KW

 1
28150-15012

3TC..TE72..SE,XE;2T#..TE71..EUR,GEN,SAA

12V 0.8KW

 1
28160 - ARMATURE ASSY, STARTER
28160-22021

2T#,3T..TE7#

12V 0.8KW

 1
28162 - SPRING, STARTER BRAKE
28162-41011

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011

4A#,2T#,3T..AE71,TE7#

12V 0.8KW

 1
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
90099-07047

4A#,2T#,3T..AE71,TE7#

12V 0.8KW

 1
Common parts
90099-00102
90099-00111
90099-00902
90099-01098
90099-04891
90099-05122
90099-05129
90099-31202
90179-08146
91611-41035
91611-41040
94110-40800
94511-00600
94511-00800

(7908-8008)2T#,3T

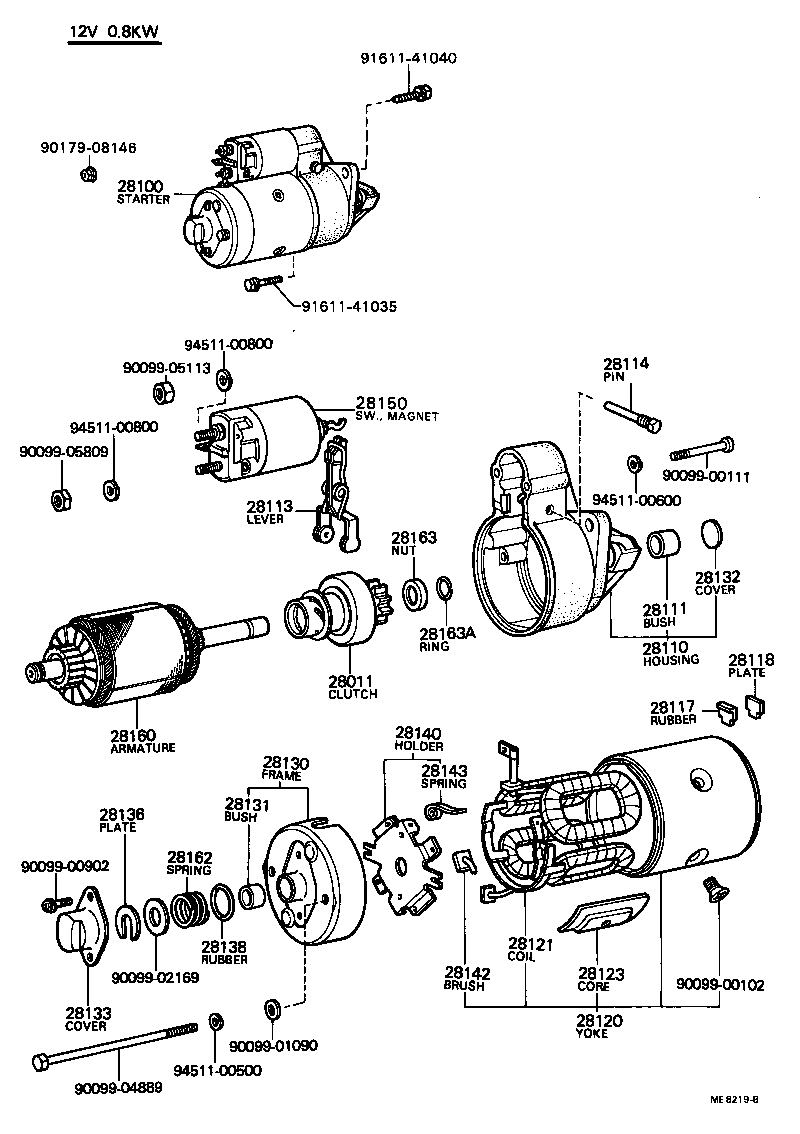

Click highlighted areas on diagram

diagram 28011 28100 28110 28111 28113 28114 28117 28118 28120 28121 28123 28130 28131 28132 28133 28136 28138 28140 28142 28143 28150 28160 28162 28163 28163A 9009900102 9009900111 9009900902 9009901090 9009902169 9009904889 9009905113 9009905809 9017908146 9161141035 9161141040 9451100500 9451100600 9451100800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-22020

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 1
28100 - STARTER ASSY
28100-26160

2T#,3T..TE7#

12V 0.8KW

 1
28100-26080

2T#,3T..TE7#

12V 0.8KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-25011

2T#,3T..TE7#

12V 0.8KW

 1
28111 - BUSH(FOR STARTER HOUSING)
28111-51011

4A#,2T#,3T..AE71,TE7#

12V 0.8KW,1.0KW

 1
28113 - LEVER, STARTER PINION DRIVE
28113-25010

2T#,3T..TE7#

12V 0.8KW

 1
28114 - PIN, STARTER DRIVE LEVER SET
28114-25010

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 1
28117 - RUBBER(FOR STARTER YOKE)
28117-25010

2T#,3T..TE7#

12V 0.8KW

 1
28118 - PLATE(FOR STARTER YOKE)
28118-25010

2T#,3T..TE7#

12V 0.8KW

 1
28120 - YOKE ASSY, STARTER
28120-15010

2T#,3T..TE7#

12V 0.8KW

 1
28120-25011

2T#,3T..TE7#

12V 0.8KW

 1
28121 - COIL, STARTER FIELD
28121-25012

2T#,3T..TE7#

12V 0.8KW

 1
28123 - CORE, STARTER POLE
28123-40012

2T#,3T..TE7#

12V 0.8KW

 4
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-21011

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 1
28131 - BUSH, COMMUTATOR END FRAME
28131-20010

4K,2T#,3T..KE70,TE7#

STD

 1
90099-10040

4K,2T#,3T..KE70,TE7#

U/S 0.5

 1
90099-10039

4K,2T#,3T..KE70,TE7#

U/S 0.3

 1
28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING)
28166-41011

2T#,3T..TE7#

12V 0.8KW,1.0KW

 1
28133 - COVER, BEARING(FOR END FRAME)
28132-41011

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 1
28136 - PLATE, STARTER LOCK
28136-41011

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 1
28138 - RUBBER(FOR STARTER BEARING COVER)
28138-41011

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-25011

2T#,3T..TE7#

12V 0.8KW

 1
28142 - BRUSH, STARTER
28142-25010

2T#,3T..TE7#

12V 0.8KW

 2
28143 - SPRING, STARTER BRUSH
28143-40010

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-26160

2T#,3T..TE7#

12V 0.8KW

 1
28150-25010

2T#,3T..TE7#

12V 0.8KW

 1
28150-15012

3TC..TE72..SE,XE;2T#..TE71..EUR,GEN,SAA

12V 0.8KW

 1
28160 - ARMATURE ASSY, STARTER
28160-22021

2T#,3T..TE7#

12V 0.8KW

 1
28162 - SPRING, STARTER BRAKE
28162-41011

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011

4A#,2T#,3T..AE71,TE7#

12V 0.8KW

 1
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
90099-07047

4A#,2T#,3T..AE71,TE7#

12V 0.8KW

 1
Common parts
90099-00102
90099-00111
90099-00902
90099-01090
90099-02169
90099-04889
90099-05113
90099-05809
90179-08146
91611-41035
91611-41040
94511-00500
94511-00600
94511-00800

(8008-8108)2T#,3T ; (8108-8204)2T,2TB,3T..SA

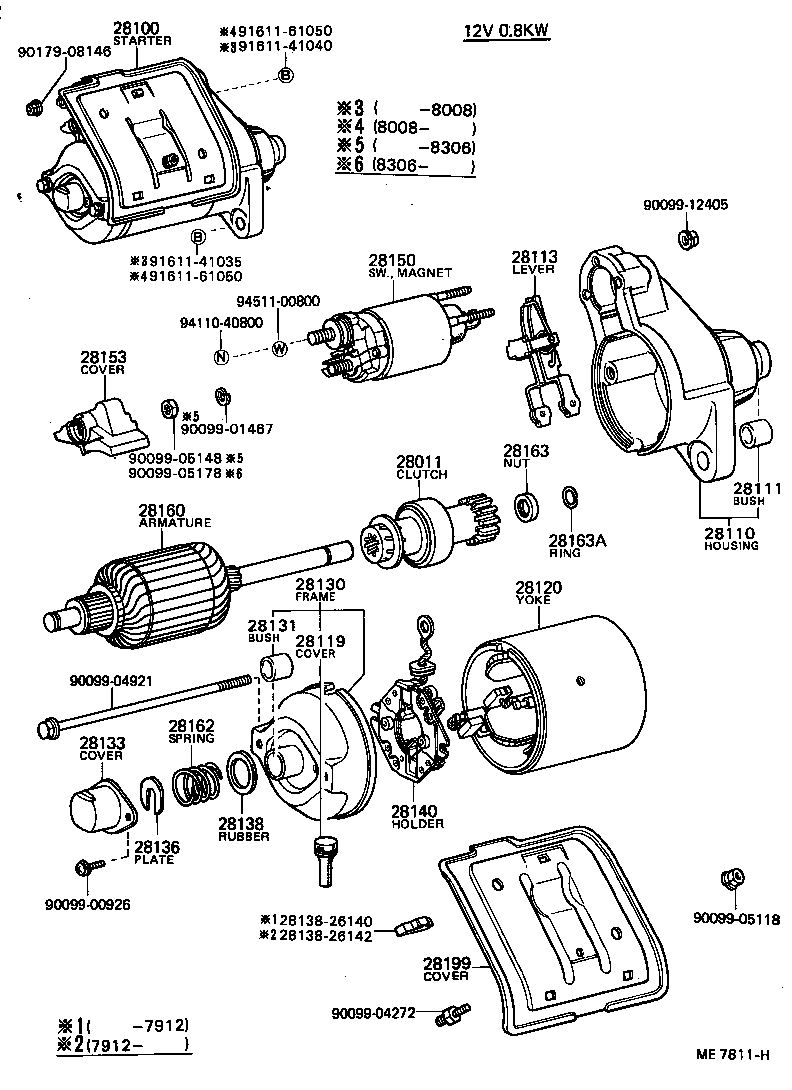

Click highlighted areas on diagram

diagram 28011 28100 28110 28111 28113 28119 28120 28130 28131 28133 28136 28138 28140 28150 28153 28160 28162 28163 28163A 9009900926 9009901467 9009904921 9009905148 9009912405 9017908146 9161161050 9161161050 9411040800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-22020

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 1
28100 - STARTER ASSY
28100-26160

2T#,3T..TE7#

12V 0.8KW

 1
28100-26080

2T#,3T..TE7#

12V 0.8KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-25011

2T#,3T..TE7#

12V 0.8KW

 1
28111 - BUSH(FOR STARTER HOUSING)
28111-51011

4A#,2T#,3T..AE71,TE7#

12V 0.8KW,1.0KW

 1
28113 - LEVER, STARTER PINION DRIVE
28113-25010

2T#,3T..TE7#

12V 0.8KW

 1
28119 - COVER, STARTER END FRAME
28199-77090

2T#,3T..TE7#

12V 0.8KW

 1
28120 - YOKE ASSY, STARTER
28120-15010

2T#,3T..TE7#

12V 0.8KW

 1
28120-25011

2T#,3T..TE7#

12V 0.8KW

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-21011

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 1
28131 - BUSH, COMMUTATOR END FRAME
28131-20010

4K,2T#,3T..KE70,TE7#

STD

 1
90099-10040

4K,2T#,3T..KE70,TE7#

U/S 0.5

 1
90099-10039

4K,2T#,3T..KE70,TE7#

U/S 0.3

 1
28133 - COVER, BEARING(FOR END FRAME)
28132-41011

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 1
28136 - PLATE, STARTER LOCK
28136-41011

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 1
28138 - RUBBER(FOR STARTER BEARING COVER)
28138-41011

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-25011

2T#,3T..TE7#

12V 0.8KW

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-26160

2T#,3T..TE7#

12V 0.8KW

 1
28150-25010

2T#,3T..TE7#

12V 0.8KW

 1
28150-15012

3TC..TE72..SE,XE;2T#..TE71..EUR,GEN,SAA

12V 0.8KW

 1
28160 - ARMATURE ASSY, STARTER
28160-22021

2T#,3T..TE7#

12V 0.8KW

 1
28162 - SPRING, STARTER BRAKE
28162-41011

4K,2T#,3T..KE70,TE7#

12V 0.6KW,0.8KW

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011

4A#,2T#,3T..AE71,TE7#

12V 0.8KW

 1
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
90099-07047

4A#,2T#,3T..AE71,TE7#

12V 0.8KW

 1
Common parts
90099-00926
90099-01467
90099-04921
90099-05148
90099-12405
90179-08146
91611-61050
94110-40800
94511-00800
