TE71L-ECMQGW (1979)

Toyota Corolla

Production Aug 1979 - May 1983
Engine 2TG
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )GT ; (7908- )AE71

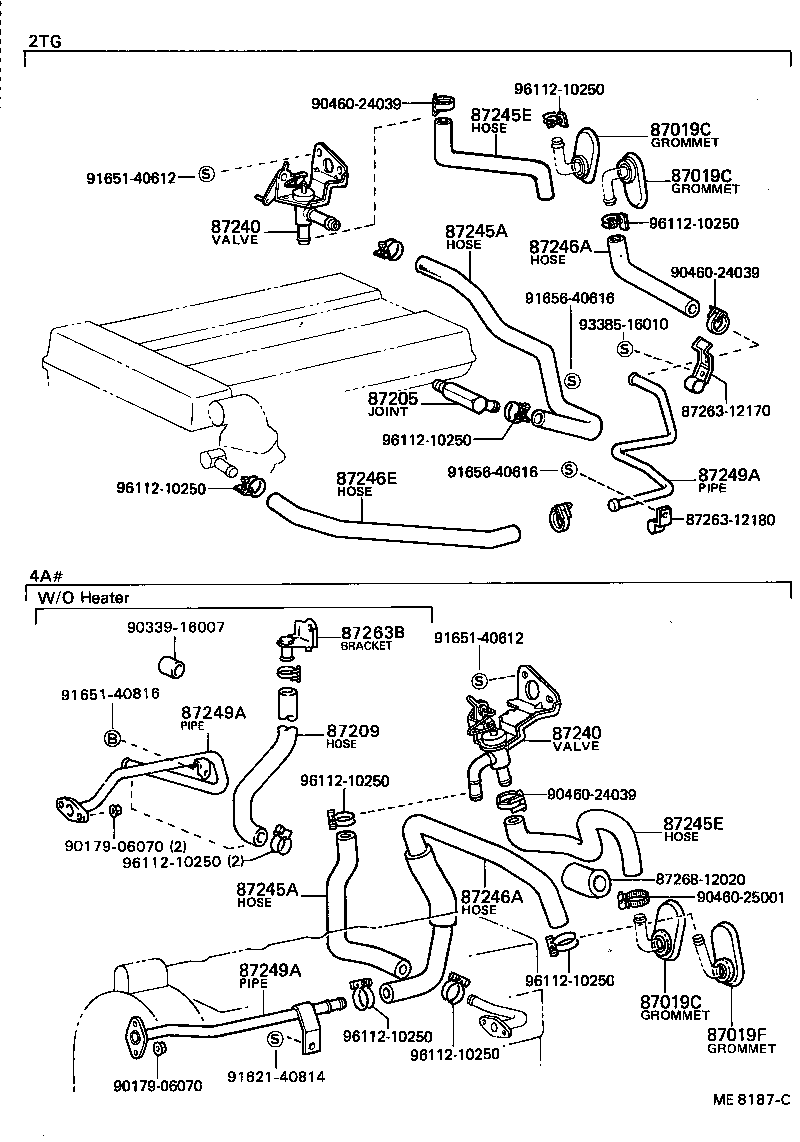

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87019F 87205 87209 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 87246E 87249A 87249A 87249A 8726312170 8726312180 87263B 8726812020 9017906070 9017906070 9033916007 9046024039 9046024039 9046024039 9046025001 9162140814 9165140612 9165140612 9165140816 9165640616 9165640616 9338516010 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01015

AE71,CE70,KE70,TE7#

 2
87019C - GROMMET, HEATER HOSE
90480-01015

AE71,CE70,KE70,TE7#

 2
87019C - GROMMET, HEATER HOSE
90480-01015

AE71,CE70,KE70,TE7#

 2
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-20100

TE71..GT

 1
87240 - VALVE ASSY, HEATER WATER
87240-12150

TE71..LHD..EUG;KE70,TE72..LHD..(DX,GL,STD)..EUR

 1
87240 - VALVE ASSY, HEATER WATER
87240-12150

TE71..LHD..EUG;KE70,TE72..LHD..(DX,GL,STD)..EUR

 1
87245A - HOSE, HEATER WATER, INLET A
87245-12570

TE71..GT

 1
87245A - HOSE, HEATER WATER, INLET A
87245-12570

TE71..GT

 1
87245E - HOSE, HEATER WATER, INLET E
87245-12490

CE70,KE70,TE7#..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-12490

CE70,KE70,TE7#..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-12520

CE70,KE70,TE7#..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-12520

CE70,KE70,TE7#..LHD

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-12560

TE71..GT

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-12200

CE70,TE7#..LHD

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-12200

CE70,TE7#..LHD

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-12200

CE70,TE7#..LHD

 1
Common parts
87263-12170
87263-12180
87268-12020
90179-06070
90339-16007
90460-24039
90460-25001
91621-40814
91651-40612
91651-40816
91656-40616
93385-16010
96112-10250
