TE71L-ECMQGW (1979)

Toyota Corolla

Production Aug 1979 - May 1983
Engine 2TG
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8305)GT..EUG

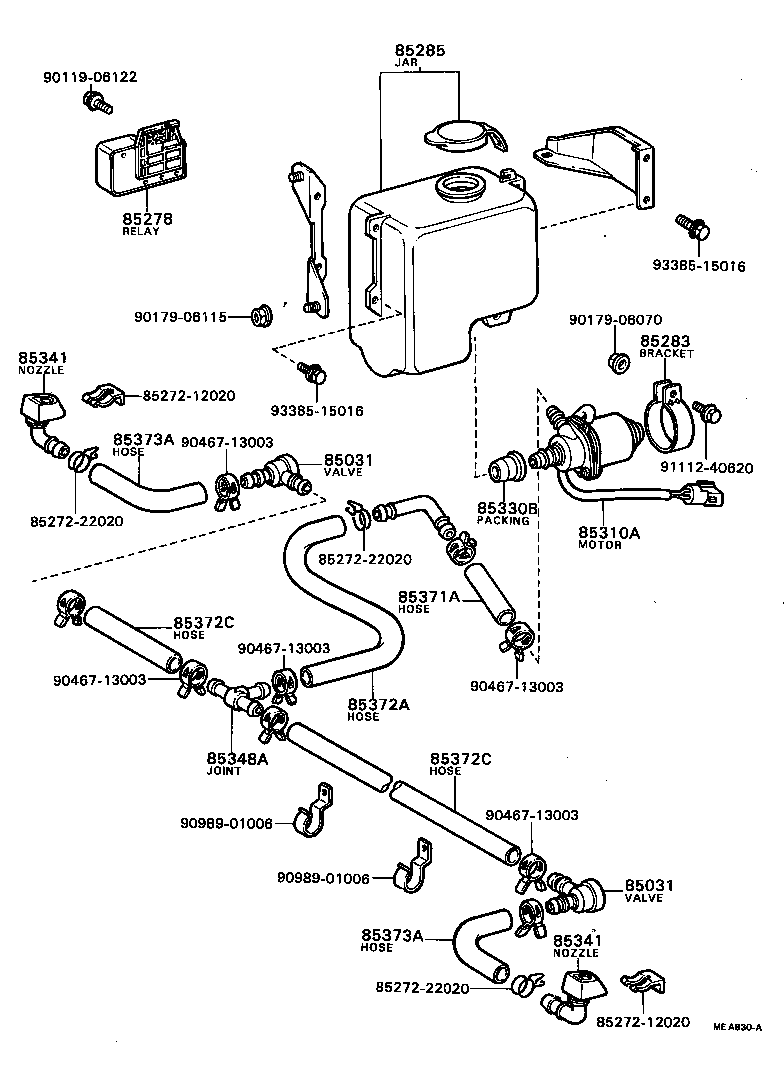

Click highlighted areas on diagram

diagram 85031 85031 8527212020 8527212020 8527222020 8527222020 8527222020 85278 85283 85285 85310A 85330B 85341 85341 85348A 85371A 85372A 85372C 85372C 85373A 85373A 9011906122 9017906070 9017906115 9046713003 9046713003 9046713003 9046713003 9046713003 9098901006 9098901006 9111240620 9338515016 9338515016
Part # Description Qty Price
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

TE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR

 1
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

TE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR

 1
85278 - RELAY ASSY, HEADLAMP CLEANER CONTROL
85276-14010

TE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR

 1
85283 - BRACKET, HEADLAMP CLEANER WASHER
85361-10070

TE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR

 1
85285 - JAR, HEADLAMP CLEANER WASHER
85330-12200

TE71..GT..EUG

 1
85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85310-16010

TE71..GT..EUG

 1
85330B - BUSH, HEADLAMP CLEANER WASHER JAR
85336-10010

TE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85045-12030

TE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR

LH

 1
85044-12030

TE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR

RH

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85045-12030

TE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR

LH

 1
85044-12030

TE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR

RH

 1
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85352-12010

TE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR

 1
85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
90445-14060

TE71..GT..EUG

L=115

 1
85372A - HOSE, HEADLAMP CLEANER (FROM JOINT TO JOINT OR NOZZLE)
90445-14056

TE71..GT..EUG

L=240

 1
85372C - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO VALVE)
90445-14073

TE71..LHD..EUG;KE70,TE72..LHD..(DX,GL,STD)..EUR

L=50

 1
90445-14042

TE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR

L=850

 1
85372C - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO VALVE)
90445-14073

TE71..LHD..EUG;KE70,TE72..LHD..(DX,GL,STD)..EUR

L=50

 1
90445-14042

TE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR

L=850

 1
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
85271-22020

TE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR

 1
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
85271-22020

TE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR

 1
Common parts
85272-12020
85272-22020
90119-06122
90179-06070
90179-06115
90467-13003
90989-01006
91112-40620
93385-15016
