TE71L-ECMQGW (1979)

Toyota Corolla

Production Aug 1979 - May 1983
Engine 2TG
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8502)CP,LB,SED

Click highlighted areas on diagram

diagram 63310 63310D 63341 63342 63381 63391 63392 63392 9354014012 9354054008
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-1252001

KE70,TE71..CP

IVORY & BLACK,BLACK,TRIM0#,2#

 1
63310-1252004

KE70,TE71..CP

IVORY & BLUE,BLUE,TRIM8#

 1
63310-1252006

KE70,TE71..CP

IVORY & D-BROWN,BROWN,TRIM4#

 1
63310-1252106

KE70,TE71..CP

IVORY & D-BROWN,BROWN,TRIM4#

 1
63310-1259101

KE70,TE71..CP

REMOVABLE ROOF,IVORY & BLACK,BLACK,TRIM0#,2#

 1
63310-1259104

KE70,TE71..CP

REMOVABLE ROOF,IVORY & BLUE,BLUE,TRIM8#

 1
63310-1252104

KE70,TE71..CP

IVORY & BLUE,BLUE,TRIM8#

 1
63310-1252101

KE70,TE71..CP

IVORY & BLACK,BLACK,TRIM0#,2#

 1
63310-1259106

KE70,TE71..CP

REMOVABLE ROOF,IVORY & D-BROWN,BROWN,TRIM4#

 1
63310D - CLIP, ROOF HEADLINING
63395-12020

TE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN,SAA)

 6
63341 - PAD, ROOF SILENCER, NO.1
63342-12030

KE70,TE71..CP

 1
63342 - PAD, ROOF SILENCER, NO.2
63343-12020

KE70,TE71..CP

W/O REMOVABLE ROOF

 1
63343-12040

KE70,TE71..CP

W/REMOVABLE ROOF

 1
63381 - RETAINER, HEADLINING, FRONT
63381-12040

KE70,TE7#..CP,LB

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-1202001

KE70,TE7#..(CP,LB)..(ARL,EUR,GEN,SAA)

BLACK,BLACK,TRIM0#,2#

 1
63391-1202004

TE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN,SAA)

BLUE,BLUE,TRIM8#

 1
63391-1202006

KE70,TE7#..CP,LB

D-BROWN,BROWN,TRIM4#

 1
63392 - TRIM, ROOF HEADLINING, REAR
63392-1209004

KE70,TE71..CP

BLUE,BLUE,TRIM8#

 1
63392-1209006

KE70,TE71..CP

D-BROWN,BROWN,TRIM4#

 1
63392-1209001

KE70,TE71..CP

BLACK,BLACK,TRIM0#,2#

 1
63392 - TRIM, ROOF HEADLINING, REAR
63392-1209004

KE70,TE71..CP

BLUE,BLUE,TRIM8#

 1
63392-1209006

KE70,TE71..CP

D-BROWN,BROWN,TRIM4#

 1
63392-1209001

KE70,TE71..CP

BLACK,BLACK,TRIM0#,2#

 1
Common parts
93540-14012
93540-54008

(8108-8305)CP

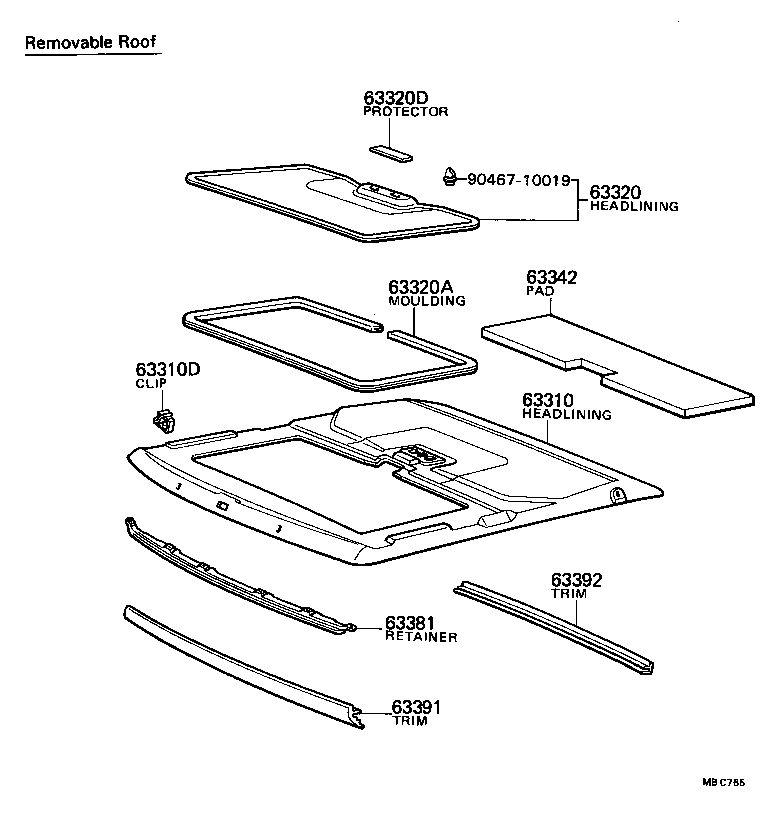

Click highlighted areas on diagram

diagram 63310 63310D 63320 63320A 63320D 63342 63381 63391 63392 9046710019
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-1252001

KE70,TE71..CP

IVORY & BLACK,BLACK,TRIM0#,2#

 1
63310-1252004

KE70,TE71..CP

IVORY & BLUE,BLUE,TRIM8#

 1
63310-1252006

KE70,TE71..CP

IVORY & D-BROWN,BROWN,TRIM4#

 1
63310-1252106

KE70,TE71..CP

IVORY & D-BROWN,BROWN,TRIM4#

 1
63310-1259101

KE70,TE71..CP

REMOVABLE ROOF,IVORY & BLACK,BLACK,TRIM0#,2#

 1
63310-1259104

KE70,TE71..CP

REMOVABLE ROOF,IVORY & BLUE,BLUE,TRIM8#

 1
63310-1252104

KE70,TE71..CP

IVORY & BLUE,BLUE,TRIM8#

 1
63310-1252101

KE70,TE71..CP

IVORY & BLACK,BLACK,TRIM0#,2#

 1
63310-1259106

KE70,TE71..CP

REMOVABLE ROOF,IVORY & D-BROWN,BROWN,TRIM4#

 1
63310D - CLIP, ROOF HEADLINING
63395-12020

TE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN,SAA)

 6
63320 - HEADLINING ASSY, SUN ROOF OR REMOVABLE ROOF
63320-12020

KE70,TE71..CP

 1
63320A - MOULDING, SUN ROOF OR REMOVABLE ROOF OPENING TRIM
63318-12010

TE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN,SAA)

 1
63320D - PROTECTOR, SUNSHADE TRIM
63333-12010

TE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN,SAA)

 1
63342 - PAD, ROOF SILENCER, NO.2
63343-12020

KE70,TE71..CP

W/O REMOVABLE ROOF

 1
63343-12040

KE70,TE71..CP

W/REMOVABLE ROOF

 1
63381 - RETAINER, HEADLINING, FRONT
63381-12040

KE70,TE7#..CP,LB

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-1202001

KE70,TE7#..(CP,LB)..(ARL,EUR,GEN,SAA)

BLACK,BLACK,TRIM0#,2#

 1
63391-1202004

TE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN,SAA)

BLUE,BLUE,TRIM8#

 1
63391-1202006

KE70,TE7#..CP,LB

D-BROWN,BROWN,TRIM4#

 1
63392 - TRIM, ROOF HEADLINING, REAR
63392-1209004

KE70,TE71..CP

BLUE,BLUE,TRIM8#

 1
63392-1209006

KE70,TE71..CP

D-BROWN,BROWN,TRIM4#

 1
63392-1209001

KE70,TE71..CP

BLACK,BLACK,TRIM0#,2#

 1
Common parts
90467-10019
