TE71L-ECMQGW (1979)

Toyota Corolla

Production Aug 1979 - May 1983
Engine 2TG
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8305)CP

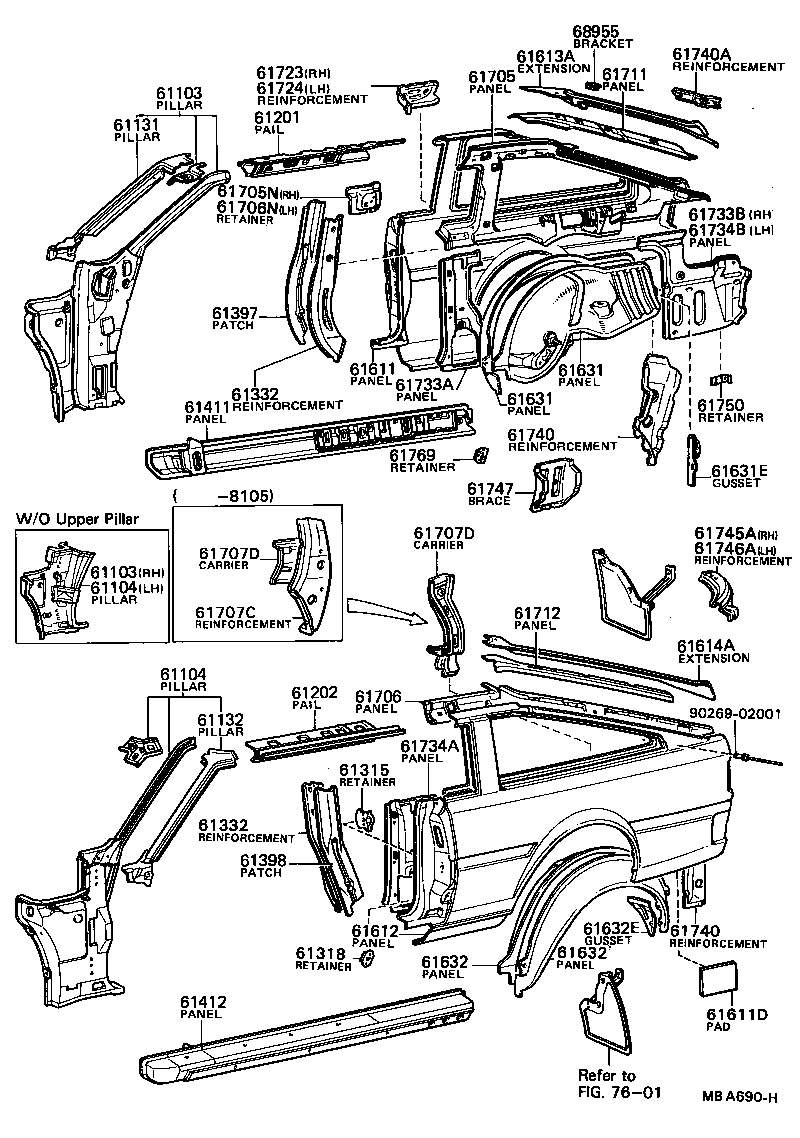

Click highlighted areas on diagram

diagram 61103 61103 61104 61104 61131 61132 61201 61202 61315 61318 61332 61332 61397 61398 61411 61412 61611 61611D 61612 61613A 61614A 61631 61631 61631E 61632 61632 61632E 61705 61705N 61706 61706N 61707C 61707D 61707D 61711 61712 61723 61724 61733A 61733B 61734A 61734B 61740 61740 61740A 61745A 61746A 61747 61750 61769 68955 7601 9026902001
Part # Description Qty Price
61103 - PILLAR SUB-ASSY, FRONT BODY, RH
61021-12260

KE70,TE7#..(CP,LB)..LHD

 1
61021-12904

KE70,TE7#..(CP,LB)..LHD

W/O UPR PILLAR

 1
61021-12904

TE7#..LHD..(GT,SR,XE)

W/O UPR PILLAR

 1
61021-12270

TE7#..LHD..(GT,SR,XE)

 1
61103 - PILLAR SUB-ASSY, FRONT BODY, RH
61021-12260

KE70,TE7#..(CP,LB)..LHD

 1
61021-12904

KE70,TE7#..(CP,LB)..LHD

W/O UPR PILLAR

 1
61021-12904

TE7#..LHD..(GT,SR,XE)

W/O UPR PILLAR

 1
61021-12270

TE7#..LHD..(GT,SR,XE)

 1
61104 - PILLAR SUB-ASSY, FRONT BODY, LH
61022-12904

KE70,TE7#..(CP,LB)..LHD

W/O UPR PILLAR

 1
61022-12360

KE70,TE7#..(CP,LB)..LHD

 1
61022-12904

TE7#..LHD..(GT,SR,XE)

W/O UPR PILLAR

 1
61022-12360

TE7#..LHD..(GT,SR,XE)

 1
61104 - PILLAR SUB-ASSY, FRONT BODY, LH
61022-12904

KE70,TE7#..(CP,LB)..LHD

W/O UPR PILLAR

 1
61022-12360

KE70,TE7#..(CP,LB)..LHD

 1
61022-12904

TE7#..LHD..(GT,SR,XE)

W/O UPR PILLAR

 1
61022-12360

TE7#..LHD..(GT,SR,XE)

 1
61131 - PILLAR, FRONT BODY, UPPER OUTER RH
61131-12150

KE70,TE7#..CP,LB

 1
61132 - PILLAR, FRONT BODY, UPPER OUTER LH
61132-12160

KE70,TE7#..CP,LB

 1
61201 - RAIL SUB-ASSY, ROOF SIDE, RH
61201-12071

KE70,TE71..CP

 1
61201-12070

KE70,TE71..CP..LHD

 1
61201-12070

KE70,TE71..CP

 1
61202 - RAIL SUB-ASSY, ROOF SIDE, LH
61202-12060

KE70,TE71..CP

 1
61202-12061

KE70,TE71..CP

 1
61315 - RETAINER, DOOR LOCK STRIKER PLATE
61309-12040

KE70,TE71..CP

 2
61318 - RETAINER, DOOR OPEN SWITCH SET
61623-20020

TE7#..GT,SE,SR,XE

 2
61332 - REINFORCEMENT, CENTER BODY PILLAR, INNER
61338-12020

KE70,TE71..CP

LH

 1
61337-12080

KE70,TE71..CP

RH

 1
61332 - REINFORCEMENT, CENTER BODY PILLAR, INNER
61338-12020

KE70,TE71..CP

LH

 1
61337-12080

KE70,TE71..CP

RH

 1
61397 - PATCH, CENTER BODY PILLAR, INNER RH
61397-12010

KE70,TE71..CP

 1
61398 - PATCH, CENTER BODY PILLAR, INNER LH
61398-12010

KE70,TE71..CP

 1
61411 - PANEL, ROCKER, OUTER RH
61401-12110

KE70,TE71..CP

 1
61412 - PANEL, ROCKER, OUTER LH
61402-12110

KE70,TE71..CP

 1
61611 - PANEL, QUARTER, RH
61611-12903

KE70,TE71..CP..DX;TE71..CP..5F..EUG

 1
61611D - PAD, QUARTER PANEL SILENCER
67811-12070

KE70,TE7#..CP,LB

 2
61612 - PANEL, QUARTER, LH
61612-12590

KE70,TE71..CP

 1
61613A - EXTENSION, QUARTER PANEL REAR, RH
61625-12020

KE70,TE71..CP

 1
61614A - EXTENSION, QUARTER PANEL, REAR LH
61626-12020

KE70,TE71..CP

 1
61631 - PANEL, QUARTER WHEEL HOUSE, RH
61631-12906

KE70,TE7#..CP,LB

OUTER

 1
61603-12903

KE70,TE7#..CP,LB

INNER

 1
61631 - PANEL, QUARTER WHEEL HOUSE, RH
61631-12906

KE70,TE7#..CP,LB

OUTER

 1
61603-12903

KE70,TE7#..CP,LB

INNER

 1
61631E - GUSSET, QUARTER WHEEL HOUSE, REAR RH
61645-12040

KE70,TE7#..CP,LB

 1
61632 - PANEL, QUARTER WHEEL HOUSE, LH
61632-12090

KE70,TE7#..CP,LB

OUTER

 1
61604-12903

KE70,TE7#..CP,LB

INNER

 1
61632 - PANEL, QUARTER WHEEL HOUSE, LH
61632-12090

KE70,TE7#..CP,LB

OUTER

 1
61604-12903

KE70,TE7#..CP,LB

INNER

 1
61632E - GUSSET, QUARTER WHEEL HOUSE, REAR LH
61646-12040

KE70,TE7#..CP,LB

 1
61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH
61705-12930

KE70,TE71..CP

 1
61705N - RETAINER, REAR SEAT BACK SET, RH
61693-12030

KE70,TE71..CP

W/SEPARATE RR SEAT

 1
61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH
61706-12930

KE70,TE71..CP

 1
61706-12939

KE70,TE71..CP

 1
61706N - RETAINER, REAR SEAT BACK SET, LH
61694-12030

KE70,TE71..CP

W/SEPARATE RR SEAT

 1
61707C - REINFORCEMENT, JACK CARRIER SUPPORT
61739-12080

KE70,TE71..CP

 1
61707D - CARRIER, JACK
58709-12030

KE70,TE71..CP

 1
58709-12010

KE70,TE71..CP

 1
61707D - CARRIER, JACK
58709-12030

KE70,TE71..CP

 1
58709-12010

KE70,TE71..CP

 1
61711 - PANEL, ROOF SIDE, OUTER RH
61711-12240

KE70,TE71..CP

 1
61712 - PANEL, ROOF SIDE, OUTER LH
61712-12270

KE70,TE71..CP

 1
61723 - REINFORCEMENT, QUARTER WINDOW OPENING, REAR RH
61723-12080

KE70,TE71..CP..EUG

 1
61724 - REINFORCEMENT, QUARTER WINDOW OPENING, REAR LH
61724-12080

KE70,TE71..CP..EUG

 1
61733A - PANEL, ROOF SIDE, INNER FRONT RH
61733-12090

KE70,TE71..CP

 1
61733B - PANEL, ROOF SIDE, INNER REAR RH
61735-12110

KE70,TE71..CP

 1
61735-12070

KE70,TE71..CP

 1
61734A - PANEL, ROOF SIDE, INNER FRONT LH
61734-12090

KE70,TE71..CP

 1
61734B - PANEL, ROOF SIDE, INNER REAR LH
61736-12110

KE70,TE71..CP

 1
61736-12111

KE70,TE71..CP

 1
61736-12070

KE70,TE71..CP

 1
61740 - REINFORCEMENT, ROOF SIDE, INNER
61738-12050

KE70,TE71..CP

LH

 1
61737-12040

KE70,TE71..CP

RH

 1
61740 - REINFORCEMENT, ROOF SIDE, INNER
61738-12050

KE70,TE71..CP

LH

 1
61737-12040

KE70,TE71..CP

RH

 1
61740A - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER REAR
61768-12040

KE70,TE71..CP..EUG

RH

 1
61768-12041

KE70,TE71..CP..EUG

RH

 1
61769-12030

KE70,TE71..CP..EUG

LH

 1
61769-12031

KE70,TE71..CP..EUG

LH

 1
61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH
61745-12020

KE70,TE71..CP

 1
61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH
61746-12020

KE70,TE71..CP

 1
61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61748-12020

KE70,TE71..CP

LH

 1
61747-12020

KE70,TE71..CP

RH

 1
61748-12021

KE70,TE71..CP

LH

 1
61750 - RETAINER, DECK SIDE TRIM, LOWER
61757-12010

KE70,TE71..CP

 2
61769 - RETAINER, QUARTER TRIM, LOWER
61753-12050

KE70,TE71..CP

RH

 1
61754-12050

KE70,TE71..CP

LH

 1
68955 - BRACKET, BACK DOOR STAY
68955-12050

KE70,TE71..CP

RH

 1
68955-12050

KE70,TE71..CP..EUG

RH

 1
68956-12010

KE70,TE71..CP..EUG

LH

 1
68956-12010

KE70,TE71..CP

LH

 1
Common parts
90269-02001
Linked diagrams
7601
