TE71L-ECMQGW (1979)
Toyota Corolla
(7908-8502)2T

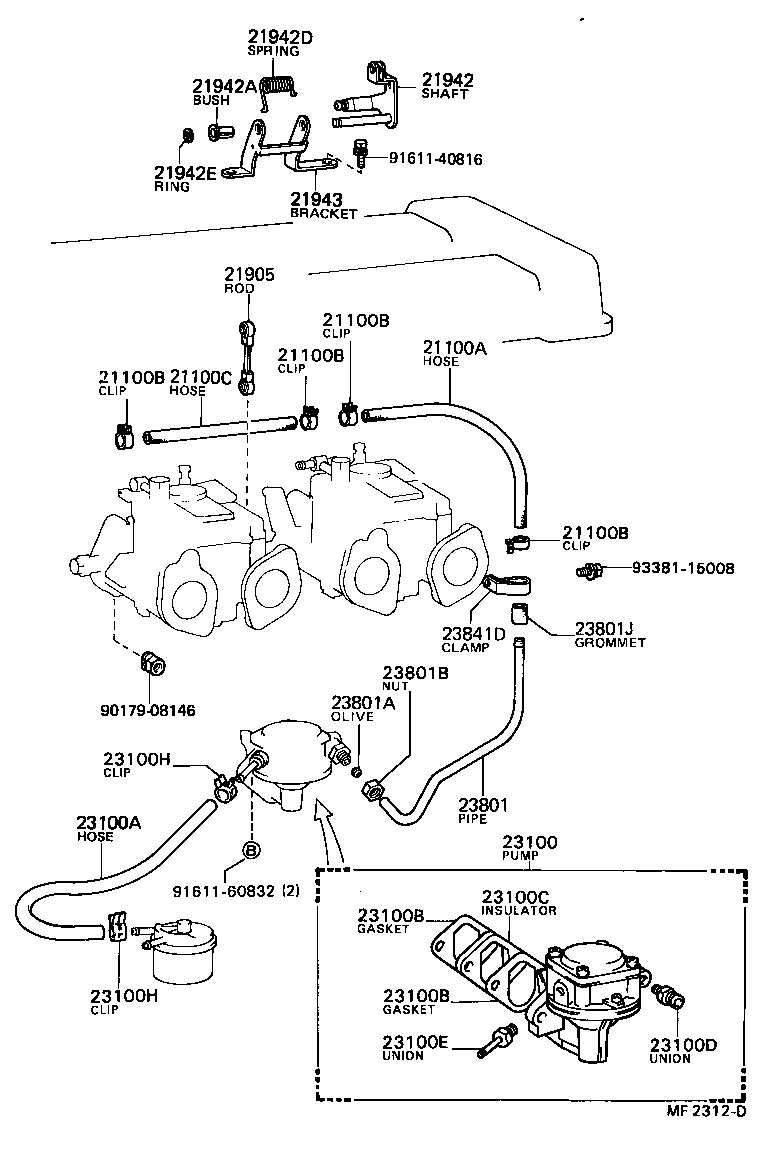

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-29096 |
2TG..TE71 |
1 | ||
| 23100-29305 |
2T,2TB,3T..TE7# |
1 | ||
| 23100-19106 |
2T,2TB..TE71..EUR,SAA |
1 | ||
| 23100-29097 |
2TG..TE71 |
1 | ||
| 23100A - HOSE, FUEL | ||||
| 95332-06040 |
2TG..TE71 *H,L=320 |
1 | ||
| 95332-06030 |
2T,2TB,3T..TE7# *H,L=280 |
1 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05005 |
2T#,3T#..TE7# |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05005 |
2T#,3T#..TE7# |
2 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 90923-06001 |
2T#,3T#..TE7# |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
2T#,3T#..TE7# |
4 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
2T#,3T#..TE7# |
4 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 23811-88220 |
2TG..TE71 |
1 | ||
| 95332-06030 |
2T,3T#..TE7# *H,L=300 |
1 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
2T,2TB,3T#..TE7# |
2 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
2T,2TB,3T#..TE7# |
2 | ||
| Common parts | ||||
| 91611-60828 | ||||
(7908-8305)2TG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21100A - HOSE(FOR CARBURETOR) | ||||
| 90072-44559 |
2TG..TE71 |
1 | ||
| 95332-08020 |
2TG..TE71 *H,L=160 |
1 | ||
| 21100B - CLIP(FOR CARBURETOR) | ||||
| 96132-30800 |
2TG..TE71 |
2 | ||
| 21100B - CLIP(FOR CARBURETOR) | ||||
| 96132-30800 |
2TG..TE71 |
2 | ||
| 21100B - CLIP(FOR CARBURETOR) | ||||
| 96132-30800 |
2TG..TE71 |
2 | ||
| 21100B - CLIP(FOR CARBURETOR) | ||||
| 96132-30800 |
2TG..TE71 |
2 | ||
| 21100C - HOSE(FOR CARBURETOR TO CARBURETOR) | ||||
| 95332-08020 |
2TG..TE71 *H,L=160 |
1 | ||
| 90072-44559 |
2TG..TE71 |
1 | ||
| 21905 - ROD SUB-ASSY, ACCELERATOR CONNECTING | ||||
| 21905-88223 |
2TG..TE71 |
1 | ||
| 21942 - SHAFT, ACCELERATOR LINK | ||||
| 21903-88223 |
2TG..TE71 |
1 | ||
| 21942A - BUSH(FOR ACCELERATOR LINK SHAFT) | ||||
| 90072-38607 |
2TG..TE71 |
2 | ||
| 21942D - SPRING(FOR ACCELERATOR LINK SHAFT) | ||||
| 90072-50818 |
2TG..TE71 |
1 | ||
| 21942E - RING, SNAP(FOR ACCELERATOR LINK SHAFT) | ||||
| 96160-00600 |
2TG..TE71 |
1 | ||
| 21943 - BRACKET(FOR ACCELERATOR LINK SHAFT) | ||||
| 21943-88224 |
2TG..TE71 |
1 | ||
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-29096 |
2TG..TE71 |
1 | ||
| 23100-29305 |
2T,2TB,3T..TE7# |
1 | ||
| 23100-19106 |
2T,2TB..TE71..EUR,SAA |
1 | ||
| 23100-29097 |
2TG..TE71 |
1 | ||
| 23100A - HOSE, FUEL | ||||
| 95332-06040 |
2TG..TE71 *H,L=320 |
1 | ||
| 95332-06030 |
2T,2TB,3T..TE7# *H,L=280 |
1 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05005 |
2T#,3T#..TE7# |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05005 |
2T#,3T#..TE7# |
2 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 90923-06001 |
2T#,3T#..TE7# |
1 | ||
| 23100D - UNION, NIPPLE(FOR FUEL OUTLET) | ||||
| 90404-51244 |
2TG..TE71 |
1 | ||
| 23100E - UNION, NIPPLE(FOR FUEL INLET) | ||||
| 90404-13105 |
2TG..TE71 |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
2T#,3T#..TE7# |
4 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
2T#,3T#..TE7# |
4 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 23811-88220 |
2TG..TE71 |
1 | ||
| 95332-06030 |
2T,3T#..TE7# *H,L=300 |
1 | ||
| 23801A - OLIVE(FOR FUEL PIPE) | ||||
| 96395-71400 |
2TG..TE71 |
1 | ||
| 23801B - NUT, UNION(FOR FUEL PIPE) | ||||
| 90402-13041 |
2TG..TE71 |
1 | ||
| 23801J - GROMMET, FUEL PIPE CLAMP | ||||
| 90072-48006 |
2TG..TE71 |
1 | ||
| 23841D - CLAMP | ||||
| 90072-46137 |
2TG..TE71 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 91611-40816 | ||||
| 91611-60832 | ||||
| 93381-15008 | ||||
