TE71L-ECMQGW (1979)
Toyota Corolla
(7908-8108)2T,3T ; (8108-8502)2T,3T..GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-26211 |
2T..TE71..EUG W/HOT AIR INTAKE |
1 | ||
| 17700-26250 |
2TG..TE71 |
1 | ||
| 17700-26300 |
2T..TE71..EUG |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
2T,3T#..TE7# |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06222 |
2T,3T#..TE7# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-26080 |
2T..TE71..EUR,GEN,SAA |
1 | ||
| 17705-37010 |
2TG..TE71 |
1 | ||
| 17705-25012 |
2T,3T#..TE7# |
1 | ||
| 17705-25013 |
2T,3T#..TE7# |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17752-25010 |
2T,2TB..TE71..EUG W/HOT AIR INTAKE |
1 | ||
| 17902-27032 |
2T,2TB..TE71..EUG W/HOT AIR INTAKE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-24010 |
2TG..TE71 |
1 | ||
| 17801-25010 |
2T,3T#..TE7# |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-31020 |
2T,3T#..TE7# |
2 | ||
| 17841-24020 |
2TG..TE71 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-31020 |
2T,3T#..TE7# |
2 | ||
| 17841-24020 |
2TG..TE71 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-25010 |
2T,3T#..TE7# |
1 | ||
| 17845-37010 |
2TG..TE71 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-63187 |
2T,2TB,3T#..TE7# |
2 | ||
| 90430-63187 |
2T,2TB,3T..TE7# |
1 | ||
| 17848-88250 |
2TG..TE71 |
2 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-26020 |
2T..TE71..EUG W/HOT AIR INTAKE |
1 | ||
| 17881-26010 |
2T..TE71..EUG W/HOT AIR INTAKE |
1 | ||
| 17881-26020 |
3TC..TE72..DX,SE;2T,2TB..TE71..EUG |
1 | ||
| 17881-27010 |
2TG..TE71 |
1 | ||
| Common parts | ||||
| 90119-06164 | ||||
| 91611-40812 | ||||

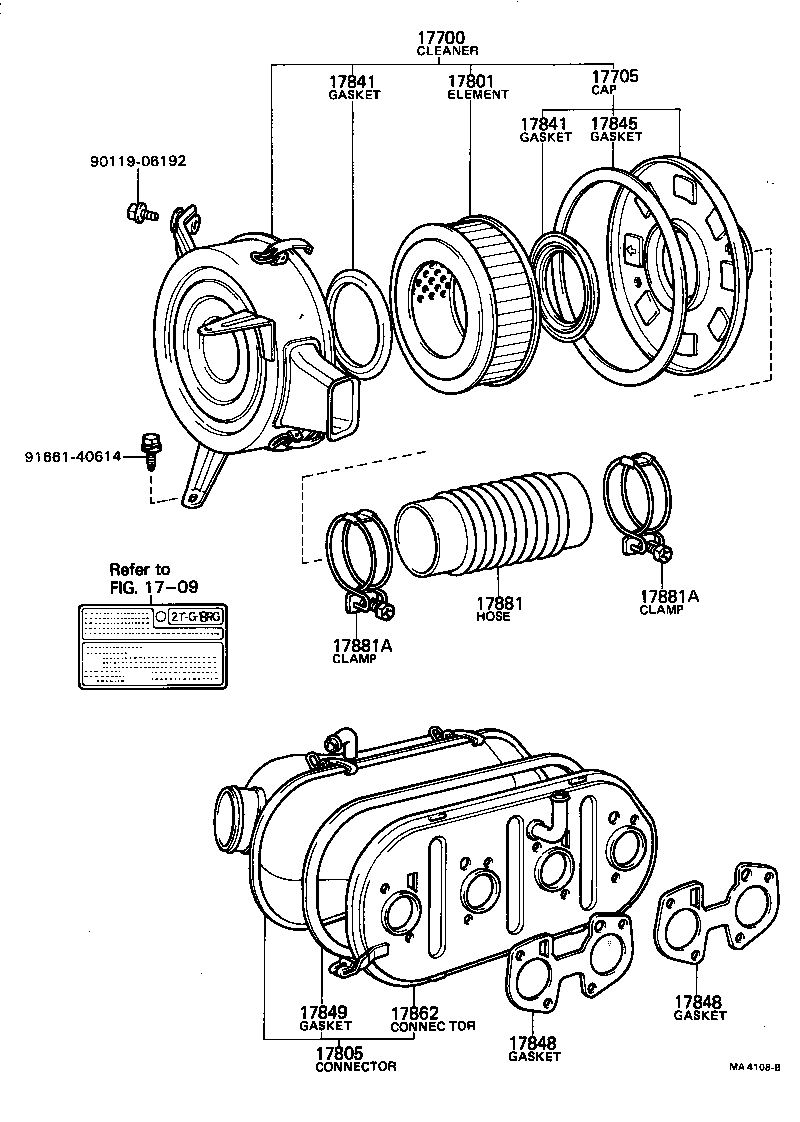

(7908-8305)2TG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-26211 |
2T..TE71..EUG W/HOT AIR INTAKE |
1 | ||
| 17700-26250 |
2TG..TE71 |
1 | ||
| 17700-26300 |
2T..TE71..EUG |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-26080 |
2T..TE71..EUR,GEN,SAA |
1 | ||
| 17705-37010 |
2TG..TE71 |
1 | ||
| 17705-25012 |
2T,3T#..TE7# |
1 | ||
| 17705-25013 |
2T,3T#..TE7# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-24010 |
2TG..TE71 |
1 | ||
| 17801-25010 |
2T,3T#..TE7# |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17860-88228 |
2TG..TE71 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-31020 |
2T,3T#..TE7# |
2 | ||
| 17841-24020 |
2TG..TE71 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-31020 |
2T,3T#..TE7# |
2 | ||
| 17841-24020 |
2TG..TE71 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-25010 |
2T,3T#..TE7# |
1 | ||
| 17845-37010 |
2TG..TE71 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-63187 |
2T,2TB,3T#..TE7# |
2 | ||
| 90430-63187 |
2T,2TB,3T..TE7# |
1 | ||
| 17848-88250 |
2TG..TE71 |
2 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-63187 |
2T,2TB,3T#..TE7# |
2 | ||
| 90430-63187 |
2T,2TB,3T..TE7# |
1 | ||
| 17848-88250 |
2TG..TE71 |
2 | ||
| 17849 - GASKET, INTAKE AIR CONNECTOR | ||||
| 17849-88221 |
2TG..TE71 |
1 | ||
| 17862 - CONNECTOR, INTAKE AIR, NO.2 | ||||
| 17806-88223 |
2TG..TE71 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-26020 |
2T..TE71..EUG W/HOT AIR INTAKE |
1 | ||
| 17881-26010 |
2T..TE71..EUG W/HOT AIR INTAKE |
1 | ||
| 17881-26020 |
3TC..TE72..DX,SE;2T,2TB..TE71..EUG |
1 | ||
| 17881-27010 |
2TG..TE71 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90072-46002 |
2TG..TE71 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90072-46002 |
2TG..TE71 |
2 | ||
| Common parts | ||||
| 90119-06192 | ||||
| 91661-40614 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(8108-8305)2T..EUG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-26010 |
3TC..TE72..DX,SE;2T,2TB..TE71..EUG |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-26211 |
2T..TE71..EUG W/HOT AIR INTAKE |
1 | ||
| 17700-26250 |
2TG..TE71 |
1 | ||
| 17700-26300 |
2T..TE71..EUG |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
2T,3T#..TE7# |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06222 |
2T,3T#..TE7# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-26080 |
2T..TE71..EUR,GEN,SAA |
1 | ||
| 17705-37010 |
2TG..TE71 |
1 | ||
| 17705-25012 |
2T,3T#..TE7# |
1 | ||
| 17705-25013 |
2T,3T#..TE7# |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17752-25010 |
2T,2TB..TE71..EUG W/HOT AIR INTAKE |
1 | ||
| 17902-27032 |
2T,2TB..TE71..EUG W/HOT AIR INTAKE |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-26040 |
2T..TE71..EUG |
1 | ||
| 17728A - BUSH | ||||
| 90386-03001 |
3TC..TE72..DX,SE;2T,2TB..TE71..EUG |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-24010 |
2TG..TE71 |
1 | ||
| 17801-25010 |
2T,3T#..TE7# |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-31020 |
2T,3T#..TE7# |
2 | ||
| 17841-24020 |
2TG..TE71 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-31020 |
2T,3T#..TE7# |
2 | ||
| 17841-24020 |
2TG..TE71 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-25010 |
2T,3T#..TE7# |
1 | ||
| 17845-37010 |
2TG..TE71 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-26020 |
2T..TE71..EUG W/HOT AIR INTAKE |
1 | ||
| 17881-26010 |
2T..TE71..EUG W/HOT AIR INTAKE |
1 | ||
| 17881-26020 |
3TC..TE72..DX,SE;2T,2TB..TE71..EUG |
1 | ||
| 17881-27010 |
2TG..TE71 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17881-28020 |
2T,2TB..TE71..EUG |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01003 |
2T,2TB..TE71..EUG CLEANER SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01003 |
2T,2TB..TE71..EUG CLEANER SIDE |
1 | ||
| Common parts | ||||
| 90119-06164 | ||||
| 90445-11961 | ||||
| 91621-40812 | ||||
