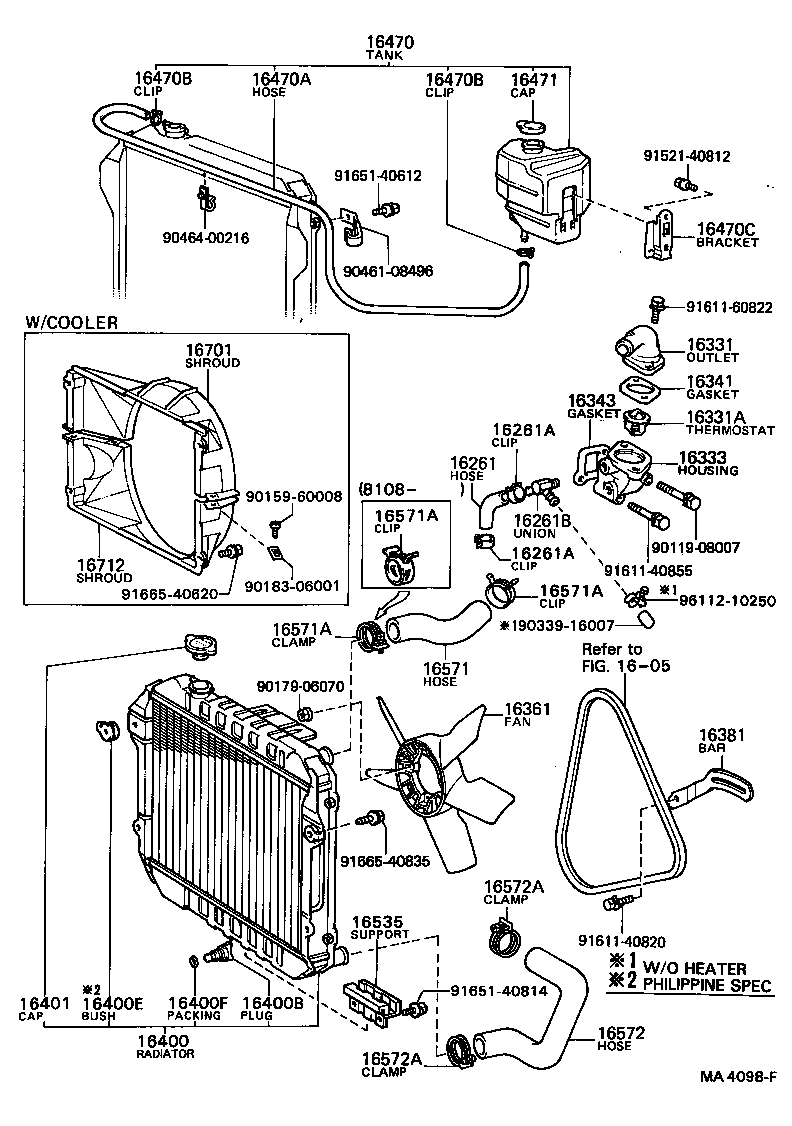

TE71L-ECMQGW (1979)
Toyota Corolla
(7908-8108)2T,2TB,3T ; (8108-8204)2T,2TB,3T..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-88220 |
2TG..TE71 |
1 | ||
| 16261-25020 |
2T,2TB,3T#..TE7# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20004 |
2T,2TB,3T#..TE7# |
2 | ||
| 90467-23001 |
2TG..TE71 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20004 |
2T,2TB,3T#..TE7# |
2 | ||
| 90467-23001 |
2TG..TE71 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-26050 |
2TG..TE71 |
1 | ||
| 16331-26060 |
2T,2TB,3T#..TE7# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03036 |
2TG..TE71..EUG COLD SPEC,*WAX 88-100,*(F) |
1 | ||
| 90916-03034 |
2TG..TE71 *WAX 82-95,*(F) |
1 | ||
| 90916-03037 |
2TG..TE71 *WAX 82-95,KUZEH |
1 | ||
| 90916-03036 |
2T,2TB,3T#..TE7# *WAX 88-100,*(F) |
1 | ||
| 90916-03036 |
2TG..TE71..EUG *WAX 88-100,*(F) |
1 | ||
| 90916-03040 |
2T,2TB,3T#..TE7# *WAX 88-100,KUZEH |
1 | ||
| 90916-03036 |
2TG..TE71 *WAX 88-100,*(F) |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-25010 |
2T,3T..TE7# |
1 | ||
| 16333-88220 |
2TG..TE71 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
2T,2TB,3T#..TE7# |
1 | ||
| 16341-88260 |
2TG..TE71 |
1 | ||
| 16341-88280 |
2TG..TE71 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-22010 |
2T,2TB,3T..TE7# |
1 | ||
| 16343-88280 |
2TG..TE71 |
1 | ||
| 16343-88220 |
2TG..TE71 |
1 | ||
| 16361 - FAN | ||||
| 16361-26040 |
2T#,3TC..TE7#..ARL,EUR,GEN |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-25010 |
2T#,3T#..TE7# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-26200 |
3TC..TE72..SDN;2T#..TE71..MTM..(EUR,GEN) |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
2T#,3TC..TE7# |
1 | ||
| 16400E - BUSH(FOR RADIATOR) | ||||
| 90385-12001 |
2T#..TE71 PHILIPPINE SPEC |
2 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
2T#,3TC..TE7#..ARL,EUR,GEN,SAA |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
2T#,3T#..TE7# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-26060 |
2TG,3TC..TE7#..LHD |
1 | ||
| 16470-26060 |
2T,2TB..TE71..LHD..EUG W/HEAD LAMP CLEANER |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12073 |
3TC..TE72..ARL;2T,2TB,3T..TE7# L=420,L=420 |
1 | ||
| 90445-12015 |
2TG,3TC..TE7#..LHD L=1300 |
1 | ||
| 90445-12015 |
2T,2TB..TE71..LHD..EUG L=1300,W/HEAD LAMP CLEANER |
1 | ||
| 90445-12023 |
2T,2TB..TE71..EUG *H,L=380,L=380 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12073 |
3TC..TE72..ARL;2T,2TB,3T..TE7# L=420,L=420 |
1 | ||
| 90445-12015 |
2TG,3TC..TE7#..LHD L=1300 |
1 | ||
| 90445-12015 |
2T,2TB..TE71..LHD..EUG L=1300,W/HEAD LAMP CLEANER |
1 | ||
| 90445-12023 |
2T,2TB..TE71..EUG *H,L=380,L=380 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2T#,3T#..TE7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2T#,3T#..TE7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2T#,3T#..TE7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2T#,3T#..TE7# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-26010 |
2TG,3TC..TE7#..LHD |
1 | ||
| 16611-26010 |
2T,2TB..TE71..LHD..EUG W/HEAD LAMP CLEANER |
1 | ||
| 16611-26010 |
2TG,3TC..TE7#..LHD |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-34030 |
2TG,3TC..TE7#..LHD |
1 | ||
| 16471-34030 |
2T,2TB..TE71..LHD..EUG W/HEAD LAMP CLEANER |
1 | ||
| 16471-34030 |
2TG,3TC..TE7#..LHD |
1 | ||
| 85339-12010 |
2T,2TB,3T#..TE7# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-34030 |
2TG,3TC..TE7#..LHD |
1 | ||
| 16471-34030 |
2T,2TB..TE71..LHD..EUG W/HEAD LAMP CLEANER |
1 | ||
| 16471-34030 |
2TG,3TC..TE7#..LHD |
1 | ||
| 85339-12010 |
2T,2TB,3T#..TE7# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-16010 |
2T,2TB,3T..TE7#;3TC..TE72..SE,XE |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16533-26010 |
3TC..TE72..DX,SE;2T#..TE71..EUR,GEN,SAA |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16572-26020 |
2TG..TE71 |
1 | ||
| 90916-01166 |
2T,2TB,3T#..TE7# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10430 |
2T#,3T#..TE7# RADIATOR SIDE |
1 | ||
| 90467-37001 |
2T,2TB,3TC..TE7# WATER OUTLET SIDE |
1 | ||
| 96111-10430 |
2T#,3TC..TE7# RADIATOR SIDE |
1 | ||
| 90467-37001 |
2T,2TB,3T#..TE7# WATER OUTLET SIDE |
1 | ||
| 90467-37001 |
2T,2TB,3TC..TE7#..ARL,EUR,GEN,SAA |
2 | ||
| 90467-34001 |
2TG..TE71 WATER OUTLET SIDE |
1 | ||
| 90467-37001 |
2TG..TE71 RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10430 |
2T#,3T#..TE7# RADIATOR SIDE |
1 | ||
| 90467-37001 |
2T,2TB,3TC..TE7# WATER OUTLET SIDE |
1 | ||
| 96111-10430 |
2T#,3TC..TE7# RADIATOR SIDE |
1 | ||
| 90467-37001 |
2T,2TB,3T#..TE7# WATER OUTLET SIDE |
1 | ||
| 90467-37001 |
2T,2TB,3TC..TE7#..ARL,EUR,GEN,SAA |
2 | ||
| 90467-34001 |
2TG..TE71 WATER OUTLET SIDE |
1 | ||
| 90467-37001 |
2TG..TE71 RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-26060 |
2T#,3T#..TE7# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
2T#,3T#..TE7# WATER PUMP SIDE |
1 | ||
| 90460-47036 |
2T#,3T#..TE7# RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
2T#,3T#..TE7# WATER PUMP SIDE |
1 | ||
| 90460-47036 |
2T#,3T#..TE7# RADIATOR SIDE |
1 | ||
| Common parts | ||||
| 90159-60008 | ||||
| 90179-06070 | ||||
| 90179-08146 | ||||
| 90183-06001 | ||||
| 90461-08496 | ||||
| 90464-00216 | ||||
| 91521-40812 | ||||
| 91611-60620 | ||||
| 91611-60822 | ||||
| 91611-60825 | ||||
| 91651-40612 | ||||
| 91656-40816 | ||||
| 91665-40620 | ||||
| 91665-40835 | ||||
| Linked diagrams | ||||
| 1605 | ||||
(7908-8305)2TG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-88220 |
2TG..TE71 |
1 | ||
| 16261-25020 |
2T,2TB,3T#..TE7# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20004 |
2T,2TB,3T#..TE7# |
2 | ||
| 90467-23001 |
2TG..TE71 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20004 |
2T,2TB,3T#..TE7# |
2 | ||
| 90467-23001 |
2TG..TE71 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90072-40627 |
2TG..TE71 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-26050 |
2TG..TE71 |
1 | ||
| 16331-26060 |
2T,2TB,3T#..TE7# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03036 |
2TG..TE71..EUG COLD SPEC,*WAX 88-100,*(F) |
1 | ||
| 90916-03034 |
2TG..TE71 *WAX 82-95,*(F) |
1 | ||
| 90916-03037 |
2TG..TE71 *WAX 82-95,KUZEH |
1 | ||
| 90916-03036 |
2T,2TB,3T#..TE7# *WAX 88-100,*(F) |
1 | ||
| 90916-03036 |
2TG..TE71..EUG *WAX 88-100,*(F) |
1 | ||
| 90916-03040 |
2T,2TB,3T#..TE7# *WAX 88-100,KUZEH |
1 | ||
| 90916-03036 |
2TG..TE71 *WAX 88-100,*(F) |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-25010 |
2T,3T..TE7# |
1 | ||
| 16333-88220 |
2TG..TE71 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
2T,2TB,3T#..TE7# |
1 | ||
| 16341-88260 |
2TG..TE71 |
1 | ||
| 16341-88280 |
2TG..TE71 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-22010 |
2T,2TB,3T..TE7# |
1 | ||
| 16343-88280 |
2TG..TE71 |
1 | ||
| 16343-88220 |
2TG..TE71 |
1 | ||
| 16361 - FAN | ||||
| 16361-26040 |
2T#,3TC..TE7#..ARL,EUR,GEN |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-25010 |
2T#,3T#..TE7# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-26200 |
3TC..TE72..SDN;2T#..TE71..MTM..(EUR,GEN) |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
2T#,3TC..TE7# |
1 | ||
| 16400E - BUSH(FOR RADIATOR) | ||||
| 90385-12001 |
2T#..TE71 PHILIPPINE SPEC |
2 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
2T#,3TC..TE7#..ARL,EUR,GEN,SAA |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
2T#,3T#..TE7# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-26060 |
2TG,3TC..TE7#..LHD |
1 | ||
| 16470-26060 |
2T,2TB..TE71..LHD..EUG W/HEAD LAMP CLEANER |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12073 |
3TC..TE72..ARL;2T,2TB,3T..TE7# L=420,L=420 |
1 | ||
| 90445-12015 |
2TG,3TC..TE7#..LHD L=1300 |
1 | ||
| 90445-12015 |
2T,2TB..TE71..LHD..EUG L=1300,W/HEAD LAMP CLEANER |
1 | ||
| 90445-12023 |
2T,2TB..TE71..EUG *H,L=380,L=380 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2T#,3T#..TE7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2T#,3T#..TE7# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-26010 |
2TG,3TC..TE7#..LHD |
1 | ||
| 16611-26010 |
2T,2TB..TE71..LHD..EUG W/HEAD LAMP CLEANER |
1 | ||
| 16611-26010 |
2TG,3TC..TE7#..LHD |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-34030 |
2TG,3TC..TE7#..LHD |
1 | ||
| 16471-34030 |
2T,2TB..TE71..LHD..EUG W/HEAD LAMP CLEANER |
1 | ||
| 16471-34030 |
2TG,3TC..TE7#..LHD |
1 | ||
| 85339-12010 |
2T,2TB,3T#..TE7# |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16533-26010 |
3TC..TE72..DX,SE;2T#..TE71..EUR,GEN,SAA |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16572-26020 |
2TG..TE71 |
1 | ||
| 90916-01166 |
2T,2TB,3T#..TE7# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10430 |
2T#,3T#..TE7# RADIATOR SIDE |
1 | ||
| 90467-37001 |
2T,2TB,3TC..TE7# WATER OUTLET SIDE |
1 | ||
| 96111-10430 |
2T#,3TC..TE7# RADIATOR SIDE |
1 | ||
| 90467-37001 |
2T,2TB,3T#..TE7# WATER OUTLET SIDE |
1 | ||
| 90467-37001 |
2T,2TB,3TC..TE7#..ARL,EUR,GEN,SAA |
2 | ||
| 90467-34001 |
2TG..TE71 WATER OUTLET SIDE |
1 | ||
| 90467-37001 |
2TG..TE71 RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10430 |
2T#,3T#..TE7# RADIATOR SIDE |
1 | ||
| 90467-37001 |
2T,2TB,3TC..TE7# WATER OUTLET SIDE |
1 | ||
| 96111-10430 |
2T#,3TC..TE7# RADIATOR SIDE |
1 | ||
| 90467-37001 |
2T,2TB,3T#..TE7# WATER OUTLET SIDE |
1 | ||
| 90467-37001 |
2T,2TB,3TC..TE7#..ARL,EUR,GEN,SAA |
2 | ||
| 90467-34001 |
2TG..TE71 WATER OUTLET SIDE |
1 | ||
| 90467-37001 |
2TG..TE71 RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10430 |
2T#,3T#..TE7# RADIATOR SIDE |
1 | ||
| 90467-37001 |
2T,2TB,3TC..TE7# WATER OUTLET SIDE |
1 | ||
| 96111-10430 |
2T#,3TC..TE7# RADIATOR SIDE |
1 | ||
| 90467-37001 |
2T,2TB,3T#..TE7# WATER OUTLET SIDE |
1 | ||
| 90467-37001 |
2T,2TB,3TC..TE7#..ARL,EUR,GEN,SAA |
2 | ||
| 90467-34001 |
2TG..TE71 WATER OUTLET SIDE |
1 | ||
| 90467-37001 |
2TG..TE71 RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-26060 |
2T#,3T#..TE7# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
2T#,3T#..TE7# WATER PUMP SIDE |
1 | ||
| 90460-47036 |
2T#,3T#..TE7# RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
2T#,3T#..TE7# WATER PUMP SIDE |
1 | ||
| 90460-47036 |
2T#,3T#..TE7# RADIATOR SIDE |
1 | ||
| Common parts | ||||
| 90119-08007 | ||||
| 90159-60008 | ||||
| 90179-06070 | ||||
| 90183-06001 | ||||
| 90339-16007 | ||||
| 90461-08496 | ||||
| 90464-00216 | ||||
| 91521-40812 | ||||
| 91611-40820 | ||||
| 91611-40855 | ||||
| 91611-60822 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 91665-40620 | ||||
| 91665-40835 | ||||
| 96112-10250 | ||||
| Linked diagrams | ||||
| 1605 | ||||
(8108-8204)2T,2TB..EUR,GEN,SAA ; (8204-8502)2T,2TB,3T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-88220 |
2TG..TE71 |
1 | ||
| 16261-25020 |
2T,2TB,3T#..TE7# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20004 |
2T,2TB,3T#..TE7# |
2 | ||
| 90467-23001 |
2TG..TE71 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20004 |
2T,2TB,3T#..TE7# |
2 | ||
| 90467-23001 |
2TG..TE71 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-26050 |
2TG..TE71 |
1 | ||
| 16331-26060 |
2T,2TB,3T#..TE7# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03036 |
2TG..TE71..EUG COLD SPEC,*WAX 88-100,*(F) |
1 | ||
| 90916-03034 |
2TG..TE71 *WAX 82-95,*(F) |
1 | ||
| 90916-03037 |
2TG..TE71 *WAX 82-95,KUZEH |
1 | ||
| 90916-03036 |
2T,2TB,3T#..TE7# *WAX 88-100,*(F) |
1 | ||
| 90916-03036 |
2TG..TE71..EUG *WAX 88-100,*(F) |
1 | ||
| 90916-03040 |
2T,2TB,3T#..TE7# *WAX 88-100,KUZEH |
1 | ||
| 90916-03036 |
2TG..TE71 *WAX 88-100,*(F) |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-25010 |
2T,3T..TE7# |
1 | ||
| 16333-88220 |
2TG..TE71 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
2T,2TB,3T#..TE7# |
1 | ||
| 16341-88260 |
2TG..TE71 |
1 | ||
| 16341-88280 |
2TG..TE71 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-22010 |
2T,2TB,3T..TE7# |
1 | ||
| 16343-88280 |
2TG..TE71 |
1 | ||
| 16343-88220 |
2TG..TE71 |
1 | ||
| 16361 - FAN | ||||
| 16361-26040 |
2T#,3TC..TE7#..ARL,EUR,GEN |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-25010 |
2T#,3T#..TE7# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-26200 |
3TC..TE72..SDN;2T#..TE71..MTM..(EUR,GEN) |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
2T#,3TC..TE7# |
1 | ||
| 16400E - BUSH(FOR RADIATOR) | ||||
| 90385-12001 |
2T#..TE71 PHILIPPINE SPEC |
2 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
2T#,3TC..TE7#..ARL,EUR,GEN,SAA |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
2T#,3T#..TE7# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-26060 |
2TG,3TC..TE7#..LHD |
1 | ||
| 16470-26060 |
2T,2TB..TE71..LHD..EUG W/HEAD LAMP CLEANER |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12073 |
3TC..TE72..ARL;2T,2TB,3T..TE7# L=420,L=420 |
1 | ||
| 90445-12015 |
2TG,3TC..TE7#..LHD L=1300 |
1 | ||
| 90445-12015 |
2T,2TB..TE71..LHD..EUG L=1300,W/HEAD LAMP CLEANER |
1 | ||
| 90445-12023 |
2T,2TB..TE71..EUG *H,L=380,L=380 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2T#,3T#..TE7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2T#,3T#..TE7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2T#,3T#..TE7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2T#,3T#..TE7# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-26010 |
2TG,3TC..TE7#..LHD |
1 | ||
| 16611-26010 |
2T,2TB..TE71..LHD..EUG W/HEAD LAMP CLEANER |
1 | ||
| 16611-26010 |
2TG,3TC..TE7#..LHD |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-34030 |
2TG,3TC..TE7#..LHD |
1 | ||
| 16471-34030 |
2T,2TB..TE71..LHD..EUG W/HEAD LAMP CLEANER |
1 | ||
| 16471-34030 |
2TG,3TC..TE7#..LHD |
1 | ||
| 85339-12010 |
2T,2TB,3T#..TE7# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-16010 |
2T,2TB,3T..TE7#;3TC..TE72..SE,XE |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-16010 |
2T,2TB,3T..TE7#;3TC..TE72..SE,XE |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16533-26010 |
3TC..TE72..DX,SE;2T#..TE71..EUR,GEN,SAA |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16572-26020 |
2TG..TE71 |
1 | ||
| 90916-01166 |
2T,2TB,3T#..TE7# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10430 |
2T#,3T#..TE7# RADIATOR SIDE |
1 | ||
| 90467-37001 |
2T,2TB,3TC..TE7# WATER OUTLET SIDE |
1 | ||
| 96111-10430 |
2T#,3TC..TE7# RADIATOR SIDE |
1 | ||
| 90467-37001 |
2T,2TB,3T#..TE7# WATER OUTLET SIDE |
1 | ||
| 90467-37001 |
2T,2TB,3TC..TE7#..ARL,EUR,GEN,SAA |
2 | ||
| 90467-34001 |
2TG..TE71 WATER OUTLET SIDE |
1 | ||
| 90467-37001 |
2TG..TE71 RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10430 |
2T#,3T#..TE7# RADIATOR SIDE |
1 | ||
| 90467-37001 |
2T,2TB,3TC..TE7# WATER OUTLET SIDE |
1 | ||
| 96111-10430 |
2T#,3TC..TE7# RADIATOR SIDE |
1 | ||
| 90467-37001 |
2T,2TB,3T#..TE7# WATER OUTLET SIDE |
1 | ||
| 90467-37001 |
2T,2TB,3TC..TE7#..ARL,EUR,GEN,SAA |
2 | ||
| 90467-34001 |
2TG..TE71 WATER OUTLET SIDE |
1 | ||
| 90467-37001 |
2TG..TE71 RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-26060 |
2T#,3T#..TE7# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
2T#,3T#..TE7# WATER PUMP SIDE |
1 | ||
| 90460-47036 |
2T#,3T#..TE7# RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
2T#,3T#..TE7# WATER PUMP SIDE |
1 | ||
| 90460-47036 |
2T#,3T#..TE7# RADIATOR SIDE |
1 | ||
| Common parts | ||||
| 90159-60008 | ||||
| 90179-06070 | ||||
| 90179-08146 | ||||
| 90183-06001 | ||||
| 91611-60822 | ||||
| 91611-60825 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91656-40816 | ||||
| 91665-40620 | ||||
| Linked diagrams | ||||
| 1605 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
