TE71L-ECMQGW (1979)

Toyota Corolla

Production Aug 1979 - May 1983
Engine 2TG
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )2T,2TB,3T#

Click highlighted areas on diagram

diagram 12204 12204A 12262 12262A 12262A 12263 1701
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-88251

2TG..TE71

 1
12204-15020

2T,2TB,3T#..TE7#

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18180

2T,2TB,3T#..TE7#

 1
12262 - HOSE, VENTILATION, NO.2
12261-25012

2T,3T#..TE7#

 1
90445-15004

2TG..TE71

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

2T,2TB,3T#..TE7#

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

2T,2TB,3T#..TE7#

 2
12263 - HOSE, VENTILATION, NO.3
12262-25010

2T,3T#..TE7#

 1
12261-88220

2TG..TE71

 1
Linked diagrams
1701

(7908-8305)2TG

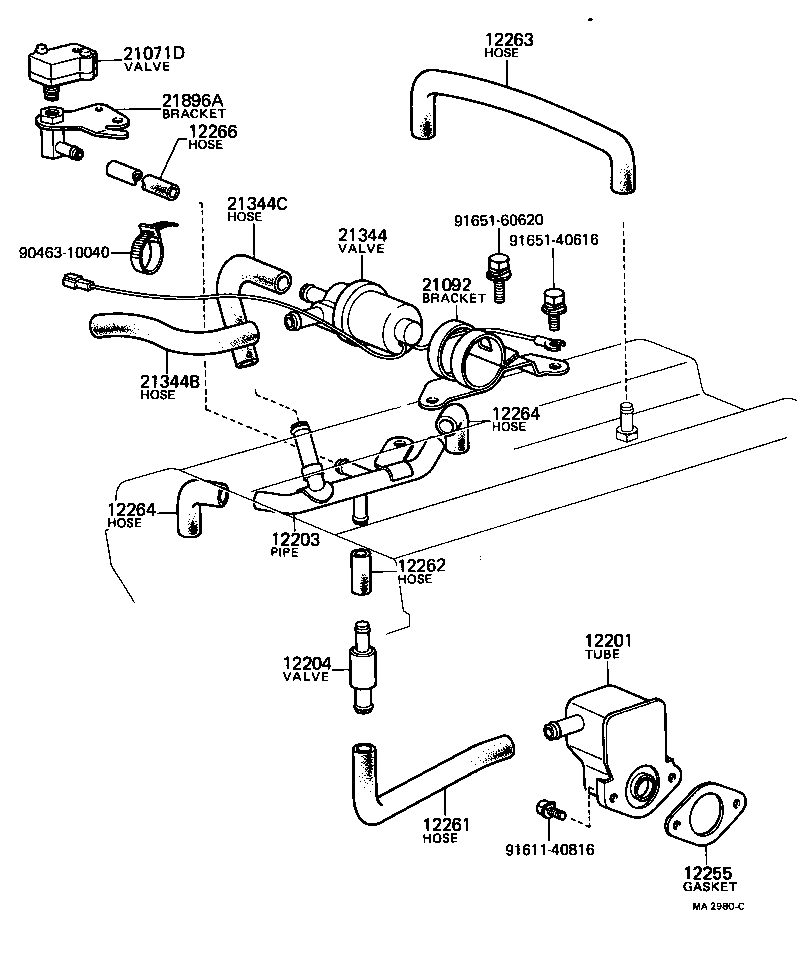

Click highlighted areas on diagram

diagram 12201 12203 12204 12255 12261 12262 12263 12264 12264 12266 21071D 21092 21344 21344B 21344C 21896A 9046310040 9161140816 9165140616 9165160620
Part # Description Qty Price
12201 - TUBE SUB-ASSY, VENTILATION
12201-25010

2TG..TE71

 1
12203 - PIPE SUB-ASSY, VENTILATION
12203-88225

2TG..TE71

 1
12203-88226

2TG..TE71

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-88251

2TG..TE71

 1
12204-15020

2T,2TB,3T#..TE7#

 1
12255 - GASKET, VENTILATION
12255-25010

2TG..TE71

 1
12261 - HOSE, VENTILATION
12262-88220

2TG..TE71

 1
12262 - HOSE, VENTILATION, NO.2
12261-25012

2T,3T#..TE7#

 1
90445-15004

2TG..TE71

 1
12263 - HOSE, VENTILATION, NO.3
12262-25010

2T,3T#..TE7#

 1
12261-88220

2TG..TE71

 1
12264 - HOSE, VENTILATION, NO.4
12264-88220

2TG..TE71

 2
12264 - HOSE, VENTILATION, NO.4
12264-88220

2TG..TE71

 2
12266 - HOSE, VENTILATION PIPE TO THERMOSTATIC VALVE
90072-44554

2TG..TE71

 1
21071D - VALVE SUB-ASSY, THERMOSTATIC(FOR VENTILATION HOSE)
21071-41010

2TG..TE71

 1
21092 - BRACKET SUB-ASSY, THROTTLE SOLENOID VALVE
21092-88232

2TG..TE71

 1
21344 - VALVE, THROTTLE SOLENOID
21344-88250

2TG..TE71

 1
21344B - HOSE, NO.1(SOLENOID VALVE TO 3 WAY)
17921-88220

2TG..TE71

 1
21344C - HOSE, NO.2(SOLENOID VALVE TO VENTILATION PIPE)
17922-88220

2TG..TE71

 1
21896A - BRACKET, THERMOSTATIC VALVE(FOR VENTILATION HOSE)
21896-88250

2TG..TE71

 1
Common parts
90463-10040
91611-40816
91651-40616
91651-60620
