TE71L-ECMQGW (1979)
Toyota Corolla
Production
Aug 1979
-
May 1983
Engine
2TG
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

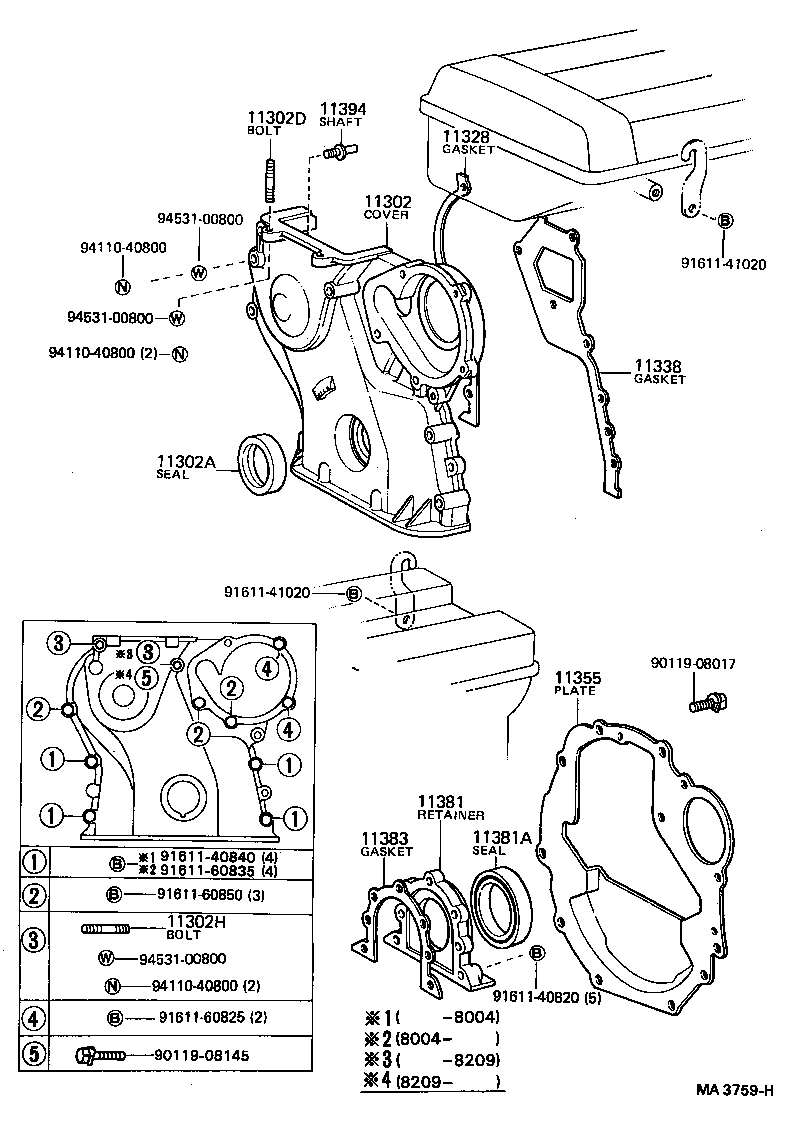

(7908-8305)2TG
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11321-28010 |
2T,2TB,3TC..TE7#..ARL,EUR,GEN |
1 | ||
| 11321-88220 |
2TG..TE71 |
1 | ||
| 11321-88221 |
2TG..TE71 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-38013 |
2T#,3T#..TE7# HTC 38.5 58 11 |
1 | ||
| 11302D - BOLT, STUD(FOR TIMING GEAR COVER) | ||||
| 90116-08057 |
2T,2TB,3T#..TE7# L=28,S=13&13 |
1 | ||
| 90116-08015 |
2TG..TE71 L=37,S=13.5&13.5 |
6 | ||
| 11302H - BOLT, STUD(FOR TIMING GEAR COVER) | ||||
| 90072-11618 |
2TG..TE71 L=88,S=10&10 |
2 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-88220 |
2TG..TE71 |
1 | ||
| 11328-25011 |
2T,2TB,3T#..TE7# |
1 | ||
| 11338 - GASKET, TIMING CHAIN COVER, NO.2 | ||||
| 11338-88220 |
2TG..TE71 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-25011 |
2T#..TE71..MTM |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-25010 |
2T#,3T#..TE7# |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-75113 |
2T#,3T#..TE7# HTC 75 100 13 |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-25010 |
2T#,3T#..TE7# |
1 | ||
| 11394 - SHAFT, CHAIN TENSHIONER | ||||
| 11394-34010 |
2TG..TE71 |
1 | ||
| Common parts | ||||
| 90119-08017 | ||||
| 90119-08145 | ||||
| 91611-40820 | ||||
| 91611-40840 | ||||
| 91611-41020 | ||||
| 91611-60825 | ||||
| 91611-60835 | ||||
| 91611-60850 | ||||
| 94110-40800 | ||||
| 94531-00800 | ||||
(7908-8502)2T,2TB,3T#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11321-28010 |
2T,2TB,3TC..TE7#..ARL,EUR,GEN |
1 | ||
| 11321-88220 |
2TG..TE71 |
1 | ||
| 11321-88221 |
2TG..TE71 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-38013 |
2T#,3T#..TE7# HTC 38.5 58 11 |
1 | ||
| 11302D - BOLT, STUD(FOR TIMING GEAR COVER) | ||||
| 90116-08057 |
2T,2TB,3T#..TE7# L=28,S=13&13 |
1 | ||
| 90116-08015 |
2TG..TE71 L=37,S=13.5&13.5 |
6 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-88220 |
2TG..TE71 |
1 | ||
| 11328-25011 |
2T,2TB,3T#..TE7# |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-25011 |
2T#..TE71..MTM |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-25010 |
2T#,3T#..TE7# |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-75113 |
2T#,3T#..TE7# HTC 75 100 13 |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-25010 |
2T#,3T#..TE7# |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91611-60835 | ||||
| 91611-60850 | ||||
| 91611-60855 | ||||
| 91611-61020 | ||||
