TE71L-ECMQG (1979)

Toyota Corolla

Production Aug 1979 - Aug 1982
Engine 2TG
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )2T#,3T#

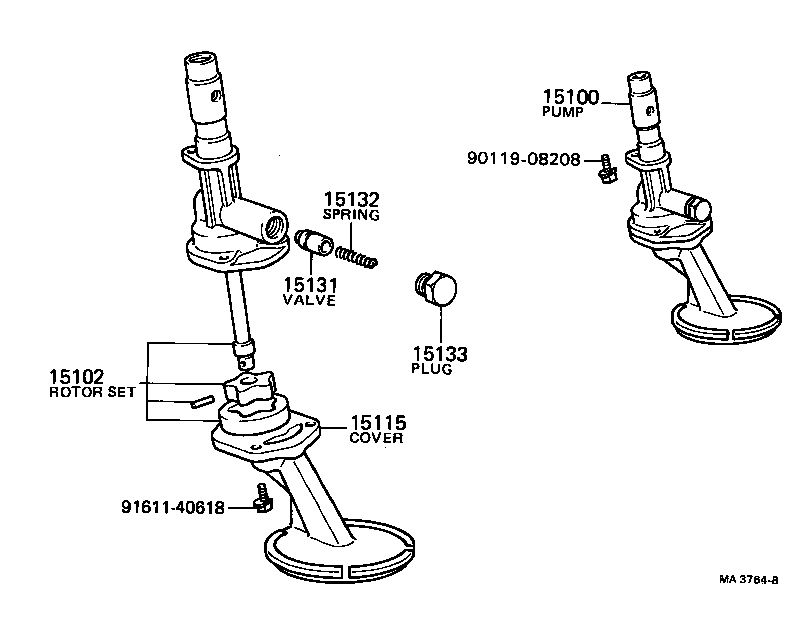

Click highlighted areas on diagram

diagram 15100 15102 15115 15131 15132 15133 9011908208 9161140618
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-25020

2T#,3T#..TE7#

 1
15102 - ROTOR SET, OIL PUMP
15102-25010

2T#,3T#..TE7#

 1
15115 - COVER, OIL PUMP
15012-25020

2T#,3T#..TE7#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-22010

2T#,3T#..TE7#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

2T#,3T#..TE7#

AISIN

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-41030

2T#,3T#..TE7#

 1
Common parts
90119-08208
91611-40618
