NRE210L-GEXNZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )NRE210..ENTRY

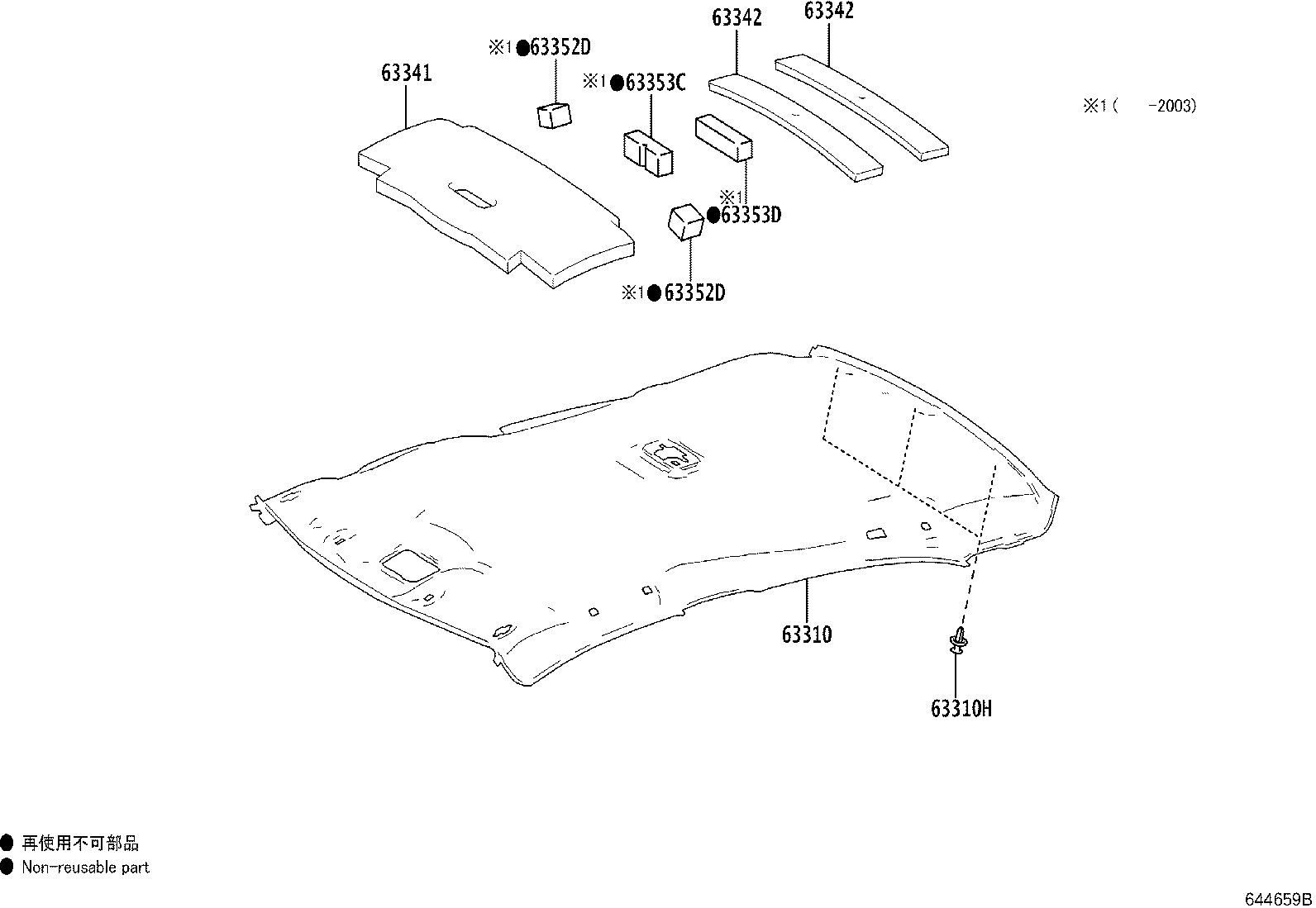

Click highlighted areas on diagram

NORMAL ROOF

diagram 63310 63310H 63341 63342 63342 63352D 63352D 63353C 63353D
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-02T30A0

NRE210,ZWE211..ENTRY

FROMAGE,TRIM0#,2#

 1
63310-02T50A0

NRE210..HI

FROMAGE,TRIM0#,2#

 1
63310-02T51A0

MZEA11,NRE210,ZWE211..HI,MID

FROMAGE,TRIM0#,2#

 1
63310-02T31A0

MZEA11,NRE210,ZWE211..ENTRY

FROMAGE,TRIM0#,2#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05168A0

NRE210..HI

FROMAGE,TRIM0#,2#

 3
90467-05168A0

MZEA11,ZWE211;NRE210..ENTRY,MID

FROMAGE,TRIM0#,2#

 3
90467-05168A0

NRE210..HI

FROMAGE,TRIM0#,2#

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-02740

NRE210..ENTRY

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-02A70

NRE210..ENTRY

 2
63342 - PAD, ROOF SILENCER, NO.2
63342-02A70

NRE210..ENTRY

 2
63352D - PAD, ROOF HEADLINING, NO.2
63352-02150

NRE210,ZWE211..ENTRY

 2
63352D - PAD, ROOF HEADLINING, NO.2
63352-02150

NRE210,ZWE211..ENTRY

 2
63353C - PAD, ROOF HEADLINING, CENTER
63353-02130

NRE210,ZWE211..ENTRY

 1
63353D - PAD, ROOF HEADLINING, CENTER
63353-02140

NRE210,ZWE211..ENTRY

 1

(1908- )

Click highlighted areas on diagram

MOON ROOF

diagram 63306 63310 63310H
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-02201A0

NRE210,ZWE211..HI,MID

FROMAGE,TRIM0#,2#

 1
63306-02200A0

NRE210..HI

FROMAGE,TRIM0#,2#

 1
63306-02200A0

NRE210,ZWE211..HI,MID

FROMAGE,TRIM0#,2#

 1
63310 - HEADLINING ASSY, ROOF
63310-02T30A0

NRE210,ZWE211..ENTRY

FROMAGE,TRIM0#,2#

 1
63310-02T50A0

NRE210..HI

FROMAGE,TRIM0#,2#

 1
63310-02T51A0

MZEA11,NRE210,ZWE211..HI,MID

FROMAGE,TRIM0#,2#

 1
63310-02T31A0

MZEA11,NRE210,ZWE211..ENTRY

FROMAGE,TRIM0#,2#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05168A0

NRE210..HI

FROMAGE,TRIM0#,2#

 3
90467-05168A0

MZEA11,ZWE211;NRE210..ENTRY,MID

FROMAGE,TRIM0#,2#

 3
90467-05168A0

NRE210..HI

FROMAGE,TRIM0#,2#

 3
