NRE210L-GEXNZC (2019)
Toyota Corolla

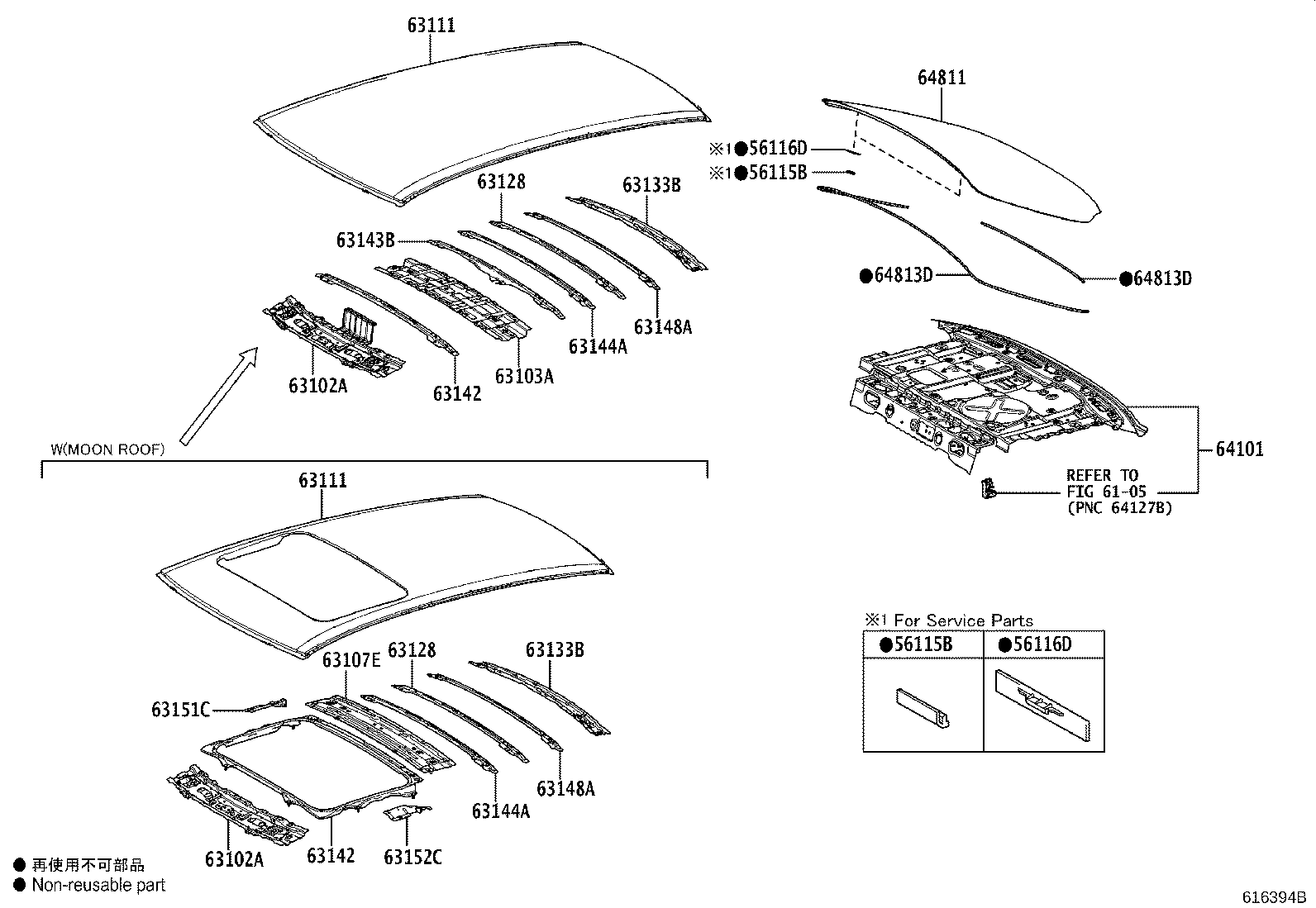

ILLUST NO. 1 OF 2(1908- )
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30120 |
NRE210..HI |
1 | ||
| 56115-30120 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 56115-30120 |
NRE210..HI |
1 | ||
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30120 |
NRE210..HI |
1 | ||
| 56115-30120 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 56115-30120 |
NRE210..HI |
1 | ||
| 56116D - STOPPER, BACK WINDOW GLASS, NO.2 | ||||
| 56116-22050 |
NRE210..HI |
1 | ||
| 56116-22050 |
NRE210..HI |
1 | ||
| 56116-22050 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 56116D - STOPPER, BACK WINDOW GLASS, NO.2 | ||||
| 56116-22050 |
NRE210..HI |
1 | ||
| 56116-22050 |
NRE210..HI |
1 | ||
| 56116-22050 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-02912 |
NRE210..HI |
1 | ||
| 63102-02911 |
NRE210,ZWE211..ENTRY |
1 | ||
| 63102-02912 |
NRE210..HI |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-02912 |
NRE210..HI |
1 | ||
| 63102-02911 |
NRE210,ZWE211..ENTRY |
1 | ||
| 63102-02912 |
NRE210..HI |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-02190 |
MZEA11,NRE210,ZWE211..ENTRY |
1 | ||
| 63107E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5 | ||||
| 63107-02060 |
NRE210..HI |
1 | ||
| 63107-02060 |
NRE210..HI |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-02830 |
MZEA11,NRE210,ZWE211..ENTRY |
1 | ||
| 63111-02840 |
NRE210..HI |
1 | ||
| 63111-02840 |
NRE210..HI |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-02830 |
MZEA11,NRE210,ZWE211..ENTRY |
1 | ||
| 63111-02840 |
NRE210..HI |
1 | ||
| 63111-02840 |
NRE210..HI |
1 | ||
| 63128 - REINFORCEMENT, ROOF PANEL, NO.6 | ||||
| 63128-02130 |
NRE210..HI |
1 | ||
| 63128-02130 |
MZEA11,ZWE211;NRE210..ENTRY,MID |
1 | ||
| 63128-02130 |
NRE210..HI |
1 | ||
| 63128 - REINFORCEMENT, ROOF PANEL, NO.6 | ||||
| 63128-02130 |
NRE210..HI |
1 | ||
| 63128-02130 |
MZEA11,ZWE211;NRE210..ENTRY,MID |
1 | ||
| 63128-02130 |
NRE210..HI |
1 | ||
| 63133B - FRAME, BACK WINDOW | ||||
| 63133-02270 |
NRE210..HI |
1 | ||
| 63133-02270 |
MZEA11,ZWE211;NRE210..ENTRY,MID |
1 | ||
| 63133-02270 |
NRE210..HI |
1 | ||
| 63133B - FRAME, BACK WINDOW | ||||
| 63133-02270 |
NRE210..HI |
1 | ||
| 63133-02270 |
MZEA11,ZWE211;NRE210..ENTRY,MID |
1 | ||
| 63133-02270 |
NRE210..HI |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-02260 |
MZEA11,NRE210,ZWE211..ENTRY |
1 | ||
| 63142-02270 |
NRE210..HI |
1 | ||
| 63142-02270 |
NRE210..HI |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-02260 |
MZEA11,NRE210,ZWE211..ENTRY |
1 | ||
| 63142-02270 |
NRE210..HI |
1 | ||
| 63142-02270 |
NRE210..HI |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-02290 |
MZEA11,NRE210,ZWE211..ENTRY |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-02300 |
NRE210..HI |
1 | ||
| 63144-02300 |
MZEA11,ZWE211;NRE210..ENTRY,MID |
1 | ||
| 63144-02300 |
NRE210..HI |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-02300 |
NRE210..HI |
1 | ||
| 63144-02300 |
MZEA11,ZWE211;NRE210..ENTRY,MID |
1 | ||
| 63144-02300 |
NRE210..HI |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-02180 |
NRE210..HI |
1 | ||
| 63148-02180 |
MZEA11,ZWE211;NRE210..ENTRY,MID |
1 | ||
| 63148-02180 |
NRE210..HI |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-02180 |
NRE210..HI |
1 | ||
| 63148-02180 |
MZEA11,ZWE211;NRE210..ENTRY,MID |
1 | ||
| 63148-02180 |
NRE210..HI |
1 | ||
| 63151C - FRAME, ROOF OPENING SIDE, RH | ||||
| 63151-02080 |
NRE210..HI |
1 | ||
| 63151-02080 |
NRE210..HI |
1 | ||
| 63152C - FRAME, ROOF OPENING SIDE, LH | ||||
| 63152-02080 |
NRE210..HI |
1 | ||
| 63152-02080 |
NRE210..HI |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-02700 |
NRE210,ZWE211..ENTRY,MID |
1 | ||
| 64101-02690 |
NRE210..HI |
1 | ||
| 64101-02690 |
NRE210..HI |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-02470 |
NRE210..HI GLASS MARK=E005771 |
1 | ||
| 64801-02490 |
NRE210..HI GLASS MARK=E000546 |
1 | ||
| 64801-02490 |
ZWE211;NRE210..ENTRY,MID GLASS MARK=E000546 |
1 | ||
| 64801-02470 |
NRE210..HI GLASS MARK=E005771 |
1 | ||
| 64801-02490 |
NRE210..HI GLASS MARK=E000546 |
1 | ||
| 64801-02470 |
ZWE211;NRE210..ENTRY,MID GLASS MARK=E005771 |
1 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64813-02370 |
NRE210..HI UPPER |
1 | ||
| 64813-02380 |
NRE210..HI LOWER |
1 | ||
| 64813-02380 |
ZWE211;NRE210..ENTRY,MID LOWER |
1 | ||
| 64813-02370 |
ZWE211;NRE210..ENTRY,MID UPPER |
1 | ||
| 64813-02370 |
NRE210..HI UPPER |
1 | ||
| 64813-02380 |
NRE210..HI LOWER |
1 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64813-02380 |
NRE210..HI LOWER |
1 | ||
| 64813-02370 |
NRE210..HI UPPER |
1 | ||
| 64813-02380 |
ZWE211;NRE210..ENTRY,MID LOWER |
1 | ||
| 64813-02370 |
ZWE211;NRE210..ENTRY,MID UPPER |
1 | ||
| 64813-02370 |
NRE210..HI UPPER |
1 | ||
| 64813-02380 |
NRE210..HI LOWER |
1 | ||
| Linked diagrams | ||||
| 6105 | ||||

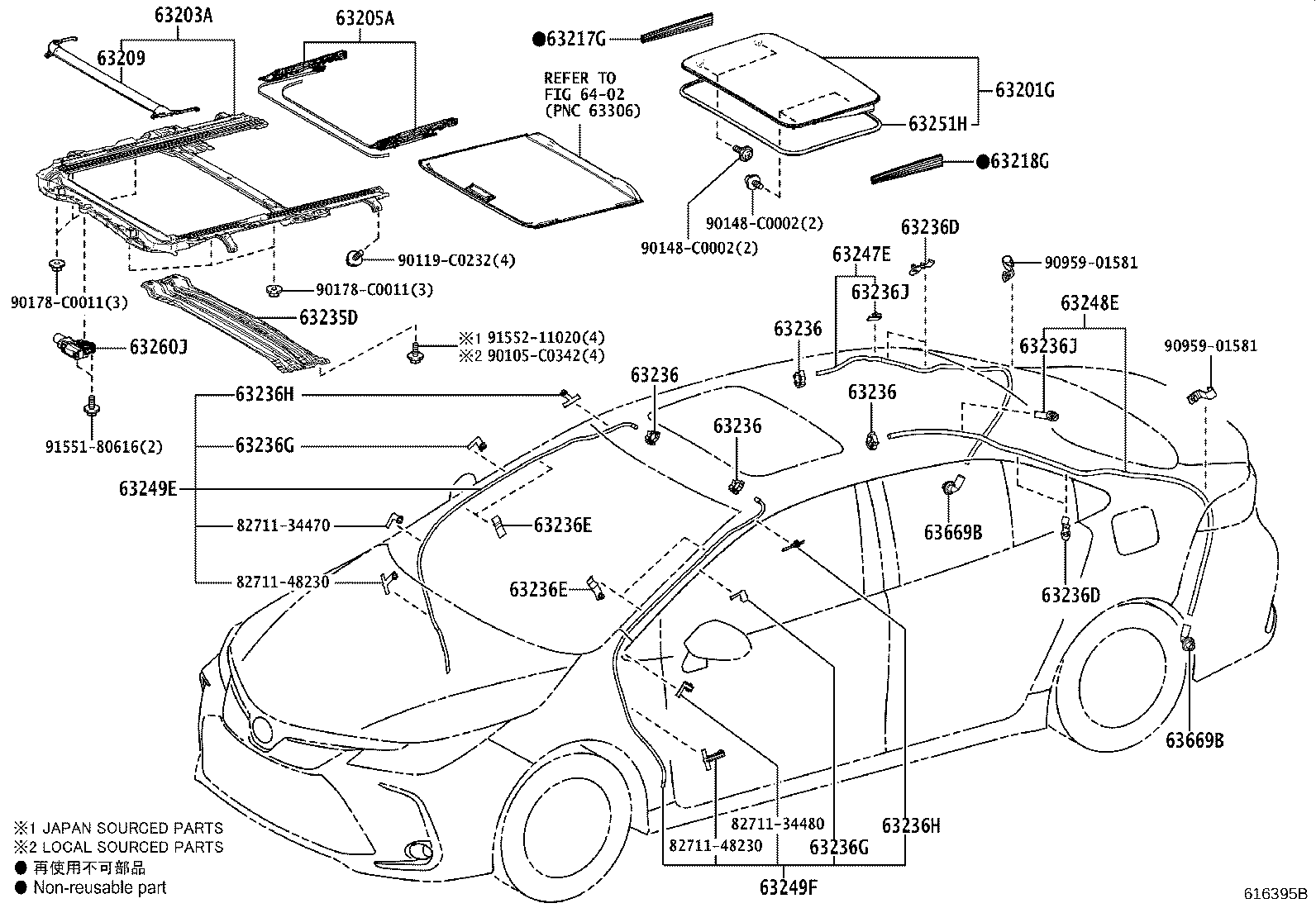

ILLUST NO. 2 OF 2(1908- )
MOON ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-02290 |
NRE210..HI |
1 | ||
| 63201-02290 |
NRE210..HI |
1 | ||
| 63203A - HOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63203-02180 |
NRE210..HI |
1 | ||
| 63203-02180 |
NRE210..HI |
1 | ||
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-02110 |
NRE210..HI |
1 | ||
| 63205-02110 |
NRE210..HI |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-02160 |
NRE210..HI |
1 | ||
| 63209-02160 |
NRE210..HI |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-07020 |
NRE210..HI |
1 | ||
| 63217-07020 |
NRE210..HI |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63217-07020 |
NRE210..HI |
1 | ||
| 63217-07020 |
NRE210..HI |
1 | ||
| 63235D - FRAME, SLIDING ROOF HOUSING, CENTER | ||||
| 63235-02090 |
NRE210..HI |
1 | ||
| 63235-02090 |
NRE210..HI |
1 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-02060 |
NRE210..HI (L) |
4 | ||
| 63236-33030 |
NRE210..HI (J) |
4 | ||
| 63236-33030 |
NRE210..HI (J) |
4 | ||
| 63236-02060 |
NRE210..HI (L) |
4 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-02060 |
NRE210..HI (L) |
4 | ||
| 63236-33030 |
NRE210..HI (J) |
4 | ||
| 63236-33030 |
NRE210..HI (J) |
4 | ||
| 63236-02060 |
NRE210..HI (L) |
4 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-02060 |
NRE210..HI (L) |
4 | ||
| 63236-33030 |
NRE210..HI (J) |
4 | ||
| 63236-33030 |
NRE210..HI (J) |
4 | ||
| 63236-02060 |
NRE210..HI (L) |
4 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-02060 |
NRE210..HI (L) |
4 | ||
| 63236-33030 |
NRE210..HI (J) |
4 | ||
| 63236-33030 |
NRE210..HI (J) |
4 | ||
| 63236-02060 |
NRE210..HI (L) |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-02010 |
NRE210..HI |
4 | ||
| 63236-02010 |
NRE210..HI |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-02010 |
NRE210..HI |
4 | ||
| 63236-02010 |
NRE210..HI |
4 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 90469-09004 |
NRE210..HI (J) |
4 | ||
| 63236-02040 |
NRE210..HI (L) |
4 | ||
| 63236-02040 |
NRE210..HI (L) |
4 | ||
| 90469-09004 |
NRE210..HI (J) |
4 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 90469-09004 |
NRE210..HI (J) |
4 | ||
| 63236-02040 |
NRE210..HI (L) |
4 | ||
| 63236-02040 |
NRE210..HI (L) |
4 | ||
| 90469-09004 |
NRE210..HI (J) |
4 | ||
| 63236G - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 86147-30030 |
NRE210..HI RH |
1 | ||
| 86147-30040 |
NRE210..HI LH |
1 | ||
| 86147-30030 |
NRE210..HI RH |
1 | ||
| 86147-30040 |
NRE210..HI LH |
1 | ||
| 63236G - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 86147-30030 |
NRE210..HI RH |
1 | ||
| 86147-30040 |
NRE210..HI LH |
1 | ||
| 86147-30030 |
NRE210..HI RH |
1 | ||
| 86147-30040 |
NRE210..HI LH |
1 | ||
| 63236H - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 86147-50050 |
NRE210..HI |
2 | ||
| 86147-50050 |
NRE210..HI |
2 | ||
| 63236H - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 86147-50050 |
NRE210..HI |
2 | ||
| 86147-50050 |
NRE210..HI |
2 | ||
| 63236J - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 86147-30020 |
NRE210..HI |
2 | ||
| 86147-30020 |
NRE210..HI |
2 | ||
| 63236J - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 86147-30020 |
NRE210..HI |
2 | ||
| 86147-30020 |
NRE210..HI |
2 | ||
| 63247E - HOSE, SLIDING ROOF DRAIN, REAR RH | ||||
| 63249-02630 |
NRE210..HI |
1 | ||
| 63249-02630 |
NRE210..HI |
1 | ||
| 63248E - HOSE, SLIDING ROOF DRAIN, REAR LH | ||||
| 63249-02650 |
NRE210..HI |
1 | ||
| 63249-02650 |
NRE210..HI |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-02620 |
NRE210..HI |
1 | ||
| 63249-02620 |
NRE210..HI |
1 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-02640 |
NRE210..HI |
1 | ||
| 63249-02640 |
NRE210..HI |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-02150 |
NRE210..HI |
1 | ||
| 63251-02170 |
MZEA11,NRE210,ZWE211..HI,MID |
1 | ||
| 63251-02150 |
NRE210..HI |
1 | ||
| 63260J - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-02230 |
NRE210..HI |
1 | ||
| 63260-02231 |
MZEA11,NRE210,ZWE211..HI,MID |
1 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-50010 |
NRE210..HI (J) |
2 | ||
| 63669-06050 |
NRE210..HI (L) |
2 | ||
| 63669-06050 |
NRE210..HI (L) |
2 | ||
| 63669-50010 |
NRE210..HI (J) |
2 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-50010 |
NRE210..HI (J) |
2 | ||
| 63669-06050 |
NRE210..HI (L) |
2 | ||
| 63669-06050 |
NRE210..HI (L) |
2 | ||
| 63669-50010 |
NRE210..HI (J) |
2 | ||
| Common parts | ||||
| 82711-34470 | ||||
| 82711-34480 | ||||
| 82711-48230 | ||||
| 90105-C0342 | ||||
| 90119-C0232 | ||||
| 90148-C0002 | ||||
| 90178-C0011 | ||||
| 90959-01581 | ||||
| 91551-80616 | ||||
| 91552-11020 | ||||
| Linked diagrams | ||||
| 6402 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
