NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )NRE210

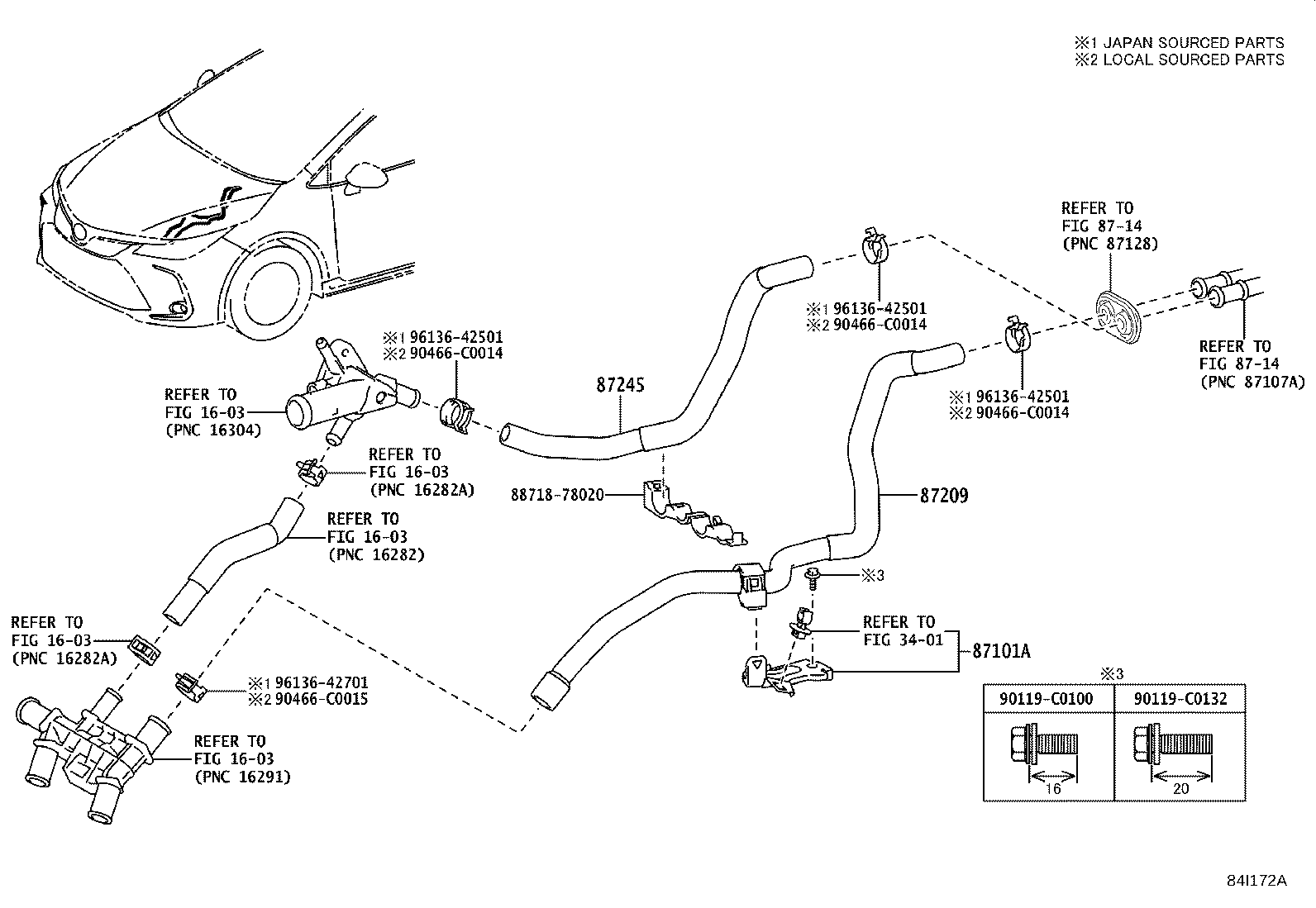

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 3401 87101A 8714 8714 87209 87245 8871878020 90119C0100 90119C0132 90466C0014 90466C0014 90466C0014 90466C0015 9613642501 9613642501 9613642501 9613642701
Part # Description Qty Price
87101A - BRACKET SUB-ASSY, HEATER NO.1
87101-02140

NRE210..HI

 1
87101-02140

NRE210..HI

 1
87209 - HOSE SUB-ASSY, WATER
87209-02570

NRE210..HI

 1
87209-02570

NRE210..HI

 1
87245 - HOSE, HEATER WATER, INLET
87245-02U80

NRE210..HI

 1
87245-02U80

NRE210..HI

 1
Common parts
88718-78020
90119-C0100
90119-C0132
90466-C0014
90466-C0015
96136-42501
96136-42701
Linked diagrams
1603
3401
8714
