NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1908- )

Click highlighted areas on diagram

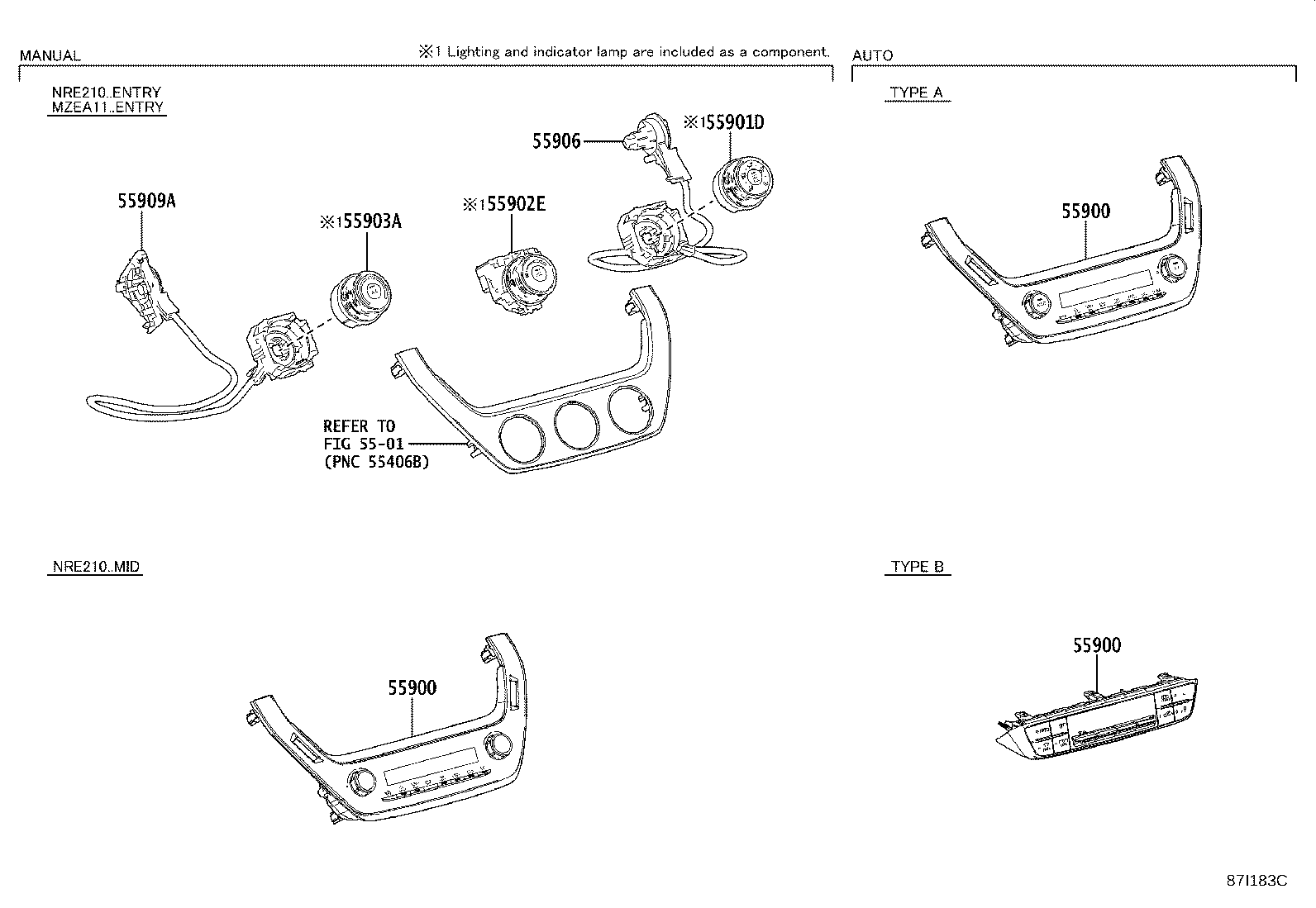

HEATER CONTROL PANEL

diagram 5501 55900 55900 55900 55901D 55902E 55903A 55906 55909A
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-02L30

NRE210..HI

TYPE B:REFER ILLUST.

 1
55900-02L30

NRE210..HI

TYPE B:REFER ILLUST.

 1
55900 - CONTROL ASSY, AIR CONDITIONER
55900-02L30

NRE210..HI

TYPE B:REFER ILLUST.

 1
55900-02L30

NRE210..HI

TYPE B:REFER ILLUST.

 1
55900 - CONTROL ASSY, AIR CONDITIONER
55900-02L30

NRE210..HI

TYPE B:REFER ILLUST.

 1
55900-02L30

NRE210..HI

TYPE B:REFER ILLUST.

 1
Linked diagrams
5501

ILLUST NO. 2 OF 3(1908- )

Click highlighted areas on diagram

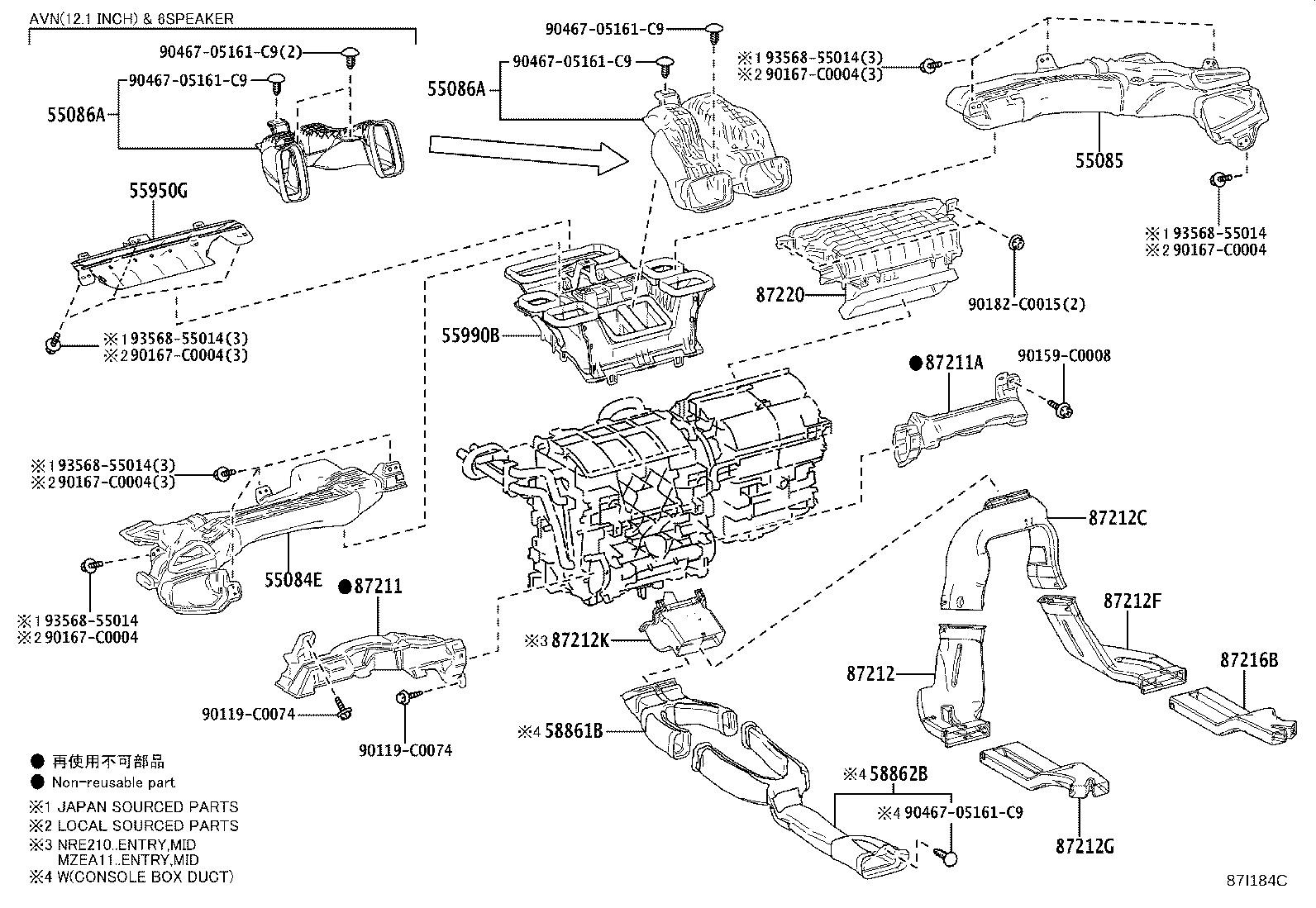

AIR DUCT

diagram 55084E 55085 55086A 55086A 55950G 55990B 58861B 58862B 87211 87211A 87212 87212C 87212F 87212G 87212K 87216B 87220 90119C0074 90119C0074 90159C0008 90167C0004 90167C0004 90167C0004 90167C0004 90167C0004 90182C0015 9046705161C9 9046705161C9 9046705161C9 9046705161C9 9046705161C9 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-02710

NRE210..HI

 1
55084-02710

NRE210..HI

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-02280

NRE210..HI

 1
55085-02280

NRE210..HI

 1
55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER
55086-02390

NRE210..HI

 1
55086-02390

NRE210..HI

 1
55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER
55086-02390

NRE210..HI

 1
55086-02390

NRE210..HI

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-02480

NRE210..HI

 1
55950-02480

NRE210..HI

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-02410

NRE210..HI

 1
55990-02410

NRE210..HI

 1
58861B - DUCT, CONSOLE BOX, NO.1
58861-02120

NRE210..HI

 1
58861-02120

NRE210..HI

 1
58862B - DUCT, CONSOLE BOX, NO.2
58862-02150

NRE210..HI

 1
58862-02150

NRE210..HI

 1
87211 - DUCT, AIR, NO.1
87211-02790

NRE210..HI

 1
87211-02790

NRE210..HI

 1
87211A - DUCT, AIR, NO.2
87211-02800

NRE210..HI

 1
87211-02800

NRE210..HI

 1
87212 - DUCT, AIR, REAR NO.1
87213-F4020

NRE210..HI

 1
87213-F4020

NRE210..HI

 1
87212C - DUCT, AIR, RR
87215-02190

NRE210..HI

 1
87215-02190

NRE210..HI

 1
87212F - DUCT, AIR, REAR NO.2
87212-F4020

NRE210..HI

 1
87212-F4020

NRE210..HI

 1
87212G - DUCT, AIR, REAR NO.3
87217-02060

NRE210..HI

 1
87217-02060

NRE210..HI

 1
87216B - DUCT, AIR, REAR NO.4
87216-02110

NRE210..HI

 1
87216-02110

NRE210..HI

 1
87220 - DUCT ASSY, AIR
87220-02361

NRE210..HI

 1
87220-02361

NRE210..HI

 1
87220-02360

NRE210,ZWE211

 1
Common parts
90119-C0074
90159-C0008
90167-C0004
90182-C0015
90467-05161C9
93568-55014

ILLUST NO. 3 OF 3(1908- )

Click highlighted areas on diagram

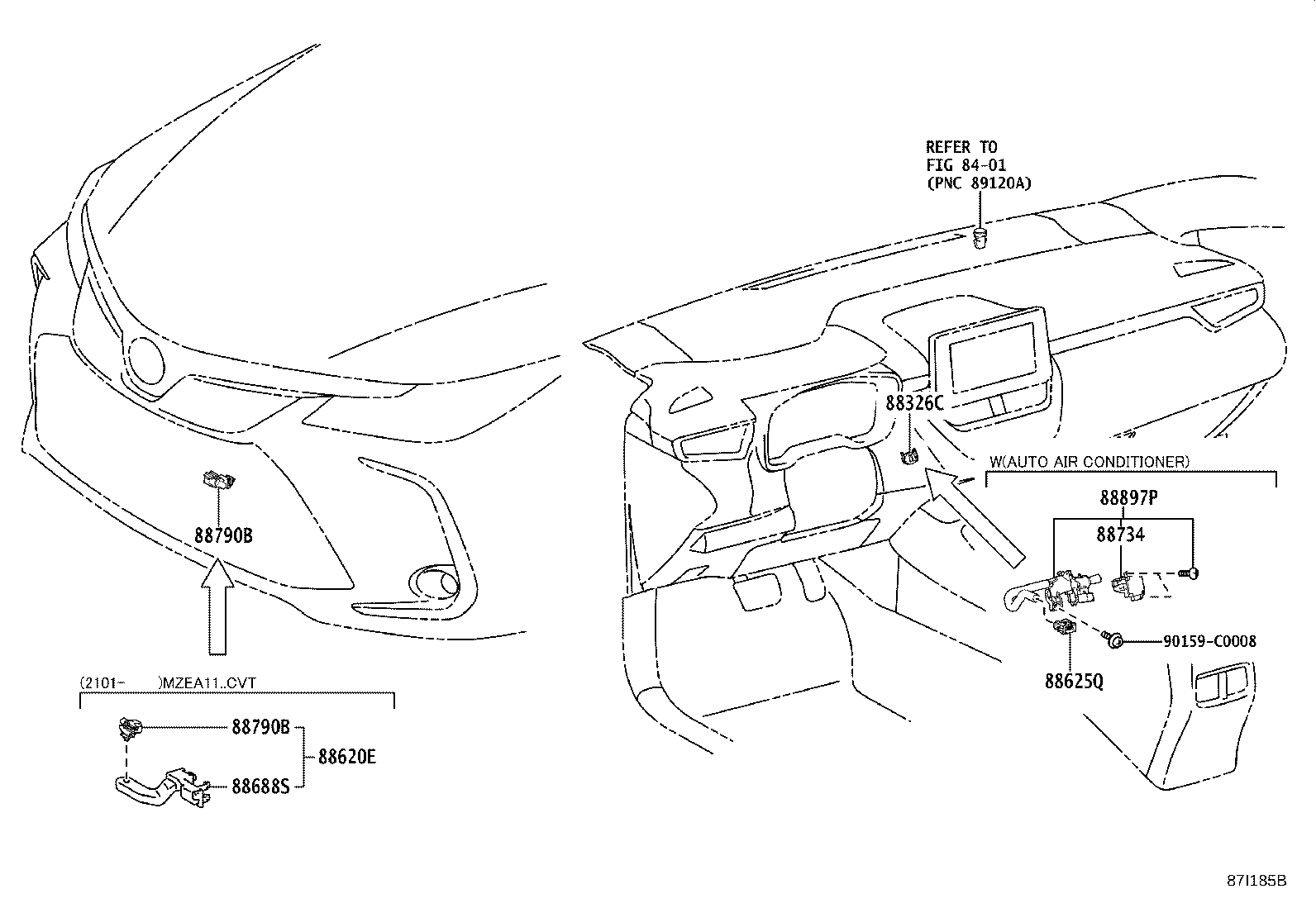

SENSOR

diagram 8401 88326C 88620E 88625Q 88688S 88734 88790B 88790B 88897P 90159C0008
Part # Description Qty Price
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

NRE210..HI

 1
88625-47021

NRE210..HI

 1
88734 - SENSOR, AIR CONDITIONER PARTICULATE MATTER
88734-12030

NRE210..HI

 1
88734-12030

NRE210..HI

 1
88790B - THERMISTOR ASSY
88790-0D020

NRE210..HI

 1
88790-0D020

NRE210..HI

 1
88790B - THERMISTOR ASSY
88790-0D020

NRE210..HI

 1
88790-0D020

NRE210..HI

 1
88897P - ASPIRATOR
88505-12130

NRE210..HI

 1
88505-12130

NRE210..HI

 1
88505-02330

ZWE211;MZEA11,NRE210..HI

 1
Common parts
90159-C0008
Linked diagrams
8401
