NRE210L-GEXGZC (2019)
Toyota Corolla

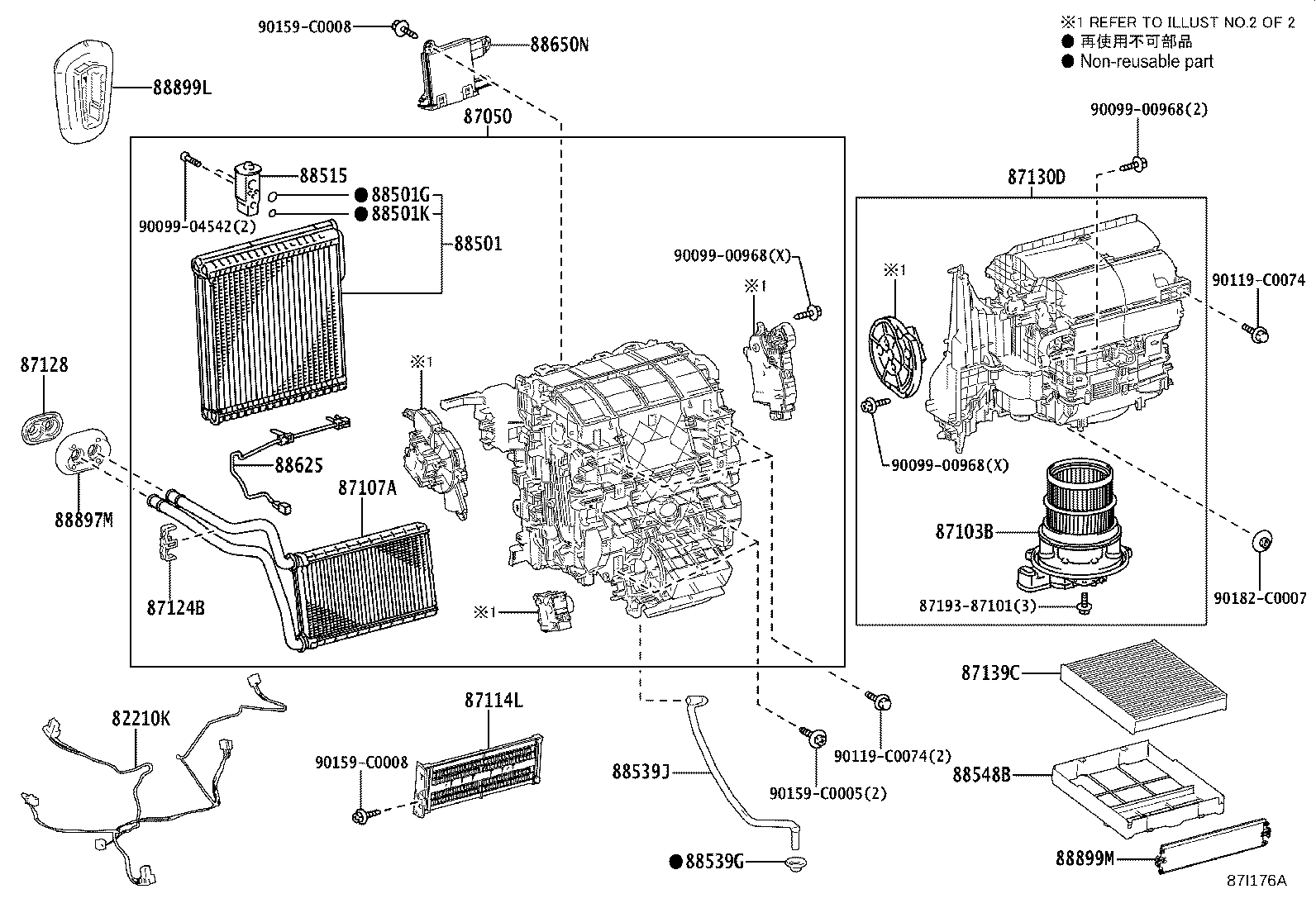

ILLUST NO. 1 OF 2(1908- )ZWE211 ; (1908- )MZEA11,NRE210..HI,MID
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-02370 |
NRE210..HI |
1 | ||
| 82212-02370 |
NRE210..HI |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0Z320 |
NRE210..HI |
1 | ||
| 87050-0Z320 |
NRE210..HI |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-F4060 |
NRE210..HI |
1 | ||
| 87103-F4060 |
NRE210..HI |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-F4040 |
NRE210..HI |
1 | ||
| 87107-F4040 |
NRE210..HI |
1 | ||
| 87114L - COVER, HEATER, NO.2 | ||||
| 87114-02200 |
NRE210..HI |
1 | ||
| 87114-02200 |
NRE210..HI |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-F4060 |
NRE210..HI |
1 | ||
| 87124-F4060 |
NRE210..HI |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-28010 |
NRE210..HI |
1 | ||
| 87128-28010 |
NRE210..HI |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-F4070 |
NRE210..HI |
1 | ||
| 87130-F4070 |
NRE210..HI |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-58010 |
NRE210..HI DEODORANT FILTER |
1 | ||
| 87139-F4050 |
NRE210..HI MICRO DUST FILTER,OE PART |
1 | ||
| 87139-F4050 |
NRE210..HI MICRO DUST FILTER,OE PART |
1 | ||
| 87139-02260 |
MZEA11,NRE210,ZWE211 MICRO DUST FILTER,OE PART |
1 | ||
| 87139-58010 |
NRE210..HI DEODORANT FILTER |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-02460 |
NRE210..HI |
1 | ||
| 88501-02460 |
NRE210..HI |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
NRE210..HI ID=13.4,OD=18.2 |
1 | ||
| 90099-14121 |
NRE210..HI ID=13.4,OD=18.2 |
1 | ||
| 88501K - O-RING, COOLER EVAPORATOR NO.1(LIQUID) | ||||
| 90099-14120 |
NRE210..HI ID=10.8,OD=15.6 |
1 | ||
| 90099-14120 |
NRE210..HI ID=10.8,OD=15.6 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-F4040 |
NRE210..HI |
1 | ||
| 88515-F4040 |
NRE210..HI |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 88888-06030 |
NRE210..HI |
1 | ||
| 88888-06030 |
NRE210..HI |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-F4070 |
NRE210..HI |
1 | ||
| 88539-F4070 |
NRE210..HI |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88899-F4350 |
NRE210..HI |
1 | ||
| 88899-F4350 |
NRE210..HI |
1 | ||
| 88899-02260 |
ZWE211;MZEA11,NRE210..HI,MID |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-07020 |
NRE210..HI |
1 | ||
| 88620-07020 |
NRE210..HI |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-02M30 |
NRE210..HI |
1 | ||
| 88650-02M31 |
ZWE211;MZEA11,NRE210..HI,MID |
1 | ||
| 88650-02M30 |
NRE210..HI |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-F4060 |
NRE210..HI |
1 | ||
| 87128-F4060 |
NRE210..HI |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-F4330 |
NRE210..HI |
1 | ||
| 88899-F4330 |
NRE210..HI |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-F4290 |
NRE210..HI |
1 | ||
| 88899-F4290 |
NRE210..HI |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90119-C0074 | ||||
| 90159-C0005 | ||||
| 90159-C0008 | ||||
| 90182-C0007 | ||||

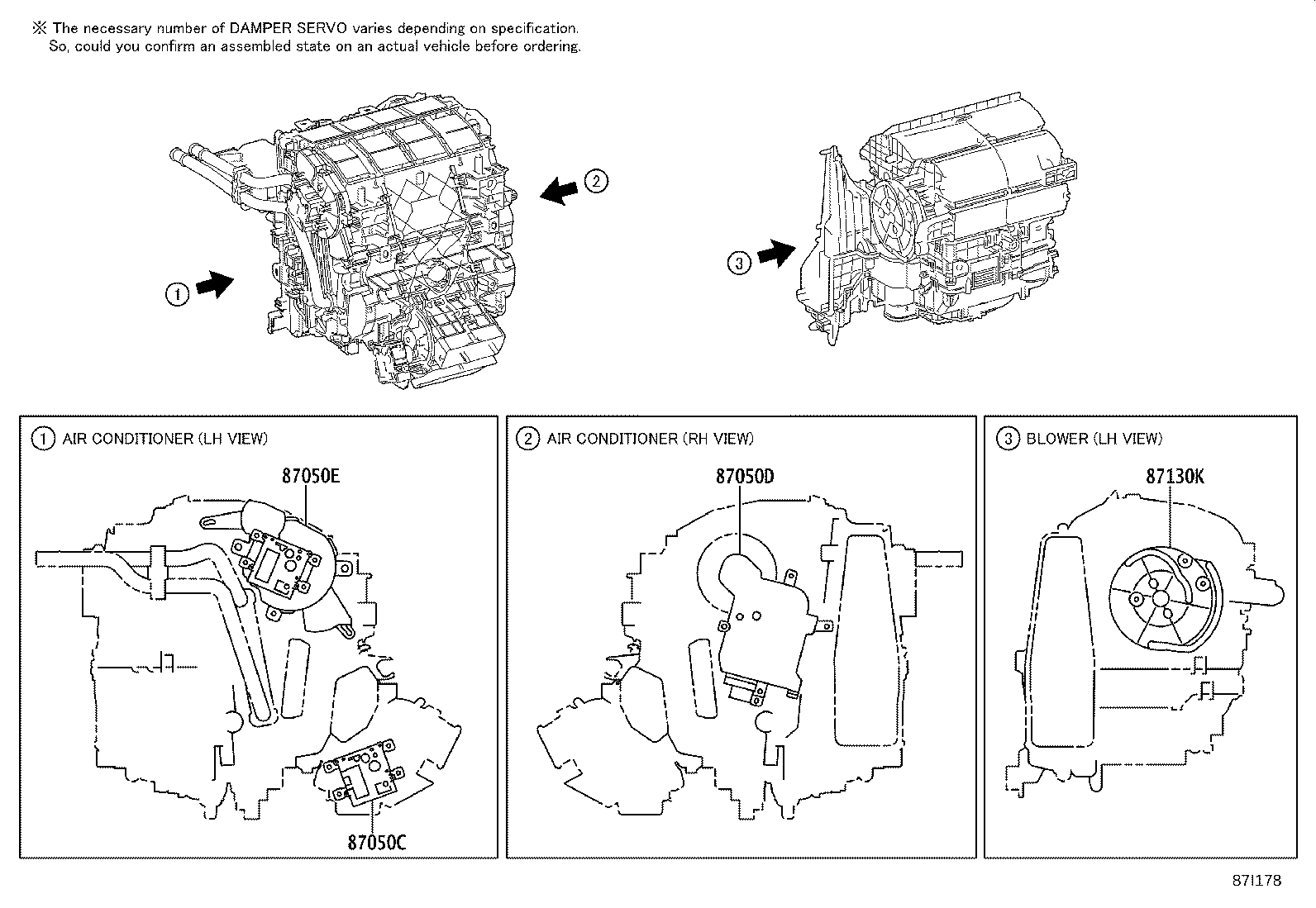

ILLUST NO. 2 OF 2(1908- )
DAMPER SERVO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-02730 |
NRE210..HI |
1 | ||
| 87106-02730 |
NRE210..HI |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-F4150 |
NRE210..HI |
1 | ||
| 87106-F4150 |
NRE210..HI |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-F4090 |
NRE210..HI |
1 | ||
| 87106-F4090 |
NRE210..HI |
1 | ||
