NRE210L-GEXGZC (2019)
Toyota Corolla
Production
Aug 2019
-
Sep 9999
Engine
9NRFTS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1908- )

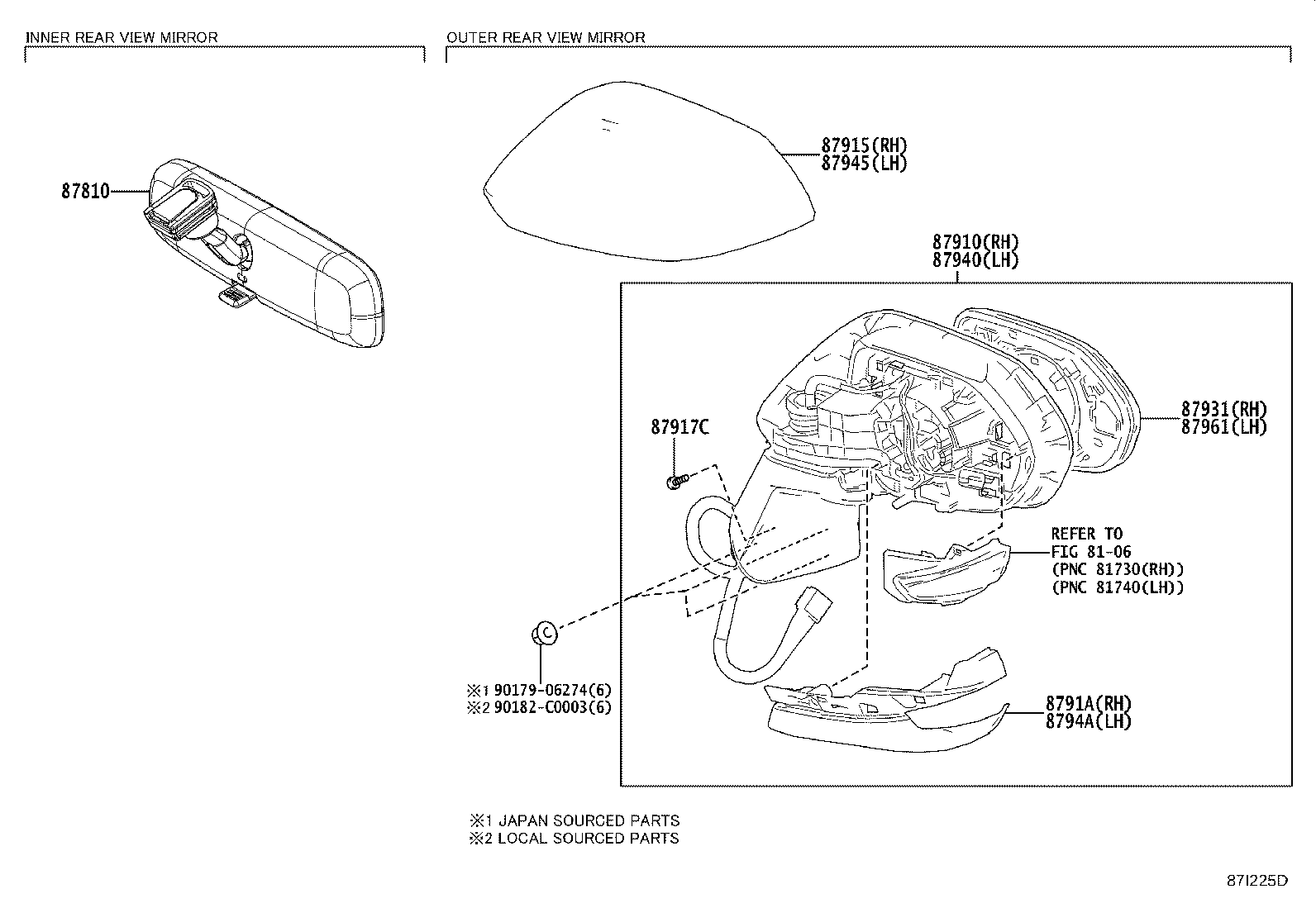

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-07160 |
NRE210..HI |
1 | ||
| 87810-07160 |
MZEA11,NRE210,ZWE211 MADE IN THAILAND |
1 | ||
| 87810-07180 |
MZEA11,NRE210,ZWE211 MADE IN CHINA |
1 | ||
| 87810-07160 |
NRE210..HI |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-02P80 |
NRE210..HI NO PAINT REQ. |
1 | ||
| 87910-02P80 |
NRE210..HI NO PAINT REQ. |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-02935 |
NRE210..HI PAINT REQ. |
1 | ||
| 87915-02935 |
NRE210..HI PAINT REQ. |
1 | ||
| 87917C - SCREW, OUTER MIRROR | ||||
| 87917-02P80 |
NRE210..HI |
2 | ||
| 87917-02P80 |
NRE210..HI |
2 | ||
| 8791A - COVER, OUTER MIRROR, RH NO.2 | ||||
| 8791A-02P80 |
NRE210..HI |
1 | ||
| 8791A-02P80 |
NRE210..HI |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87902-02190 |
NRE210..HI |
1 | ||
| 87902-02190 |
NRE210..HI |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-02P70 |
NRE210..HI NO PAINT REQ. |
1 | ||
| 87940-02P70 |
NRE210..HI NO PAINT REQ. |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-02935 |
NRE210..HI PAINT REQ. |
1 | ||
| 87945-02935 |
NRE210..HI PAINT REQ. |
1 | ||
| 8794A - COVER, OUTER MIRROR, LH NO.2 | ||||
| 8794A-02P70 |
NRE210..HI |
1 | ||
| 8794A-02P70 |
NRE210..HI |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87907-02180 |
NRE210..HI |
1 | ||
| 87907-02180 |
NRE210..HI |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 90182-C0003 | ||||
| Linked diagrams | ||||
| 8106 | ||||
