NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

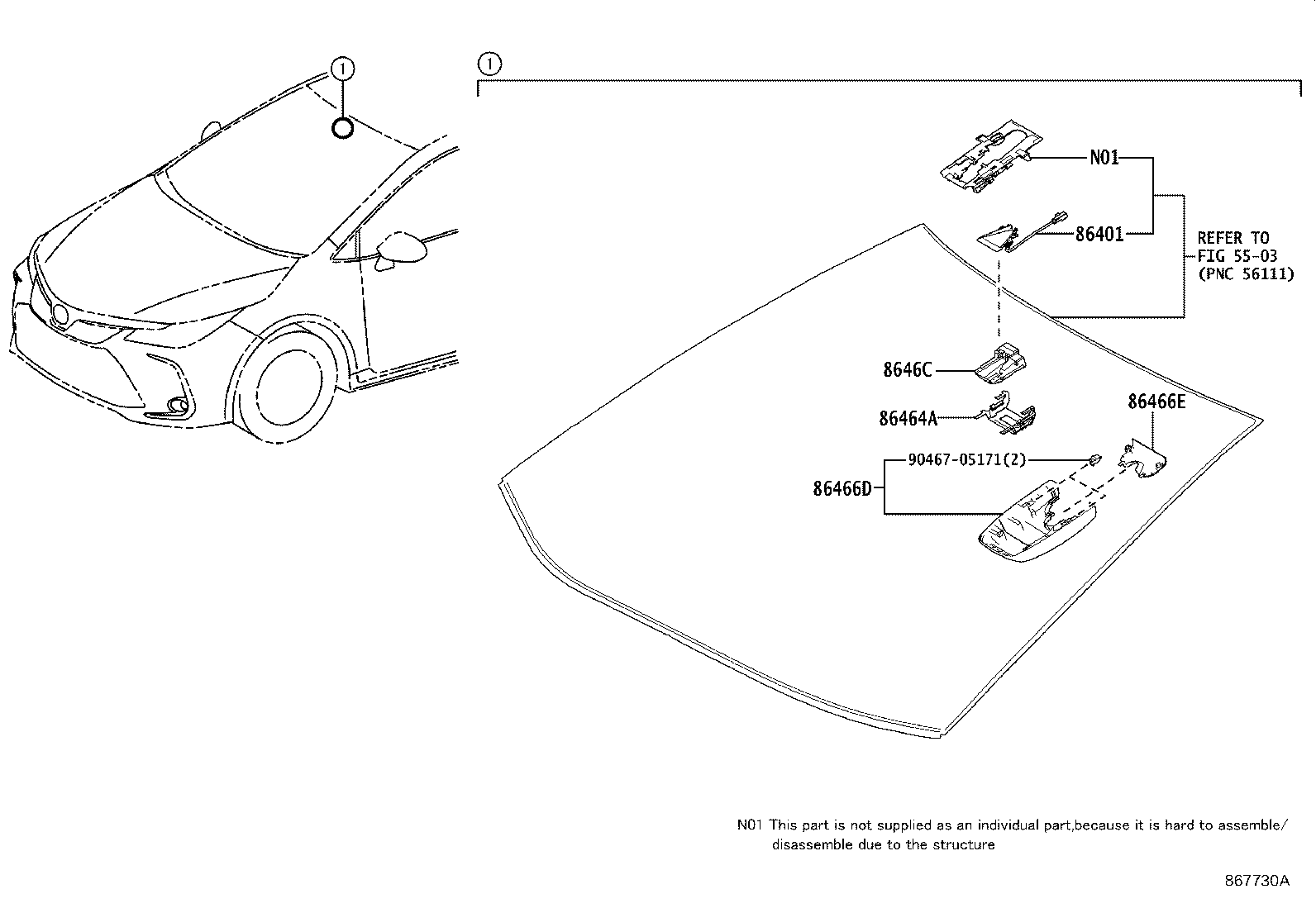

Click highlighted areas on diagram

diagram 5503 86401 86464A 86466D 86466E 8646C 9046705171
Part # Description Qty Price
86401 - HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER
86401-12010

NRE210..ENTRY,HI

 1
86401-02010

MZEA11,NRE210,ZWE211

 1
86401-12010

NRE210..HI

 1
86464A - LATCH, FORWARD RECOGNITION
86464-0E020

MZEA11,NRE210,ZWE211

 1
86464-26010

NRE210..ENTRY,HI

 1
86464-26010

NRE210..HI

 1
86466D - COVER, FORWARD RECOGNITION, NO.1
86466-02010

MZEA11,NRE210,ZWE211

 1
86466-12030

NRE210..ENTRY,HI

 1
86466-12030

NRE210..HI

 1
86466E - COVER, FORWARD RECOGNITION, NO.2
86466-12040

NRE210..HI

 1
86466-12040

NRE210..ENTRY,HI

 1
86466-02020

MZEA11,NRE210,ZWE211

 1
8646C - CAMERA, FORWARD RECOGNITION
8646C-02030

NRE210..ENTRY,HI

 1
8646C-12020

ZWE211;NRE210..HI,MID

 1
Common parts
90467-05171
Linked diagrams
5503
