NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

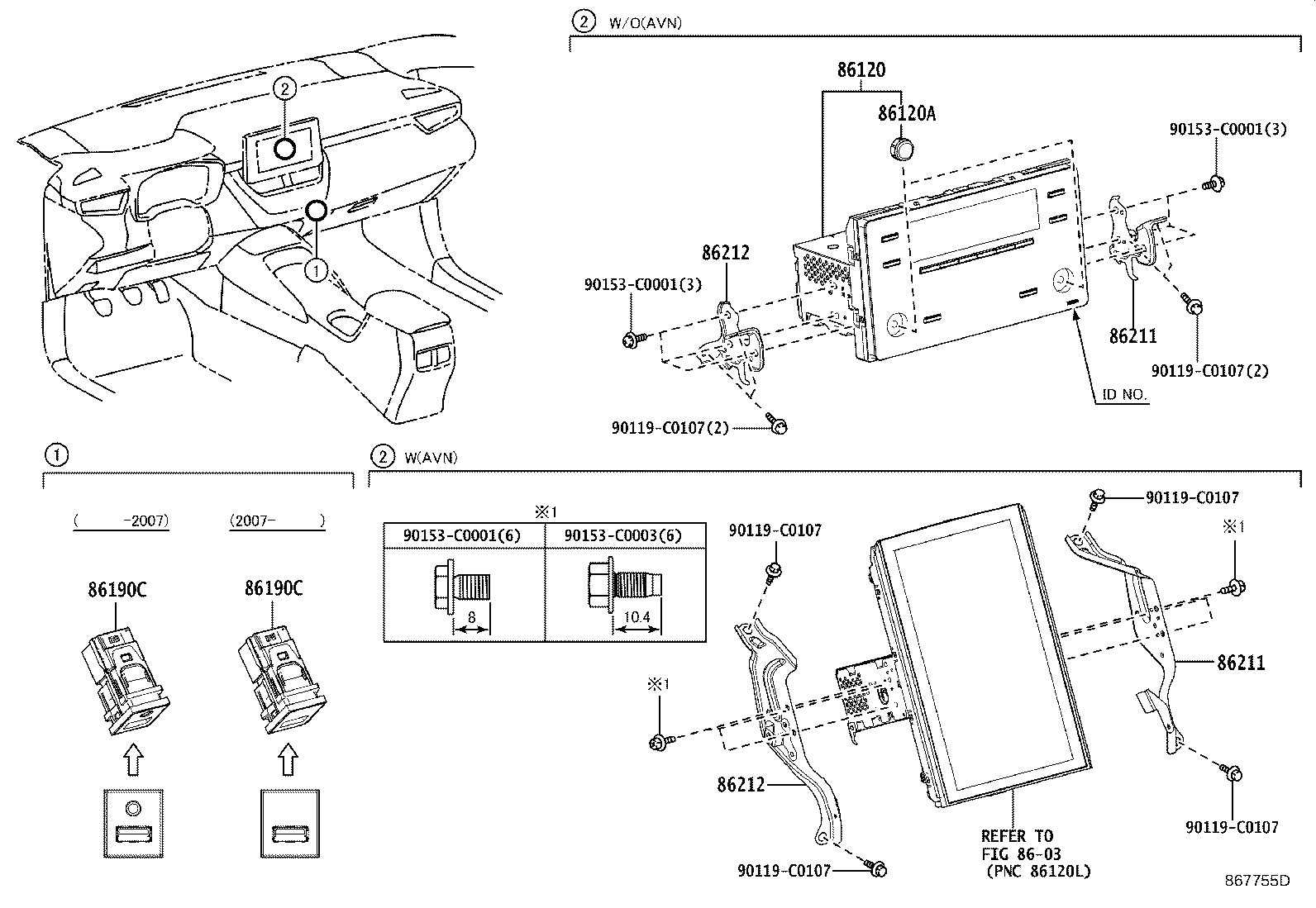

ILLUST NO. 1 OF 2(1908- )

Click highlighted areas on diagram

diagram 8603 86120 86120A 86190C 86190C 86211 86211 86212 86212 90119C0107 90119C0107 90119C0107 90119C0107 90119C0107 90119C0107 90153C0001 90153C0001 90153C0001 90153C0003
Part # Description Qty Price
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-06070

NRE210..HI

 1
86190-12070

MZEA11,NRE210,ZWE211..HI,MID

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-06070

NRE210..HI

 1
86190-12070

MZEA11,NRE210,ZWE211..HI,MID

 1
86211 - BRACKET, RADIO, NO.1
86211-02690

NRE210..HI

 1
86211-02690

NRE210..HI

 1
86211 - BRACKET, RADIO, NO.1
86211-02690

NRE210..HI

 1
86211-02690

NRE210..HI

 1
86212 - BRACKET, RADIO, NO.2
86212-02690

NRE210..HI

 1
86212-02690

NRE210..HI

 1
86212 - BRACKET, RADIO, NO.2
86212-02690

NRE210..HI

 1
86212-02690

NRE210..HI

 1
Common parts
90119-C0107
90153-C0001
90153-C0003
Linked diagrams
8603

ILLUST NO. 2 OF 2(1908- )

Click highlighted areas on diagram

CONDENSER

diagram 86011A 90119C0307
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04204

NRE210..HI

 2
90980-04204

NRE210..HI

 2
Common parts
90119-C0307
