NRE210L-GEXGZC (2019)
Toyota Corolla
Production
Aug 2019
-
Sep 9999
Engine
9NRFTS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1908- )

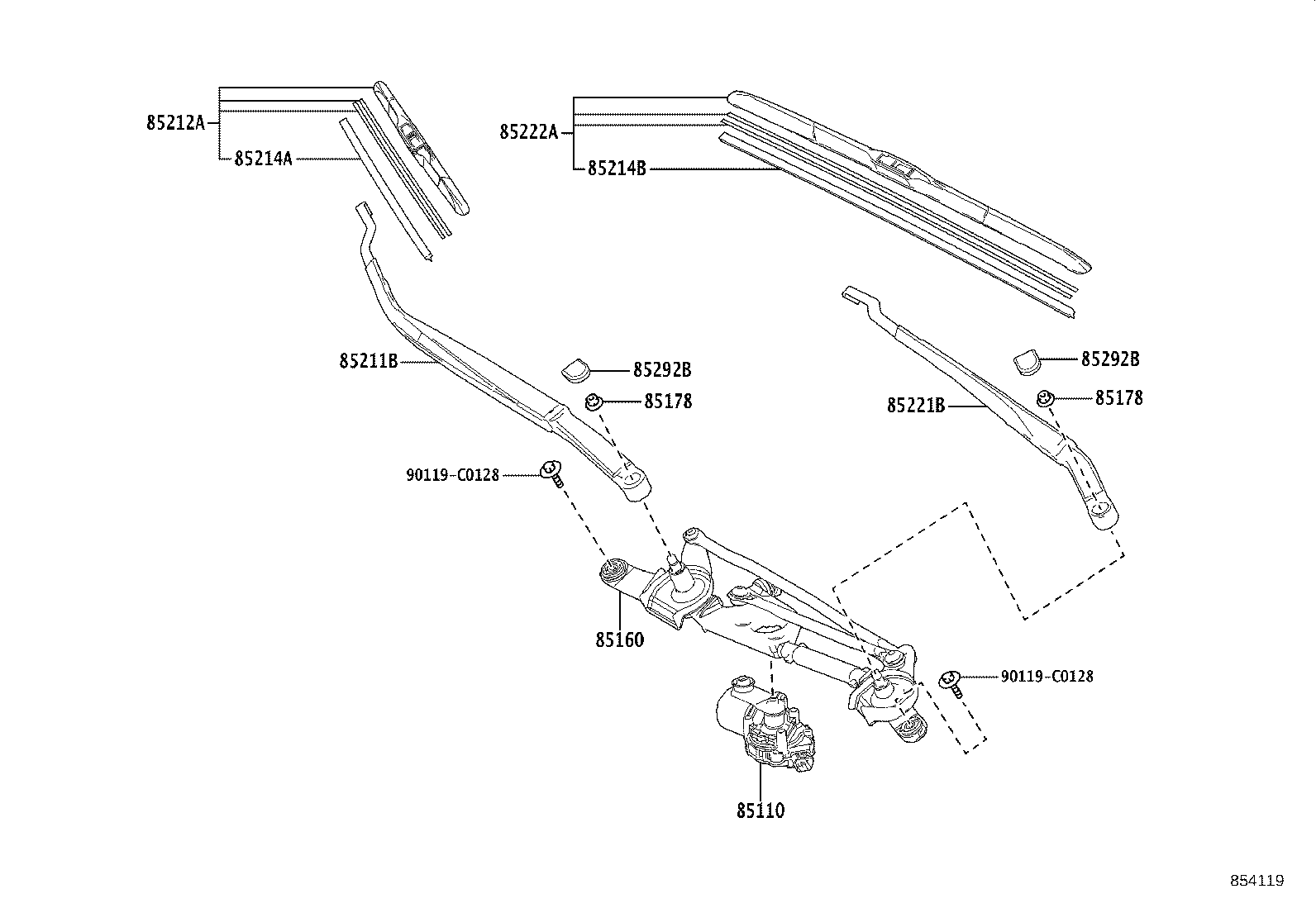

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-12C30 |
NRE210,ZWE211 |
1 | ||
| 85110-02580 |
NRE210..HI (L) |
1 | ||
| 85110-12C30 |
NRE210..HI (J) |
1 | ||
| 85110-02580 |
NRE210..HI (L) |
1 | ||
| 85110-12C30 |
NRE210..HI (J) |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85150-02510 |
NRE210..HI |
1 | ||
| 85150-02510 |
NRE210..HI |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90182-C0012 |
NRE210..HI |
2 | ||
| 90182-C0012 |
NRE210..HI |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90182-C0012 |
NRE210..HI |
2 | ||
| 90182-C0012 |
NRE210..HI |
2 | ||
| 85211B - ARM, FRONT WIPER, RH | ||||
| 85211-02510 |
NRE210..HI |
1 | ||
| 85211-02510 |
NRE210..HI |
1 | ||
| 85212A - BLADE, FR WIPER, RH | ||||
| 85212-02310 |
NRE210..HI |
1 | ||
| 85212-02310 |
NRE210..HI |
1 | ||
| 85214A - RUBBER, WIPER, RH | ||||
| 85214-02260 |
NRE210..HI |
1 | ||
| 85214-02260 |
NRE210..HI |
1 | ||
| 85214B - RUBBER, WIPER, LH | ||||
| 85214-28080 |
NRE210..HI |
1 | ||
| 85214-28080 |
NRE210..HI |
1 | ||
| 85221B - ARM, FRONT WIPER, LH | ||||
| 85221-02530 |
NRE210..HI |
1 | ||
| 85221-02530 |
NRE210..HI |
1 | ||
| 85222A - BLADE, FR WIPER, LH | ||||
| 85222-52270 |
NRE210..HI |
1 | ||
| 85222-52270 |
NRE210..HI |
1 | ||
| 85292B - CAP, FRONT WIPER ARM HEAD | ||||
| 85292-0D070 |
NRE210..HI |
2 | ||
| 85292-0D070 |
NRE210..HI |
2 | ||
| 85292B - CAP, FRONT WIPER ARM HEAD | ||||
| 85292-0D070 |
NRE210..HI |
2 | ||
| 85292-0D070 |
NRE210..HI |
2 | ||
| Common parts | ||||
| 90119-C0128 | ||||
