NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

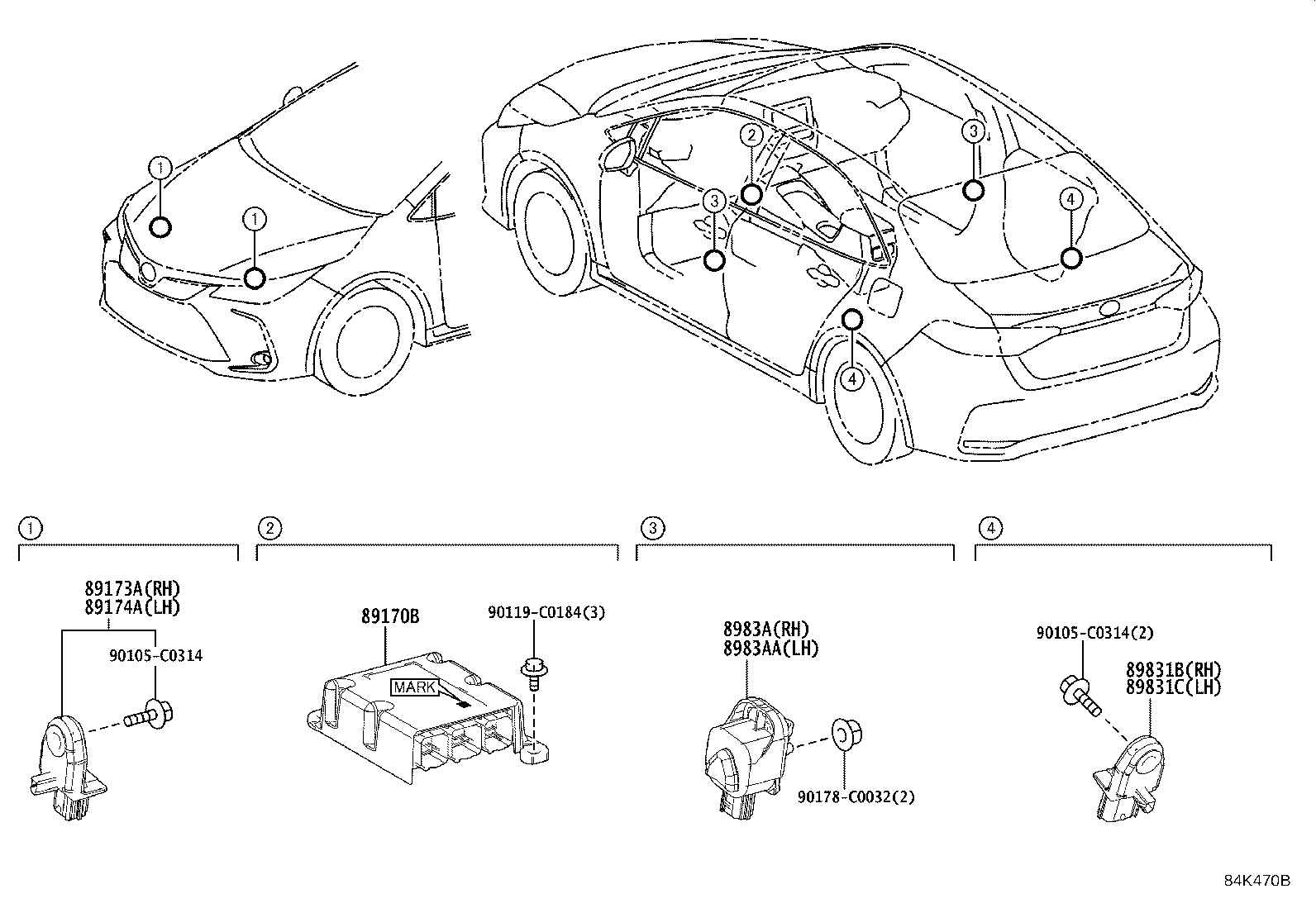

Click highlighted areas on diagram

diagram 89170B 89173A 89174A 89831B 89831C 8983A 8983AA 90105C0314 90105C0314 90119C0184 90178C0032
Part # Description Qty Price
89170B - SENSOR ASSY, AIR BAG(W/COMPUTER)
89170-02S00

NRE210

SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION),MARK=Y0

 1
89170-02S00

NRE210

MARK=Y0

 1
89170-02T60

MZEA11,NRE210

MARK=24

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-09883

NRE210..HI

 1
89173-09883

NRE210..HI

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-09883

NRE210..HI

 1
89173-09883

NRE210..HI

 1
89831B - SENSOR, SIDE AIR BAG, RH, NO.2
89831-02330

NRE210..HI

 1
89831-02330

NRE210..HI

 1
89831C - SENSOR, SIDE AIR BAG, LH, NO.2
89831-02330

NRE210..HI

 1
89831-02330

NRE210..HI

 1
8983A - SENSOR, SIDE AIR BAG PRESSURE, RH
8983A-02040

NRE210..HI

 1
8983A-02041

MZEA11,NRE210,ZWE211

 1
8983A-02040

NRE210..HI

 1
8983AA - SENSOR, SIDE AIR BAG PRESSURE, LH
8983A-02040

NRE210..HI

 1
8983A-02040

NRE210..HI

 1
8983A-02041

MZEA11,NRE210,ZWE211

 1
Common parts
90105-C0314
90119-C0184
90178-C0032
