NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

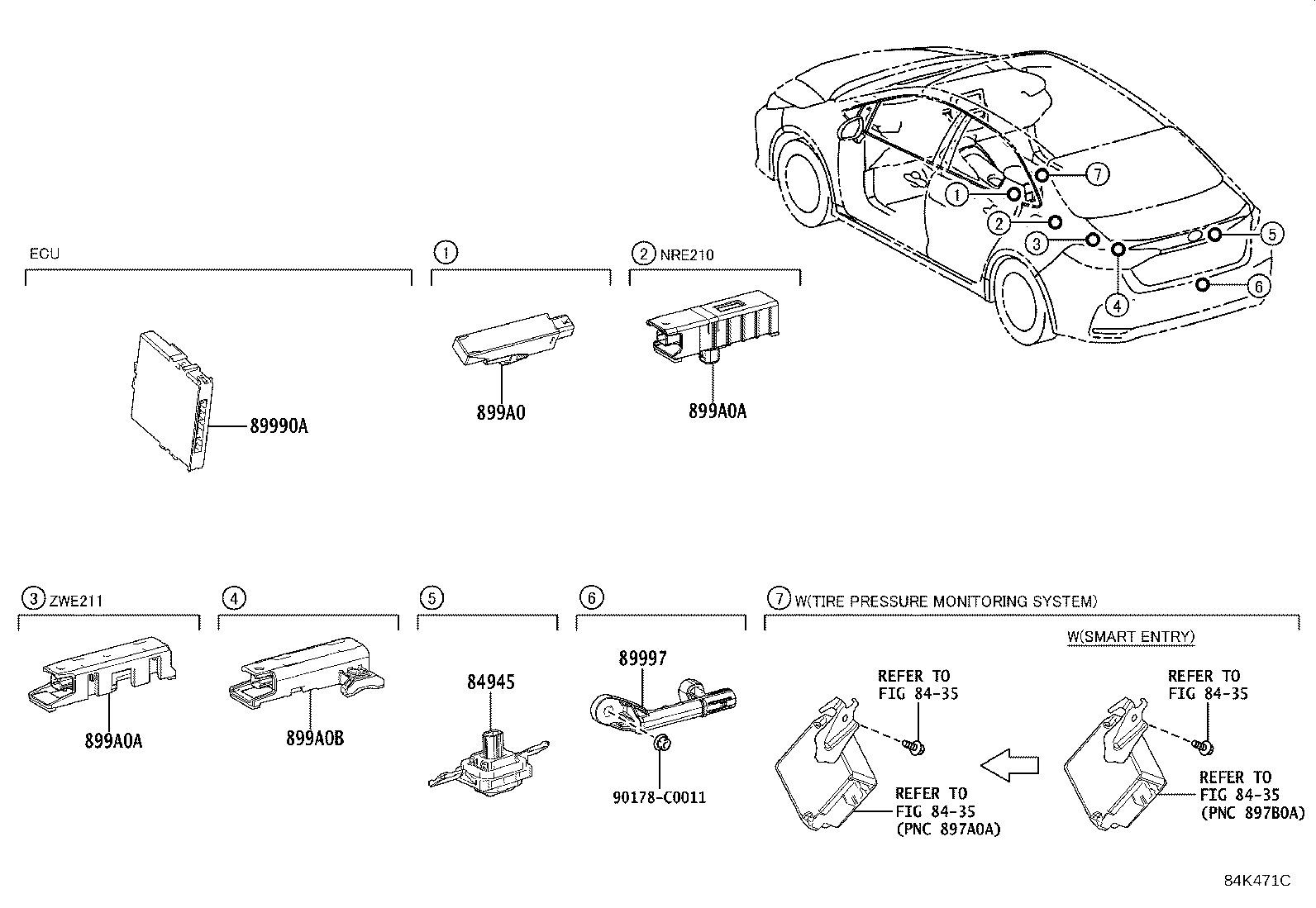

Click highlighted areas on diagram

diagram 8435 8435 8435 8435 84945 89990A 89997 899A0 899A0A 899A0A 899A0B 90178C0011
Part # Description Qty Price
84945 - SWITCH, LUGGAGE ELECTRICAL KEY
84945-02090

NRE210..HI

 1
84945-02090

NRE210..HI

 1
89990A - COMPUTER ASSY, SMART KEY
899H0-02330

NRE210..HI

 1
899H0-02510

MZEA11,NRE210..HI

 1
899H0-02330

NRE210..HI

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-0E060

NRE210..HI

 1
89997-0E060

NRE210..HI

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-02370

NRE210..HI

 1
899A0-02370

NRE210..HI

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-02380

NRE210..HI

 1
899A0-02380

NRE210..HI

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-02380

NRE210..HI

 1
899A0-02380

NRE210..HI

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-02400

NRE210..HI

 1
899A0-02400

NRE210..HI

 1
Common parts
90178-C0011
Linked diagrams
8435
