NRE210L-GEXGZC (2019)
Toyota Corolla
Production
Aug 2019
-
Sep 9999
Engine
9NRFTS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1908- )

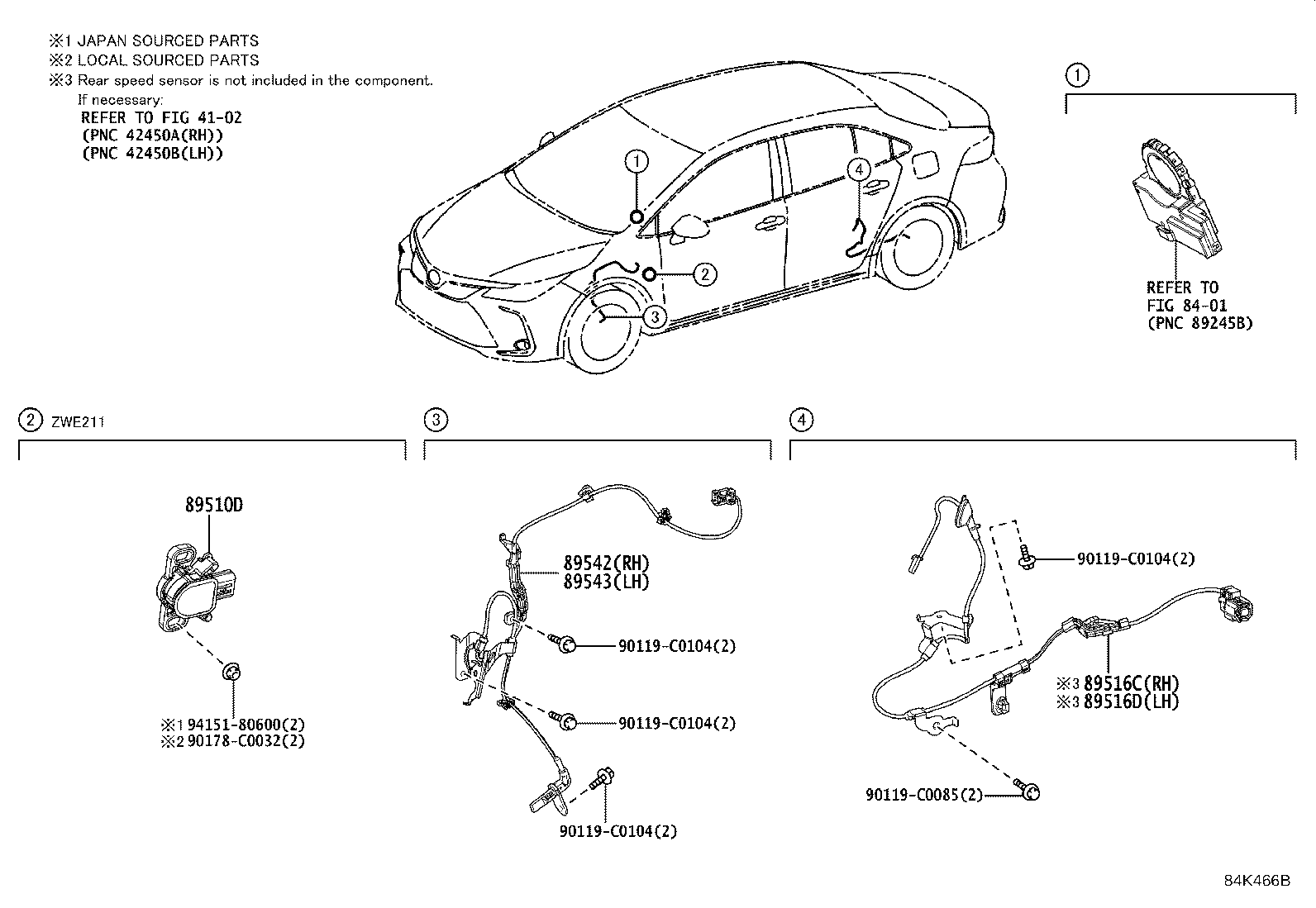

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-02230 |
NRE210..HI |
1 | ||
| 89542-02230 |
NRE210..HI |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-02230 |
NRE210..HI |
1 | ||
| 89543-02230 |
NRE210..HI |
1 | ||
| Common parts | ||||
| 90119-C0085 | ||||
| 90119-C0104 | ||||
| 90178-C0032 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 4102 | ||||
| 8401 | ||||
