Toyota Corolla NRE210 REAR COMBINATION LAMP

Manufacturers Home
Toyota
GR
COROLLA
NRE210L-GEXGZC (2019)
8111 - REAR COMBINATION LAMP

NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999

Engine 9NRFTS

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(1908- )

Click highlighted areas on diagram

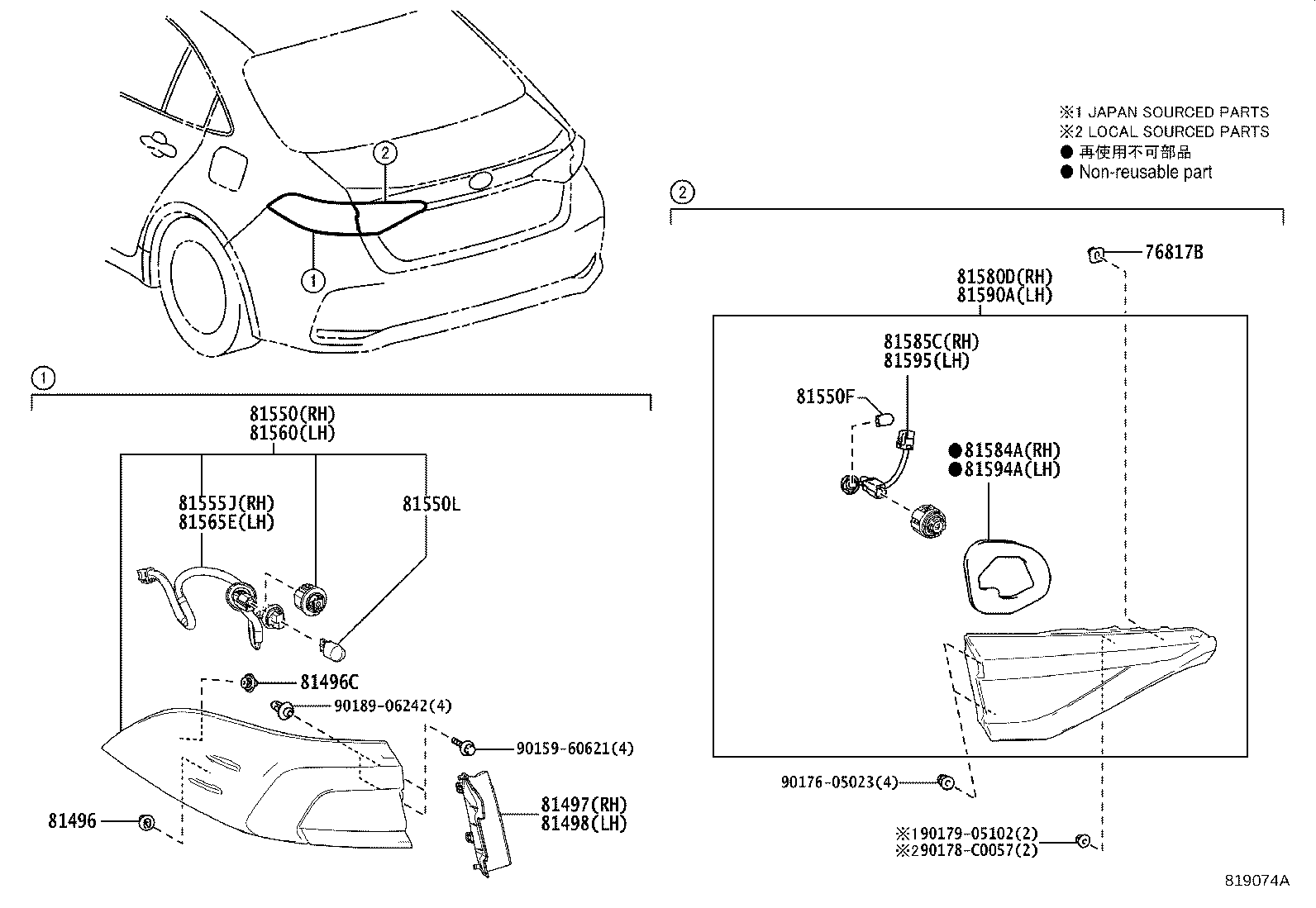

BULB TYPE(TAIL LAMP & TURN LAMP)

Part #	Description	Period	Qty
76817B - CLIP, REAR LAMP
76817-26040	NRE210..HI	08/2019 - 06/2020	2
76817-26040	NRE210..HI	07/2020 - 12/2999	2
81496 - GUIDE, REAR COMBINATION LAMP
81496-02020	NRE210..HI (L)	08/2019 - 06/2020	2
81496-02020	NRE210..HI (L)	07/2020 - 12/2999	2
81496-52020	NRE210..HI (J)	08/2019 - 06/2020	2
81496-52020	NRE210..HI (J)	07/2020 - 12/2999	2
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
90467-C0019	NRE210..HI	08/2019 - 06/2020	2
90467-C0019	NRE210..HI	07/2020 - 12/2999	2
81497 - COVER, REAR COMBINATION LAMP, RH
81497-02110	NRE210..HI	08/2019 - 06/2020	1
81497-02110	NRE210..HI	07/2020 - 12/2999	1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-02110	NRE210..HI	07/2020 - 12/2999	1
81498-02110	NRE210..HI	08/2019 - 06/2020	1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-02E00	NRE210..HI	07/2020 - 12/2999	1
81550-02E00	NRE210..HI	08/2019 - 06/2020	1
81550F - BULB, TAIL LAMP
90981-CB001	NRE210..HI 12V 5W	08/2019 - 06/2020	2
90981-CB001	NRE210..HI 12V 5W	07/2020 - 12/2999	2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-CB004	NRE210..HI 12V 21W	07/2020 - 12/2999	2
90981-CB004	NRE210..HI 12V 21W	08/2019 - 06/2020	2
81555J - SOCKET & WIRE, REAR COMBINATION LAMP, RH
81555-02E00	NRE210..HI	08/2019 - 06/2020	1
81555-02E00	NRE210..HI	07/2020 - 12/2999	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-02E00	NRE210..HI	08/2019 - 06/2020	1
81560-02E00	NRE210..HI	07/2020 - 12/2999	1
81565E - SOCKET & WIRE, REAR COMBINATION LAMP, LH
81565-02E00	NRE210..HI	07/2020 - 12/2999	1
81565-02E00	NRE210..HI	08/2019 - 06/2020	1
81580D - LAMP ASSY, REAR, RH
81580-02D52	MZEA11,NRE210	04/2021 - 12/2999	1
81580-02D51	NRE210..HI	07/2020 - 03/2021	1
81580-02D51	NRE210..HI	12/2019 - 06/2020	1
81580-02D50	NRE210	08/2019 - 12/2019	1
81584A - GASKET, REAR LAMP RH
81584-02D50	NRE210..HI	07/2020 - 12/2999	1
81584-02D50	NRE210..HI	08/2019 - 06/2020	1
81585C - SOCKET & WIRE, REAR LAMP, RH
81585-02D50	NRE210..HI	07/2020 - 12/2999	1
81585-02D50	NRE210..HI	08/2019 - 06/2020	1
81590A - LAMP ASSY, REAR, LH
81590-02D51	NRE210..HI	12/2019 - 06/2020	1
81590-02D51	NRE210..HI	07/2020 - 03/2021	1
81590-02D52	MZEA11,NRE210	04/2021 - 12/2999	1
81590-02D50	NRE210	08/2019 - 12/2019	1
81594A - GASKET, REAR LAMP LH
81594-02D50	NRE210..HI	07/2020 - 12/2999	1
81594-02D50	NRE210..HI	08/2019 - 06/2020	1
81595 - SOCKET & WIRE, REAR LAMP, LH
81595-02D50	NRE210..HI	07/2020 - 12/2999	1
81595-02D50	NRE210..HI	08/2019 - 06/2020	1
Common parts
90159-60621
90176-05023
90178-C0057
90179-05102
90189-06242

(1908- )

Click highlighted areas on diagram

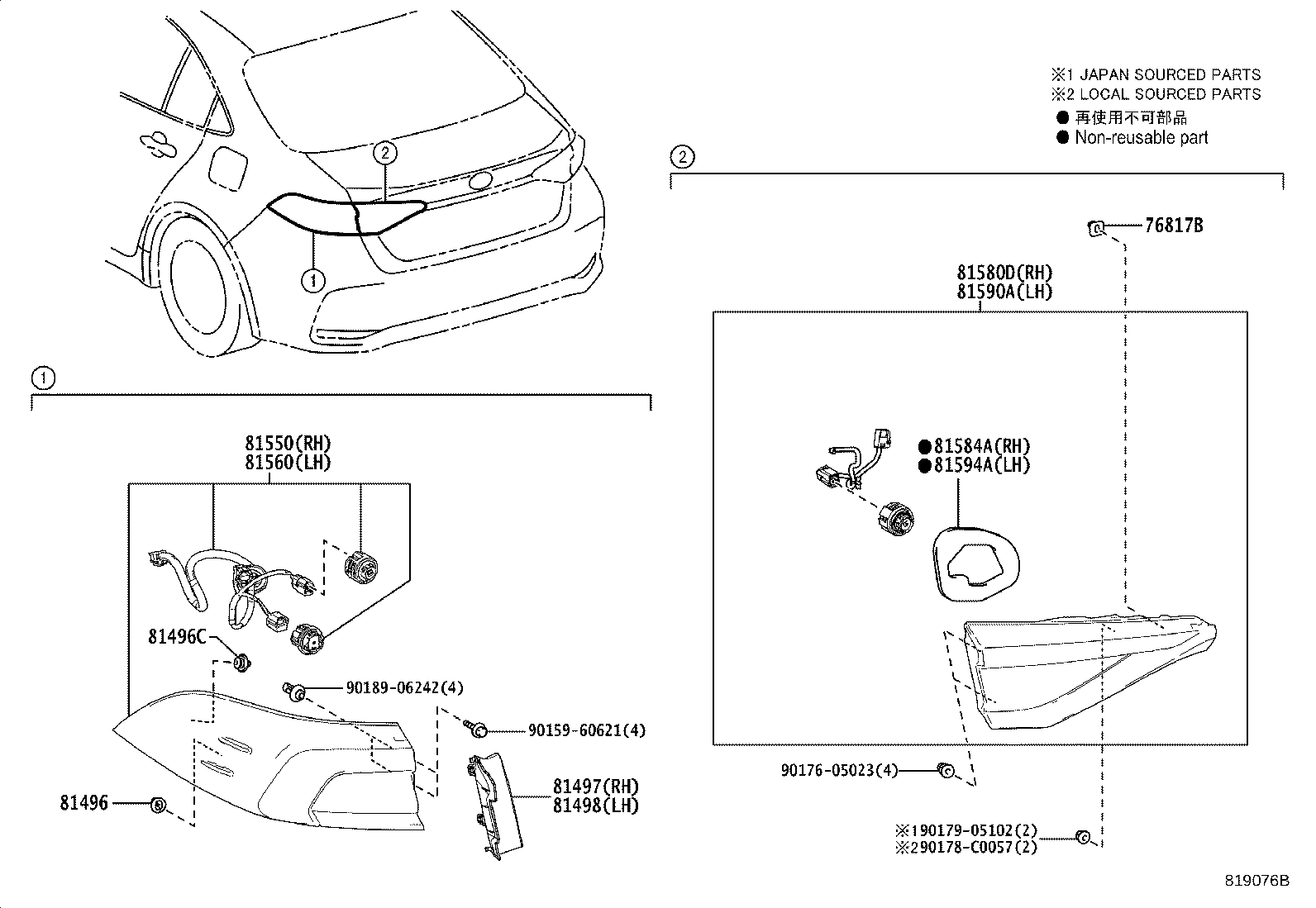

LED TYPE(TAIL LAMP & TURN LAMP)

Part #	Description	Period	Qty
76817B - CLIP, REAR LAMP
76817-26040	NRE210..HI	08/2019 - 06/2020	2
76817-26040	NRE210..HI	07/2020 - 12/2999	2
81496 - GUIDE, REAR COMBINATION LAMP
81496-02020	NRE210..HI (L)	08/2019 - 06/2020	2
81496-02020	NRE210..HI (L)	07/2020 - 12/2999	2
81496-52020	NRE210..HI (J)	08/2019 - 06/2020	2
81496-52020	NRE210..HI (J)	07/2020 - 12/2999	2
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
90467-C0019	NRE210..HI	08/2019 - 06/2020	2
90467-C0019	NRE210..HI	07/2020 - 12/2999	2
81497 - COVER, REAR COMBINATION LAMP, RH
81497-02110	NRE210..HI	08/2019 - 06/2020	1
81497-02110	NRE210..HI	07/2020 - 12/2999	1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-02110	NRE210..HI	07/2020 - 12/2999	1
81498-02110	NRE210..HI	08/2019 - 06/2020	1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-02E00	NRE210..HI	07/2020 - 12/2999	1
81550-02E00	NRE210..HI	08/2019 - 06/2020	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-02E00	NRE210..HI	08/2019 - 06/2020	1
81560-02E00	NRE210..HI	07/2020 - 12/2999	1
81580D - LAMP ASSY, REAR, RH
81580-02D52	MZEA11,NRE210	04/2021 - 12/2999	1
81580-02D51	NRE210..HI	07/2020 - 03/2021	1
81580-02D51	NRE210..HI	12/2019 - 06/2020	1
81580-02D50	NRE210	08/2019 - 12/2019	1
81584A - GASKET, REAR LAMP RH
81584-02D50	NRE210..HI	07/2020 - 12/2999	1
81584-02D50	NRE210..HI	08/2019 - 06/2020	1
81590A - LAMP ASSY, REAR, LH
81590-02D51	NRE210..HI	12/2019 - 06/2020	1
81590-02D51	NRE210..HI	07/2020 - 03/2021	1
81590-02D52	MZEA11,NRE210	04/2021 - 12/2999	1
81590-02D50	NRE210	08/2019 - 12/2019	1
81594A - GASKET, REAR LAMP LH
81594-02D50	NRE210..HI	07/2020 - 12/2999	1
81594-02D50	NRE210..HI	08/2019 - 06/2020	1
Common parts
90159-60621
90176-05023
90178-C0057
90179-05102
90189-06242
