NRE210L-GEXGZC (2019)
Toyota Corolla

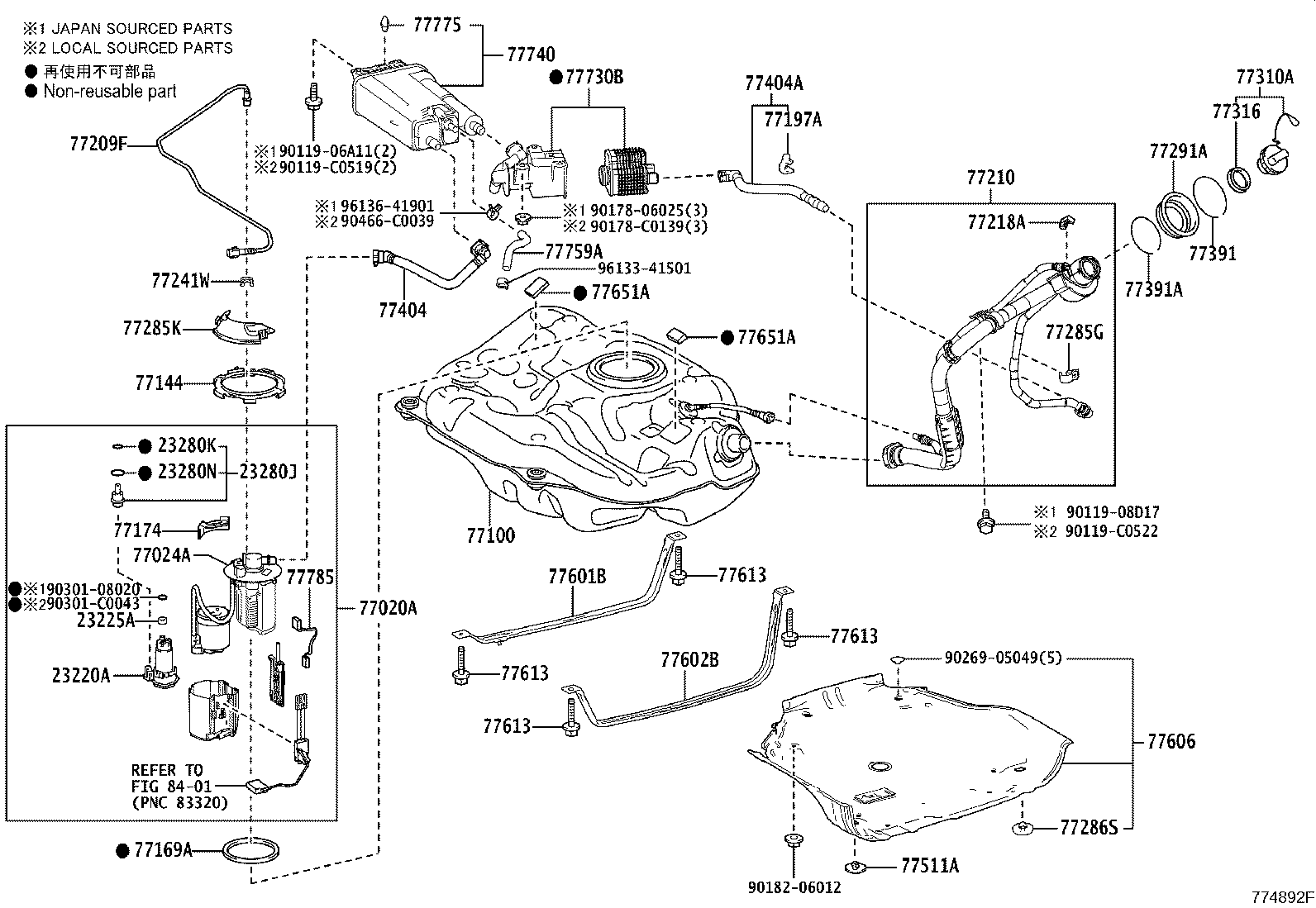

ILLUST NO. 1 OF 3(1908- )NRE210
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23220A - PUMP ASSY, FUEL W/FILTER | ||||
| 23220-0Y140 |
9NRFTS..NRE210..HI |
1 | ||
| 23220-0Y140 |
9NRFTS..NRE210..HI |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-0H020 |
9NRFTS..NRE210..HI |
1 | ||
| 23225-0H020 |
9NRFTS..NRE210..HI |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-36020 |
9NRFTS..NRE210..HI |
1 | ||
| 23280-36020 |
9NRFTS..NRE210..HI |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
9NRFTS..NRE210..HI |
1 | ||
| 90301-04013 |
9NRFTS..NRE210..HI |
1 | ||
| 23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2 | ||||
| 90301-15024 |
9NRFTS..NRE210..HI |
1 | ||
| 90301-15024 |
9NRFTS..NRE210..HI |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-02C30 |
NRE210..HI |
1 | ||
| 77020-02C30 |
NRE210..HI |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-02610 |
NRE210..HI |
1 | ||
| 77024-02610 |
NRE210..HI |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-F4070 |
NRE210..HI |
1 | ||
| 77001-F4070 |
NRE210..HI |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-F4020 |
NRE210..HI |
1 | ||
| 77144-F4020 |
NRE210..HI |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47030 |
NRE210,ZWE211 (J) |
1 | ||
| 77169-F4050 |
NRE210..HI |
1 | ||
| 77169-0K030 |
NRE210,ZWE211 (L) |
1 | ||
| 77169-F4050 |
NRE210..HI |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-0F010 |
NRE210..HI |
1 | ||
| 77174-0F010 |
NRE210..HI |
1 | ||
| 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-47010 |
NRE210..HI |
1 | ||
| 77197-47010 |
NRE210..HI |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-F4080 |
NRE210..HI |
1 | ||
| 77209-F4080 |
NRE210..HI |
1 | ||
| 77210 - PIPE ASSY, FUEL TANK FILLER | ||||
| 77210-02872 |
NRE210..HI |
1 | ||
| 77210-02872 |
NRE210..HI |
1 | ||
| 77210-02870 |
NRE210,ZWE211 |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-02140 |
NRE210..HI |
1 | ||
| 77218-02140 |
NRE210..HI |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
NRE210..HI |
1 | ||
| 77241-33011 |
NRE210..HI |
1 | ||
| 77241-02020 |
MZEA11,NRE210 |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-06580 |
NRE210..HI |
1 | ||
| 77285-06580 |
NRE210..HI |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-02230 |
MZEA11,NRE210 |
1 | ||
| 77285-10060 |
NRE210..HI |
1 | ||
| 77285-10060 |
NRE210..HI |
1 | ||
| 77286S - CUSHION, FUEL TANK PROTECTOR | ||||
| 77286-12110 |
NRE210 |
1 | ||
| 77286-F4040 |
NRE210..HI (L) |
1 | ||
| 77286-12110 |
NRE210..HI (J) |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-02340 |
NRE210,ZWE211 |
1 | ||
| 77291-02341 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-06100 |
NRE210..HI |
1 | ||
| 77300-06100 |
NRE210..HI |
1 | ||
| 77300-0R010 |
NRE210 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-75020 |
NRE210..HI |
1 | ||
| 77316-0F020 |
NRE210 |
1 | ||
| 77316-75020 |
NRE210..HI |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-02160 |
NRE210..HI |
1 | ||
| 77391-02160 |
NRE210..HI |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-0R030 |
NRE210..HI |
1 | ||
| 77391-0R030 |
NRE210..HI |
1 | ||
| 77404 - HOSE SUB-ASSY, FUEL TANK VENT | ||||
| 77404-F4070 |
NRE210..HI |
1 | ||
| 77404-F4070 |
NRE210..HI |
1 | ||
| 77404A - HOSE SUB-ASSY,FUEL TANK VENT | ||||
| 77404-F4100 |
NRE210..HI |
1 | ||
| 77404-F4100 |
NRE210..HI |
1 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-07010 |
NRE210..HI (L) |
4 | ||
| 77512-35140 |
NRE210..HI (J) |
4 | ||
| 77512-07010 |
NRE210..HI (L) |
4 | ||
| 77512-35140 |
NRE210..HI (J) |
4 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-F4040 |
NRE210..HI |
1 | ||
| 77601-F4040 |
NRE210..HI |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-F4040 |
NRE210..HI |
1 | ||
| 77602-F4040 |
NRE210..HI |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-F4050 |
NRE210..HI |
1 | ||
| 77606-F4050 |
NRE210..HI |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
NRE210..HI (J) |
4 | ||
| 90119-10995 |
NRE210..HI (J) |
4 | ||
| 90119-C0526 |
NRE210..HI (L) |
4 | ||
| 90119-C0526 |
NRE210..HI (L) |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
NRE210..HI (J) |
4 | ||
| 90119-10995 |
NRE210..HI (J) |
4 | ||
| 90119-C0526 |
NRE210..HI (L) |
4 | ||
| 90119-C0526 |
NRE210..HI (L) |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
NRE210..HI (J) |
4 | ||
| 90119-10995 |
NRE210..HI (J) |
4 | ||
| 90119-C0526 |
NRE210..HI (L) |
4 | ||
| 90119-C0526 |
NRE210..HI (L) |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
NRE210..HI (J) |
4 | ||
| 90119-10995 |
NRE210..HI (J) |
4 | ||
| 90119-C0526 |
NRE210..HI (L) |
4 | ||
| 90119-C0526 |
NRE210..HI (L) |
4 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-F4020 |
NRE210..HI |
2 | ||
| 77651-F4020 |
NRE210..HI |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-F4020 |
NRE210..HI |
2 | ||
| 77651-F4020 |
NRE210..HI |
2 | ||
| 77730B - CANISTER ASSY, CHARCOAL W/OUTLET HOSE | ||||
| 77730-F4020 |
NRE210..HI |
1 | ||
| 77730-02030 |
NRE210 |
1 | ||
| 77730-F4010 |
NRE210 EXHAUST EMISSION CONTROL-CHINA 6 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-F4020 |
NRE210..HI |
1 | ||
| 77740-F4020 |
NRE210..HI |
1 | ||
| 77759A - HOSE, CHARCOAL CANISTER | ||||
| 77759-F4040 |
NRE210..HI |
1 | ||
| 77759-F4040 |
NRE210..HI |
1 | ||
| 77775 - GUIDE, CHARCOAL CANISTER OUTLET | ||||
| 77775-33010 |
NRE210..HI |
1 | ||
| 77775-33010 |
NRE210..HI |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-02170 |
NRE210..HI |
1 | ||
| 77785-02170 |
NRE210..HI |
1 | ||
| Common parts | ||||
| 90119-06A11 | ||||
| 90119-08D17 | ||||
| 90119-C0519 | ||||
| 90119-C0522 | ||||
| 90178-06025 | ||||
| 90178-C0139 | ||||
| 90182-06012 | ||||
| 90269-05049 | ||||
| 90301-08020 | ||||
| 90301-C0043 | ||||
| 90466-C0039 | ||||
| 96133-41501 | ||||
| 96136-41901 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 3(1908- )NRE210

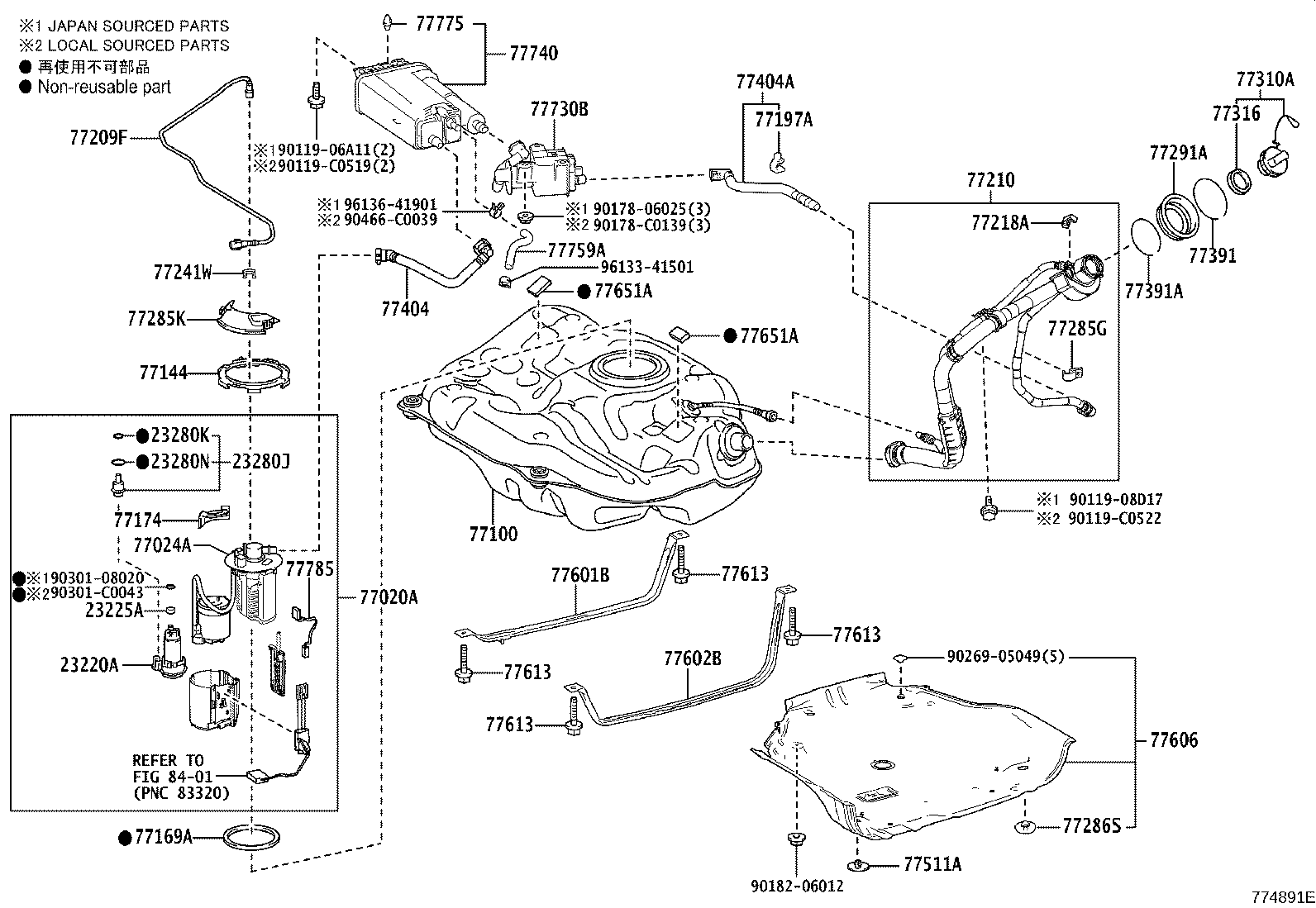

FUEL TANK, CHINA 6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23220A - PUMP ASSY, FUEL W/FILTER | ||||
| 23220-0Y140 |
9NRFTS..NRE210..HI |
1 | ||
| 23220-0Y140 |
9NRFTS..NRE210..HI |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-0H020 |
9NRFTS..NRE210..HI |
1 | ||
| 23225-0H020 |
9NRFTS..NRE210..HI |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-36020 |
9NRFTS..NRE210..HI |
1 | ||
| 23280-36020 |
9NRFTS..NRE210..HI |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
9NRFTS..NRE210..HI |
1 | ||
| 90301-04013 |
9NRFTS..NRE210..HI |
1 | ||
| 23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2 | ||||
| 90301-15024 |
9NRFTS..NRE210..HI |
1 | ||
| 90301-15024 |
9NRFTS..NRE210..HI |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-02C30 |
NRE210..HI |
1 | ||
| 77020-02C30 |
NRE210..HI |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-02610 |
NRE210..HI |
1 | ||
| 77024-02610 |
NRE210..HI |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-F4070 |
NRE210..HI |
1 | ||
| 77001-F4070 |
NRE210..HI |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-F4020 |
NRE210..HI |
1 | ||
| 77144-F4020 |
NRE210..HI |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47030 |
NRE210,ZWE211 (J) |
1 | ||
| 77169-F4050 |
NRE210..HI |
1 | ||
| 77169-0K030 |
NRE210,ZWE211 (L) |
1 | ||
| 77169-F4050 |
NRE210..HI |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-0F010 |
NRE210..HI |
1 | ||
| 77174-0F010 |
NRE210..HI |
1 | ||
| 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-47010 |
NRE210..HI |
1 | ||
| 77197-47010 |
NRE210..HI |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-F4080 |
NRE210..HI |
1 | ||
| 77209-F4080 |
NRE210..HI |
1 | ||
| 77210 - PIPE ASSY, FUEL TANK FILLER | ||||
| 77210-02872 |
NRE210..HI |
1 | ||
| 77210-02872 |
NRE210..HI |
1 | ||
| 77210-02870 |
NRE210,ZWE211 |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-02140 |
NRE210..HI |
1 | ||
| 77218-02140 |
NRE210..HI |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
NRE210..HI |
1 | ||
| 77241-33011 |
NRE210..HI |
1 | ||
| 77241-02020 |
MZEA11,NRE210 |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-06580 |
NRE210..HI |
1 | ||
| 77285-06580 |
NRE210..HI |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-02230 |
MZEA11,NRE210 |
1 | ||
| 77285-10060 |
NRE210..HI |
1 | ||
| 77285-10060 |
NRE210..HI |
1 | ||
| 77286S - CUSHION, FUEL TANK PROTECTOR | ||||
| 77286-12110 |
NRE210 |
1 | ||
| 77286-F4040 |
NRE210..HI (L) |
1 | ||
| 77286-12110 |
NRE210..HI (J) |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-02340 |
NRE210,ZWE211 |
1 | ||
| 77291-02341 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-06100 |
NRE210..HI |
1 | ||
| 77300-06100 |
NRE210..HI |
1 | ||
| 77300-0R010 |
NRE210 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-75020 |
NRE210..HI |
1 | ||
| 77316-0F020 |
NRE210 |
1 | ||
| 77316-75020 |
NRE210..HI |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-02160 |
NRE210..HI |
1 | ||
| 77391-02160 |
NRE210..HI |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-0R030 |
NRE210..HI |
1 | ||
| 77391-0R030 |
NRE210..HI |
1 | ||
| 77404 - HOSE SUB-ASSY, FUEL TANK VENT | ||||
| 77404-F4070 |
NRE210..HI |
1 | ||
| 77404-F4070 |
NRE210..HI |
1 | ||
| 77404A - HOSE SUB-ASSY,FUEL TANK VENT | ||||
| 77404-F4100 |
NRE210..HI |
1 | ||
| 77404-F4100 |
NRE210..HI |
1 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-07010 |
NRE210..HI (L) |
4 | ||
| 77512-35140 |
NRE210..HI (J) |
4 | ||
| 77512-07010 |
NRE210..HI (L) |
4 | ||
| 77512-35140 |
NRE210..HI (J) |
4 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-F4040 |
NRE210..HI |
1 | ||
| 77601-F4040 |
NRE210..HI |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-F4040 |
NRE210..HI |
1 | ||
| 77602-F4040 |
NRE210..HI |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-F4050 |
NRE210..HI |
1 | ||
| 77606-F4050 |
NRE210..HI |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
NRE210..HI (J) |
4 | ||
| 90119-10995 |
NRE210..HI (J) |
4 | ||
| 90119-C0526 |
NRE210..HI (L) |
4 | ||
| 90119-C0526 |
NRE210..HI (L) |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
NRE210..HI (J) |
4 | ||
| 90119-10995 |
NRE210..HI (J) |
4 | ||
| 90119-C0526 |
NRE210..HI (L) |
4 | ||
| 90119-C0526 |
NRE210..HI (L) |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
NRE210..HI (J) |
4 | ||
| 90119-10995 |
NRE210..HI (J) |
4 | ||
| 90119-C0526 |
NRE210..HI (L) |
4 | ||
| 90119-C0526 |
NRE210..HI (L) |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
NRE210..HI (J) |
4 | ||
| 90119-10995 |
NRE210..HI (J) |
4 | ||
| 90119-C0526 |
NRE210..HI (L) |
4 | ||
| 90119-C0526 |
NRE210..HI (L) |
4 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-F4020 |
NRE210..HI |
2 | ||
| 77651-F4020 |
NRE210..HI |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-F4020 |
NRE210..HI |
2 | ||
| 77651-F4020 |
NRE210..HI |
2 | ||
| 77730B - CANISTER ASSY, CHARCOAL W/OUTLET HOSE | ||||
| 77730-F4020 |
NRE210..HI |
1 | ||
| 77730-02030 |
NRE210 |
1 | ||
| 77730-F4010 |
NRE210 EXHAUST EMISSION CONTROL-CHINA 6 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-F4020 |
NRE210..HI |
1 | ||
| 77740-F4020 |
NRE210..HI |
1 | ||
| 77759A - HOSE, CHARCOAL CANISTER | ||||
| 77759-F4040 |
NRE210..HI |
1 | ||
| 77759-F4040 |
NRE210..HI |
1 | ||
| 77775 - GUIDE, CHARCOAL CANISTER OUTLET | ||||
| 77775-33010 |
NRE210..HI |
1 | ||
| 77775-33010 |
NRE210..HI |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-02170 |
NRE210..HI |
1 | ||
| 77785-02170 |
NRE210..HI |
1 | ||
| Common parts | ||||
| 90119-06A11 | ||||
| 90119-08D17 | ||||
| 90119-C0519 | ||||
| 90119-C0522 | ||||
| 90178-06025 | ||||
| 90178-C0139 | ||||
| 90182-06012 | ||||
| 90269-05049 | ||||
| 90301-08020 | ||||
| 90301-C0043 | ||||
| 90466-C0039 | ||||
| 96133-41501 | ||||
| 96136-41901 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(1908- )NRE210

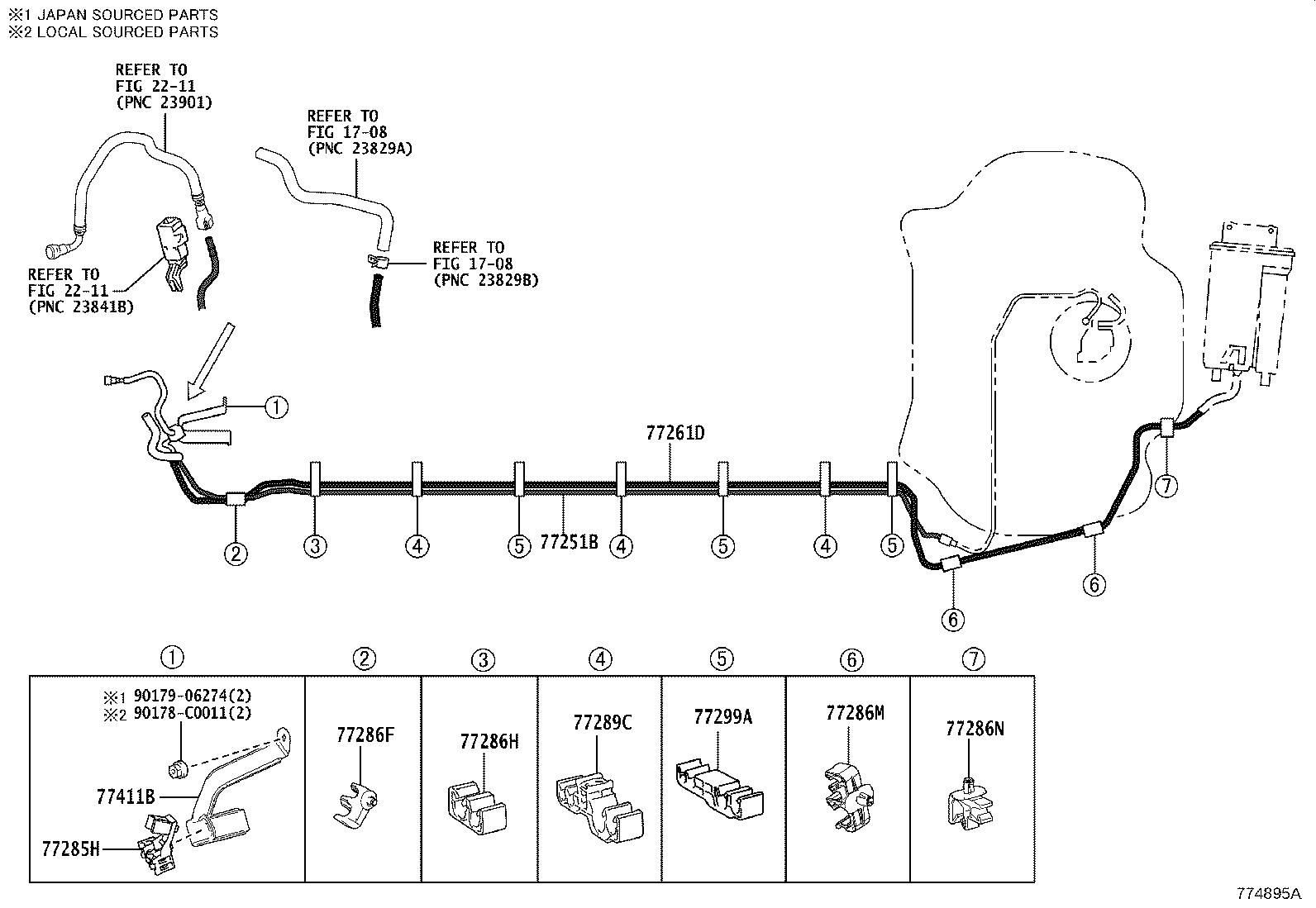

FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-02D00 |
NRE210..HI |
1 | ||
| 77251-02D00 |
NRE210..HI |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-02A90 |
NRE210..HI |
1 | ||
| 77261-02A90 |
NRE210..HI |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77286-02350 |
NRE210..HI |
1 | ||
| 77286-02350 |
NRE210..HI |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-02360 |
NRE210..HI |
1 | ||
| 77286-02360 |
NRE210..HI |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-02180 |
NRE210..HI |
1 | ||
| 77289-02180 |
NRE210..HI |
1 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77286-02320 |
NRE210..HI |
2 | ||
| 77286-02320 |
NRE210..HI |
2 | ||
| 77286N - CLAMP, FUEL TUBE, NO.7 | ||||
| 77285-02270 |
NRE210..HI |
1 | ||
| 77285-02270 |
NRE210..HI |
1 | ||
| 77289C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-02360 |
NRE210..HI |
3 | ||
| 77298-02360 |
NRE210..HI |
3 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77298-02370 |
NRE210..HI |
3 | ||
| 77298-02370 |
NRE210..HI |
3 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-F4070 |
NRE210..HI |
1 | ||
| 77411-F4070 |
NRE210..HI |
1 | ||
| Common parts | ||||
| 90178-C0011 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 3 OF 3(1908- )MZEA11,NRE210
FUEL LID OPENER(CABLE TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-02650 |
NRE210..HI |
1 | ||
| 77035-02650 |
NRE210..HI |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-02310 |
NRE210..HI |
1 | ||
| 77350-02310 |
NRE210..HI |
1 | ||
| 77360A - SPRING ASSY, FUEL FILLER OPENING LID | ||||
| 77360-30080 |
NRE210..HI |
1 | ||
| 77360-30080 |
NRE210..HI |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-02100 |
NRE210..HI |
1 | ||
| 77377-02100 |
NRE210..HI |
1 | ||
| Common parts | ||||
| 90269-06017 | ||||
| 90541-06069 | ||||
| Linked diagrams | ||||
| 6105 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
