NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

Click highlighted areas on diagram

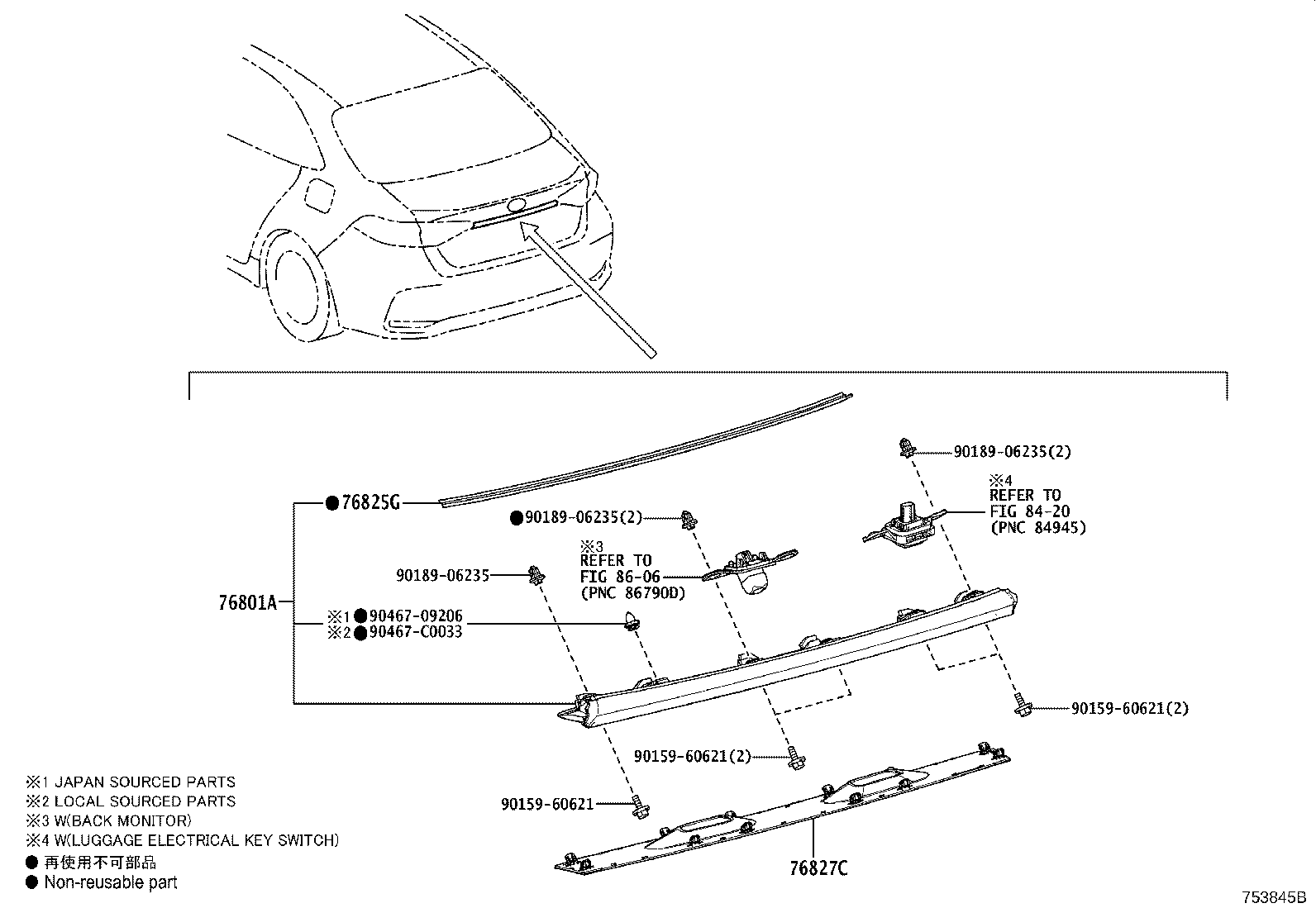

diagram 76801A 76825G 76827C 8420 8606 9015960621 9015960621 9015960621 9018906235 9018906235 9018906235 9046709206 90467C0033
Part # Description Qty Price
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-02M00

NRE210..HI

PLATED

 1
76801-02M00

NRE210..HI

PLATED

 1
76825G - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH, NO
76825-02250

NRE210..HI

 1
76825-02250

NRE210..HI

 1
76827C - RETAINER, LUGGAGE COMPARTMENT DOOR GARNISH, NO.2
76827-02250

NRE210..HI

 1
76827-02250

ZWE211..MID;NRE210..HI,MID

 1
Common parts
90159-60621
90189-06235
90467-09206
90467-C0033
Linked diagrams
8420
8606
