NRE210L-GEXGZC (2019)
Toyota Corolla

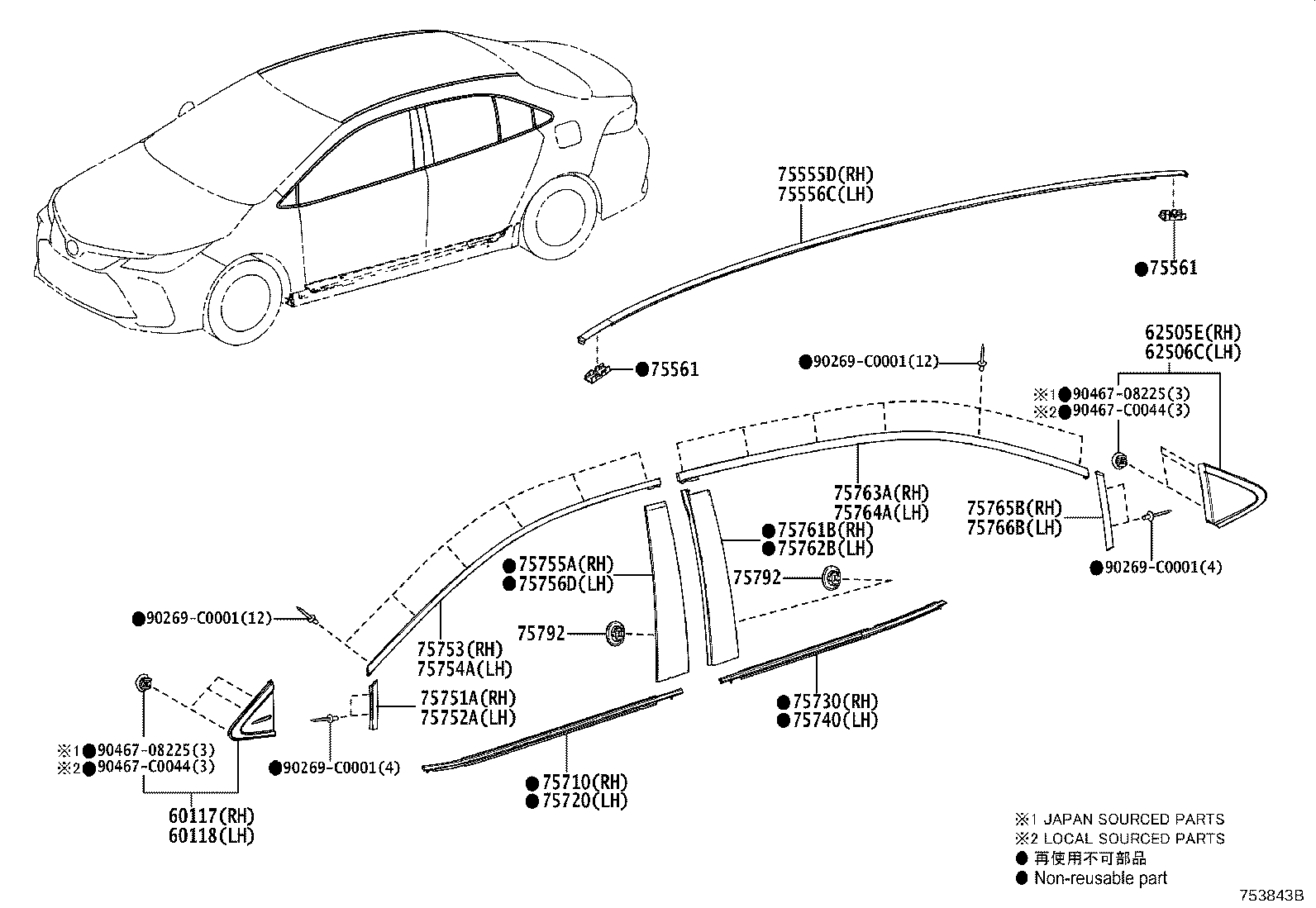

ILLUST NO. 1 OF 2(1908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60117 - COVER SUB-ASSY, FRONT PILLAR, UPR RH | ||||
| 60117-02380 |
NRE210,ZWE211..HI |
1 | ||
| 60117-02480 |
MZEA11,NRE210,ZWE211..HI |
1 | ||
| 60118 - COVER SUB-ASSY, FRONT PILLAR, UPR LH | ||||
| 60118-02480 |
MZEA11,NRE210,ZWE211..HI |
1 | ||
| 60118-02380 |
NRE210,ZWE211..HI |
1 | ||
| 62505E - COVER SUB-ASSY, QUARTER PILLAR, RH | ||||
| 62505-02220 |
MZEA11,NRE210,ZWE211..HI |
1 | ||
| 62505-02160 |
NRE210,ZWE211..HI |
1 | ||
| 62506C - COVER SUB-ASSY, QUARTER PILLAR, LH | ||||
| 62506-02160 |
NRE210,ZWE211..HI |
1 | ||
| 62506-02220 |
MZEA11,NRE210,ZWE211..HI |
1 | ||
| 75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH | ||||
| 75555-02380 |
NRE210..HI |
1 | ||
| 75555-02380 |
NRE210..HI |
1 | ||
| 75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH | ||||
| 75556-02360 |
NRE210..HI |
1 | ||
| 75556-02360 |
NRE210..HI |
1 | ||
| 75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1 | ||||
| 75561-02070 |
NRE210..HI |
4 | ||
| 75561-02070 |
NRE210..HI |
4 | ||
| 75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1 | ||||
| 75561-02070 |
NRE210..HI |
4 | ||
| 75561-02070 |
NRE210..HI |
4 | ||
| 75710 - MOULDING ASSY, FRONT DOOR BELT, RH | ||||
| 75710-12871 |
NRE210,ZWE211..HI |
1 | ||
| 75710-02630 |
NRE210,ZWE211..HI |
1 | ||
| 75720 - MOULDING ASSY, FRONT DOOR BELT, LH | ||||
| 75720-02630 |
NRE210,ZWE211..HI |
1 | ||
| 75720-12A21 |
NRE210,ZWE211..HI |
1 | ||
| 75730 - MOULDING ASSY, REAR DOOR BELT, RH | ||||
| 75730-02630 |
NRE210,ZWE211..HI |
1 | ||
| 75730-12461 |
NRE210,ZWE211..HI |
1 | ||
| 75740 - MOULDING ASSY, REAR DOOR BELT, LH | ||||
| 75740-02630 |
NRE210,ZWE211..HI |
1 | ||
| 75740-12551 |
NRE210,ZWE211..HI |
1 | ||
| 75751A - MOULDING, FRONT DOOR WINDOW FRAME, RH(FRONT PILLAR SIDE | ||||
| 75751-02100 |
NRE210..HI |
1 | ||
| 75751-02100 |
NRE210..HI |
1 | ||
| 75752A - MOULDING, FRONT DOOR WINDOW FRAME, LH(FRONT PILLAR SIDE | ||||
| 75752-02100 |
NRE210..HI |
1 | ||
| 75752-02100 |
NRE210..HI |
1 | ||
| 75753 - MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH | ||||
| 75753-02150 |
NRE210..HI |
1 | ||
| 75753-02150 |
NRE210..HI |
1 | ||
| 75754A - MOULDING, FRONT DOOR WINDOW FRAME, UPPER LH | ||||
| 75754-02150 |
NRE210..HI |
1 | ||
| 75754-02150 |
NRE210..HI |
1 | ||
| 75755A - MOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SID | ||||
| 75755-02210 |
NRE210..HI |
1 | ||
| 75755-02210 |
NRE210..HI |
1 | ||
| 75756D - MOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SID | ||||
| 75756-02210 |
NRE210..HI |
1 | ||
| 75756-02210 |
NRE210..HI |
1 | ||
| 75761B - MOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE | ||||
| 75761-02220 |
NRE210..HI |
1 | ||
| 75761-02220 |
NRE210..HI |
1 | ||
| 75762B - MOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE | ||||
| 75762-02220 |
NRE210..HI |
1 | ||
| 75762-02220 |
NRE210..HI |
1 | ||
| 75763A - MOULDING, REAR DOOR WINDOW FRAME, UPPER RH | ||||
| 75763-02170 |
NRE210..HI |
1 | ||
| 75763-02170 |
NRE210..HI |
1 | ||
| 75764A - MOULDING, REAR DOOR WINDOW FRAME, UPPER LH | ||||
| 75764-02170 |
NRE210..HI |
1 | ||
| 75764-02170 |
NRE210..HI |
1 | ||
| 75765B - MOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE) | ||||
| 75765-02110 |
NRE210..HI |
1 | ||
| 75765-02110 |
NRE210..HI |
1 | ||
| 75766B - MOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE) | ||||
| 75766-02110 |
NRE210..HI |
1 | ||
| 75766-02110 |
NRE210..HI |
1 | ||
| 75792 - CLIP, DOOR WINDOW FRAME MOULDING | ||||
| 75792-47010 |
NRE210..HI |
2 | ||
| 75792-47010 |
NRE210..HI |
2 | ||
| 75792 - CLIP, DOOR WINDOW FRAME MOULDING | ||||
| 75792-47010 |
NRE210..HI |
2 | ||
| 75792-47010 |
NRE210..HI |
2 | ||
| Common parts | ||||
| 90269-C0001 | ||||
| 90467-08225 | ||||
| 90467-C0044 | ||||

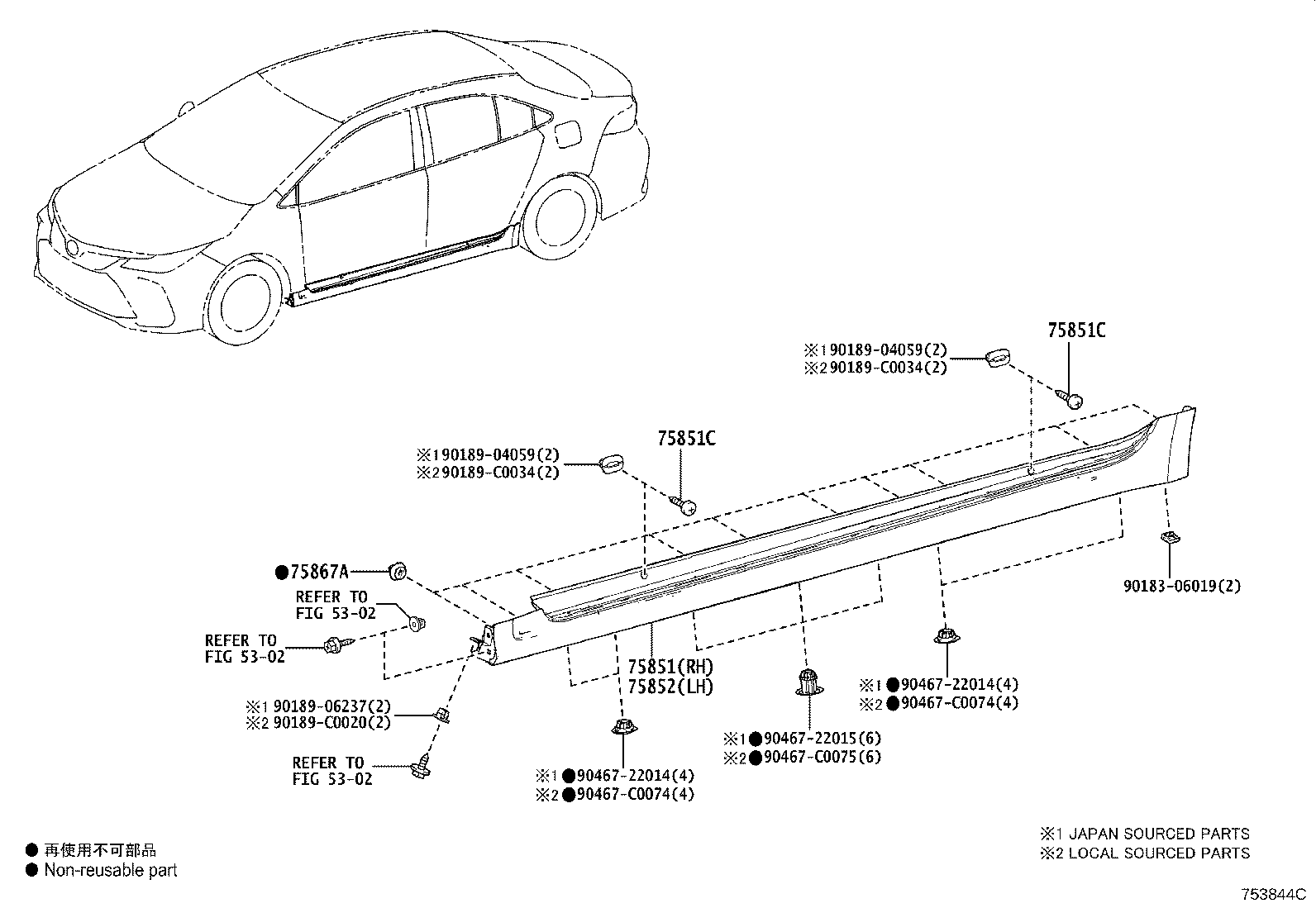

ILLUST NO. 2 OF 2(1908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75851 - MOULDING, ROCKER PANEL, RH | ||||
| 75851-02912 |
NRE210..HI |
1 | ||
| 75851-02912 |
NRE210..HI |
1 | ||
| 75851C - SCREW(FOR BODY ROCKER PANEL MOULDING) | ||||
| 90162-C0002 |
NRE210..HI (L),SILVER |
4 | ||
| 90162-40034 |
NRE210..HI (J),BLACK |
4 | ||
| 90162-40035 |
NRE210..HI (J),SILVER |
4 | ||
| 90162-40034 |
NRE210..HI (J),BLACK |
4 | ||
| 90162-C0002 |
NRE210..HI (L),SILVER |
4 | ||
| 90162-C0003 |
NRE210..HI (L),BLACK |
4 | ||
| 90162-C0003 |
NRE210..HI (L),BLACK |
4 | ||
| 90162-40035 |
NRE210..HI (J),SILVER |
4 | ||
| 75851C - SCREW(FOR BODY ROCKER PANEL MOULDING) | ||||
| 90162-C0002 |
NRE210..HI (L),SILVER |
4 | ||
| 90162-40034 |
NRE210..HI (J),BLACK |
4 | ||
| 90162-40035 |
NRE210..HI (J),SILVER |
4 | ||
| 90162-40034 |
NRE210..HI (J),BLACK |
4 | ||
| 90162-C0002 |
NRE210..HI (L),SILVER |
4 | ||
| 90162-C0003 |
NRE210..HI (L),BLACK |
4 | ||
| 90162-C0003 |
NRE210..HI (L),BLACK |
4 | ||
| 90162-40035 |
NRE210..HI (J),SILVER |
4 | ||
| 75852 - MOULDING, ROCKER PANEL, LH | ||||
| 75852-02912 |
NRE210..HI |
1 | ||
| 75852-02912 |
NRE210..HI |
1 | ||
| 75867A - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-02020 |
NRE210..HI |
20 | ||
| 75867-02020 |
NRE210..HI |
20 | ||
| Common parts | ||||
| 90183-06019 | ||||
| 90189-04059 | ||||
| 90189-06237 | ||||
| 90189-C0020 | ||||
| 90189-C0034 | ||||
| 90467-22014 | ||||
| 90467-22015 | ||||
| 90467-C0074 | ||||
| 90467-C0075 | ||||
| Linked diagrams | ||||
| 5302 | ||||
