NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

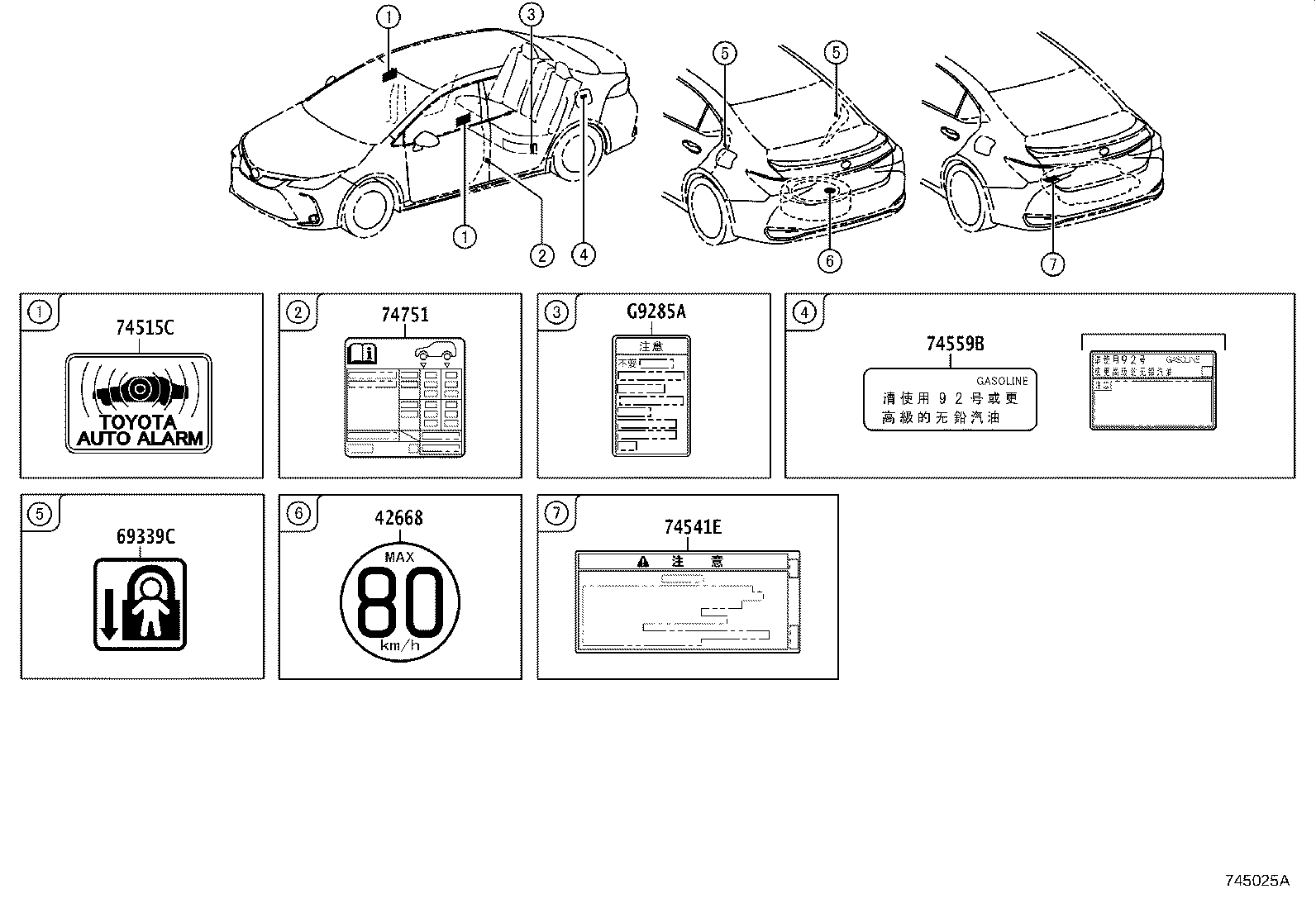

ILLUST NO. 2 OF 2(1908- )

Click highlighted areas on diagram

EXTERIOR & INTERIOR

diagram 42668 69339C 74515C 74541E 74559B 74751 G9285A
Part # Description Qty Price
42668 - LABEL, COMPACT SPARE TIRE CAUTION
42668-20020

NRE210..HI

 1
42668-20020

NRE210..HI

 1
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-06080

NRE210..HI

 2
69339-06080

NRE210..HI

 2
74515C - LABEL, THEFT WARNING INFORMATION
74515-06020

NRE210..HI

 2
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-0N010

NRE210..HI

 1
42668-0N010

NRE210..HI

 1
74559B - LABEL, FUEL INFORMATION
74579-0D010

NRE210..HI

(L)

 1
74579-26011

NRE210..HI

(J)

 1
74579-26011

NRE210..HI

(J)

 1
74579-0D010

NRE210..HI

(L)

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-02U30

NRE210..HI

 1
42661-02U30

NRE210..HI

 1

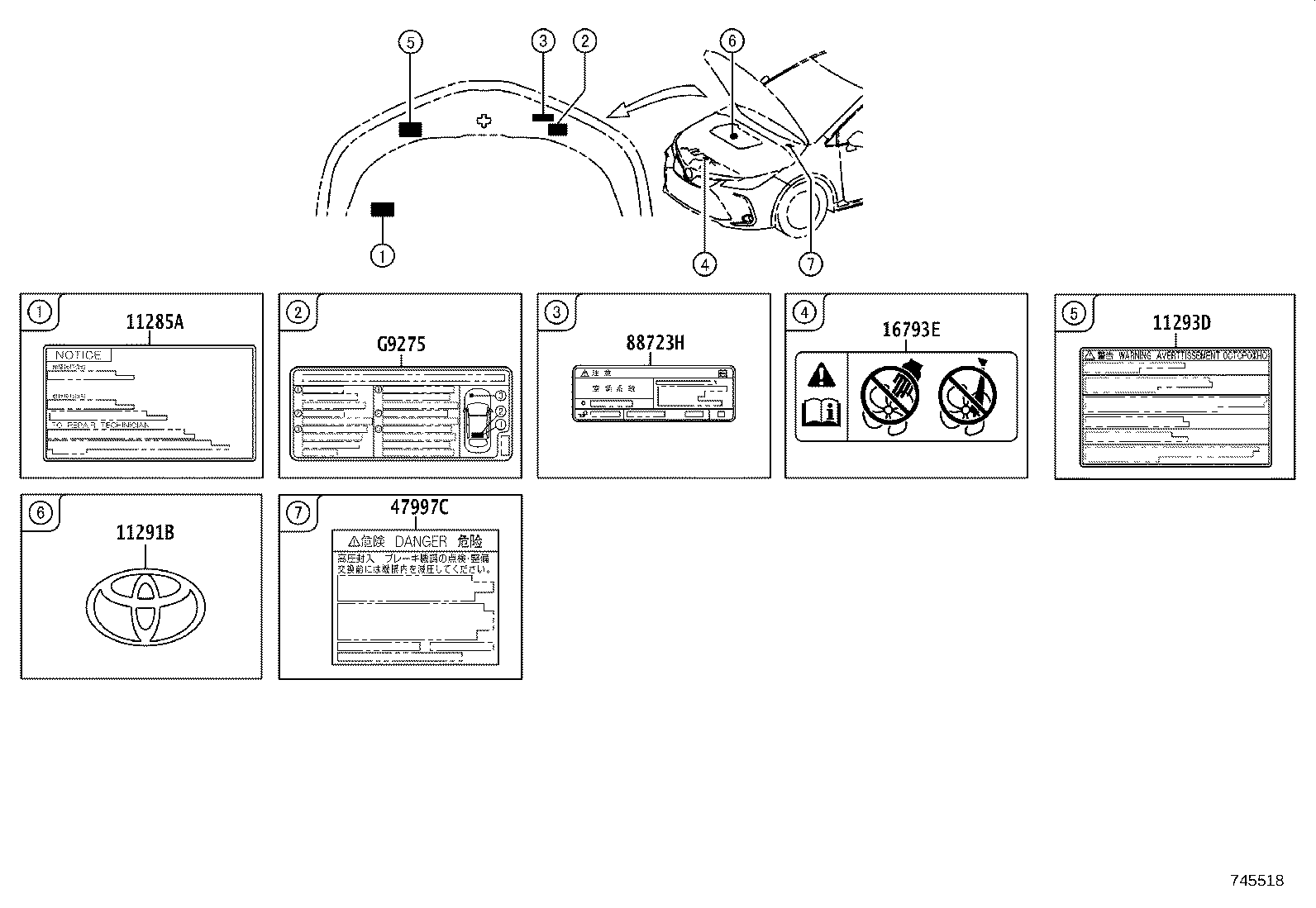

ILLUST NO. 1 OF 2(1908- )

Click highlighted areas on diagram

ENGINE ROOM

diagram 11285A 11291B 11293D 16793E 47997C 88723H G9275
Part # Description Qty Price
11285A - LABEL, COOLANT SYSTEM NOTICE
11285-36050

9NRFTS..NRE210..HI

 1
11285-36050

9NRFTS..NRE210..HI

 1
16793E - LABEL, COOLING FAN CAUTION
16793-36030

9NRFTS..NRE210..HI

 1
16793-36030

9NRFTS..NRE210..HI

 1
88723H - LABEL, COOLER SERVICE CAUTION
88723-F4140

NRE210..HI

 1
88723-F4140

NRE210..HI

 1
