NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

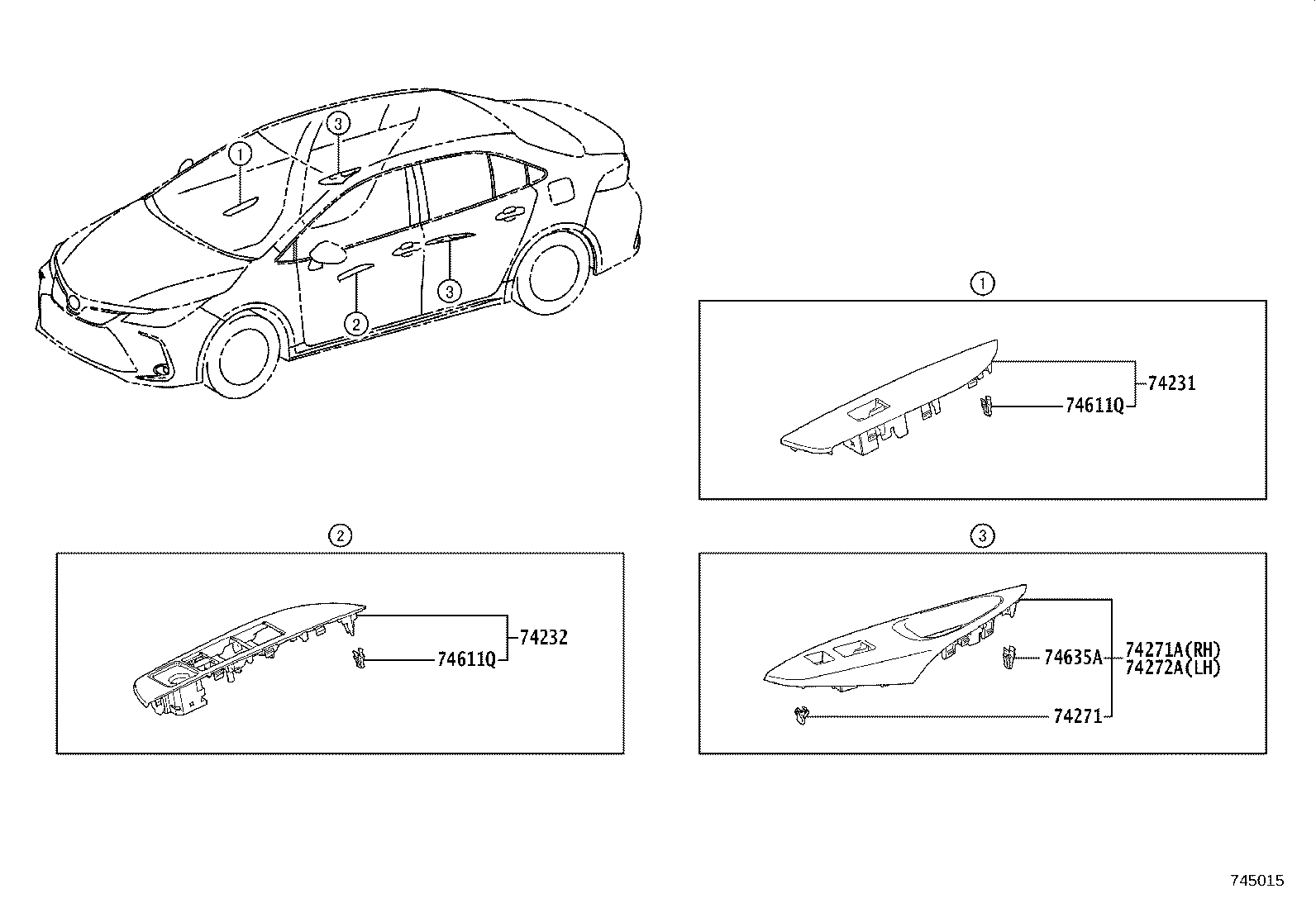

ILLUST NO. 1 OF 2(1908- )

Click highlighted areas on diagram

ARMREST

diagram 74231 74232 74271 74271A 74272A 74611Q 74611Q 74635A
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-02J60

NRE210..HI

 1
74231-02J60

NRE210..HI

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-02K20

NRE210..HI

 1
74232-02K20

NRE210..HI

 1
74271 - RETAINER, DOOR ARMREST
55416-60030

NRE210..HI

 2
55416-60030

NRE210..HI

 2
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-02A70

NRE210..HI

 1
74271-02A70

NRE210..HI

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-02A60

NRE210..HI

 1
74272-02A60

NRE210..HI

 1
74611Q - CLIP
90467-C0031

NRE210..HI

 4
90467-C0031

NRE210..HI

 4
74611Q - CLIP
90467-C0031

NRE210..HI

 4
90467-C0031

NRE210..HI

 4
74635A - CLIP
90467-12080

NRE210..HI

 2
90467-12080

NRE210..HI

 2

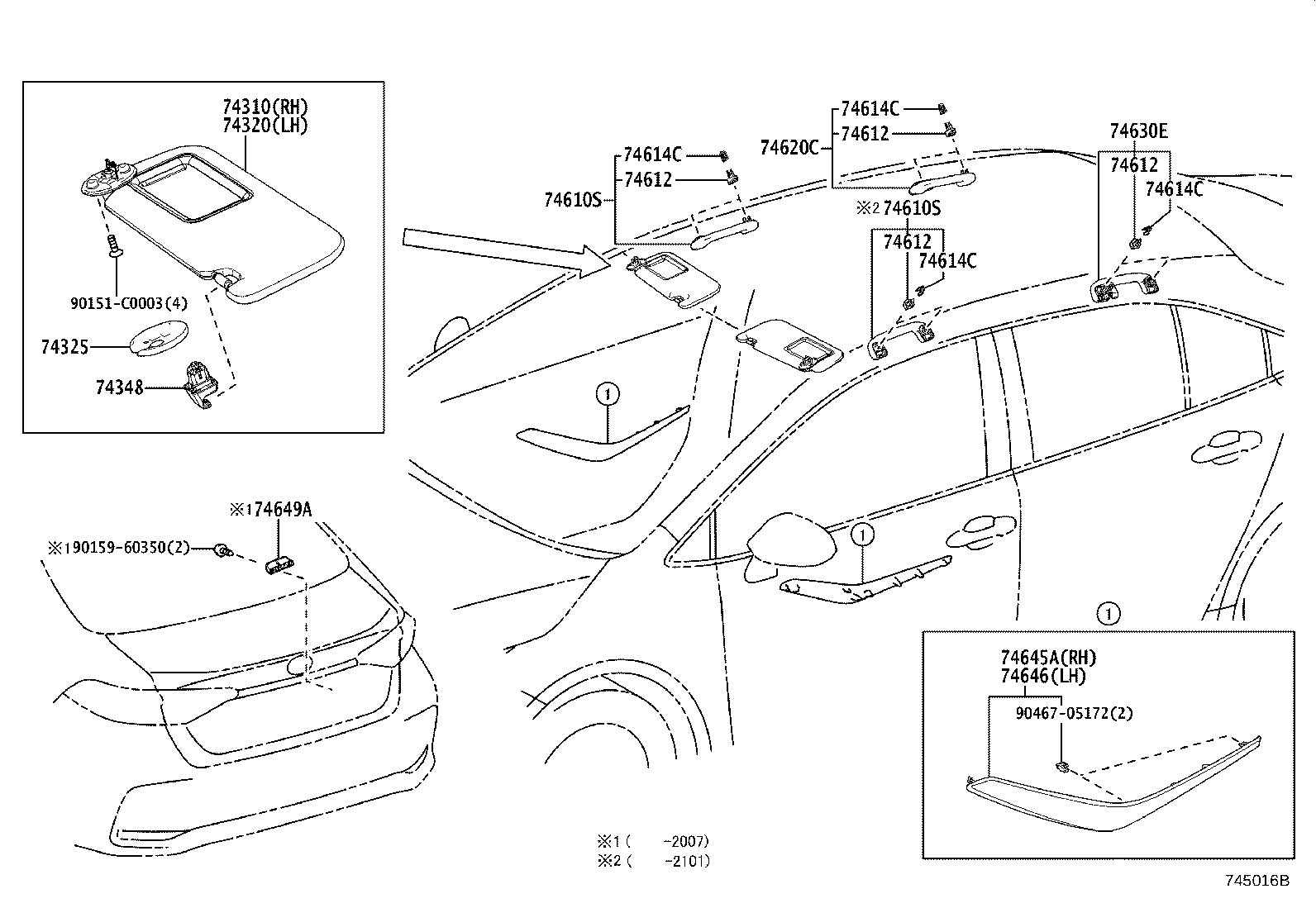

ILLUST NO. 2 OF 2(1908- )

Click highlighted areas on diagram

VISOR & ASSIST GRIP

diagram 74310 74320 74325 74348 74610S 74610S 74612 74612 74612 74612 74614C 74614C 74614C 74614C 74620C 74630E 74645A 74646 74649A 90151C0003 9015960350 9046705172
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-02Q00A0

NRE210..HI

FROMAGE,TRIM0#,2#

 1
74310-02Q00A0

NRE210..HI

FROMAGE,TRIM0#,2#

 1
74320 - VISOR ASSY, LH
74320-02K40A0

NRE210..HI

FROMAGE,TRIM0#,2#

 1
74320-02K40A0

NRE210..HI

FROMAGE,TRIM0#,2#

 1
74325 - COVER, VISOR BRACKET
74317-0N020A2

NRE210..HI

FROMAGE,TRIM0#,2#

 2
74317-0N020A2

NRE210..HI

FROMAGE,TRIM0#,2#

 2
74348 - HOLDER, VISOR
74348-47010A3

NRE210..HI

FROMAGE,TRIM0#,2#

 2
74348-47010A3

NRE210..HI

FROMAGE,TRIM0#,2#

 2
74348-07010A0

MZEA11,NRE210,ZWE211

FROMAGE,TRIM0#,2#

 2
74610S - GRIP ASSY, ASSIST
74610-F4010A0

NRE210..HI

FROMAGE,TRIM0#,2#

 2
74610-F4010A0

NRE210..HI

FROMAGE,TRIM0#,2#

 2
74610-F4010A0

MZEA11,NRE210,ZWE211

FROMAGE,TRIM0#,2#

 1
74610S - GRIP ASSY, ASSIST
74610-F4010A0

NRE210..HI

FROMAGE,TRIM0#,2#

 2
74610-F4010A0

NRE210..HI

FROMAGE,TRIM0#,2#

 2
74610-F4010A0

MZEA11,NRE210,ZWE211

FROMAGE,TRIM0#,2#

 1
74612 - COVER, ASSIST GRIP
74612-F4010A0

NRE210..HI

FROMAGE,TRIM0#,2#

 8
74612-F4010A0

NRE210..HI

FROMAGE,TRIM0#,2#

 8
74612 - COVER, ASSIST GRIP
74612-F4010A0

NRE210..HI

FROMAGE,TRIM0#,2#

 8
74612-F4010A0

NRE210..HI

FROMAGE,TRIM0#,2#

 8
74612 - COVER, ASSIST GRIP
74612-F4010A0

NRE210..HI

FROMAGE,TRIM0#,2#

 8
74612-F4010A0

NRE210..HI

FROMAGE,TRIM0#,2#

 8
74612 - COVER, ASSIST GRIP
74612-F4010A0

NRE210..HI

FROMAGE,TRIM0#,2#

 8
74612-F4010A0

NRE210..HI

FROMAGE,TRIM0#,2#

 8
74614C - PLATE, ASSIST GRIP LOCK
74614-F4010

NRE210..HI

 8
74614-F4010

NRE210..HI

 8
74614C - PLATE, ASSIST GRIP LOCK
74614-F4010

NRE210..HI

 8
74614-F4010

NRE210..HI

 8
74614C - PLATE, ASSIST GRIP LOCK
74614-F4010

NRE210..HI

 8
74614-F4010

NRE210..HI

 8
74614C - PLATE, ASSIST GRIP LOCK
74614-F4010

NRE210..HI

 8
74614-F4010

NRE210..HI

 8
74620C - GRIP ASSY, ASSIST, REAR RH
74610-07020A0

NRE210..HI

FROMAGE,TRIM0#,2#

 1
74610-07020A0

NRE210..HI

FROMAGE,TRIM0#,2#

 1
74630E - GRIP ASSY, ASSIST, REAR LH
74610-07030A0

NRE210..HI

FROMAGE,TRIM0#,2#

 1
74610-07030A0

NRE210..HI

FROMAGE,TRIM0#,2#

 1
74645A - COVER, DOOR ASSIST GRIP, RH
74630-02210C0

NRE210..HI

BLACK,TRIM0#,2#

 1
74630-02210C0

NRE210..HI

BLACK,TRIM0#,2#

 1
74646 - COVER, DOOR ASSIST GRIP, LH
74640-02200C0

NRE210..HI

BLACK,TRIM0#,2#

 1
74640-02200C0

NRE210..HI

BLACK,TRIM0#,2#

 1
74649A - GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
74649-51010C3

NRE210..HI

BLACK,TRIM0#,2#

 1
Common parts
90151-C0003
90159-60350
90467-05172
