NRE210L-GEXGZC (2019)
Toyota Corolla

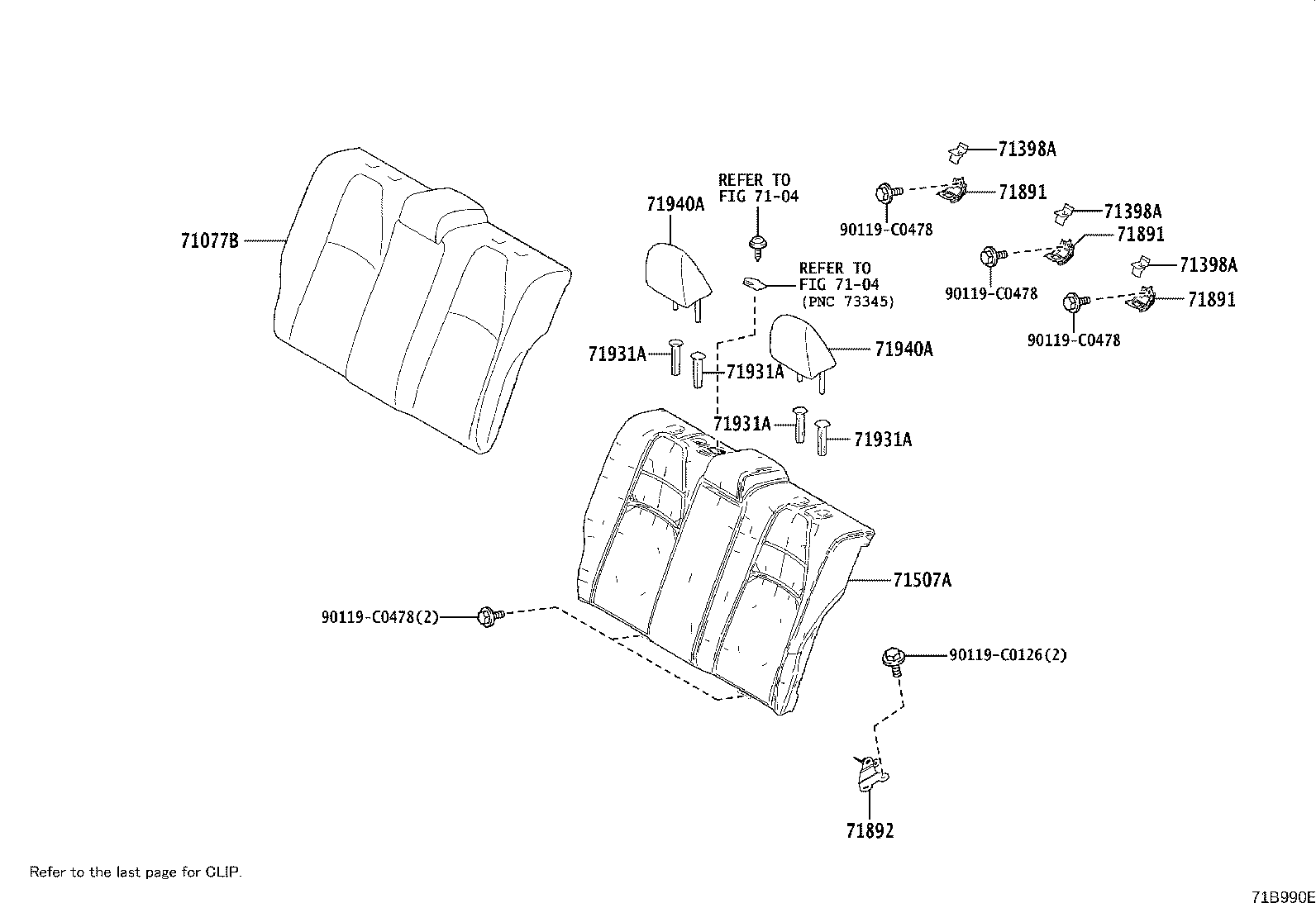

ILLUST NO. 1 OF 2(1908- )MZEA11,NRE210
REAR SEAT BACK = FIX TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-06060E3 |
MZEA11,NRE210,ZWE211 W/O(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71930-06070E3 |
MZEA11,NRE210,ZWE211 W(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71931-06060C0 |
MZEA11,NRE210,ZWE211 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MZEA11,NRE210,ZWE211 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-06060E3 |
MZEA11,NRE210,ZWE211 W/O(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71930-06070E3 |
MZEA11,NRE210,ZWE211 W(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71931-06060C0 |
MZEA11,NRE210,ZWE211 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MZEA11,NRE210,ZWE211 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-06060E3 |
MZEA11,NRE210,ZWE211 W/O(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71930-06070E3 |
MZEA11,NRE210,ZWE211 W(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71931-06060C0 |
MZEA11,NRE210,ZWE211 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MZEA11,NRE210,ZWE211 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-06060E3 |
MZEA11,NRE210,ZWE211 W/O(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71930-06070E3 |
MZEA11,NRE210,ZWE211 W(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71931-06060C0 |
MZEA11,NRE210,ZWE211 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MZEA11,NRE210,ZWE211 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02F70E1 |
MZEA11,NRE210,ZWE211..HI ORCHID BROWN,TRIM0# |
2 | ||
| 71940-02F70C1 |
MZEA11,NRE210,ZWE211..HI BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02F70E1 |
MZEA11,NRE210,ZWE211..HI ORCHID BROWN,TRIM0# |
2 | ||
| 71940-02F70C1 |
MZEA11,NRE210,ZWE211..HI BLACK,TRIM2# |
2 | ||
| Common parts | ||||
| 90119-C0126 | ||||
| 90119-C0478 | ||||
| Linked diagrams | ||||
| 7104 | ||||

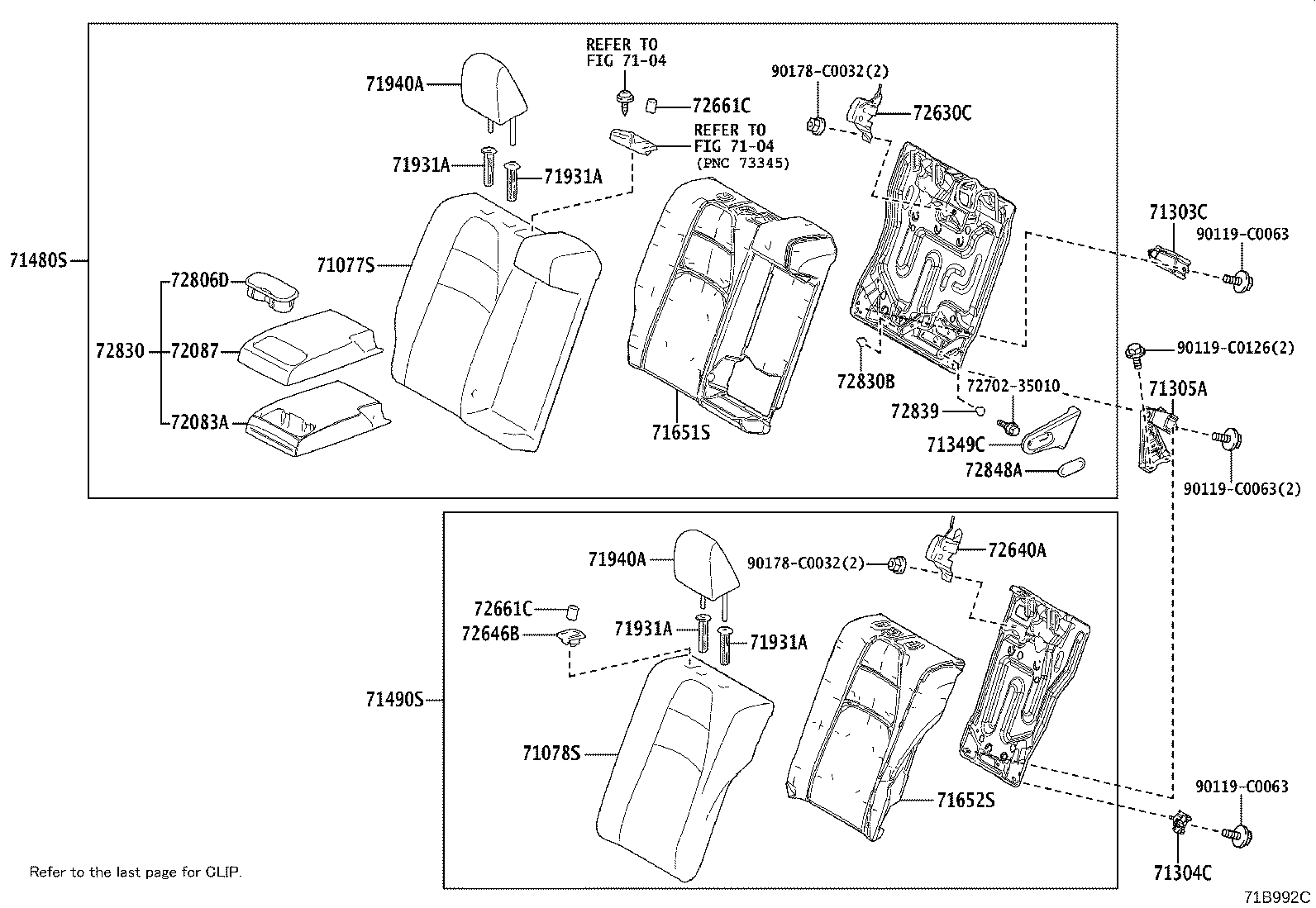

ILLUST NO. 1 OF 2(1908- )
REAR SEAT BACK = FOLDING TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-0ZL30C2 |
NRE210,ZWE211..HI BLACK,TRIM2# |
1 | ||
| 71077-0ZN90E0 |
MZEA11,NRE210,ZWE211..HI ORCHID BROWN,TRIM0# |
1 | ||
| 71077-0ZN90C0 |
MZEA11,NRE210,ZWE211..HI BLACK,TRIM2# |
1 | ||
| 71077-0ZL30E2 |
NRE210,ZWE211..HI ORCHID BROWN,TRIM0# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-0Z620C2 |
NRE210,ZWE211..HI BLACK,TRIM2# |
1 | ||
| 71078-0Z620E2 |
NRE210,ZWE211..HI ORCHID BROWN,TRIM0# |
1 | ||
| 71078-0Z100E0 |
MZEA11,NRE210,ZWE211..HI ORCHID BROWN,TRIM0# |
1 | ||
| 71078-0Z100C0 |
MZEA11,NRE210,ZWE211..HI BLACK,TRIM2# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-02400 |
NRE210..HI |
1 | ||
| 71303-02400 |
NRE210..HI |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-02140 |
NRE210..HI |
1 | ||
| 71304-02140 |
NRE210..HI |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-02400 |
NRE210..HI |
1 | ||
| 71305-02400 |
NRE210..HI |
1 | ||
| 71349C - COVER, REAR SEAT BACK HINGE | ||||
| 71349-02100A0 |
MZEA11,NRE210,ZWE211..HI FROMAGE,TRIM00 |
1 | ||
| 71349-02100C0 |
MZEA11,NRE210,ZWE211..HI BLACK,TRIM00,2# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-0ZN50C0 |
MZEA11,NRE210,ZWE211..HI BLACK,TRIM2# |
1 | ||
| 71480-0ZJ50C3 |
NRE210,ZWE211..HI BLACK,TRIM2# |
1 | ||
| 71480-0ZJ50A3 |
NRE210,ZWE211..HI FROMAGE,TRIM0# |
1 | ||
| 71480-0ZN50A0 |
MZEA11,NRE210,ZWE211..HI FROMAGE,TRIM0# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-0ZC90C3 |
NRE210,ZWE211..HI BLACK,TRIM2# |
1 | ||
| 71490-0Z370C0 |
MZEA11,NRE210,ZWE211..HI BLACK,TRIM2# |
1 | ||
| 71490-0Z370A0 |
MZEA11,NRE210,ZWE211..HI FROMAGE,TRIM0# |
1 | ||
| 71490-0ZC90A3 |
NRE210,ZWE211..HI FROMAGE,TRIM0# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-02C00 |
MZEA11,NRE210,ZWE211..HI |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-02850 |
MZEA11,NRE210,ZWE211..HI |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-06060E3 |
MZEA11,NRE210,ZWE211 W/O(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71930-06070E3 |
MZEA11,NRE210,ZWE211 W(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71931-06060C0 |
MZEA11,NRE210,ZWE211 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MZEA11,NRE210,ZWE211 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-06060E3 |
MZEA11,NRE210,ZWE211 W/O(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71930-06070E3 |
MZEA11,NRE210,ZWE211 W(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71931-06060C0 |
MZEA11,NRE210,ZWE211 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MZEA11,NRE210,ZWE211 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-06060E3 |
MZEA11,NRE210,ZWE211 W/O(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71930-06070E3 |
MZEA11,NRE210,ZWE211 W(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71931-06060C0 |
MZEA11,NRE210,ZWE211 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MZEA11,NRE210,ZWE211 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-06060E3 |
MZEA11,NRE210,ZWE211 W/O(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71930-06070E3 |
MZEA11,NRE210,ZWE211 W(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71931-06060C0 |
MZEA11,NRE210,ZWE211 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MZEA11,NRE210,ZWE211 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02F70E1 |
MZEA11,NRE210,ZWE211..HI ORCHID BROWN,TRIM0# |
2 | ||
| 71940-02F70C1 |
MZEA11,NRE210,ZWE211..HI BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02F70E1 |
MZEA11,NRE210,ZWE211..HI ORCHID BROWN,TRIM0# |
2 | ||
| 71940-02F70C1 |
MZEA11,NRE210,ZWE211..HI BLACK,TRIM2# |
2 | ||
| 72083A - PAD SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72083-02560 |
MZEA11,NRE210,ZWE211..HI |
1 | ||
| 72087 - COVER, REAR SEAT CENTER ARMREST, NO.1 | ||||
| 72087-02J30A1 |
NRE210,ZWE211..HI FROMAGE,TRIM0# |
1 | ||
| 72087-02J30C1 |
NRE210,ZWE211..HI BLACK,TRIM2# |
1 | ||
| 72087-02E60A0 |
MZEA11,NRE210,ZWE211..HI FROMAGE,TRIM0# |
1 | ||
| 72087-02E60C0 |
MZEA11,NRE210,ZWE211..HI BLACK,TRIM2# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-02250 |
MZEA11,NRE210,ZWE211..HI |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-02240 |
MZEA11,NRE210,ZWE211..HI |
1 | ||
| 72646B - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-02160C0 |
MZEA11,NRE210,ZWE211..HI BLACK,TRIM0#,2# |
1 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-02140C0 |
MZEA11,NRE210,ZWE211..HI BLACK,TRIM0#,2# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-02140C0 |
MZEA11,NRE210,ZWE211..HI BLACK,TRIM0#,2# |
2 | ||
| 72806D - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-02330A0 |
NRE210,ZWE211..HI FROMAGE,TRIM00 |
1 | ||
| 72806-02330C0 |
MZEA11,NRE210,ZWE211..HI BLACK,TRIM2# |
1 | ||
| 72806-02330A0 |
MZEA11,NRE210,ZWE211..HI FROMAGE,TRIM0# |
1 | ||
| 72806-02330C0 |
NRE210,ZWE211..HI BLACK,TRIM00,2# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-02P30A2 |
NRE210,ZWE211..HI FROMAGE,TRIM0# |
1 | ||
| 72830-02P30C2 |
NRE210,ZWE211..HI BLACK,TRIM2# |
1 | ||
| 72830-02D60C0 |
MZEA11,NRE210,ZWE211..HI BLACK,TRIM2# |
1 | ||
| 72830-02D60A0 |
MZEA11,NRE210,ZWE211..HI FROMAGE,TRIM0# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06009 |
MZEA11,NRE210,ZWE211..HI |
1 | ||
| 72839 - SHIM, REAR SEAT ARMREST HINGE | ||||
| 72839-12010 |
NRE210,ZWE211..HI SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION) |
1 | ||
| 72839-12010 |
MZEA11,NRE210,ZWE211..HI |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-02060C0 |
MZEA11,NRE210,ZWE211..HI BLACK,TRIM00,2# |
1 | ||
| 72848-02060A0 |
MZEA11,NRE210,ZWE211..HI FROMAGE,TRIM00 |
1 | ||
| Common parts | ||||
| 72702-35010 | ||||
| 90119-C0063 | ||||
| 90119-C0126 | ||||
| 90178-C0032 | ||||
| Linked diagrams | ||||
| 7104 | ||||

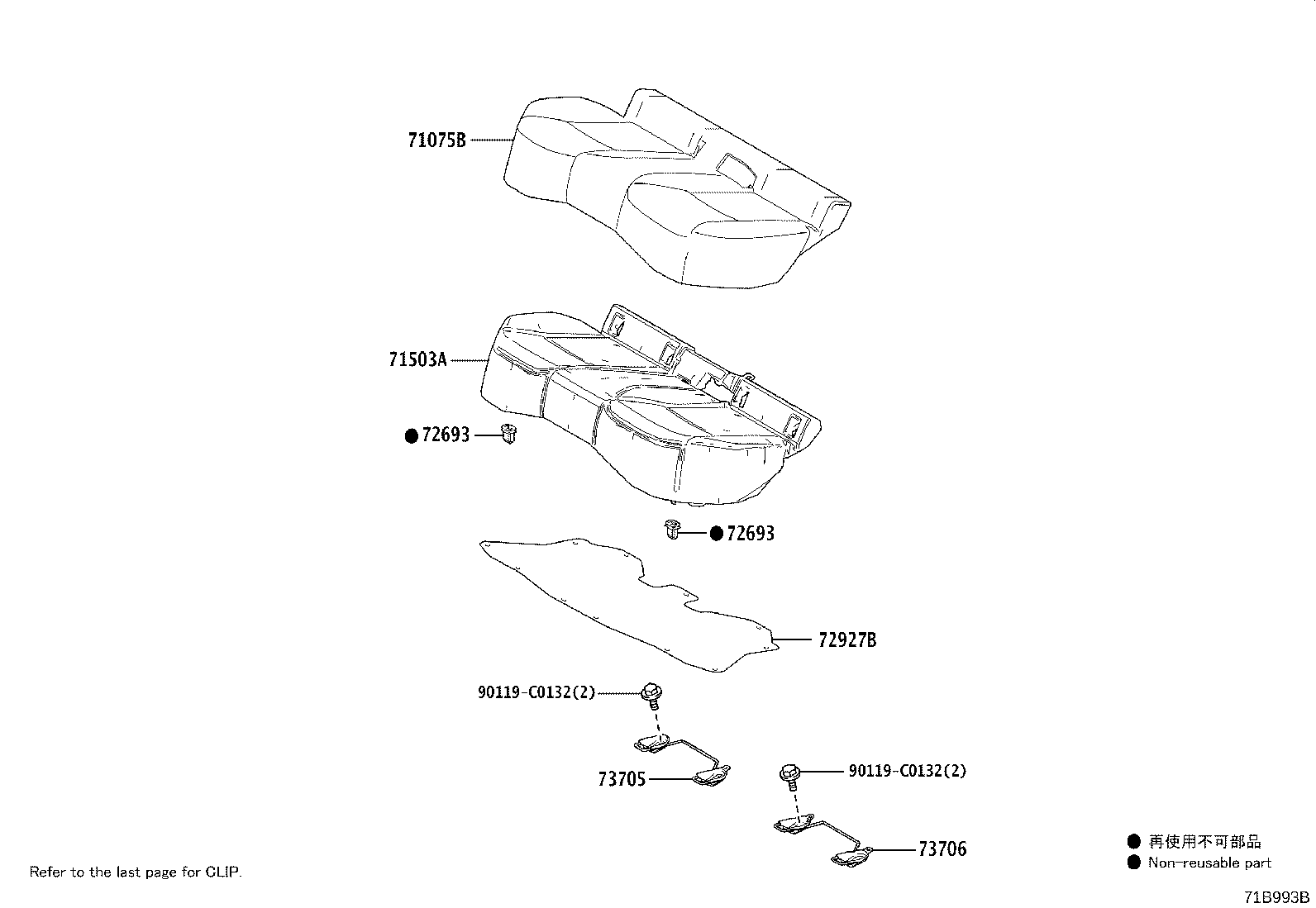

ILLUST NO. 2 OF 2(1908- )MZEA11,NRE210
REAR SEAT CUSHION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-0ZA50A1 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 71075-0Z220C0 |
MZEA11,NRE210..HI BLACK,TRIM2# |
1 | ||
| 71075-0Z220A0 |
MZEA11,NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 71075-0ZA50C1 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 71503A - PAD SUB-ASSY, REAR SEAT CUSHION | ||||
| 71503-02850 |
MZEA11,NRE210 |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-02030 |
NRE210..HI |
2 | ||
| 72693-02030 |
NRE210..HI |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-02030 |
NRE210..HI |
2 | ||
| 72693-02030 |
NRE210..HI |
2 | ||
| 72927B - COVER, REAR SEAT CUSHION UNDER | ||||
| 72927-02080 |
NRE210..HI SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION) |
1 | ||
| 72927-02080 |
NRE210..HI |
1 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-02440 |
NRE210..HI |
1 | ||
| 73705-02440 |
NRE210..HI |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73705-02450 |
NRE210..HI |
1 | ||
| 73705-02450 |
NRE210..HI |
1 | ||
| Common parts | ||||
| 90119-C0132 | ||||

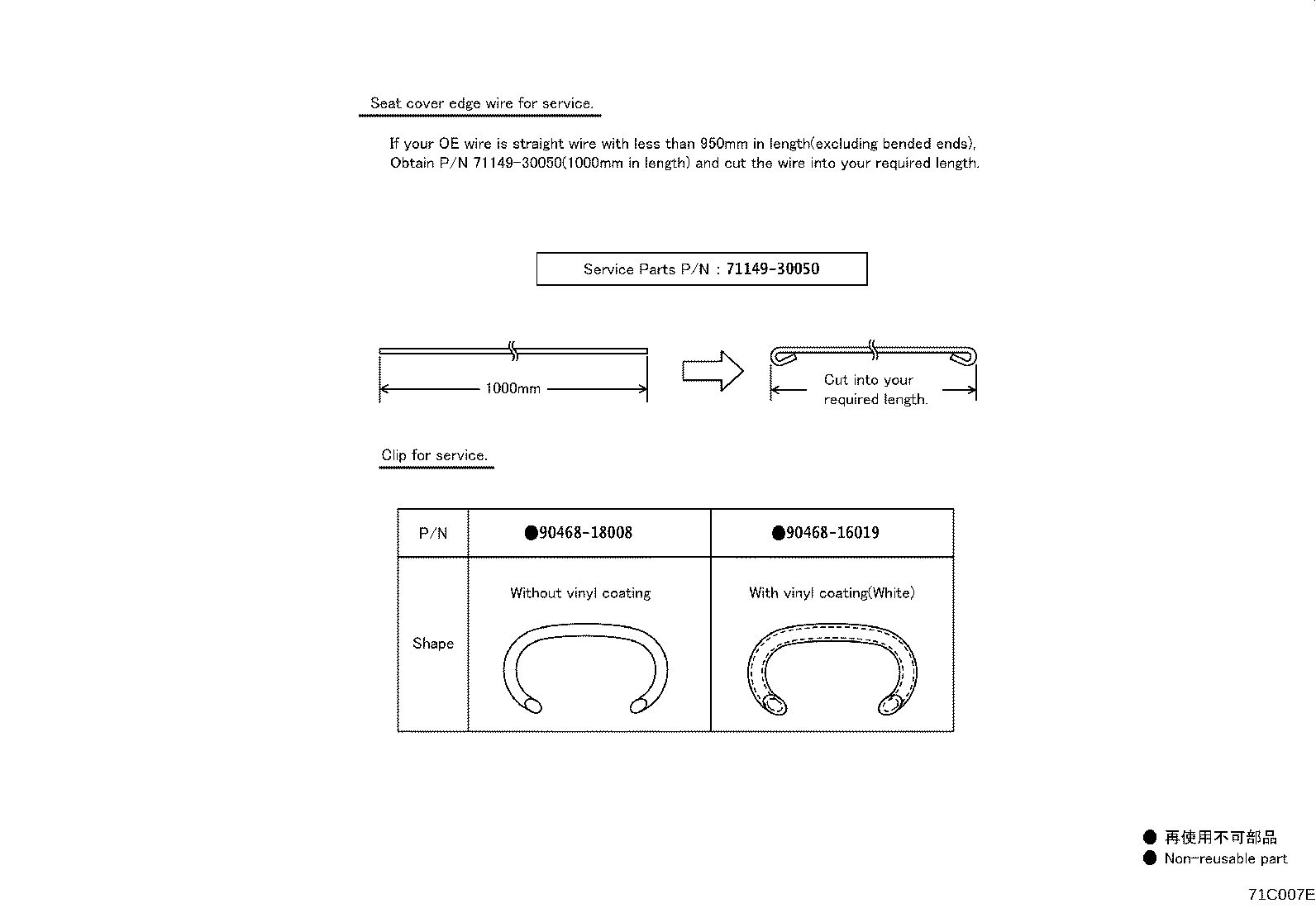

(1908- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
