NRE210L-GEXGZC (2019)
Toyota Corolla
(1908- )
RH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-06040 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-F2120C3 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 71071-F2120C2 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 71071-0ZP90C0 |
MZEA11,NRE210..HI BLACK/FROMAGE,TRIM0# |
1 | ||
| 71071-0ZP90C1 |
MZEA11,NRE210..HI BLACK/BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71027-02540C2 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 71027-02540E2 |
NRE210..HI ORCHID BROWN,TRIM0# |
1 | ||
| 71027-02A00E0 |
MZEA11,NRE210..HI ORCHID BROWN,TRIM0# |
1 | ||
| 71027-02A00C0 |
MZEA11,NRE210..HI BLACK,TRIM2# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-0Z190C0 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 71410-0ZG20A2 |
NRE210..HI SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION),FROMAGE,TRIM0# |
1 | ||
| 71410-0ZG20C2 |
NRE210..HI SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION),BLACK,TRIM2# |
1 | ||
| 71410-0Z190A0 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 71410-0ZL70C0 |
MZEA11,NRE210..HI BLACK,TRIM2# |
1 | ||
| 71410-0ZL70A0 |
MZEA11,NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71040-02D50A2 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 71040-02D50C2 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 71040-02J40C1 |
MZEA11,NRE210..HI BLACK,TRIM2# |
1 | ||
| 71040-02J40A1 |
MZEA11,NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-02410 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 71501-02430 |
NRE210,ZWE211 |
1 | ||
| 71501-02410 |
NRE210,ZWE211 SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-02F40 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-02B50 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-07090C0 |
MZEA11,NRE210,ZWE211 BLACK,TRIM0#,2# |
1 | ||
| 7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-F4030 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-07050C0 |
MZEA11,NRE210,ZWE211 BLACK,TRIM0#,2# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-07030C0 |
MZEA11,NRE210,ZWE211 BLACK,TRIM0#,2# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71875-07040C0 |
MZEA11,NRE210,ZWE211 BLACK,TRIM0#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02V30E1 |
NRE210,ZWE211..HI ORCHID BROWN,TRIM0# |
2 | ||
| 71910-02V30C1 |
NRE210,ZWE211..HI BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-06070C0 |
MZEA11,NRE210,ZWE211 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-06070E3 |
MZEA11,NRE210,ZWE211 W(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71931-06060C0 |
MZEA11,NRE210,ZWE211 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-06060E3 |
MZEA11,NRE210,ZWE211 W/O(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-06070C0 |
MZEA11,NRE210,ZWE211 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-06070E3 |
MZEA11,NRE210,ZWE211 W(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71931-06060C0 |
MZEA11,NRE210,ZWE211 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-06060E3 |
MZEA11,NRE210,ZWE211 W/O(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-07040 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 72123B - COVER, SEAT TRACK BRACKET, OUTER FRONT | ||||
| 72123-F4030 |
NRE210..HI |
2 | ||
| 72123-F4030 |
NRE210..HI |
2 | ||
| 72125S - COVER, FRONT SEAT TRACK, UPPER REAR RH | ||||
| 72125-F4010 |
MZEA11,NRE210,ZWE211 |
2 | ||
| 72125S - COVER, FRONT SEAT TRACK, UPPER REAR RH | ||||
| 72125-F4010 |
MZEA11,NRE210,ZWE211 |
2 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72123-F4030 |
NRE210..HI |
2 | ||
| 72123-F4030 |
NRE210..HI |
2 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-F4020 |
NRE210..HI |
1 | ||
| 72137-F4020 |
NRE210..HI |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72157-07040 |
NRE210..HI |
1 | ||
| 72157-07040 |
NRE210..HI |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-06140 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 72265E - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-F4010 |
MZEA11,NRE210,ZWE211 |
2 | ||
| 72265E - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-F4010 |
MZEA11,NRE210,ZWE211 |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-F4060C0 |
MZEA11,NRE210,ZWE211 BLACK,TRIM0#,2# |
1 | ||
| 72551B - COVER, RECLINING HINGE, RH | ||||
| 72551-F4080C0 |
MZEA11,NRE210,ZWE211 BLACK,TRIM0#,2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-02400 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 739F0 - AIR BAG ASSY, FRONT SEAT CUSHION, RH | ||||
| 739F0-02050 |
NRE210,ZWE211 SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION) |
1 | ||
| 739F0-02050 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 79977G - FELT, FRONT SEAT BACK, RH | ||||
| 79977-02130 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 82667D - HOLDER, CONNECTOR | ||||
| 82666-07300 |
MZEA11,NRE210,ZWE211 |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-C0011 | ||||
| 90167-C0016 | ||||
| 90177-C0016 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1908- )

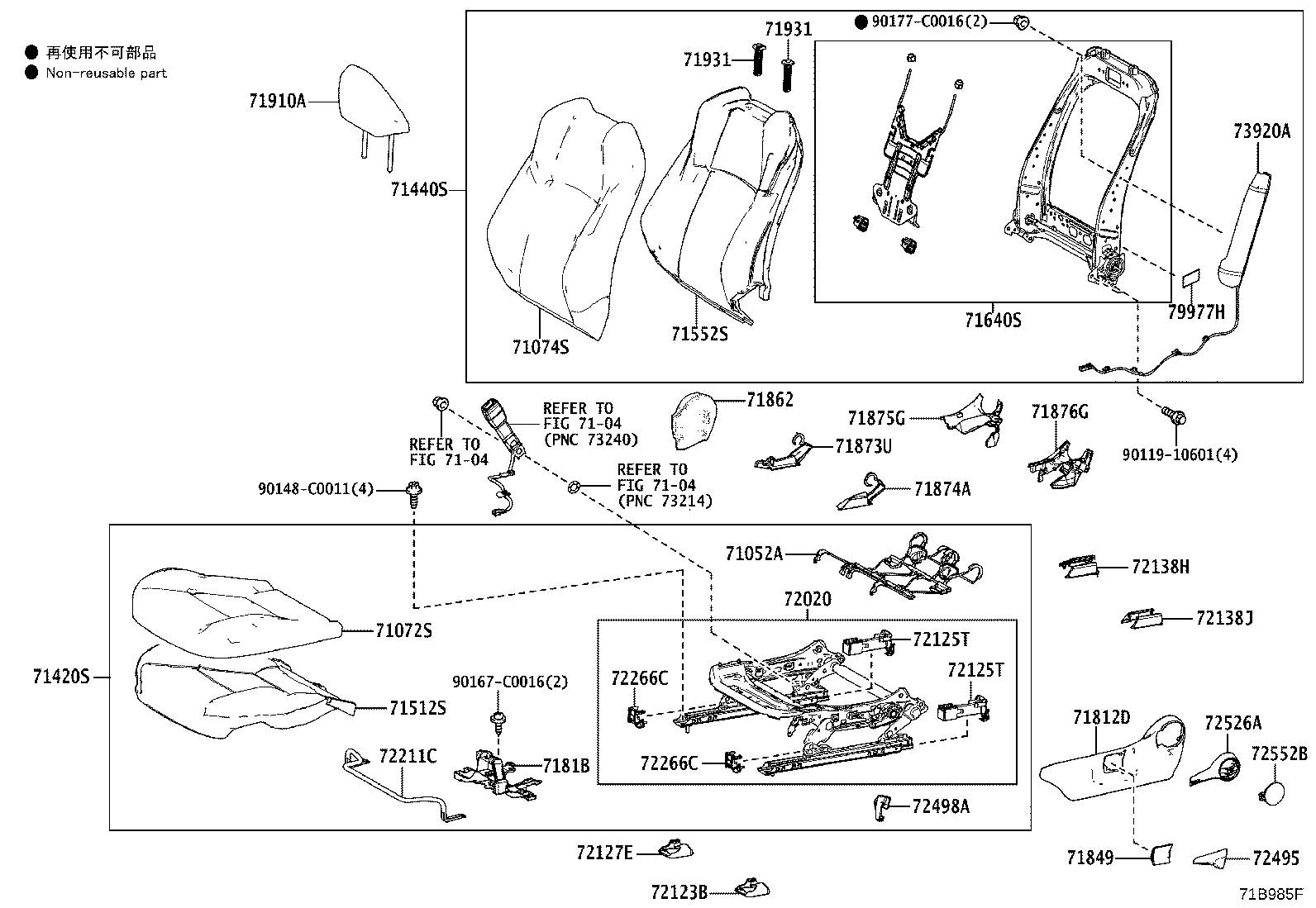

LH SEAT(MANUAL SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-06040 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0ZS10C2 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 71072-0ZS10C3 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 71072-0ZF10C1 |
MZEA11,NRE210..HI BLACK/BLACK,TRIM2# |
1 | ||
| 71072-0ZF10C0 |
MZEA11,NRE210..HI BLACK/FROMAGE,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-F2010E2 |
NRE210..HI ORCHID BROWN,TRIM0# |
1 | ||
| 71074-F2010C2 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 71074-0ZN50C1 |
MZEA11,NRE210..HI BLACK,TRIM2# |
1 | ||
| 71074-0ZN50E1 |
MZEA11,NRE210..HI ORCHID BROWN,TRIM0# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-02W10A3 |
NRE210..HI SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION),FROMAGE,TRIM0# |
1 | ||
| 71420-02W10A2 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 71420-02W10C2 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 71420-0ZJ40C0 |
MZEA11,NRE210..HI BLACK,TRIM2# |
1 | ||
| 71420-02W10C3 |
NRE210..HI SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION),BLACK,TRIM2# |
1 | ||
| 71420-0ZJ40A0 |
MZEA11,NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71070-02F60A2 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 71070-02M10A1 |
MZEA11,NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 71070-02F60C2 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 71070-02M10C1 |
MZEA11,NRE210..HI BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-02D00 |
MZEA11,NRE210;ZWE211..ENTRY,MID |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-02D00 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-02D20 |
MZEA11,NRE210;ZWE211..ENTRY,MID |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-F4110C0 |
MZEA11,NRE210;ZWE211..ENTRY,MID BLACK,TRIM0#,2# |
1 | ||
| 7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-F4030 |
MZEA11,NRE210;ZWE211..ENTRY,MID |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71849-F4020C0 |
MZEA11,NRE210;ZWE211..ENTRY,MID BLACK,TRIM0#,2# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-F4050C0 |
MZEA11,NRE210,ZWE211 BLACK,TRIM0#,2# |
1 | ||
| 71873U - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71874-F4040C0 |
MZEA11,NRE210,ZWE211 BLACK,TRIM0#,2# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-F4030C0 |
MZEA11,NRE210,ZWE211 BLACK,TRIM0#,2# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-F4080C0 |
MZEA11,NRE210,ZWE211 BLACK,TRIM0#,2# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-F4070C0 |
MZEA11,NRE210,ZWE211 BLACK,TRIM0#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02V30E1 |
NRE210,ZWE211..HI ORCHID BROWN,TRIM0# |
2 | ||
| 71910-02V30C1 |
NRE210,ZWE211..HI BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-06070C0 |
MZEA11,NRE210,ZWE211 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-06070E3 |
MZEA11,NRE210,ZWE211 W(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71931-06060C0 |
MZEA11,NRE210,ZWE211 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-06060E3 |
MZEA11,NRE210,ZWE211 W/O(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-06070C0 |
MZEA11,NRE210,ZWE211 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-06070E3 |
MZEA11,NRE210,ZWE211 W(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71931-06060C0 |
MZEA11,NRE210,ZWE211 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-06060E3 |
MZEA11,NRE210,ZWE211 W/O(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-07050 |
NRE210;ZWE211..ENTRY,MID |
1 | ||
| 72020-07052 |
MZEA11,NRE210;ZWE211..ENTRY,MID |
1 | ||
| 72020-07051 |
MZEA11,NRE210;ZWE211..ENTRY,MID |
1 | ||
| 72123B - COVER, SEAT TRACK BRACKET, OUTER FRONT | ||||
| 72123-F4030 |
NRE210..HI |
2 | ||
| 72123-F4030 |
NRE210..HI |
2 | ||
| 72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH | ||||
| 72125-F4010 |
MZEA11,NRE210;ZWE211..ENTRY,MID |
2 | ||
| 72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH | ||||
| 72125-F4010 |
MZEA11,NRE210;ZWE211..ENTRY,MID |
2 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72123-F4030 |
NRE210..HI |
2 | ||
| 72123-F4030 |
NRE210..HI |
2 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-07040 |
NRE210..HI |
1 | ||
| 72158-07040 |
NRE210..HI |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72137-F4020 |
NRE210..HI |
1 | ||
| 72137-F4020 |
NRE210..HI |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-06140 |
MZEA11,NRE210;ZWE211..ENTRY,MID |
1 | ||
| 72266C - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-F4010 |
MZEA11,NRE210;ZWE211..ENTRY,MID |
2 | ||
| 72266C - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-F4010 |
MZEA11,NRE210;ZWE211..ENTRY,MID |
2 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72495-F4020C0 |
MZEA11,NRE210;ZWE211..ENTRY,MID BLACK,TRIM0#,2# |
1 | ||
| 72498A - COVER, VERTICAL ADJUSTER BRACKET, LH | ||||
| 72498-F4040C0 |
MZEA11,NRE210;ZWE211..ENTRY,MID BLACK,TRIM0#,2# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-F4060C0 |
MZEA11,NRE210;ZWE211..ENTRY,MID BLACK,TRIM0#,2# |
1 | ||
| 72552B - COVER, RECLINING HINGE, LH | ||||
| 72551-F4080C0 |
MZEA11,NRE210;ZWE211..ENTRY,MID BLACK,TRIM0#,2# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-02370 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 79977H - FELT, FRONT SEAT BACK, LH | ||||
| 79977-02130 |
MZEA11,NRE210;ZWE211..ENTRY,MID |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-C0011 | ||||
| 90167-C0016 | ||||
| 90177-C0016 | ||||
| Linked diagrams | ||||
| 7104 | ||||

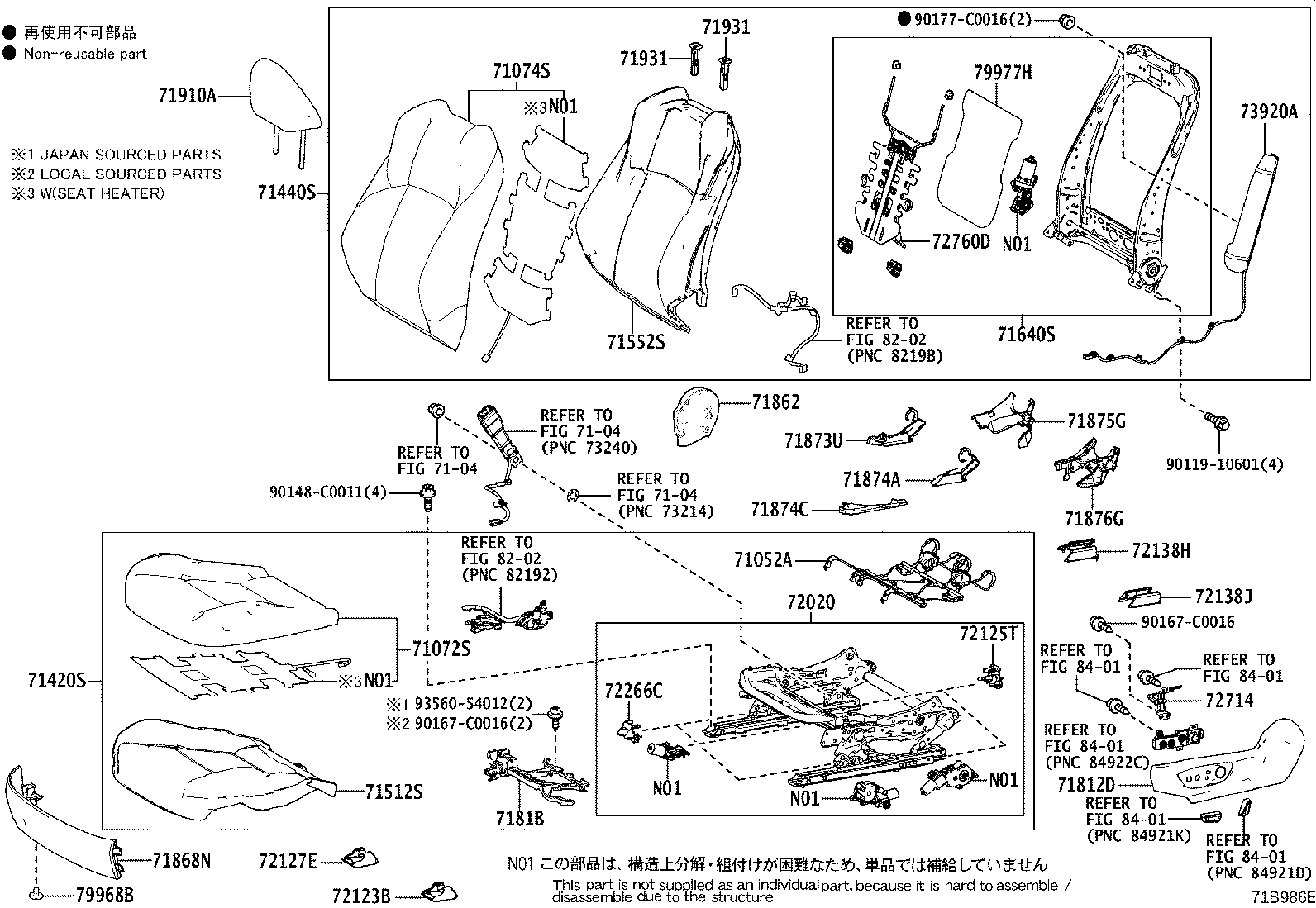

(1908- )
LH SEAT(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-06040 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0ZS10C2 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 71072-0ZS10C3 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 71072-0ZF10C1 |
MZEA11,NRE210..HI BLACK/BLACK,TRIM2# |
1 | ||
| 71072-0ZF10C0 |
MZEA11,NRE210..HI BLACK/FROMAGE,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-F2010E2 |
NRE210..HI ORCHID BROWN,TRIM0# |
1 | ||
| 71074-F2010C2 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 71074-0ZN50C1 |
MZEA11,NRE210..HI BLACK,TRIM2# |
1 | ||
| 71074-0ZN50E1 |
MZEA11,NRE210..HI ORCHID BROWN,TRIM0# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-02W10A3 |
NRE210..HI SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION),FROMAGE,TRIM0# |
1 | ||
| 71420-02W10A2 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 71420-02W10C2 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 71420-0ZJ40C0 |
MZEA11,NRE210..HI BLACK,TRIM2# |
1 | ||
| 71420-02W10C3 |
NRE210..HI SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION),BLACK,TRIM2# |
1 | ||
| 71420-0ZJ40A0 |
MZEA11,NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71070-02F60A2 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 71070-02M10A1 |
MZEA11,NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 71070-02F60C2 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 71070-02M10C1 |
MZEA11,NRE210..HI BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-02D00 |
MZEA11,NRE210;ZWE211..ENTRY,MID |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-02D00 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-02D20 |
MZEA11,NRE210;ZWE211..ENTRY,MID |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-F4110C0 |
MZEA11,NRE210;ZWE211..ENTRY,MID BLACK,TRIM0#,2# |
1 | ||
| 7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-F4030 |
MZEA11,NRE210;ZWE211..ENTRY,MID |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-F4050C0 |
MZEA11,NRE210,ZWE211 BLACK,TRIM0#,2# |
1 | ||
| 71873U - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71874-F4040C0 |
MZEA11,NRE210,ZWE211 BLACK,TRIM0#,2# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-F4030C0 |
MZEA11,NRE210,ZWE211 BLACK,TRIM0#,2# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-F4080C0 |
MZEA11,NRE210,ZWE211 BLACK,TRIM0#,2# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-F4070C0 |
MZEA11,NRE210,ZWE211 BLACK,TRIM0#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02V30E1 |
NRE210,ZWE211..HI ORCHID BROWN,TRIM0# |
2 | ||
| 71910-02V30C1 |
NRE210,ZWE211..HI BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-06070C0 |
MZEA11,NRE210,ZWE211 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-06070E3 |
MZEA11,NRE210,ZWE211 W(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71931-06060C0 |
MZEA11,NRE210,ZWE211 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-06060E3 |
MZEA11,NRE210,ZWE211 W/O(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-06070C0 |
MZEA11,NRE210,ZWE211 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-06070E3 |
MZEA11,NRE210,ZWE211 W(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71931-06060C0 |
MZEA11,NRE210,ZWE211 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-06060E3 |
MZEA11,NRE210,ZWE211 W/O(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-07050 |
NRE210;ZWE211..ENTRY,MID |
1 | ||
| 72020-07052 |
MZEA11,NRE210;ZWE211..ENTRY,MID |
1 | ||
| 72020-07051 |
MZEA11,NRE210;ZWE211..ENTRY,MID |
1 | ||
| 72123B - COVER, SEAT TRACK BRACKET, OUTER FRONT | ||||
| 72123-F4030 |
NRE210..HI |
2 | ||
| 72123-F4030 |
NRE210..HI |
2 | ||
| 72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH | ||||
| 72125-F4010 |
MZEA11,NRE210;ZWE211..ENTRY,MID |
2 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72123-F4030 |
NRE210..HI |
2 | ||
| 72123-F4030 |
NRE210..HI |
2 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-07040 |
NRE210..HI |
1 | ||
| 72158-07040 |
NRE210..HI |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72137-F4020 |
NRE210..HI |
1 | ||
| 72137-F4020 |
NRE210..HI |
1 | ||
| 72266C - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-F4010 |
MZEA11,NRE210;ZWE211..ENTRY,MID |
2 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-02370 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 79977H - FELT, FRONT SEAT BACK, LH | ||||
| 79977-02130 |
MZEA11,NRE210;ZWE211..ENTRY,MID |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-C0011 | ||||
| 90167-C0016 | ||||
| 90177-C0016 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
