NRE210L-GEXGZC (2019)
Toyota Corolla
Production
Aug 2019
-
Sep 9999
Engine
9NRFTS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1908- )

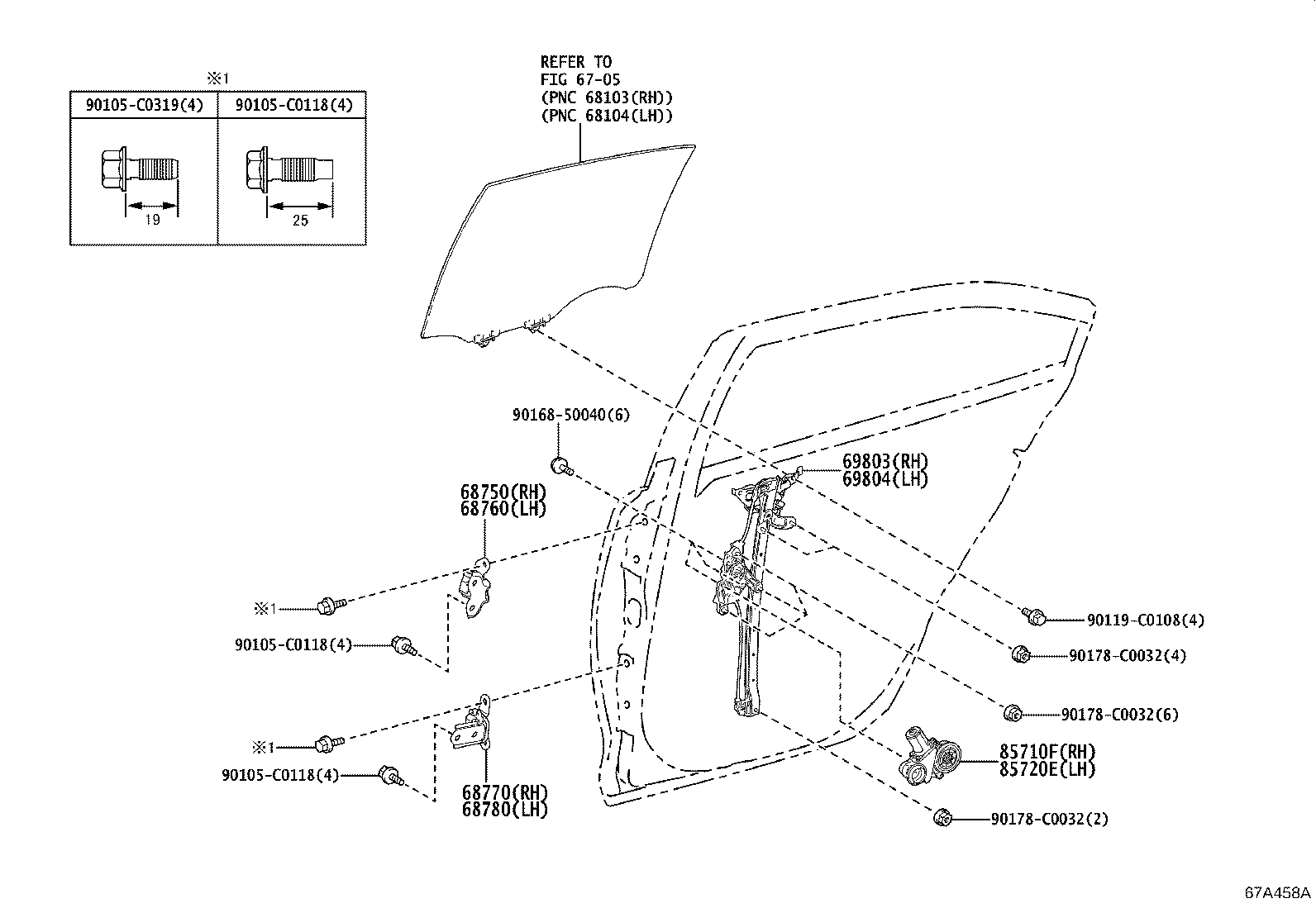

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68750 - HINGE ASSY, REAR DOOR, UPPER RH | ||||
| 68750-0P011 |
NRE210..HI |
1 | ||
| 68750-0P011 |
NRE210..HI |
1 | ||
| 68760 - HINGE ASSY, REAR DOOR, UPPER LH | ||||
| 68760-0P011 |
NRE210..HI |
1 | ||
| 68760-0P011 |
NRE210..HI |
1 | ||
| 68770 - HINGE ASSY, REAR DOOR, LOWER RH | ||||
| 68770-07020 |
NRE210..HI |
1 | ||
| 68770-07020 |
NRE210..HI |
1 | ||
| 68780 - HINGE ASSY, REAR DOOR, LOWER LH | ||||
| 68780-07020 |
NRE210..HI |
1 | ||
| 68780-07020 |
NRE210..HI |
1 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69803-02381 |
NRE210..HI |
1 | ||
| 69803-02382 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 69803-02380 |
NRE210,ZWE211 |
1 | ||
| 69803-02381 |
NRE210..HI |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69804-02381 |
NRE210..HI |
1 | ||
| 69804-02382 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 69804-02380 |
NRE210,ZWE211 |
1 | ||
| 69804-02381 |
NRE210..HI |
1 | ||
| 85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85710-02660 |
NRE210..HI |
1 | ||
| 85710-02660 |
NRE210..HI |
1 | ||
| 85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85720-02710 |
NRE210..HI |
1 | ||
| 85720-02710 |
NRE210..HI |
1 | ||
| Common parts | ||||
| 90105-C0118 | ||||
| 90105-C0319 | ||||
| 90119-C0108 | ||||
| 90168-50040 | ||||
| 90178-C0032 | ||||
| Linked diagrams | ||||
| 6705 | ||||
