NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

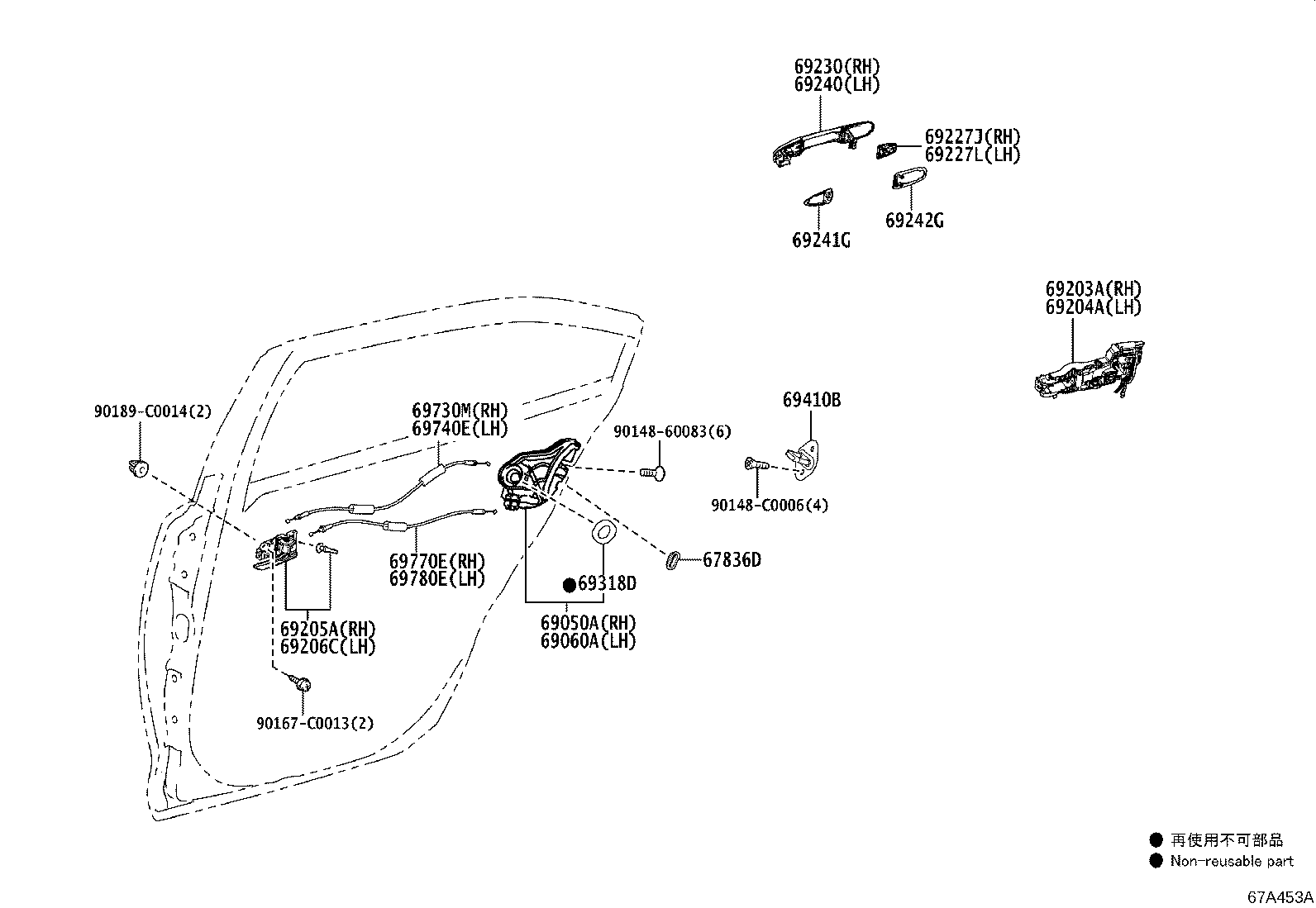

Click highlighted areas on diagram

diagram 67836D 69050A 69060A 69203A 69204A 69205A 69206C 69227J 69227L 69230 69240 69241G 69242G 69318D 69410B 69730M 69740E 69770E 69780E 9014860083 90148C0006 90167C0013 90189C0014
Part # Description Qty Price
67836D - COVER, REAR DOOR LOCK CHILD PROTECTION
67836-02040

NRE210..HI

(L)

 2
67836-33030

NRE210..HI

(J)

 2
67836-02040

NRE210..HI

(L)

 2
67836-33030

NRE210..HI

(J)

 2
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-02570

NRE210..HI

 1
69050-02570

NRE210..HI

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-02570

NRE210..HI

 1
69060-02570

NRE210..HI

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-02480

NRE210..HI

 1
69203-02480

NRE210..HI

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-02480

NRE210..HI

 1
69204-02480

NRE210..HI

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-02480C0

NRE210..HI

BLACK,TRIM2#

 1
69205-02480A0

NRE210..HI

FROMAGE,TRIM0#

 1
69205-02480A0

NRE210..HI

FROMAGE,TRIM0#

 1
69205-02480C0

NRE210..HI

BLACK,TRIM2#

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-02460A0

NRE210..HI

FROMAGE,TRIM0#

 1
69206-02460C0

NRE210..HI

BLACK,TRIM2#

 1
69206-02460C0

NRE210..HI

BLACK,TRIM2#

 1
69206-02460A0

NRE210..HI

FROMAGE,TRIM0#

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-07030

NRE210..HI

 1
69227-07030

NRE210..HI

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69227-07030

NRE210..HI

 1
69227-07030

NRE210..HI

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-07020A1

NRE210..HI

SUPER WHITE 2,040

 1
69211-07020B1

NRE210..HI

SILVER ME.,1F7

 1
69211-07020A0

NRE210..HI

WHITE PEARL CS.,070

 1
69211-07020E4

NRE210,ZWE211

SILKY BEIGE ME.,4W1

 1
69211-07020C0

NRE210..HI

BLACK MC.,209

 1
69211-07020E2

NRE210..HI

AVANT-GARDE BRONZE ME.,4V8

 1
69211-07020D1

NRE210..HI

SCARLET ME.,3U4

 1
69211-07020A0

NRE210..HI

WHITE PEARL CS.,070

 1
69211-07020A1

NRE210..HI

SUPER WHITE 2,040

 1
69211-07020E2

NRE210..HI

AVANT-GARDE BRONZE ME.,4V8

 1
69211-07020B1

NRE210..HI

SILVER ME.,1F7

 1
69211-07020D1

NRE210..HI

SCARLET ME.,3U4

 1
69211-07020C0

NRE210..HI

BLACK MC.,209

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-07020A0

NRE210..HI

WHITE PEARL CS.,070

 1
69211-07020A1

NRE210..HI

SUPER WHITE 2,040

 1
69211-07020E4

NRE210,ZWE211

SILKY BEIGE ME.,4W1

 1
69211-07020A0

NRE210..HI

WHITE PEARL CS.,070

 1
69211-07020D1

NRE210..HI

SCARLET ME.,3U4

 1
69211-07020E2

NRE210..HI

AVANT-GARDE BRONZE ME.,4V8

 1
69211-07020B1

NRE210..HI

SILVER ME.,1F7

 1
69211-07020D1

NRE210..HI

SCARLET ME.,3U4

 1
69211-07020C0

NRE210..HI

BLACK MC.,209

 1
69211-07020B1

NRE210..HI

SILVER ME.,1F7

 1
69211-07020C0

NRE210..HI

BLACK MC.,209

 1
69211-07020A1

NRE210..HI

SUPER WHITE 2,040

 1
69211-07020E2

NRE210..HI

AVANT-GARDE BRONZE ME.,4V8

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-07020

NRE210..HI

 2
69241-07020

NRE210..HI

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-07020

NRE210..HI

 2
69242-07020

NRE210..HI

 2
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-47010

NRE210..HI

 2
69318-47010

NRE210..HI

 2
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-0D020

NRE210..HI

 2
69410-0D020

NRE210..HI

 2
69730M - CABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER
69730-02460

NRE210..HI

 1
69730-02460

NRE210..HI

 1
69740E - CABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER
69730-02460

NRE210..HI

 1
69730-02460

NRE210..HI

 1
69770E - CABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK K
69770-02560

NRE210..HI

 1
69770-02560

NRE210..HI

 1
69780E - CABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK K
69770-02560

NRE210..HI

 1
69770-02560

NRE210..HI

 1
Common parts
90148-60083
90148-C0006
90167-C0013
90189-C0014
