NRE210L-GEXGZC (2019)
Toyota Corolla

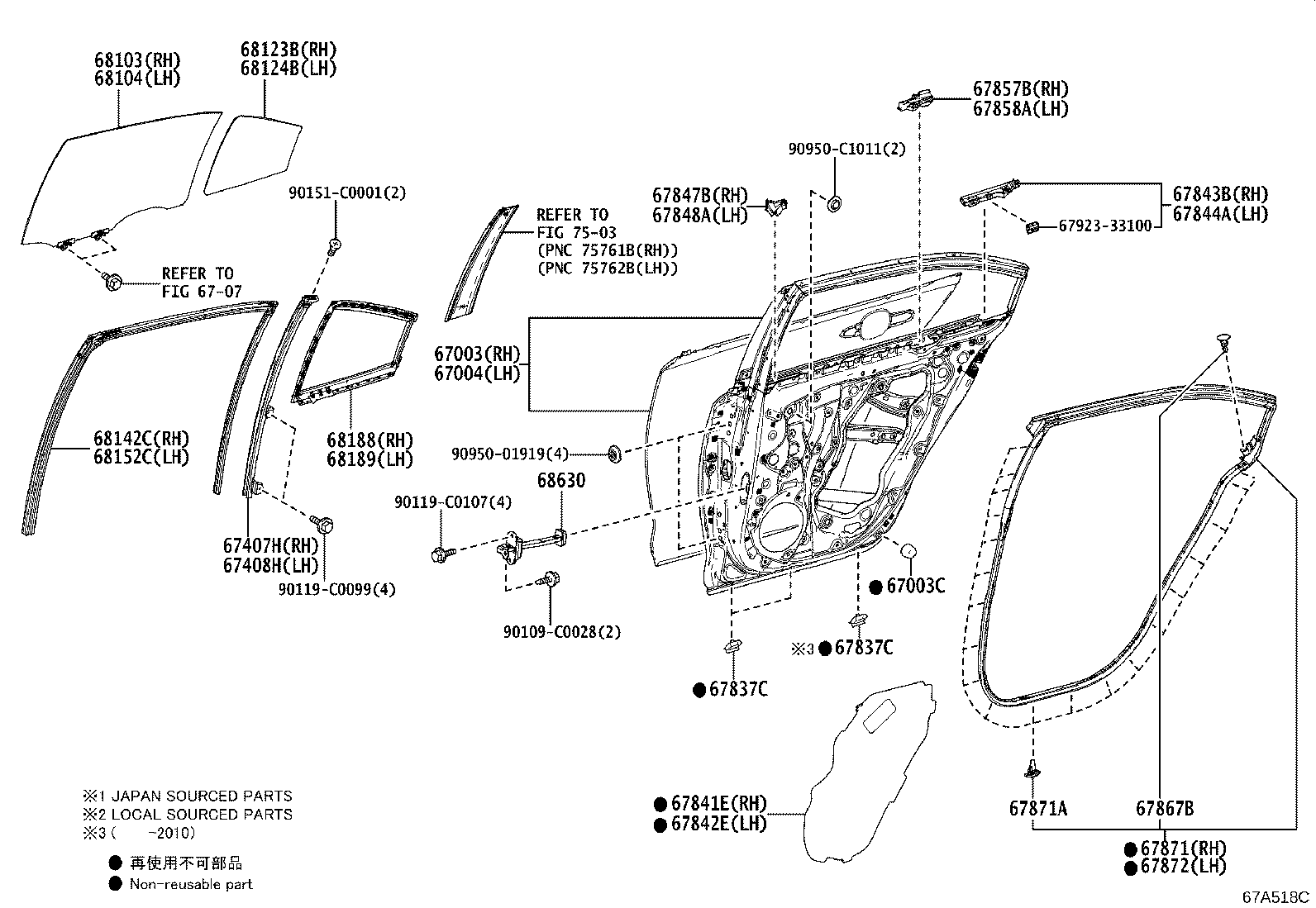

ILLUST NO. 1 OF 2(1908- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-02620 |
NRE210..HI |
1 | ||
| 67003-02620 |
NRE210..HI |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09124 |
NRE210..HI (J) |
2 | ||
| 90541-09124 |
NRE210..HI (J) |
2 | ||
| 90541-C0003 |
NRE210..HI (L) |
2 | ||
| 90541-C0003 |
NRE210..HI (L) |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-02630 |
NRE210..HI |
1 | ||
| 67004-02630 |
NRE210..HI |
1 | ||
| 67407H - BAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH | ||||
| 67407-02280 |
NRE210..HI |
1 | ||
| 67407-02280 |
NRE210..HI |
1 | ||
| 67408H - BAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH | ||||
| 67408-02280 |
NRE210..HI |
1 | ||
| 67408-02280 |
NRE210..HI |
1 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-02150 |
NRE210..HI (L) |
6 | ||
| 67837-48050 |
NRE210..HI (J) |
6 | ||
| 67837-48050 |
MZEA11,NRE210,ZWE211 (J) |
4 | ||
| 67837-02150 |
NRE210..HI (L) |
6 | ||
| 67837-02150 |
MZEA11,NRE210,ZWE211 (L) |
4 | ||
| 67837-48050 |
NRE210..HI (J) |
6 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-02150 |
NRE210..HI (L) |
6 | ||
| 67837-48050 |
NRE210..HI (J) |
6 | ||
| 67837-48050 |
MZEA11,NRE210,ZWE211 (J) |
4 | ||
| 67837-02150 |
NRE210..HI (L) |
6 | ||
| 67837-02150 |
MZEA11,NRE210,ZWE211 (L) |
4 | ||
| 67837-48050 |
NRE210..HI (J) |
6 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-02360 |
NRE210..HI |
1 | ||
| 67841-02360 |
NRE210..HI |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-02480 |
NRE210..HI |
1 | ||
| 67842-02480 |
NRE210..HI |
1 | ||
| 67843B - COVER, REAR DOOR SERVICE HOLE, NO.2 RH | ||||
| 67843-02090 |
NRE210..HI |
1 | ||
| 67843-02090 |
NRE210..HI |
1 | ||
| 67843-02110 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 67844A - COVER, REAR DOOR SERVICE HOLE, NO.2 LH | ||||
| 67844-02110 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 67844-02090 |
NRE210..HI |
1 | ||
| 67844-02090 |
NRE210..HI |
1 | ||
| 67847B - SEAL, REAR DOOR VENT, RH NO.1 | ||||
| 67847-02180 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 67847-02170 |
NRE210..HI |
1 | ||
| 67847-02170 |
NRE210..HI |
1 | ||
| 67848A - SEAL, REAR DOOR VENT, LH NO.1 | ||||
| 67848-02120 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 67848-02110 |
NRE210..HI |
1 | ||
| 67848-02110 |
NRE210..HI |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-02180 |
NRE210..HI |
1 | ||
| 67857-02180 |
NRE210..HI |
1 | ||
| 67858A - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-02180 |
NRE210..HI |
1 | ||
| 67858-02180 |
NRE210..HI |
1 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67868-30030 |
NRE210..HI |
2 | ||
| 67868-30030 |
NRE210..HI |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-02400 |
NRE210..HI |
1 | ||
| 67871-02400 |
NRE210..HI |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67867-12150 |
NRE210..HI |
40 | ||
| 67867-12150 |
NRE210..HI |
40 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-02400 |
NRE210..HI |
1 | ||
| 67872-02400 |
NRE210..HI |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-02660 |
NRE210..HI |
1 | ||
| 68103-02660 |
NRE210..HI |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-02660 |
NRE210..HI |
1 | ||
| 68104-02660 |
NRE210..HI |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-02580 |
NRE210..HI |
1 | ||
| 68123-02580 |
NRE210..HI |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-02580 |
NRE210..HI |
1 | ||
| 68124-02580 |
NRE210..HI |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-02430 |
NRE210,ZWE211 |
1 | ||
| 68142-02431 |
NRE210..HI |
1 | ||
| 68142-02431 |
NRE210..HI |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-02431 |
NRE210..HI |
1 | ||
| 68152-02430 |
NRE210,ZWE211 |
1 | ||
| 68152-02431 |
NRE210..HI |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-02320 |
NRE210..HI |
1 | ||
| 68188-02320 |
NRE210..HI |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-02320 |
NRE210..HI |
1 | ||
| 68189-02320 |
NRE210..HI |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-02430 |
NRE210..HI |
2 | ||
| 68630-02430 |
NRE210..HI |
2 | ||
| Common parts | ||||
| 67923-33100 | ||||
| 90109-C0028 | ||||
| 90119-C0099 | ||||
| 90119-C0107 | ||||
| 90151-C0001 | ||||
| 90950-01919 | ||||
| 90950-C1011 | ||||
| Linked diagrams | ||||
| 6707 | ||||
| 7503 | ||||

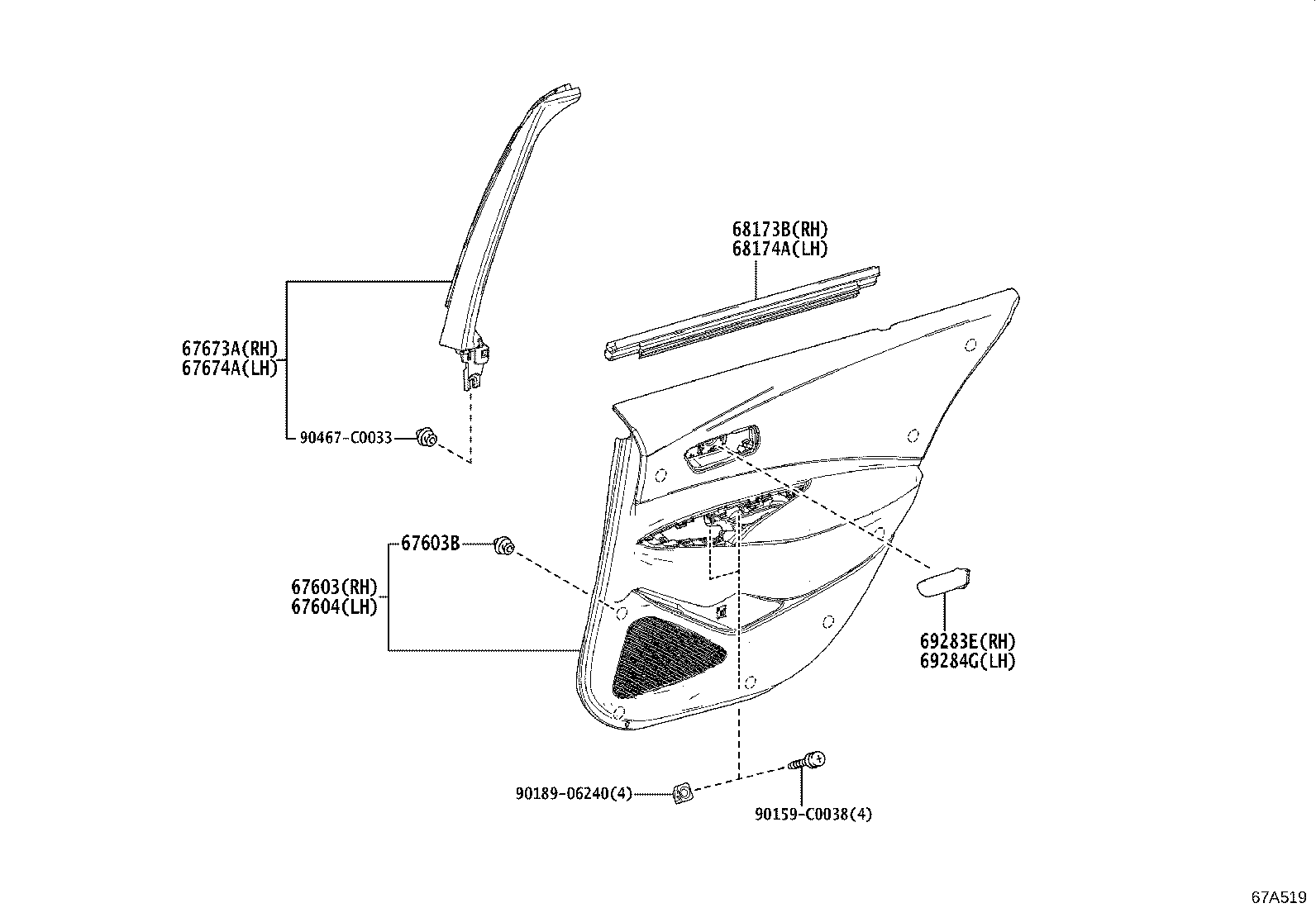

ILLUST NO. 2 OF 2(1908- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-0Z150C3 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 67630-0Z150C2 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 67630-0Z150C2 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 67630-0Z150C3 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-C0033 |
NRE210..HI |
16 | ||
| 90467-C0033 |
NRE210..HI |
16 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-02Z90C3 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 67640-02Z90C3 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 67640-02Z90C2 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 67640-02Z90C2 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-02090 |
NRE210..HI |
1 | ||
| 67673-02090 |
NRE210..HI |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-02090 |
NRE210..HI |
1 | ||
| 67674-02090 |
NRE210..HI |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-02450 |
NRE210..HI |
1 | ||
| 68173-02450 |
NRE210..HI |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-02390 |
NRE210..HI |
1 | ||
| 68174-02390 |
NRE210..HI |
1 | ||
| 69283E - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 74037-02070C0 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 74037-02070A0 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 74037-02070C0 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 74037-02070A0 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 69284G - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 74038-02070C0 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 74038-02070A0 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 74038-02070A0 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 74038-02070C0 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90159-C0038 | ||||
| 90189-06240 | ||||
| 90467-C0033 | ||||
