NRE210L-GEXGZC (2019)
Toyota Corolla
(1908- )

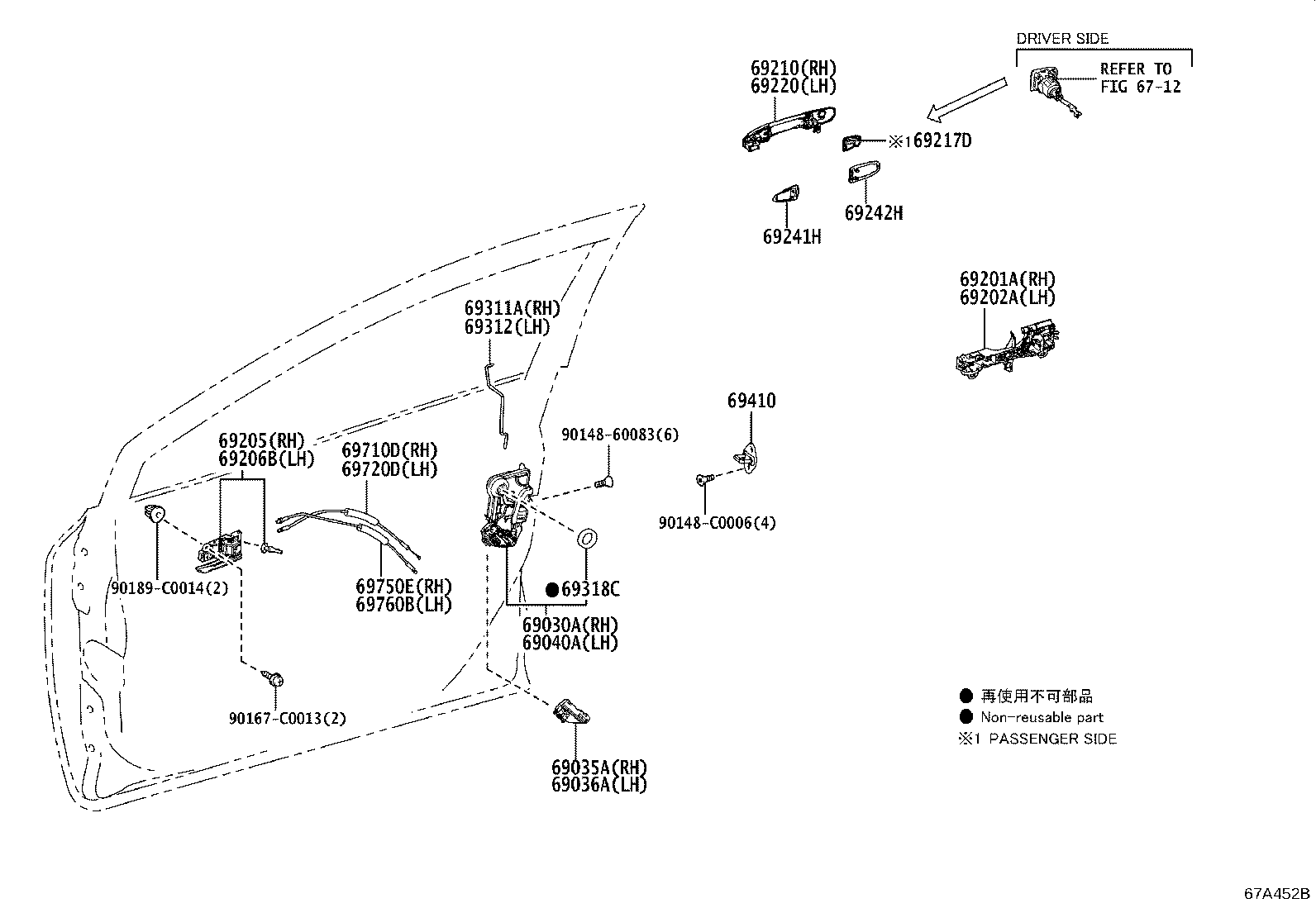

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-02620 |
NRE210..HI |
1 | ||
| 69030-02620 |
NRE210..HI |
1 | ||
| 69035A - COVER SUB-ASSY, FRONT DOOR LOCK, RH | ||||
| 69035-02060 |
NRE210..HI |
1 | ||
| 69035-02060 |
NRE210..HI |
1 | ||
| 69036A - COVER SUB-ASSY, FRONT DOOR LOCK, LH | ||||
| 69036-02060 |
NRE210..HI |
1 | ||
| 69036-02060 |
NRE210..HI |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-02590 |
NRE210..HI |
1 | ||
| 69040-02590 |
NRE210..HI |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-02440 |
NRE210..HI |
1 | ||
| 69201-02440 |
NRE210..HI |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-02360 |
NRE210..HI |
1 | ||
| 69202-02360 |
NRE210..HI |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-02480A0 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 69205-02480A0 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 69205-02480C0 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 69205-02480C0 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-02460A0 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 69206-02460A0 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 69206-02460C0 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 69206-02460C0 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-02450A0 |
NRE210..HI SUPER WHITE 2,040 |
1 | ||
| 69210-02450B0 |
NRE210..HI SILVER ME.,1F7 |
1 | ||
| 69210-02450E1 |
NRE210..HI;ZWE211..HI,MID SILKY BEIGE ME.,4W1 |
1 | ||
| 69210-02450D0 |
NRE210..HI SCARLET ME.,3U4 |
1 | ||
| 69210-02450A1 |
NRE210..HI WHITE PEARL CS.,070 |
1 | ||
| 69210-02450E0 |
NRE210..HI AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 69210-02450C0 |
NRE210..HI BLACK MC.,209 |
1 | ||
| 69210-02450A1 |
NRE210..HI WHITE PEARL CS.,070 |
1 | ||
| 69210-02450C0 |
NRE210..HI BLACK MC.,209 |
1 | ||
| 69210-02450B0 |
NRE210..HI SILVER ME.,1F7 |
1 | ||
| 69210-02450D0 |
NRE210..HI SCARLET ME.,3U4 |
1 | ||
| 69210-02450E0 |
NRE210..HI AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 69210-02450A0 |
NRE210..HI SUPER WHITE 2,040 |
1 | ||
| 69217D - COVER, FRONT DOOR OUTSIDE HANDLE | ||||
| 69217-02510 |
NRE210..HI |
1 | ||
| 69217-02510 |
NRE210..HI |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-07040E4 |
NRE210..HI;ZWE211..HI,MID SILKY BEIGE ME.,4W1 |
1 | ||
| 69210-07040E2 |
NRE210..HI AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 69210-07040C0 |
NRE210..HI BLACK MC.,209 |
1 | ||
| 69210-07040D1 |
NRE210..HI SCARLET ME.,3U4 |
1 | ||
| 69210-07040A0 |
NRE210..HI WHITE PEARL CS.,070 |
1 | ||
| 69210-07040A1 |
NRE210..HI SUPER WHITE 2,040 |
1 | ||
| 69210-07040A1 |
NRE210..HI SUPER WHITE 2,040 |
1 | ||
| 69210-07040B1 |
NRE210..HI SILVER ME.,1F7 |
1 | ||
| 69210-07040E2 |
NRE210..HI AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 69210-07040C0 |
NRE210..HI BLACK MC.,209 |
1 | ||
| 69210-07040A0 |
NRE210..HI WHITE PEARL CS.,070 |
1 | ||
| 69210-07040B1 |
NRE210..HI SILVER ME.,1F7 |
1 | ||
| 69210-07040D1 |
NRE210..HI SCARLET ME.,3U4 |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-07020 |
NRE210..HI |
2 | ||
| 69241-07020 |
NRE210..HI |
2 | ||
| 69242H - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-07020 |
NRE210..HI |
2 | ||
| 69242-07020 |
NRE210..HI |
2 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-02410 |
NRE210..HI |
1 | ||
| 69311-02410 |
NRE210..HI |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-02410 |
NRE210..HI |
1 | ||
| 69312-02410 |
NRE210..HI |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
NRE210..HI |
2 | ||
| 69318-51010 |
NRE210..HI |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-0D020 |
NRE210..HI |
2 | ||
| 69410-0D020 |
NRE210..HI |
2 | ||
| 69710D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVE | ||||
| 69710-02420 |
NRE210..HI |
1 | ||
| 69710-02420 |
NRE210..HI |
1 | ||
| 69720D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVE | ||||
| 69710-02420 |
NRE210..HI |
1 | ||
| 69710-02420 |
NRE210..HI |
1 | ||
| 69750E - CABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK | ||||
| 69750-02450 |
NRE210..HI |
1 | ||
| 69750-02450 |
NRE210..HI |
1 | ||
| 69760B - CABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK | ||||
| 69750-02450 |
NRE210..HI |
1 | ||
| 69750-02450 |
NRE210..HI |
1 | ||
| Common parts | ||||
| 90148-60083 | ||||
| 90148-C0006 | ||||
| 90167-C0013 | ||||
| 90189-C0014 | ||||
| Linked diagrams | ||||
| 6712 | ||||
