NRE210L-GEXGZC (2019)
Toyota Corolla

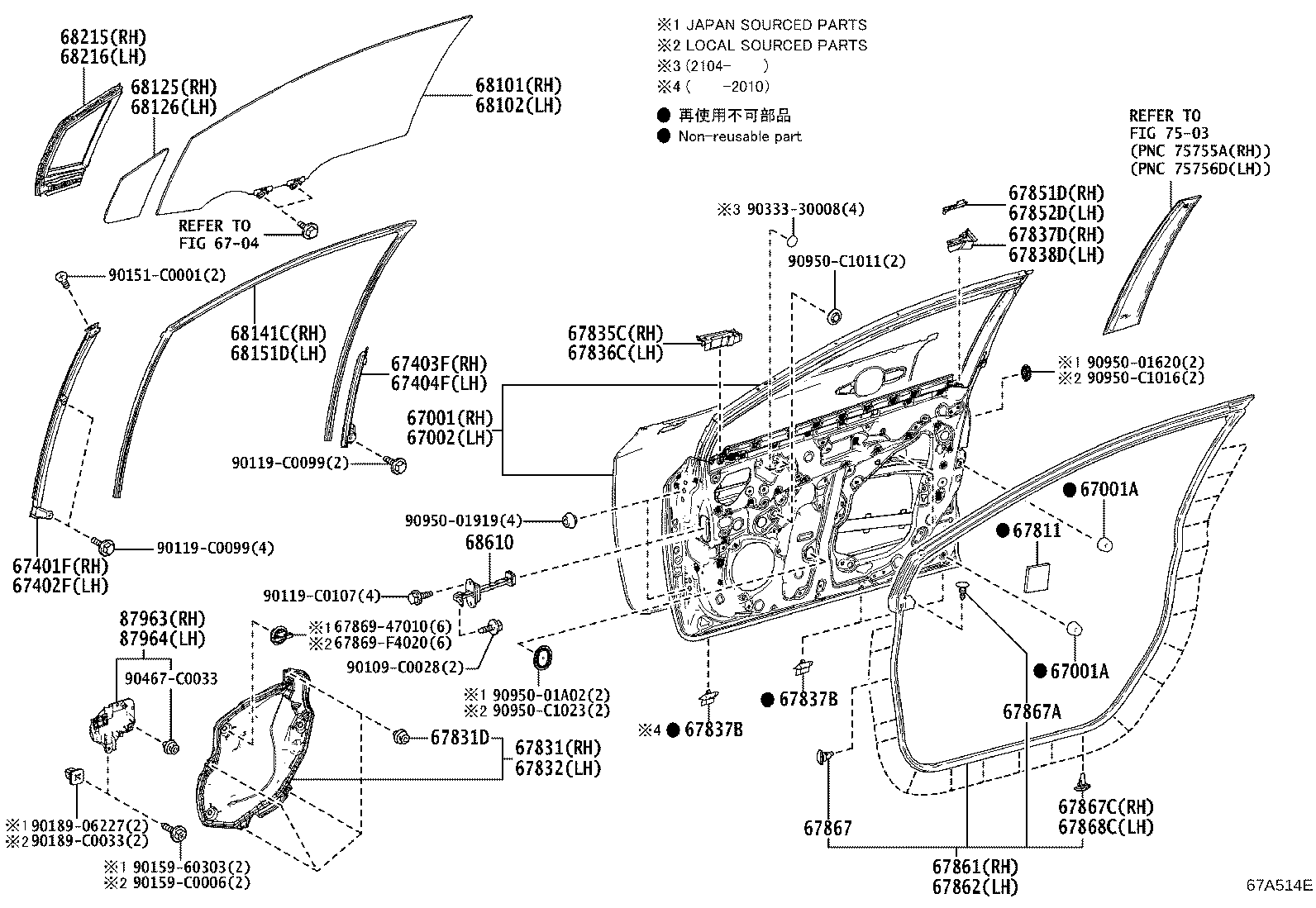

ILLUST NO. 1 OF 2(1908- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-02620 |
NRE210..HI |
1 | ||
| 67001-02621 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 67001-02620 |
NRE210..HI |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09124 |
NRE210..HI (J) |
4 | ||
| 90541-C0003 |
NRE210..HI (L) |
4 | ||
| 90541-C0003 |
NRE210..HI (L) |
4 | ||
| 90541-09124 |
NRE210..HI (J) |
4 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09124 |
NRE210..HI (J) |
4 | ||
| 90541-C0003 |
NRE210..HI (L) |
4 | ||
| 90541-C0003 |
NRE210..HI (L) |
4 | ||
| 90541-09124 |
NRE210..HI (J) |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-02610 |
NRE210..HI |
1 | ||
| 67002-02610 |
NRE210..HI |
1 | ||
| 67002-02611 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-02110 |
NRE210..HI |
1 | ||
| 67401-02110 |
NRE210..HI |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-02110 |
NRE210..HI |
1 | ||
| 67402-02110 |
NRE210..HI |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-02330 |
NRE210..HI |
1 | ||
| 67403-02330 |
NRE210..HI |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-02320 |
NRE210..HI |
1 | ||
| 67404-02320 |
NRE210..HI |
1 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-02390 |
NRE210..HI |
4 | ||
| 67811-02390 |
NRE210..HI |
4 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-02530 |
NRE210..HI |
1 | ||
| 67831-02530 |
NRE210..HI |
1 | ||
| 67831D - CLIP(FOR FRONT DOOR SERVICE HOLE COVER) | ||||
| 90467-C0033 |
NRE210..HI |
8 | ||
| 90467-C0033 |
NRE210..HI |
8 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-02530 |
NRE210..HI |
1 | ||
| 67832-02530 |
NRE210..HI |
1 | ||
| 67835C - COVER, FRONT DOOR SERVICE HOLE, NO.3 RH | ||||
| 67835-02090 |
NRE210..HI |
1 | ||
| 67835-02090 |
NRE210..HI |
1 | ||
| 67836C - COVER, FRONT DOOR SERVICE HOLE, NO.3 LH | ||||
| 67836-02150 |
NRE210..HI |
1 | ||
| 67836-02150 |
NRE210..HI |
1 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67837-48050 |
NRE210..HI (J) |
6 | ||
| 67837-02150 |
NRE210..HI (L) |
6 | ||
| 67837-02150 |
NRE210..HI (L) |
6 | ||
| 67837-02150 |
MZEA11,NRE210,ZWE211 (L) |
4 | ||
| 67837-48050 |
MZEA11,NRE210,ZWE211 (J) |
4 | ||
| 67837-48050 |
NRE210..HI (J) |
6 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67837-48050 |
NRE210..HI (J) |
6 | ||
| 67837-02150 |
NRE210..HI (L) |
6 | ||
| 67837-02150 |
NRE210..HI (L) |
6 | ||
| 67837-02150 |
MZEA11,NRE210,ZWE211 (L) |
4 | ||
| 67837-48050 |
MZEA11,NRE210,ZWE211 (J) |
4 | ||
| 67837-48050 |
NRE210..HI (J) |
6 | ||
| 67837D - SEAL, FRONT DOOR VENT, RH | ||||
| 67837-02200 |
NRE210..HI |
1 | ||
| 67837-02200 |
NRE210..HI |
1 | ||
| 67838D - SEAL, FRONT DOOR VENT, LH | ||||
| 67838-02160 |
NRE210..HI |
1 | ||
| 67838-02160 |
NRE210..HI |
1 | ||
| 67851D - SEAL, FRONT DOOR REAR OUTSIDE, RH | ||||
| 67851-02090 |
NRE210..HI |
1 | ||
| 67851-02090 |
NRE210..HI |
1 | ||
| 67852D - SEAL, FRONT DOOR REAR OUTSIDE, LH | ||||
| 67852-02090 |
NRE210..HI |
1 | ||
| 67852-02090 |
NRE210..HI |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-02410 |
NRE210..HI |
1 | ||
| 67861-02410 |
NRE210..HI |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-02410 |
NRE210..HI |
1 | ||
| 67862-02410 |
NRE210..HI |
1 | ||
| 67867 - CLIP, DOOR WEATHERSTRIP | ||||
| 67867-52030 |
NRE210..HI |
2 | ||
| 67867-52030 |
NRE210..HI |
2 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67868-30030 |
NRE210..HI |
2 | ||
| 67868-30030 |
NRE210..HI |
2 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NRE210..HI |
20 | ||
| 67867-12150 |
NRE210..HI |
20 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
NRE210..HI |
20 | ||
| 67867-12150 |
NRE210..HI |
20 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-02650 |
NRE210..HI |
1 | ||
| 68101-02650 |
NRE210..HI |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-02650 |
NRE210..HI |
1 | ||
| 68102-02650 |
NRE210..HI |
1 | ||
| 68125 - GLASS, FRONT DOOR FIX WINDOW, RH | ||||
| 68125-02090 |
NRE210..HI |
1 | ||
| 68125-02090 |
NRE210..HI |
1 | ||
| 68126 - GLASS, FRONT DOOR FIX WINDOW, LH | ||||
| 68126-02090 |
NRE210..HI |
1 | ||
| 68126-02090 |
NRE210..HI |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-02461 |
NRE210..HI |
1 | ||
| 68141-02460 |
NRE210,ZWE211 |
1 | ||
| 68141-02461 |
NRE210..HI |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-02450 |
NRE210,ZWE211 |
1 | ||
| 68151-02451 |
NRE210..HI |
1 | ||
| 68151-02451 |
NRE210..HI |
1 | ||
| 68215 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH | ||||
| 68215-02090 |
NRE210..HI |
1 | ||
| 68215-02090 |
NRE210..HI |
1 | ||
| 68216 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH | ||||
| 68216-02090 |
NRE210..HI |
1 | ||
| 68216-02090 |
NRE210..HI |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-02420 |
NRE210..HI |
2 | ||
| 68610-02420 |
NRE210..HI |
2 | ||
| 87963 - COVER, OUTER MIRROR INSTALL HOLE, RH | ||||
| 87963-02060 |
NRE210..HI |
1 | ||
| 87963-02060 |
NRE210..HI |
1 | ||
| 87964 - COVER, OUTER MIRROR INSTALL HOLE, LH | ||||
| 87964-02060 |
NRE210..HI |
1 | ||
| 87964-02060 |
NRE210..HI |
1 | ||
| Common parts | ||||
| 67869-47010 | ||||
| 67869-F4020 | ||||
| 90109-C0028 | ||||
| 90119-C0099 | ||||
| 90119-C0107 | ||||
| 90151-C0001 | ||||
| 90159-60303 | ||||
| 90159-C0006 | ||||
| 90189-06227 | ||||
| 90189-C0033 | ||||
| 90333-30008 | ||||
| 90467-C0033 | ||||
| 90950-01620 | ||||
| 90950-01919 | ||||
| 90950-01A02 | ||||
| 90950-C1011 | ||||
| 90950-C1016 | ||||
| 90950-C1023 | ||||
| Linked diagrams | ||||
| 6704 | ||||
| 7503 | ||||

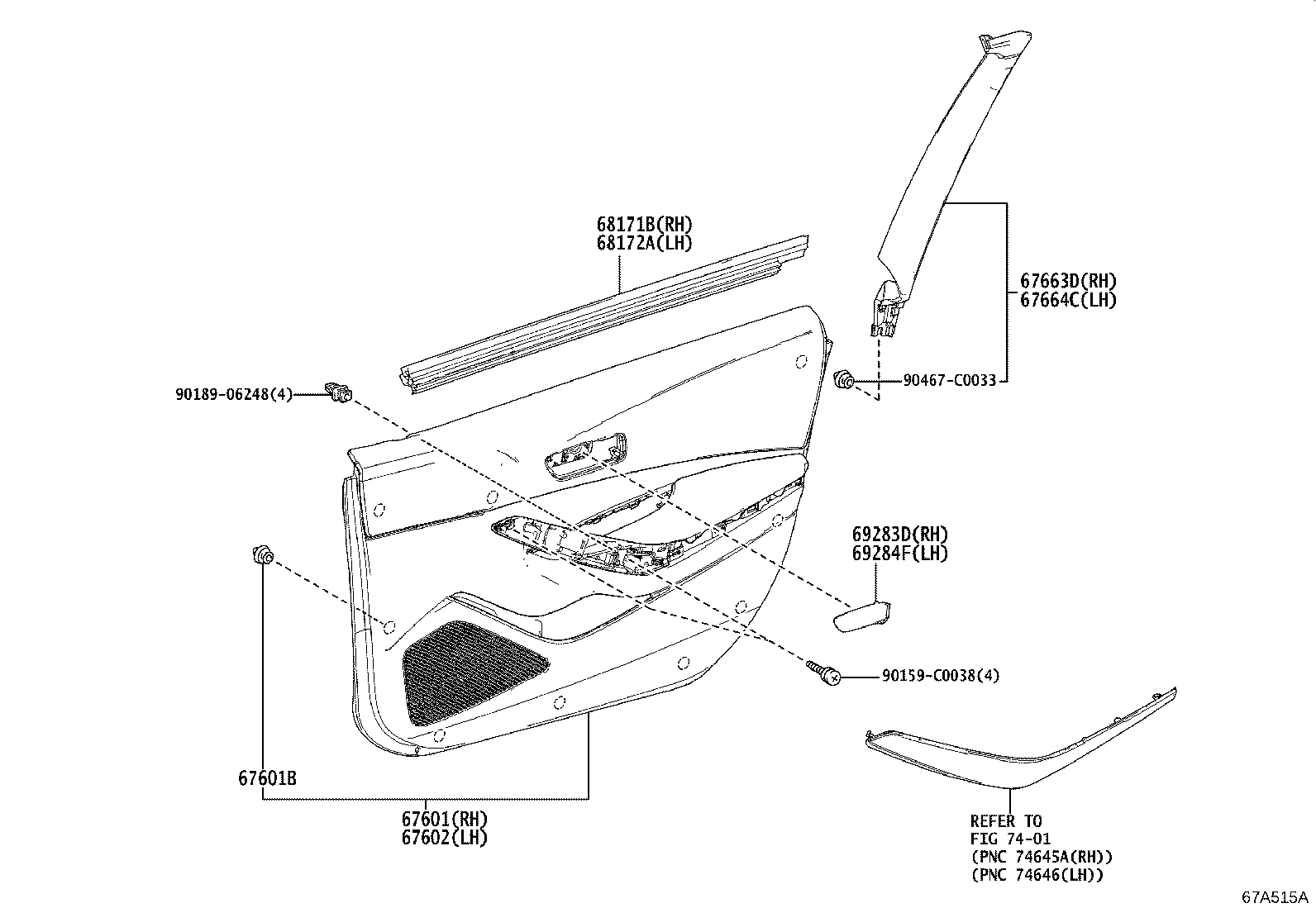

ILLUST NO. 2 OF 2(1908- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-0Z400C3 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 67610-0Z400C2 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 67610-0Z400C3 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 67610-0Z400C2 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-C0033 |
NRE210..HI |
18 | ||
| 90467-C0033 |
NRE210..HI |
18 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-0Z410C3 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 67620-0Z410C2 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 67620-0Z410C2 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 67620-0Z410C3 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-02100 |
NRE210..HI |
1 | ||
| 67663-02100 |
NRE210..HI |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-02100 |
NRE210..HI |
1 | ||
| 67664-02100 |
NRE210..HI |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-02440 |
NRE210..HI |
1 | ||
| 68171-02440 |
NRE210..HI |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-02420 |
NRE210..HI |
1 | ||
| 68172-02420 |
NRE210..HI |
1 | ||
| 69283D - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 74037-02070C0 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 74037-02070A0 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 74037-02070C0 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 74037-02070A0 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 69284F - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 74038-02070A0 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 74038-02070C0 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 74038-02070C0 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 74038-02070A0 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| Common parts | ||||
| 90159-C0038 | ||||
| 90189-06248 | ||||
| 90467-C0033 | ||||
| Linked diagrams | ||||
| 7401 | ||||
