NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

Click highlighted areas on diagram

MOON ROOF

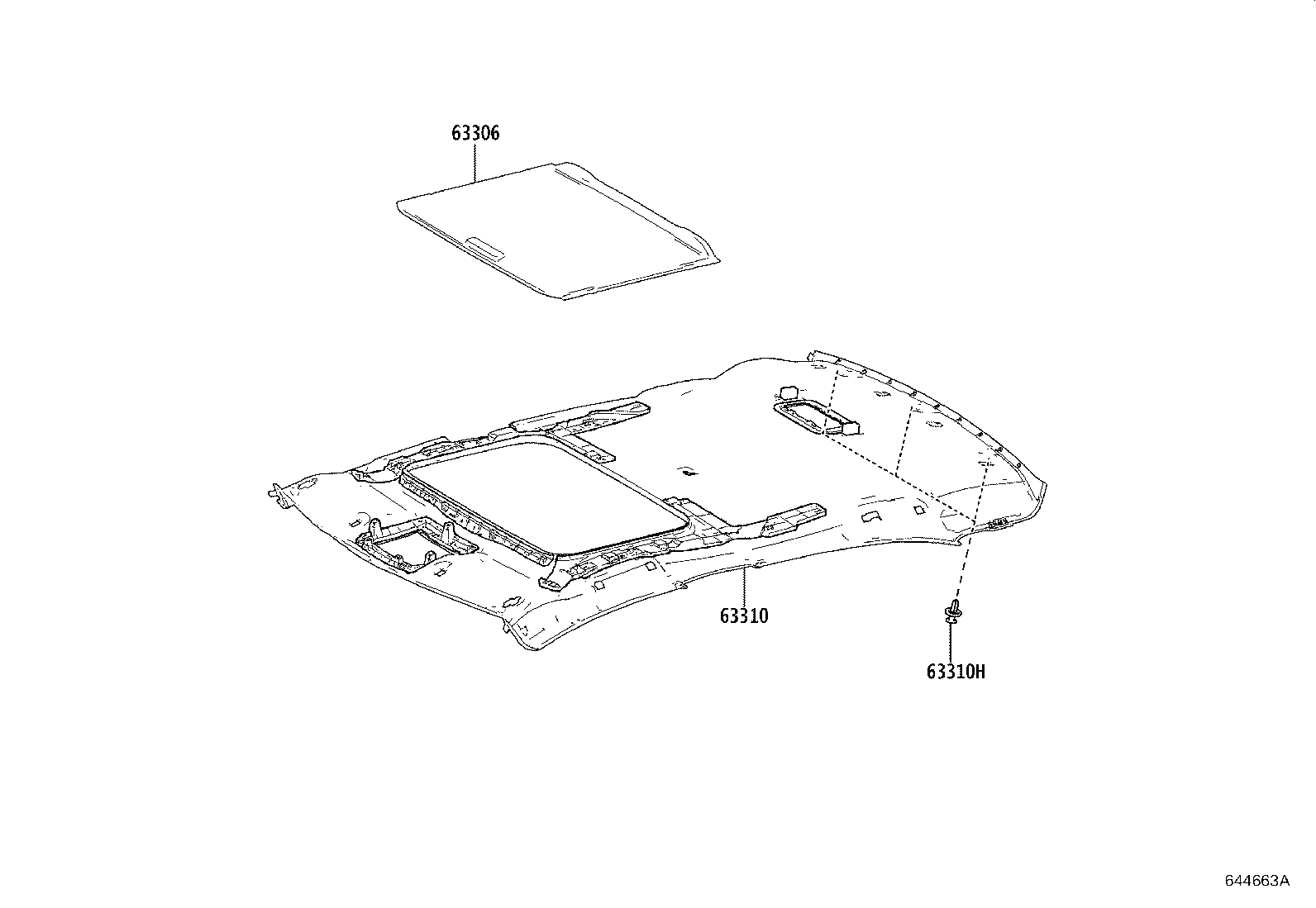

diagram 63306 63310 63310H
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-02201A0

NRE210,ZWE211..HI,MID

FROMAGE,TRIM0#,2#

 1
63306-02200A0

NRE210..HI

FROMAGE,TRIM0#,2#

 1
63306-02200A0

NRE210,ZWE211..HI,MID

FROMAGE,TRIM0#,2#

 1
63310 - HEADLINING ASSY, ROOF
63310-02T50A0

NRE210..HI

FROMAGE,TRIM0#,2#

 1
63310-02T51A0

MZEA11,NRE210,ZWE211..HI,MID

FROMAGE,TRIM0#,2#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05168A0

NRE210..HI

FROMAGE,TRIM0#,2#

 3
90467-05168A0

NRE210..HI

FROMAGE,TRIM0#,2#

 3
