NRE210L-GEXGZC (2019)
Toyota Corolla
Production
Aug 2019
-
Sep 9999
Engine
9NRFTS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1908- )

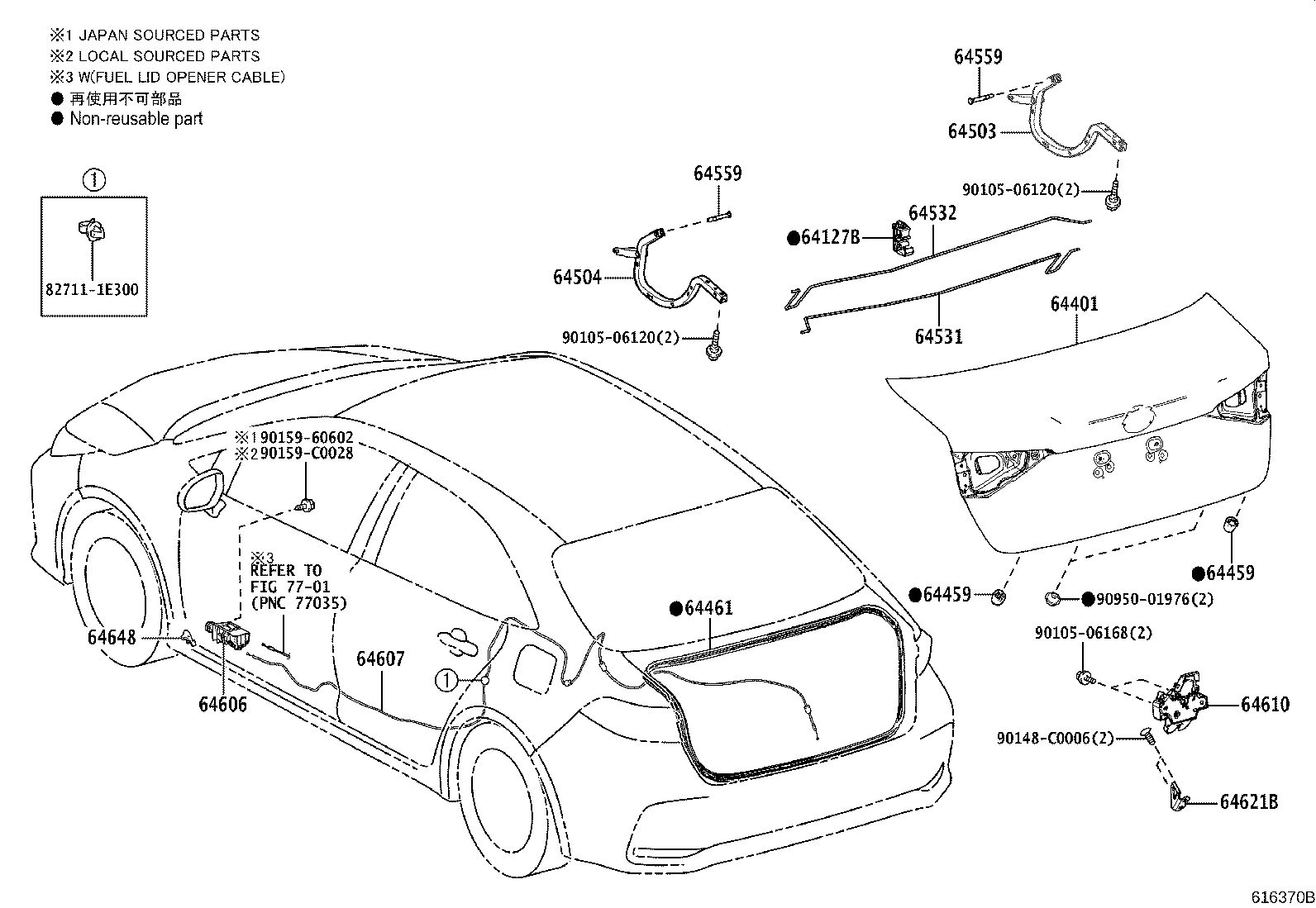

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR | ||||
| 64127-33071 |
NRE210..HI |
1 | ||
| 64127-33071 |
NRE210..HI |
1 | ||
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-02J50 |
NRE210..HI |
1 | ||
| 64401-02J51 |
MZEA11,NRE210,ZWE211..HI,MID |
1 | ||
| 64459 - CUSHION, LUGGAGE COMPARTMENT DOOR | ||||
| 90541-C0009 |
NRE210..HI (L) |
2 | ||
| 90541-09069 |
NRE210..HI (J) |
2 | ||
| 90541-09069 |
NRE210,ZWE211 |
2 | ||
| 90541-C0009 |
NRE210..HI (L) |
2 | ||
| 90541-09069 |
NRE210..HI (J) |
2 | ||
| 64459 - CUSHION, LUGGAGE COMPARTMENT DOOR | ||||
| 90541-C0009 |
NRE210..HI (L) |
2 | ||
| 90541-09069 |
NRE210..HI (J) |
2 | ||
| 90541-09069 |
NRE210,ZWE211 |
2 | ||
| 90541-C0009 |
NRE210..HI (L) |
2 | ||
| 90541-09069 |
NRE210..HI (J) |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-02370 |
NRE210..HI |
1 | ||
| 64461-02370 |
NRE210..HI |
1 | ||
| 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64503-02290 |
NRE210..HI |
1 | ||
| 64503-02290 |
NRE210..HI |
1 | ||
| 64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64503-02290 |
NRE210..HI |
1 | ||
| 64503-02290 |
NRE210..HI |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-02770 |
NRE210..HI |
1 | ||
| 64531-02770 |
NRE210..HI |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-02770 |
NRE210..HI |
1 | ||
| 64532-02770 |
NRE210..HI |
1 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-12040 |
NRE210..HI |
2 | ||
| 64559-12040 |
NRE210..HI |
2 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-12040 |
NRE210..HI |
2 | ||
| 64559-12040 |
NRE210..HI |
2 | ||
| 64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN | ||||
| 64606-02200 |
NRE210..HI |
1 | ||
| 64606-02200 |
NRE210..HI |
1 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-02570 |
NRE210..HI |
1 | ||
| 64607-02570 |
NRE210..HI |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64600-02121 |
NRE210..HI |
1 | ||
| 64600-02121 |
NRE210..HI |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64621-0D040 |
NRE210..HI |
1 | ||
| 64621-0D040 |
NRE210..HI |
1 | ||
| 64648 - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-02020 |
NRE210..HI |
1 | ||
| 64648-02020 |
NRE210..HI |
1 | ||
| Common parts | ||||
| 82711-1E300 | ||||
| 90105-06120 | ||||
| 90105-06168 | ||||
| 90148-C0006 | ||||
| 90159-60602 | ||||
| 90159-C0028 | ||||
| 90950-01976 | ||||
| Linked diagrams | ||||
| 7701 | ||||
