NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

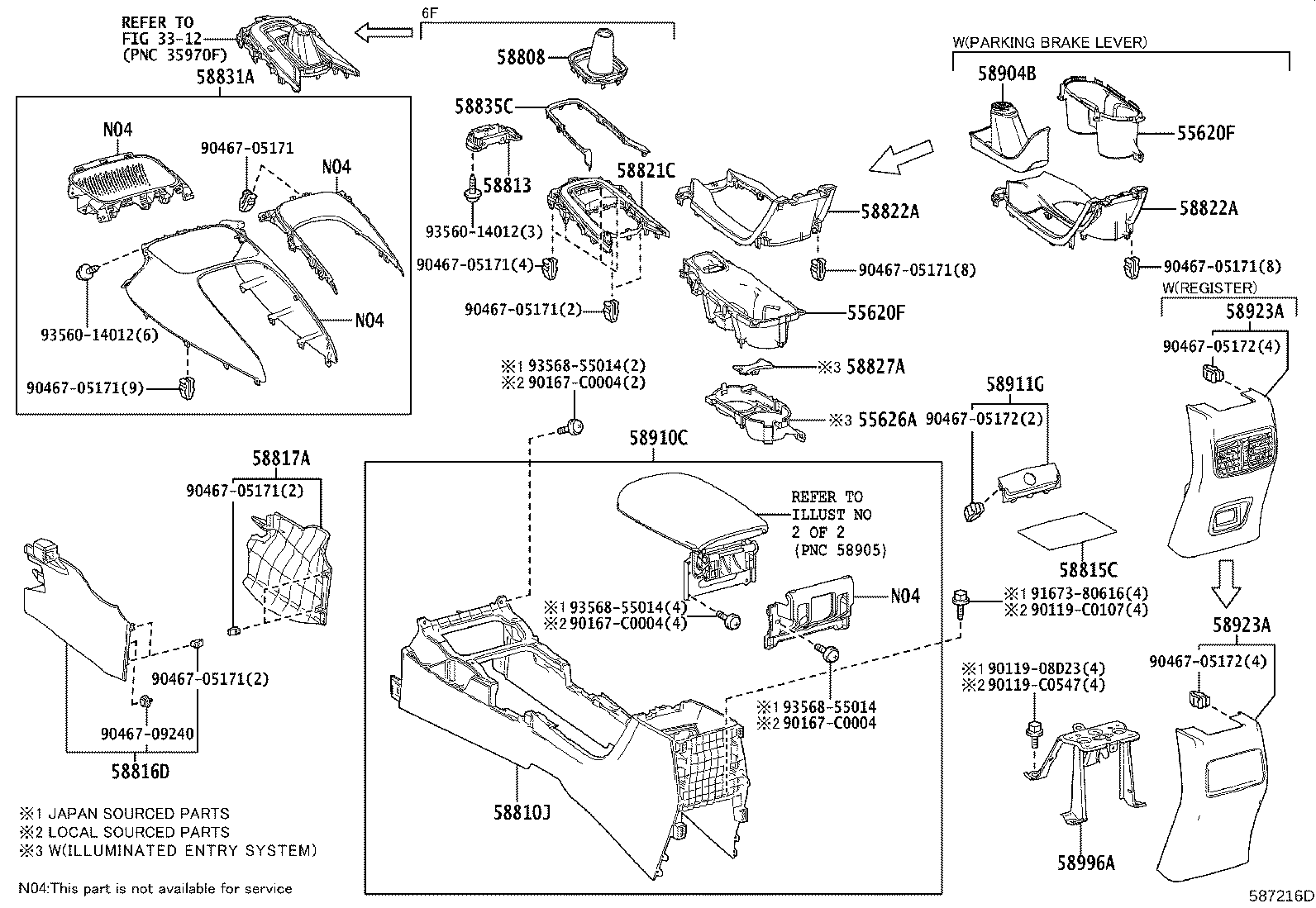

ILLUST NO. 1 OF 2(1908- )

Click highlighted areas on diagram

diagram 3312 55620F 55620F 55626A 58808 58810J 58813 58815C 58816D 58817A 58821C 58822A 58822A 58827A 58831A 58835C 58904B 58910C 58911G 58923A 58923A 58996A 9011908D23 90119C0107 90119C0547 90167C0004 90167C0004 90167C0004 9046705171 9046705171 9046705171 9046705171 9046705171 9046705171 9046705171 9046705171 9046705172 9046705172 9046705172 9046709240 9167380616 9356014012 9356014012 9356855014 9356855014 9356855014
Part # Description Qty Price
55620F - HOLDER ASSY, CONSOLE BOX CUP
55620-02380

NRE210..HI

 1
55620-02380

NRE210..ENTRY,HI

 1
55620F - HOLDER ASSY, CONSOLE BOX CUP
55620-02380

NRE210..HI

 1
55620-02380

NRE210..ENTRY,HI

 1
58810J - BOX ASSY, CONSOLE
58810-02110C0

NRE210..HI

BLACK,TRIM0#,2#

 1
58810-02110C0

NRE210..HI

BLACK,TRIM0#,2#

 1
58815C - CARPET, CONSOLE BOX
58815-02510

NRE210..HI

 1
58815-02510

NRE210..HI

 1
58816D - INSERT, CONSOLE BOX, FRONT NO.1
58816-02470C0

NRE210..HI

BLACK,TRIM0#,2#

 1
58816-02470C0

NRE210..HI

BLACK,TRIM0#,2#

 1
58817A - INSERT, CONSOLE BOX, FRONT NO.2
58817-02480C0

NRE210..HI

BLACK,TRIM0#,2#

 1
58817-02480C0

NRE210..HI

BLACK,TRIM0#,2#

 1
58822A - PANEL, CONSOLE, UPPER REAR
58822-02530

NRE210..HI

 1
58822-02530

NRE210..ENTRY,HI

 1
58822A - PANEL, CONSOLE, UPPER REAR
58822-02530

NRE210..HI

 1
58822-02530

NRE210..ENTRY,HI

 1
58831A - GARNISH, CONSOLE UPPER PANEL, FRONT
58831-02450C1

NRE210..HI

BLACK,TRIM2#

 1
58831-02450C1

NRE210..HI

BLACK,TRIM2#

 1
58831-02450C0

NRE210..HI

ORCHID BROWN,TRIM0#

 1
58831-02450C0

NRE210..HI

ORCHID BROWN,TRIM0#

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-02B80C1

NRE210..HI

ORCHID BROWN,TRIM0#

 1
58910-02B80C0

NRE210..HI

BLACK,TRIM2#

 1
58910-02B80C0

NRE210..HI

BLACK,TRIM2#

 1
58910-02B80C1

NRE210..HI

ORCHID BROWN,TRIM0#

 1
58911G - PANEL, BOX, NO.1
58911-02670C0

NRE210..HI

BLACK,TRIM0#,2#

 1
58911-02670C0

NRE210..HI

BLACK,TRIM0#,2#

 1
58923A - PANEL, CONSOLE REAR END
58923-02460C0

NRE210..HI

BLACK,TRIM0#,2#

 1
58923-02460C0

NRE210..HI

BLACK,TRIM0#,2#

 1
58923A - PANEL, CONSOLE REAR END
58923-02460C0

NRE210..HI

BLACK,TRIM0#,2#

 1
58923-02460C0

NRE210..HI

BLACK,TRIM0#,2#

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-02280

NRE210..HI

 1
58996-02280

NRE210..HI

 1
Common parts
90119-08D23
90119-C0107
90119-C0547
90167-C0004
90467-05171
90467-05172
90467-09240
91673-80616
93560-14012
93568-55014
Linked diagrams
3312

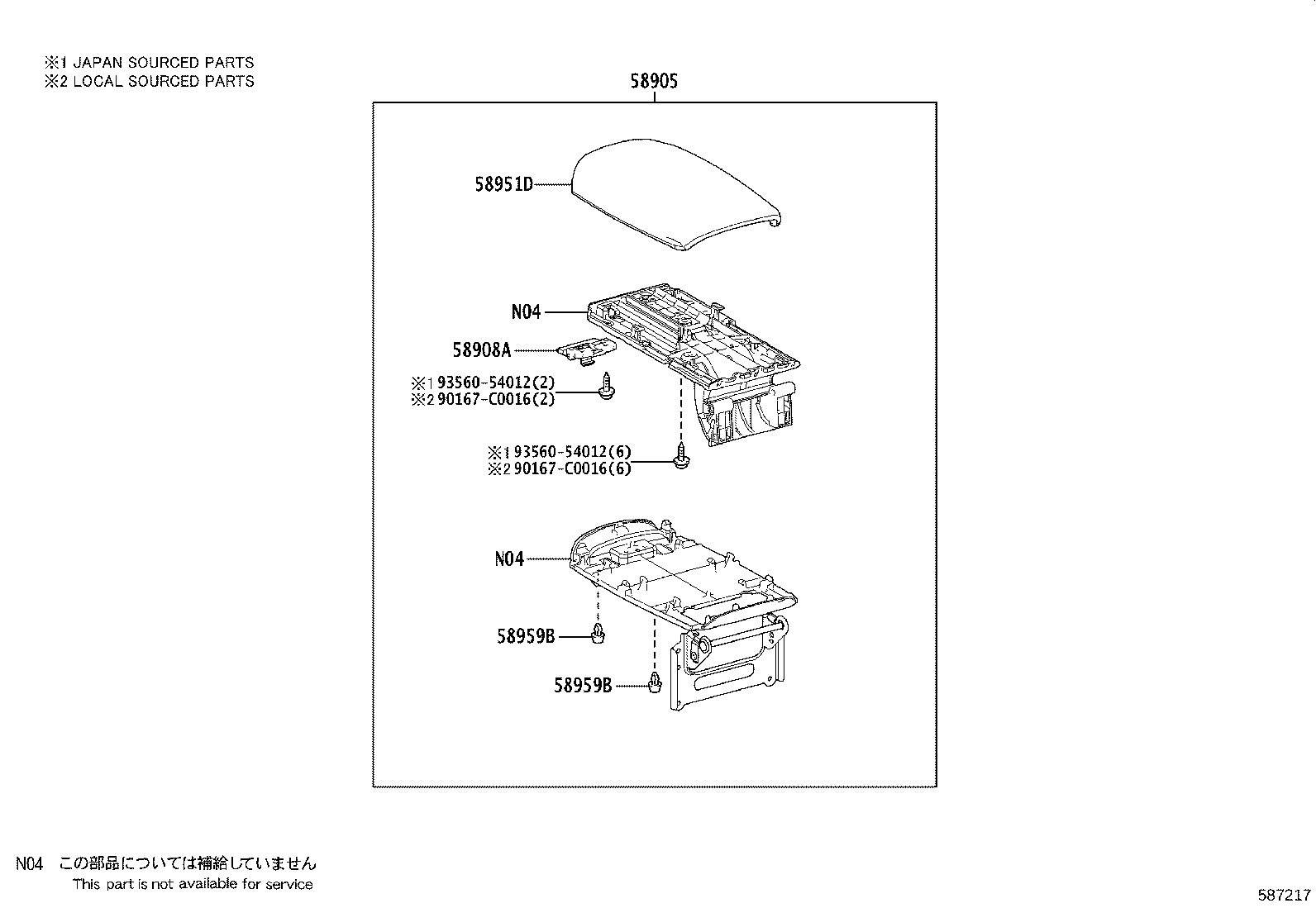

ILLUST NO. 2 OF 2(1908- )

Click highlighted areas on diagram

CONSOLE COMPARTMENT DOOR

diagram 58905 58908A 58951D 58959B 58959B 90167C0016 90167C0016 9356054012 9356054012
Part # Description Qty Price
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-02G00E0

NRE210..HI

ORCHID BROWN,TRIM0#

 1
58905-02G00E0

NRE210..HI

ORCHID BROWN,TRIM0#

 1
58905-02G00C0

NRE210..HI

BLACK,TRIM2#

 1
58905-02G00C0

NRE210..HI

BLACK,TRIM2#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-YK010

NRE210..HI

 1
58908-YK010

NRE210..HI

 1
58951D - DOOR, CONSOLE COMPARTMENT, OUTER
58951-02E00C0

NRE210..HI

BLACK,TRIM2#

 1
58951-02E00E0

NRE210..HI

ORCHID BROWN,TRIM0#

 1
58951-02E00C0

NRE210..HI

BLACK,TRIM2#

 1
58951-02E00E0

NRE210..HI

ORCHID BROWN,TRIM0#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060

NRE210..HI

 4
58959-60060

NRE210..HI

 4
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060

NRE210..HI

 4
58959-60060

NRE210..HI

 4
Common parts
90167-C0016
93560-54012

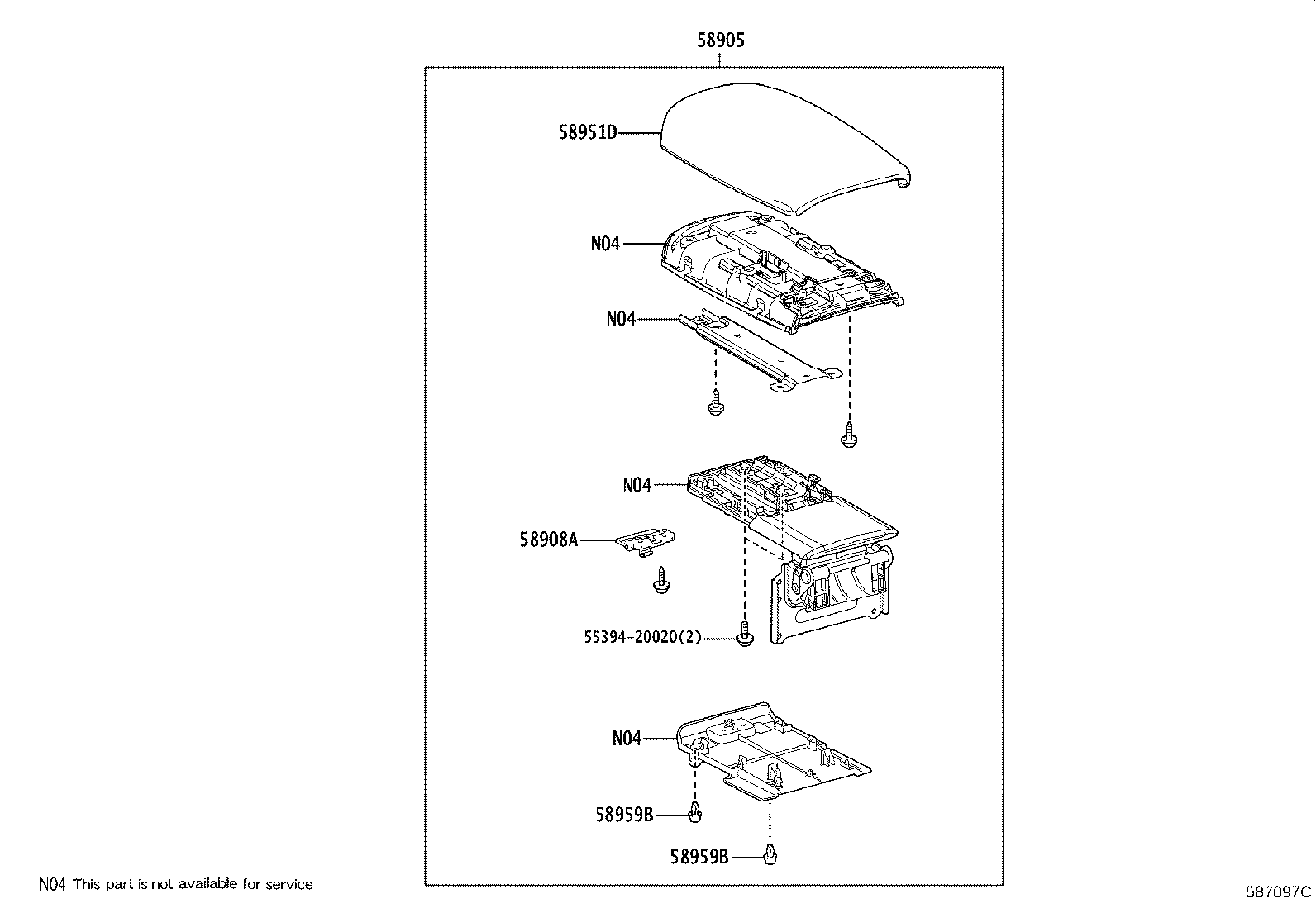

ILLUST NO. 2 OF 2(1908- )

Click highlighted areas on diagram

CONSOLE COMPARTMENT DOOR,SLIDE TYPE

diagram 5539420020 58905 58908A 58951D 58959B 58959B
Part # Description Qty Price
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-02G00E0

NRE210..HI

ORCHID BROWN,TRIM0#

 1
58905-02G00E0

NRE210..HI

ORCHID BROWN,TRIM0#

 1
58905-02G00C0

NRE210..HI

BLACK,TRIM2#

 1
58905-02G00C0

NRE210..HI

BLACK,TRIM2#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-YK010

NRE210..HI

 1
58908-YK010

NRE210..HI

 1
58951D - DOOR, CONSOLE COMPARTMENT, OUTER
58951-02E00C0

NRE210..HI

BLACK,TRIM2#

 1
58951-02E00E0

NRE210..HI

ORCHID BROWN,TRIM0#

 1
58951-02E00C0

NRE210..HI

BLACK,TRIM2#

 1
58951-02E00E0

NRE210..HI

ORCHID BROWN,TRIM0#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060

NRE210..HI

 4
58959-60060

NRE210..HI

 4
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060

NRE210..HI

 4
58959-60060

NRE210..HI

 4
Common parts
55394-20020
